NSN 3110-00-184-9113 SR3FMC7P811, SR3FMC7P811LYV250LY2313CS280, FR3BX18C44V32G33

Product Details | ANNULAR BALL BEARING

3110-00-184-9113 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: SR3FMC7P811, SR3FMC7P811LYV250LY2313CS280, FR3BX18C44V32G33, 30473, 3110-00-184-9113, 00-184-9113, 3110001849113, 001849113

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	17 DEC 1971	00-184-9113	00014 ( BEARING, BALL, ANNULAR )

Drawings & Photos | NSN 3110-00-184-9113

Part Number	Request Date	QTY	Origin
3110-00-184-9113	2009-09-254	231	DIBBS
3110-00-184-9113	2008-10-301	42	DIBBS
3110-00-184-9113	2008-10-301	153	DIBBS
3110-00-184-9113	2008-09-267	42	DIBBS
3110-00-184-9113	2008-09-267	152	DIBBS
3110-00-184-9113	2008-07-213	152	DIBBS
3110-00-184-9113	2008-05-148	42	DIBBS
3110-00-184-9113	2008-04-115	26	DIBBS
3110-00-184-9113	2007-11-319	75	DIBBS
3110-00-184-9113	2007-10-298	42	DIBBS
3110-00-184-9113	2007-08-239	46	DIBBS

Cross Reference | NSN 3110-00-184-9113

Part Number	Cage Code	Manufacturer
30473	50027	FLIGHTLINE ELECTRONICS, INC. DBA ULTRA ELEC FLIGHTLINE SYSTEMS
FR3BX18C44V32G33	70854	BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS
SR3FMC7P811	40920	MPB CORPORATION DBA TIMKEN SUPER PRECISION
SR3FMC7P811LYV250LY2313CS280	40920	MPB CORPORATION DBA TIMKEN SUPER PRECISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-184-9113

Compare

Related Products | NSN 3110-00-184-9113

3110-00-184-9436, 3110-00-184-9477, 3110-00-184-9810, 3110-00-185-0139, 3110-00-185-0147

Technical Data | NSN 3110-00-184-9113

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING BALL STEEL CORROSION RESISTING INNER RING STEEL CORROSION RESISTING OUTER RING PLASTIC PHENOLIC RETAINER

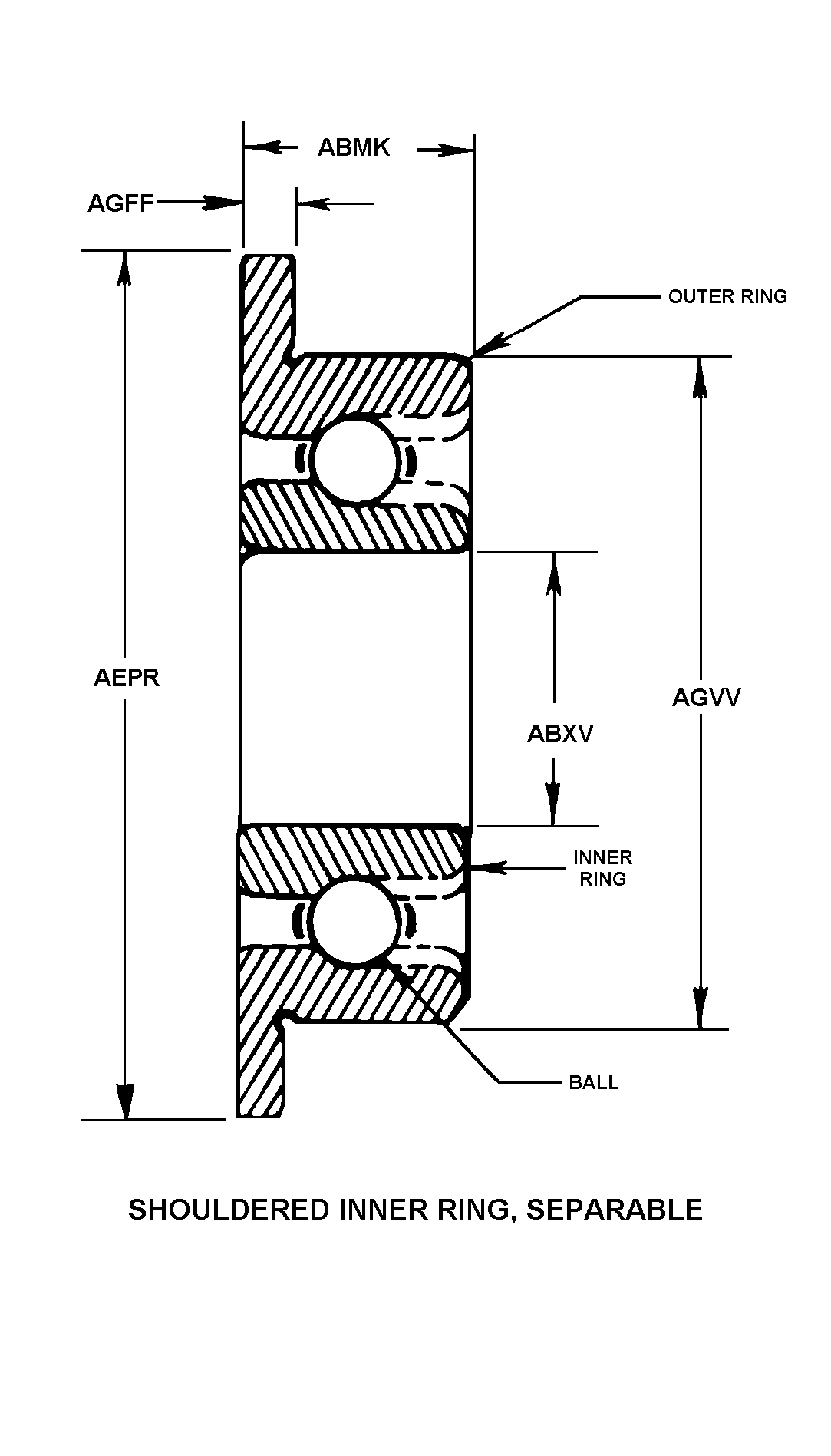

STYLE DESIGNATOR	14E SHOULDERED INNER RING, SEPARABLE
OVERALL WIDTH	0.1562 INCHES NOMINAL
BORE DIAMETER	0.1875 INCHES NOMINAL
FLANGE OUTSIDE DIAMETER	0.5650 INCHES NOMINAL
FLANGE WIDTH	0.0420 INCHES NOMINAL
OUTER RING OUTSIDE DIAMETER	0.5000 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE OR OIL
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC 1ST MATERIAL RESPONSE OR XRL743A,FSCM 77988 MFR REF 2ND MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	ABEC NO.7
CALIBRATION DESIGNATOR	C44
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	MOLDED
LOAD DIRECTION	ANGULAR
INTERNAL CLEARANCE	0.0008 INCHES MINIMUM RADIAL AND 0.0024 INCHES MAXIMUM RADIAL
SPECIAL FEATURES	PACK BEARING 10 PERCENT FULL OF SPECIFIED GREASE ALSO BALL CONTACT ANGLE 14 DEG MIN TO 25 DEG MAX

Restrictions/Controls & Freight Information | NSN 3110-00-184-9113

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-184-9113

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
