NSN 3110-00-158-6283 B1226, T77200K, T77200KANG25
Product Details | AIRFRAME BALL BEARING
3110-00-158-6283 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: B1226, T77200K, T77200KANG25, T77200KMILG3278A, X107ANG25, X107MILG3278A, X5291, X107, 58005237, 5800-5-2-37, 1226ANG25, 1226MILG3278A, 2000D6, 200-0D6, 2000D6MILG3278A, 200-0D6MILG3278A, 200OD6FS160, 3110-00-158-6283, 00-158-6283, 3110001586283, 001586283
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-158-6283 | 00041 ( BEARING, BALL, AIRFRAME ) |

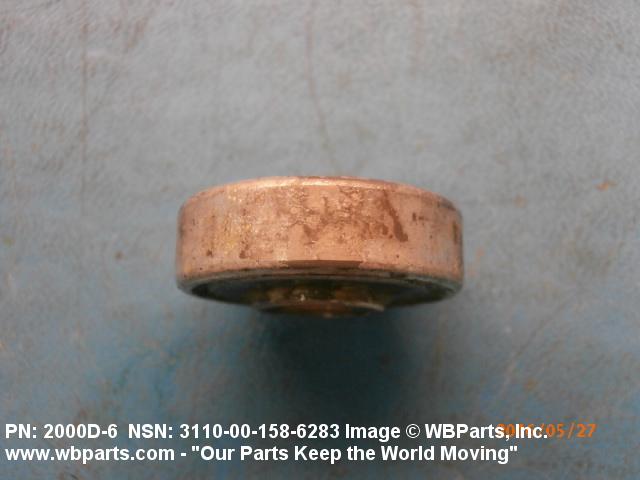

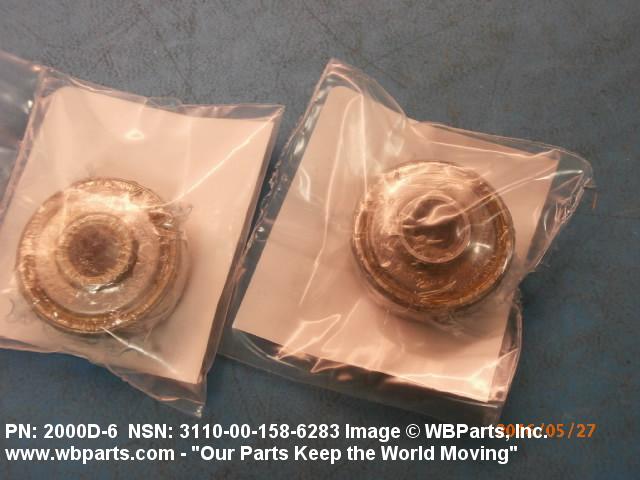

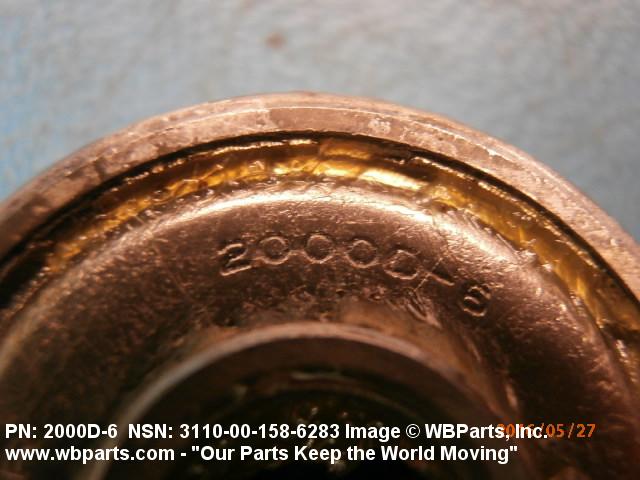

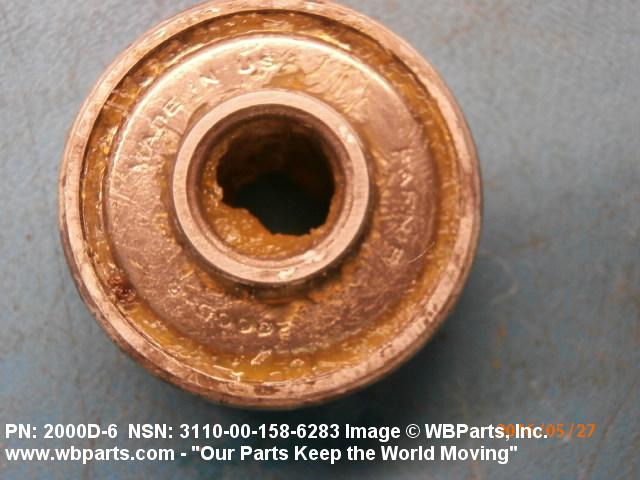

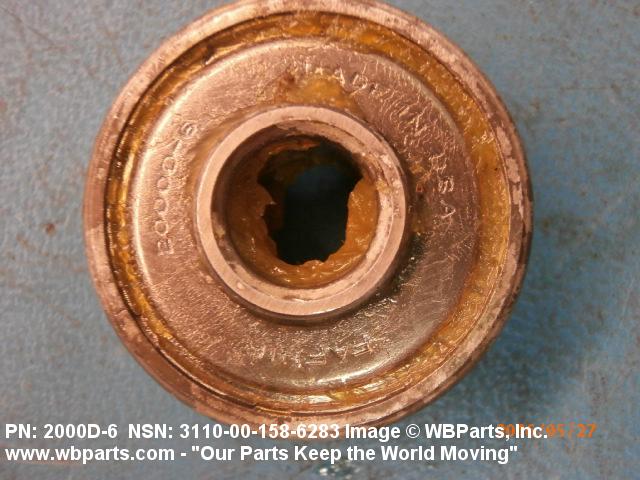

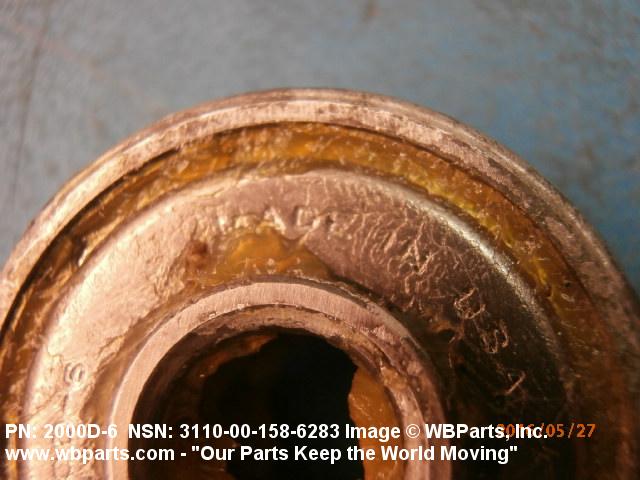

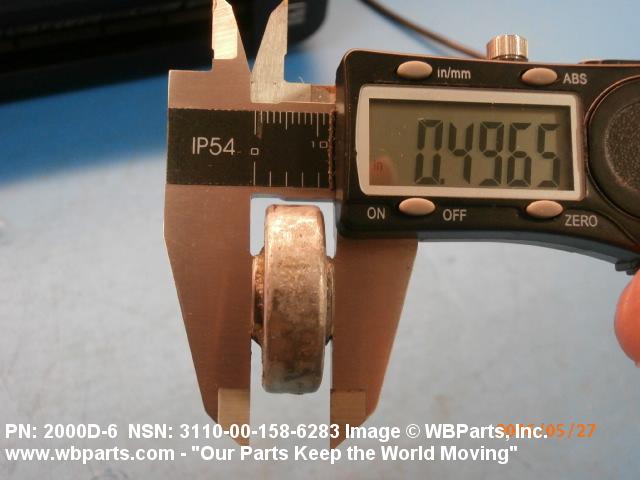

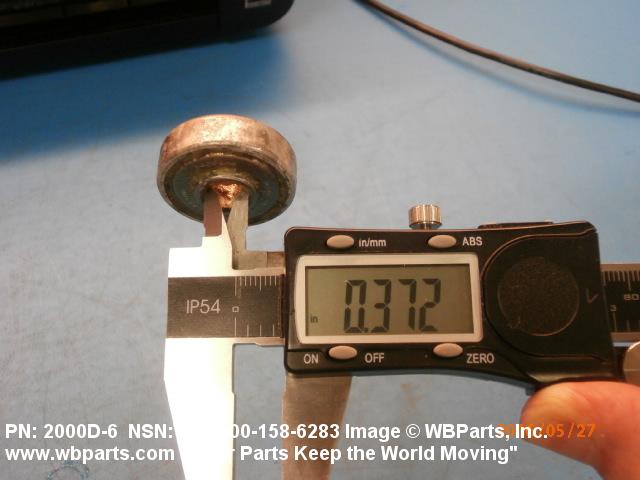

Drawings & Photos | NSN 3110-00-158-6283
Demand History | NSN 3110-00-158-6283
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-158-6283 | 2016-04-96 | 2 | Australia |
| B1226 | 2011-09-273 | 70 |
Cross Reference | NSN 3110-00-158-6283
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1226ANG25 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| 1226MILG3278A | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| 200-0D6 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 200-0D6 | 21760 | SCHATZ BEARING CORPORATION |
| 200-0D6MILG3278A | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 200-0D6MILG3278A | 21760 | SCHATZ BEARING CORPORATION |
| 200OD6FS160 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 5800-5-2-37 | 41862 | BAWDRATE SERVICES |
| B1226 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| T77200K | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| T77200KANG25 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| T77200KMILG3278A | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| X107 | 43991 | FAG BEARINGS CORPORATION |
| X107ANG25 | 43991 | FAG BEARINGS CORPORATION |
| X107MILG3278A | 43991 | FAG BEARINGS CORPORATION |
| X5291 | 11406 | REXNORD HOLDINGS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-158-6283
Technical Data | NSN 3110-00-158-6283
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BALL STEEL CORROSION RESISTING INNER RING STEEL CORROSION RESISTING OUTER RING STEEL SHIELD |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES CADMIUM SHIELD |
| STYLE DESIGNATOR | 196 SINGLE ROW INNER RING EXTENDED BOTH SIDES |
| BORE DIAMETER | 0.3755 INCHES NOMINAL |

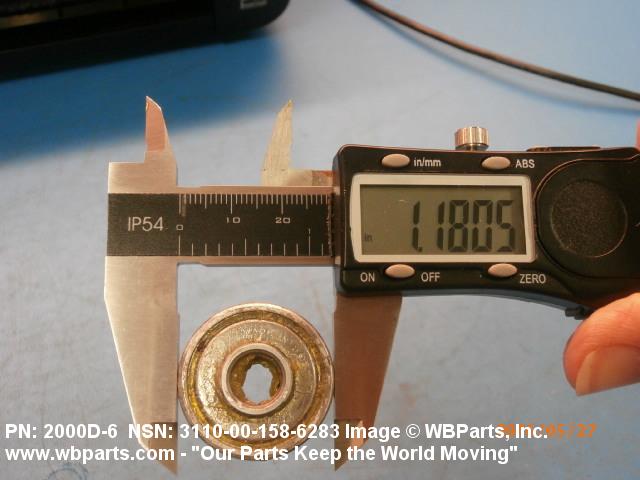

| OVERALL OUTSIDE DIAMETER | 1.1811 INCHES NOMINAL |

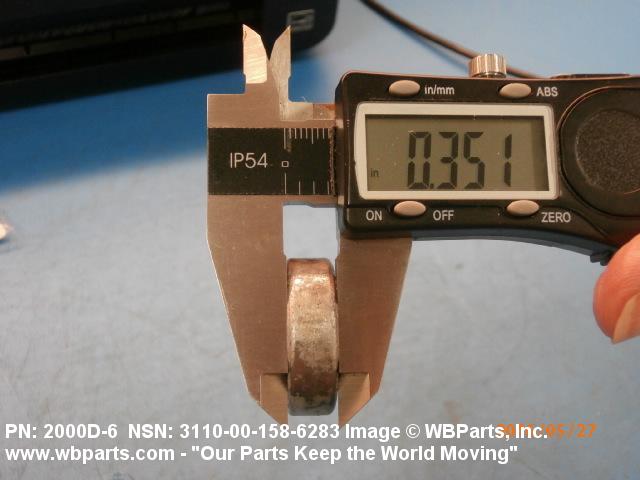

| OUTER RING WIDTH | 0.3540 INCHES NOMINAL |
| INNER RING WIDTH | 0.5000 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| SHIELD QUANTITY | 2 |
| LOAD DIRECTION | RADIAL |
Restrictions/Controls & Freight Information | NSN 3110-00-158-6283
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3110-00-158-6283
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
