NSN 3110-00-142-4468 MS20201KP6A, AN201KP6A, KP6AANG25
Product Details | AIRFRAME BALL BEARING
3110-00-142-4468 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.
Part Alternates: MS20201KP6A, AN201KP6A, KP6AANG25, KP6AFS10125, KP6AFS160, KP6AFS160M6B, KP6AFS50125, KP6A, 1370429104, 137-042-9104, 1370859001, 137-085-9001, 158346, 9016301, 9-01-6301, 3110-00-142-4468, 00-142-4468, 3110001424468, 001424468
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1960 | 00-142-4468 | 00041 ( BEARING, BALL, AIRFRAME ) |

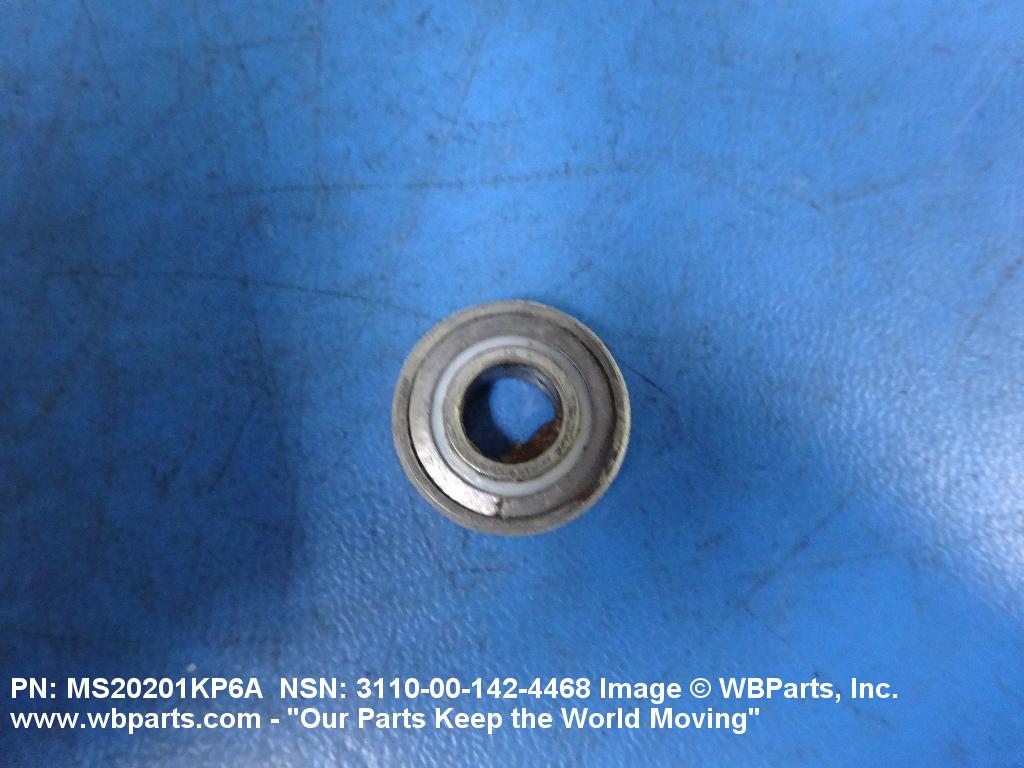

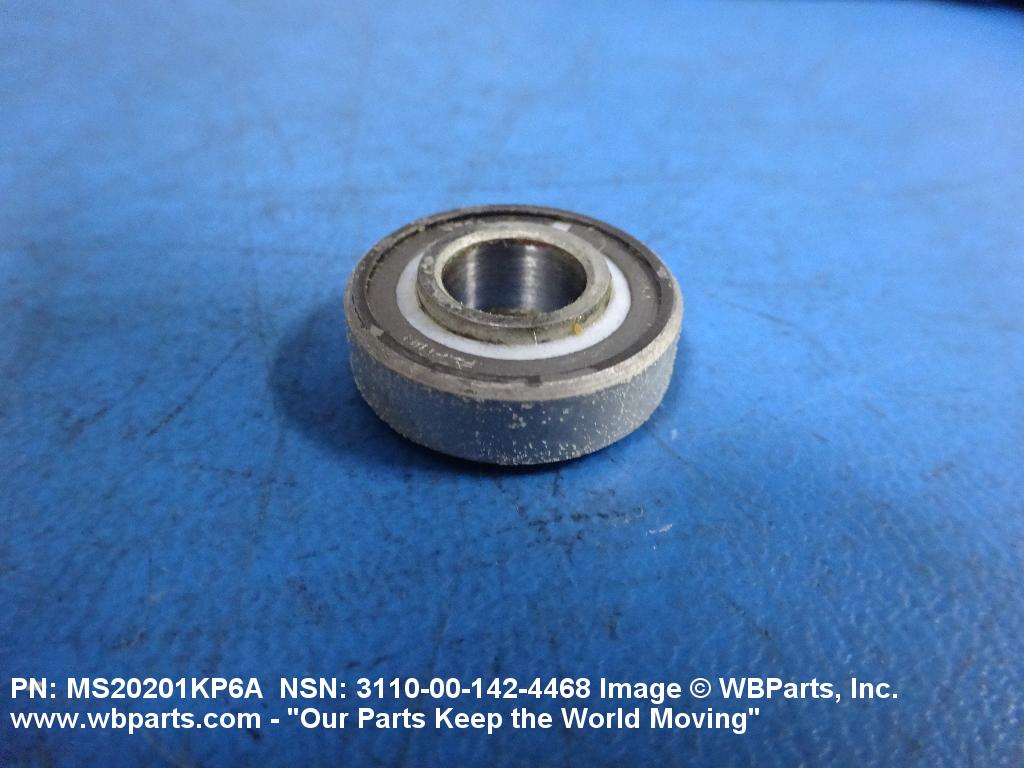

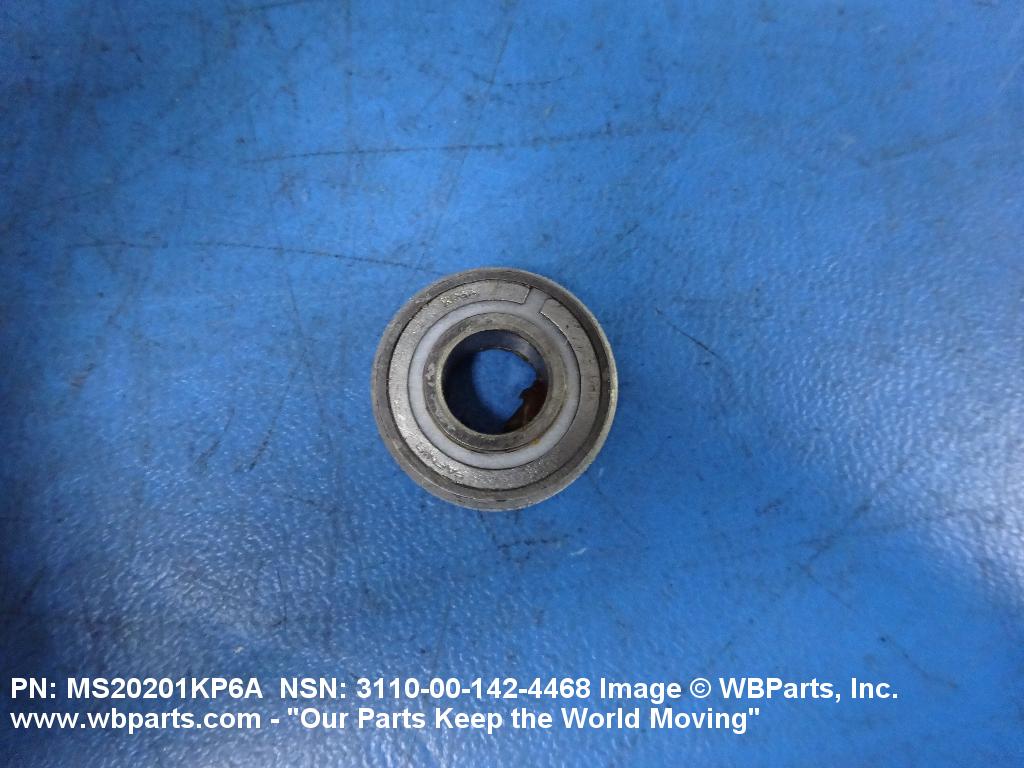

Drawings & Photos | NSN 3110-00-142-4468
Demand History | NSN 3110-00-142-4468
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN201KP6A | 2024-10-296 | 20 | us |
| AN201KP6A | 2024-10-296 | 50 | us |
| 3110-00-142-4468 | 2024-05-149 | 83 | United States |
| 3110-00-142-4468 | 2023-04-114 | 75 | AE |
| AN201KP6A | 2023-04-109 | 75 | AE |
| MS20201KP6A | 2022-01-13 | 3 | United States |
| 3110-00-142-4468 | 2021-11-314 | 1 | US |
| 3110-00-142-4468 | 2021-02-39 | 150 | US |
| 3110-00-142-4468 | 2020-08-237 | 18 | United States |
| MS20201KP6A | 2018-10-290 | 2 | US |
| KP6A | 2017-11-319 | 100 | Lebanon |
| KP6A | 2015-01-13 | 2105 | US |
| MS20201KP6A | 2014-02-48 | 1280 | United States |
| KP6A | 2012-12-355 | 50 | Seychelles |
| MS20201KP6A | 2012-12-355 | 50 | Seychelles |
| KP6A | 2012-12-338 | 6 | us |
| KP6A | 2011-08-227 | 25 | United States |
| 3110-00-142-4468 | 2011-06-152 | 2500 | US |
| AN201KP6A | 2011-05-142 | 10 | US |
| MS20201KP6A | 2011-04-95 | 2 | AU |
| 3110-00-142-4468 | 2011-01-25 | 1 | US |
| 3110-00-142-4468 | 2011-01-18 | 10 | US |
| MS20201KP6A | 2010-11-309 | 5 | KE |
| MS20201KP6A | 2010-06-154 | 1 | US |
| 3110-00-142-4468 | 2010-02-41 | 10 | CR |
| 3110-00-142-4468 | 2009-12-338 | 1 | United Kingdom |
| AN201KP6A | 2009-11-320 | 1 | United States |
| MS20201KP6A | 2009-09-264 | 1 | US |
| 3110-00-142-4468 | 2009-06-167 | 2 | US |
| KP6A | 2009-02-32 | 1 | United Kingdom |
| KP6A | 2008-05-143 | 3 | US |
| MS20201KP6A | 2008-05-134 | 110 | US |
| 3110-00-142-4468 | 2008-05-133 | 110 | US |
Cross Reference | NSN 3110-00-142-4468
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 137-042-9104 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 137-085-9001 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 158346 | 55284 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| 9-01-6301 | 05805 | REXNORD INDUSTRIES, LLC DBA STEARNS DIV |
| AN201KP6A | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| AN201KP6A | 81153 | WESTVACO INC U S ENVELOPE DIV FLEXIBLE PACKAGING |
| AN201KP6A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| KP6A | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| KP6A | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| KP6AANG25 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| KP6AFS10125 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| KP6AFS160 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| KP6AFS160M6B | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| KP6AFS50125 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| MS20201KP6A | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-142-4468
Technical Data | NSN 3110-00-142-4468
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING RUBBER SYNTHETIC SEAL |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 196 SINGLE ROW INNER RING EXTENDED BOTH SIDES |

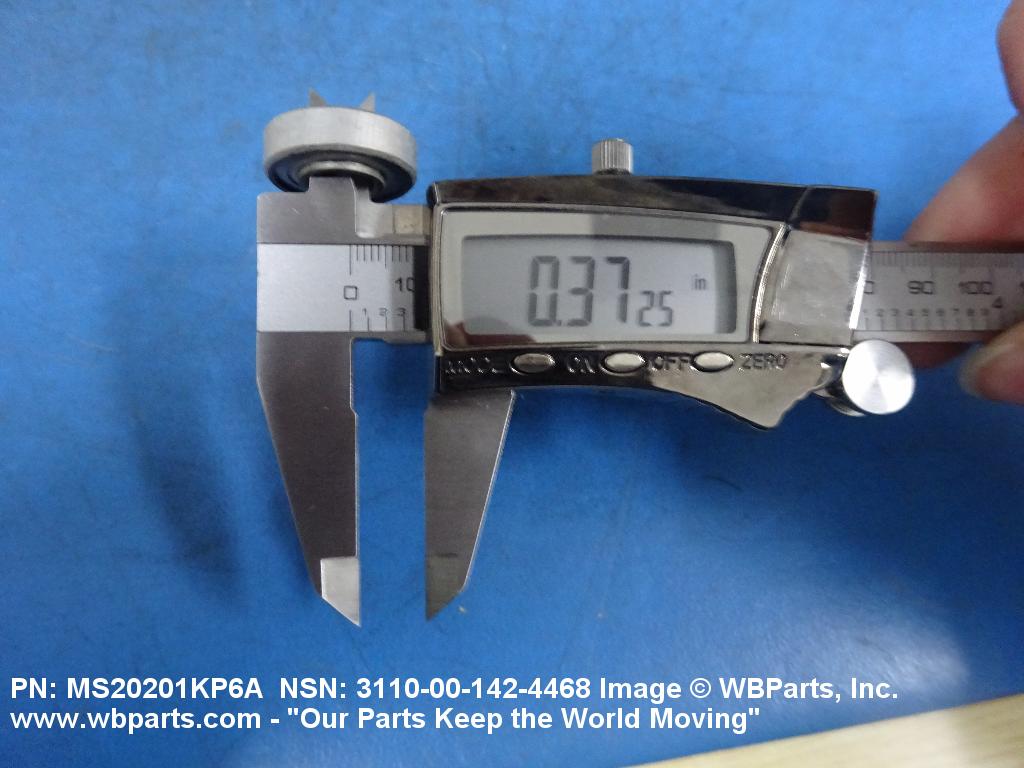

| BORE DIAMETER | 0.3745 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |

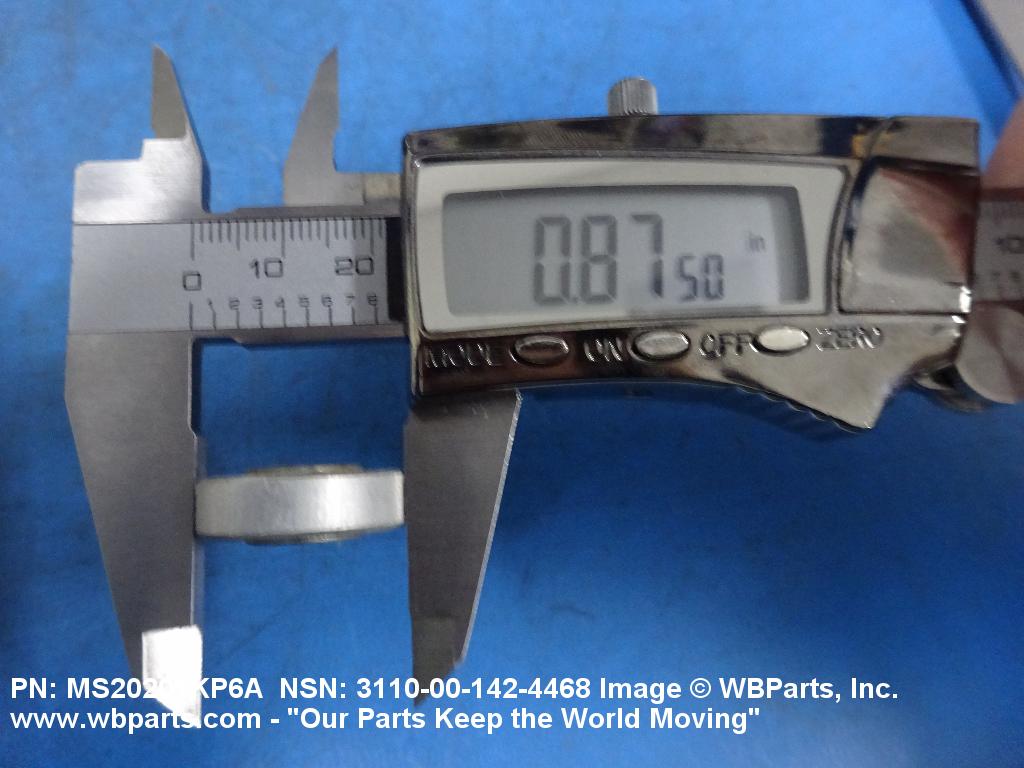

| OVERALL OUTSIDE DIAMETER | 0.8745 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.2450 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| INNER RING WIDTH | 0.3075 INCHES MINIMUM AND 0.3125 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | RADIAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20201KP6A |
Restrictions/Controls & Freight Information | NSN 3110-00-142-4468
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3110-00-142-4468
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
