Product Details | AIRFRAME BALL BEARING

3110-00-142-4341 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: A30255, B546FS160, B546L, B546-L , HJB-1, ISO5810, ISO58-10, TWF3746P, TWF37-46P, HJB1, B546, 3209190002, 320-919-0002, 708190, 17703037, 177030-37, 22239114, 222391-14, 00001791016, 000-01791-016, 3110-00-142-4341, 00-142-4341, 3110001424341, 001424341

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-142-4341	00041 ( BEARING, BALL, AIRFRAME )

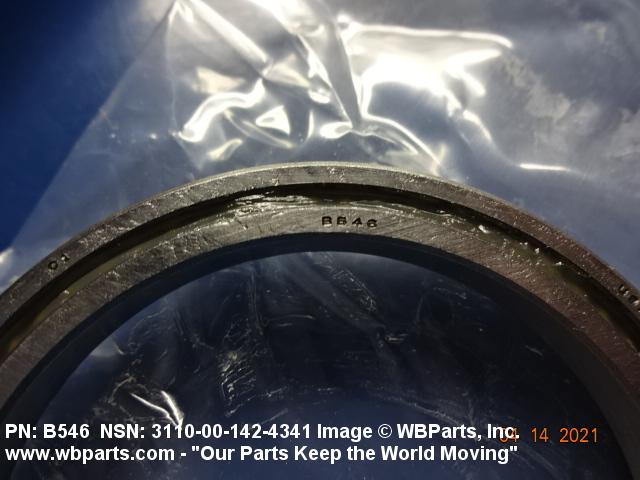

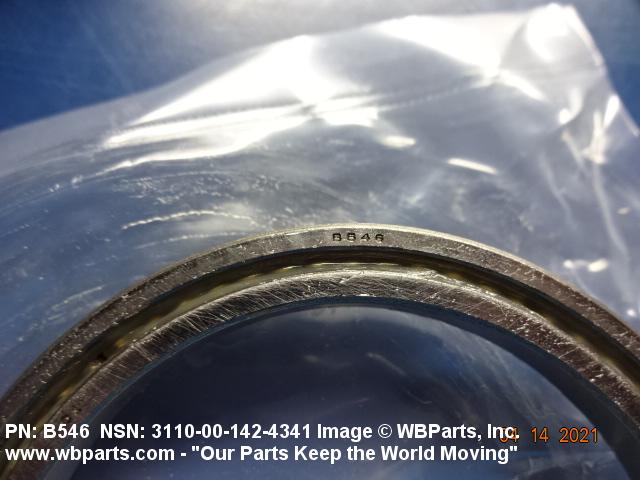

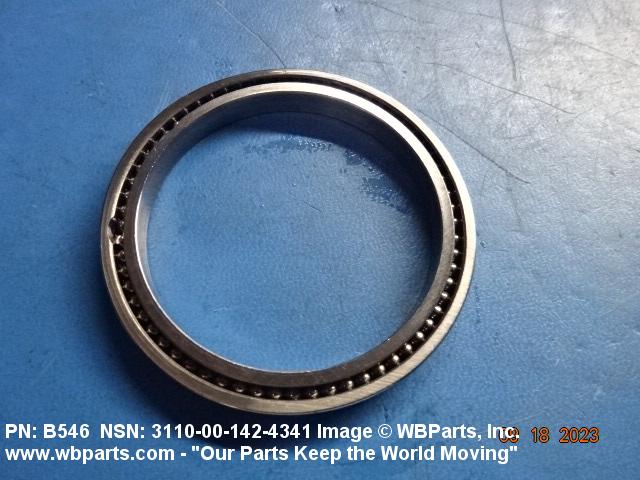

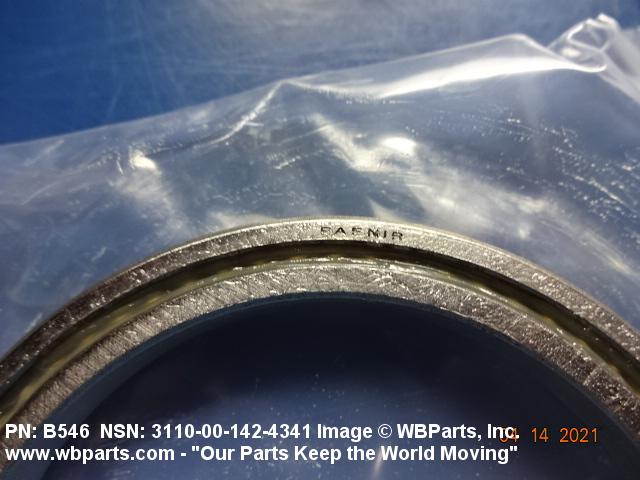

Drawings & Photos | NSN 3110-00-142-4341

Part Number	Request Date	QTY	Origin
3110-00-142-4341	2023-09-257	1	Germany
3110-00-142-4341	2023-09-254	6	Germany
3110-00-142-4341	2023-06-171	1	Germany
B546	2023-01-04	62	DIBBS
B546FS160	2023-01-04	62	DIBBS
B546-L	2023-01-04	62	DIBBS
B546	2021-11-321	62	DIBBS
B546FS160	2021-11-321	62	DIBBS
B546-L	2021-11-321	62	DIBBS
B546	2021-11-313	62	DIBBS
B546FS160	2021-11-313	62	DIBBS
B546-L	2021-11-313	62	DIBBS
3110-00-142-4341	2021-08-225	11	Germany
B546	2021-04-96	69	DIBBS
B546FS160	2021-04-96	69	DIBBS
B546-L	2021-04-96	69	DIBBS
3110-00-142-4341	2021-02-35	1	Germany
3110-00-142-4341	2021-02-33	10	Germany
B546	2019-05-141	74	DIBBS
B546FS160	2019-05-141	74	DIBBS
B546-L	2019-05-141	74	DIBBS
B546	2019-05-133	74	DIBBS
B546FS160	2019-05-133	74	DIBBS
B546-L	2019-05-133	74	DIBBS
3110-00-142-4341	2018-04-101	78	DIBBS
3110-00-142-4341	2018-04-93	78	DIBBS
3110-00-142-4341	2017-08-227	91	DIBBS
3110-00-142-4341	2017-03-78	84	DIBBS
3110-00-142-4341	2016-03-84	67	DIBBS
3110-00-142-4341	2015-01-14	107	DIBBS
3110-00-142-4341	2014-12-345	16	DIBBS
3110-00-142-4341	2014-12-337	16	DIBBS
3110-00-142-4341	2014-01-27	8	DIBBS
3110-00-142-4341	2013-10-275	12	DIBBS
B546	2012-05-145	9
B546	2011-12-364	4
3110-00-142-4341	2011-07-206	2	US
3110-00-142-4341	2011-07-206	2	US
3110-00-142-4341	2009-12-349	30	DIBBS
3110-00-142-4341	2009-09-253	12	DIBBS
B546FS160	2009-07-196	4	US
3110-00-142-4341	2009-06-175	30	DE
B546	2009-06-170	30	DE
3110-00-142-4341	2009-04-106	8	DIBBS
TWF3746P	2007-02-45	1	US

Cross Reference | NSN 3110-00-142-4341

Part Number	Cage Code	Manufacturer
000-01791-016	F6151	SAFRAN
000-01791-016	F6158	SFIM INDUSTRIES
177030-37	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
222391-14	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
320-919-0002	58880	MEGGITT (NEW HAMPSHIRE), INC
708190	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
A30255	72957	ELLIOTT COMPANY DIV JEANNETTE
B546	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
B546	21760	SCHATZ BEARING CORPORATION
B546	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
B546	40920	MPB CORPORATION DBA TIMKEN SUPER PRECISION
B546	43991	FAG BEARINGS CORPORATION
B546	83086	NEW HAMPSHIRE BALL BEARINGS, INC. DIV HITECH DIVISION
B546FS160	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
B546FS160	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
HJB-1	92858	HANNAY REELS, INC.
ISO58-10	92858	HANNAY REELS, INC.
TWF37-46P	78118	MPB CORPORATION DBA TIMKEN AEROSPACE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-142-4341

Compare

Related Products | NSN 3110-00-142-4341

3110-00-142-4346, 3110-00-142-4347, 3110-00-142-4348, 3110-00-142-4349, 3110-00-142-4350

Technical Data | NSN 3110-00-142-4341

Characteristic	Specifications
MATERIAL	STEEL OVERALL
STYLE DESIGNATOR	202 SINGLE ROW, TORQUE TUBE TYPE, WITH OR WITHOUT CLOSURE

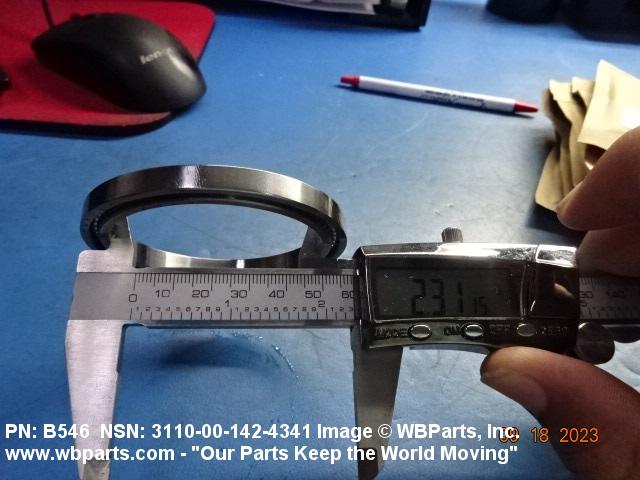

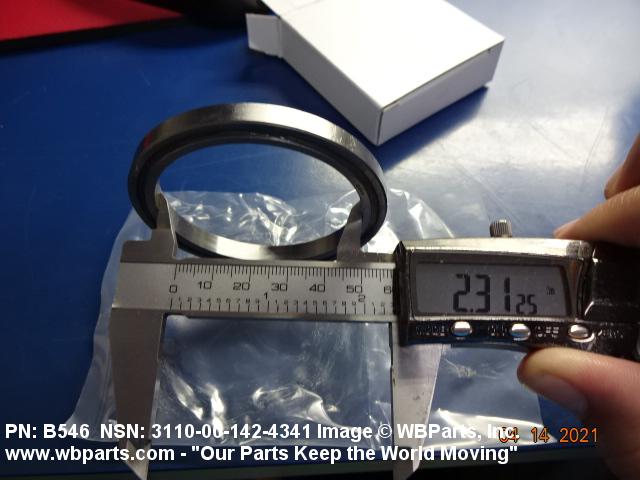

BORE DIAMETER	2.3125 INCHES NOMINAL

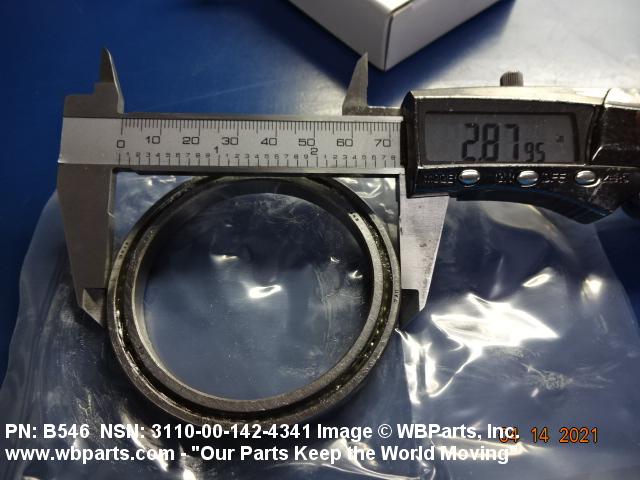

OVERALL OUTSIDE DIAMETER	2.8750 INCHES NOMINAL

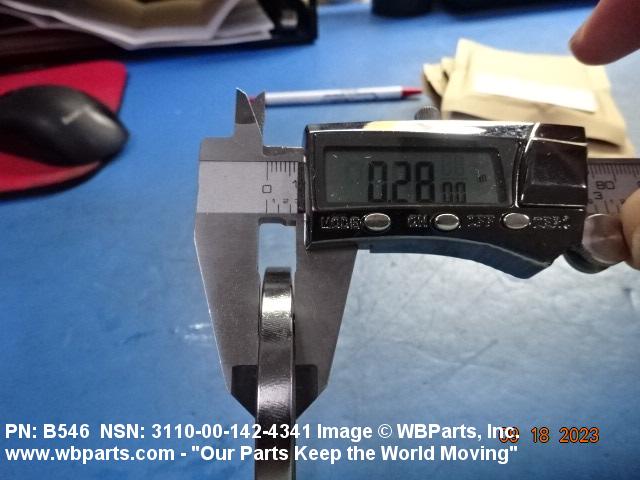

OUTER RING WIDTH	0.2500 INCHES NOMINAL

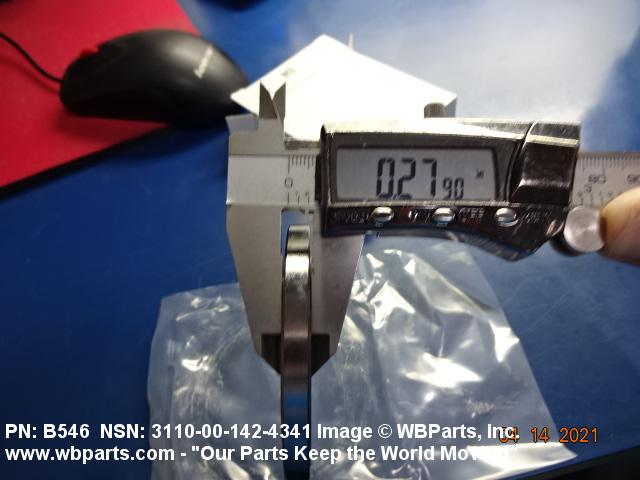

INNER RING WIDTH	0.2810 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-3278 MIL SPEC SINGLE MATERIAL RESPONSE
LOAD DIRECTION	RADIAL
