NSN 3110-00-141-9794 MS2764638G, MS27646-38G, ABCB10CF10PP

Product Details | AIRFRAME BALL BEARING

3110-00-141-9794 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS2764638G, MS27646-38G, ABCB10CF10PP, AJ9800108, AJ9800-10-8, AS27646, B538DD, B538DDFS160, B538DDFS160P, B538DDFS251A, B538DDFS428, B538DDMILG3278, TS100222, TS1002-22, 1465482, 146548-2, 1679679, 4508179, 4508-179, 6157P52, 8909508, 3110-00-141-9794, 00-141-9794, 3110001419794, 001419794

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-141-9794	00041 ( BEARING, BALL, AIRFRAME )

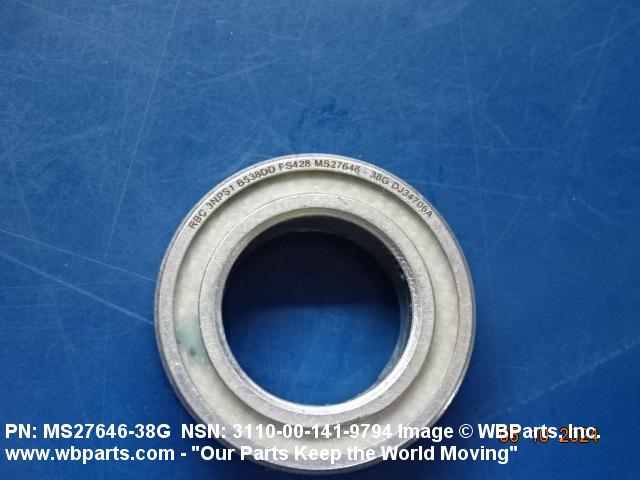

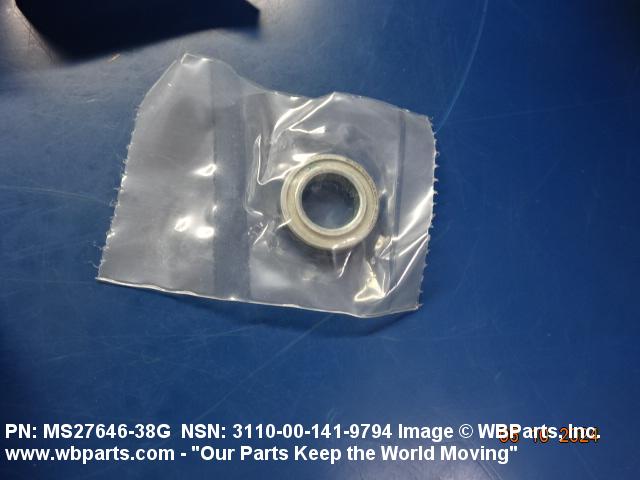

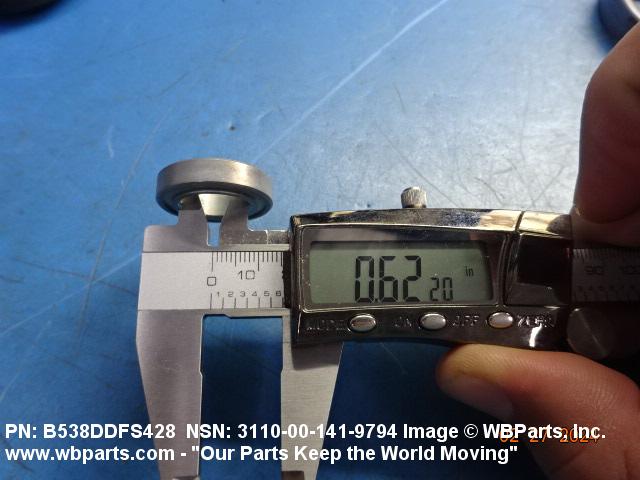

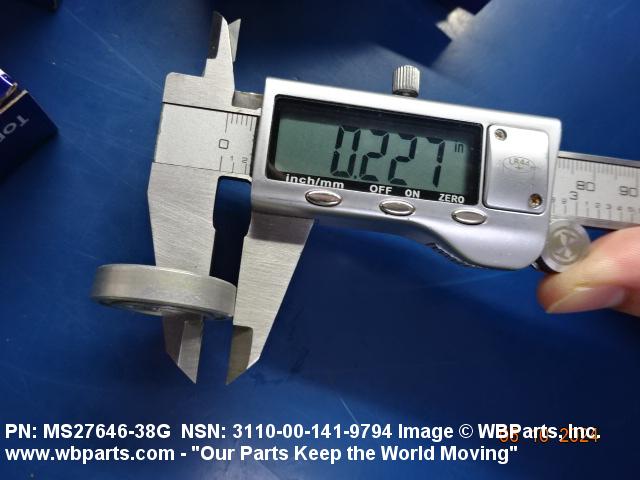

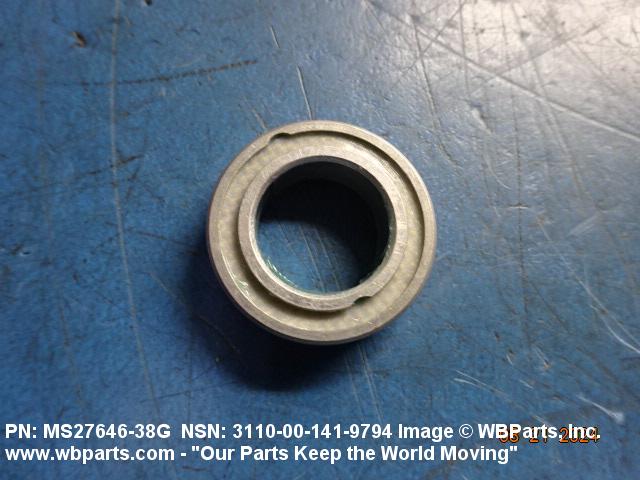

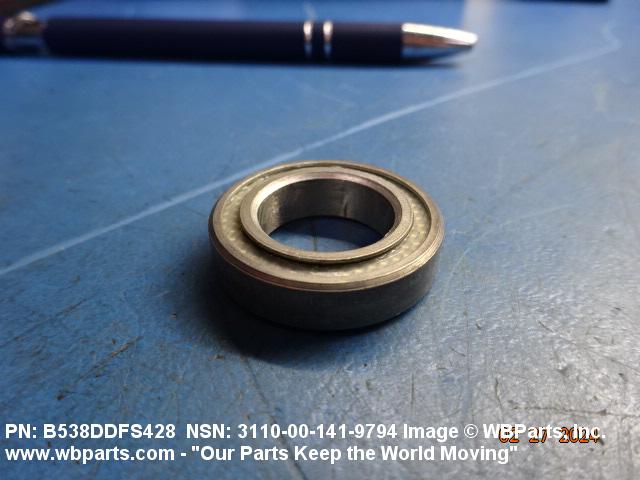

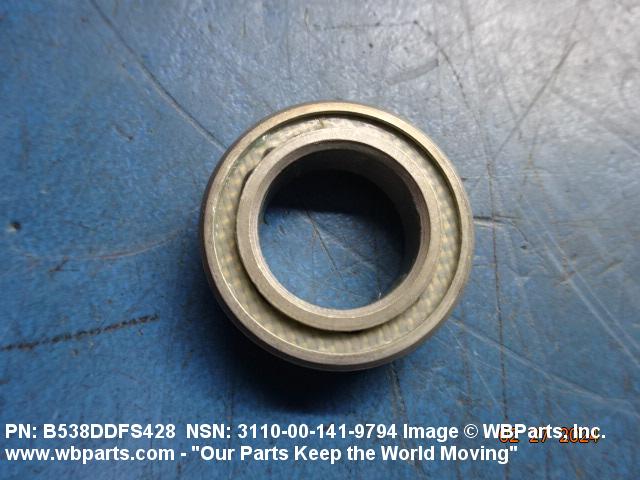

Drawings & Photos | NSN 3110-00-141-9794

Part Number	Request Date	QTY	Origin
3110-00-141-9794	2024-08-232	3	Germany
3110-00-141-9794	2024-06-157	20	Germany
3110-00-141-9794	2024-02-52	2	Germany
3110-00-141-9794	2023-03-67	4	Germany
3110-00-141-9794	2022-11-312	4	Germany
3110-00-141-9794	2021-02-42	1	DIBBS-RFPs
3110-00-141-9794	2021-01-26	772	United States
3110-00-141-9794	2015-12-338	1	DIBBS-RFPs
3110-00-141-9794	2015-09-261	1282	DIBBS
3110-00-141-9794	2015-05-141	1282	DIBBS
B538DD	2014-11-330	2	Malaysia
B538DD	2014-11-330	2	Malaysia
B538DD	2014-11-330	2	MY
B538DD	2011-07-182	900	US
3110-00-141-9794	2011-04-116	4182	DIBBS
3110-00-141-9794	2010-11-306	3419	DIBBS
B538DDFS428	2010-07-188	10	US
3110-00-141-9794	2010-06-165	1211	DIBBS
AJ9800108	2009-06-170	24	DE
AJ9800108	2009-06-170	24	DE
3110-00-141-9794	2009-05-147	56	DE
3110-00-141-9794	2009-02-44	50	US
MS2764638G	2006-07-206	5	US

Cross Reference | NSN 3110-00-141-9794

Part Number	Cage Code	Manufacturer
146548-2	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
146548-2	49956	RAYTHEON COMPANY DBA RAYTHEON
1679679	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
4508-179	08484	BREEZE-EASTERN CORPORATION
6157P52	98889	AEROCONTROLEX GROUP, INC. DBA TALLEY ACTUATORS
8909508	18876	U S ARMY AVIATION AND MISSILE COMMAND
ABCB10CF10PP	81205	THE BOEING COMPANY DBA BOEING
AJ9800-10-8	08484	BREEZE-EASTERN CORPORATION
AS27646	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
B538DD	27737	INA BEARING CO INC
B538DD	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
B538DDFS160	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
B538DDFS160P	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
B538DDFS251A	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
B538DDFS428	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
B538DDMILG3278	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
MS27646-38G	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27646-38G	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
TS1002-22	98889	AEROCONTROLEX GROUP, INC. DBA TALLEY ACTUATORS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-141-9794

Compare

Related Products | NSN 3110-00-141-9794

3110-00-141-9843, 3110-00-141-9848, 3110-00-141-9849, 3110-00-141-9851, 3110-00-141-9852

Technical Data | NSN 3110-00-141-9794

Characteristic	Specifications
MATERIAL	STEEL BALL STEEL INNER RING STEEL OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE MATERIAL RESPONSE ALL EXTERNAL/EXPOSED METAL SURFACES
SURFACE TREATMENT	CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES
STYLE DESIGNATOR	196 SINGLE ROW INNER RING EXTENDED BOTH SIDES

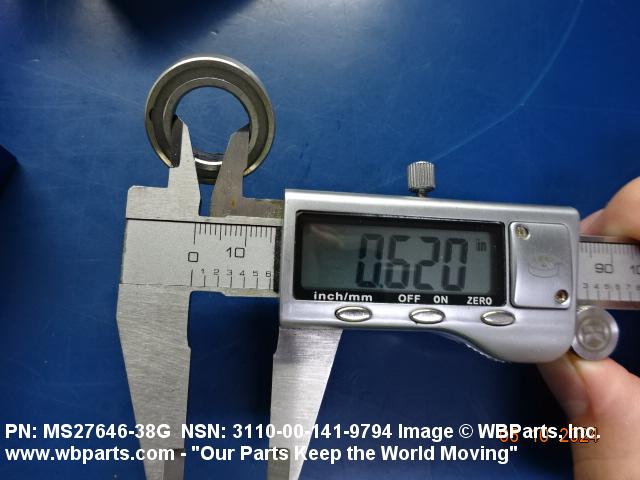

BORE DIAMETER	0.6250 INCHES NOMINAL

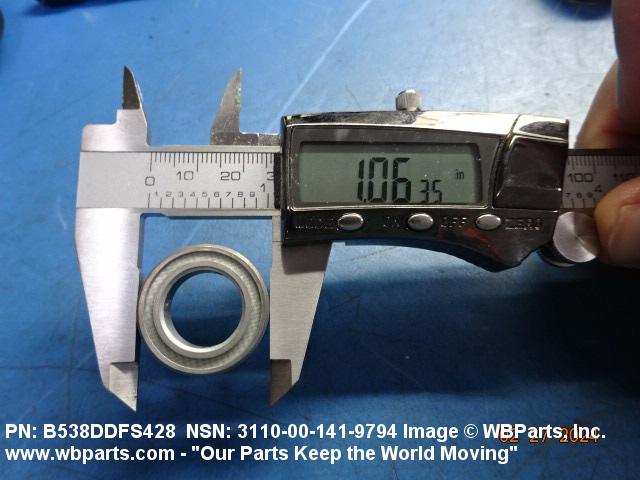

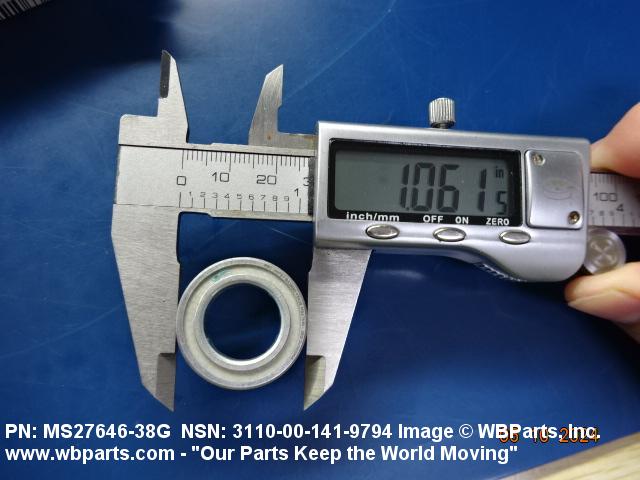

OVERALL OUTSIDE DIAMETER	1.0625 INCHES NOMINAL

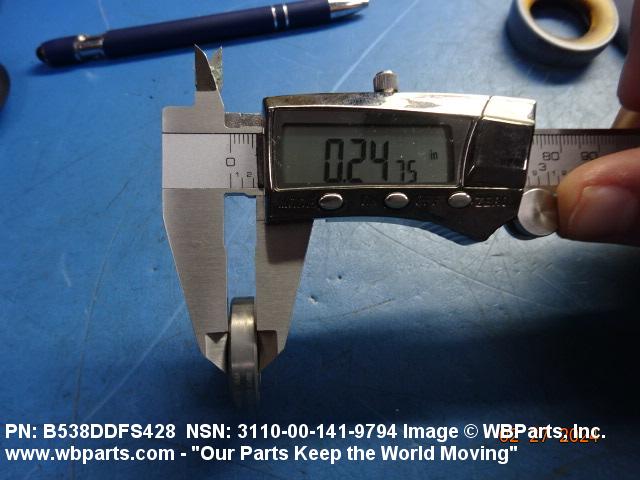

OUTER RING WIDTH	0.2500 INCHES NOMINAL

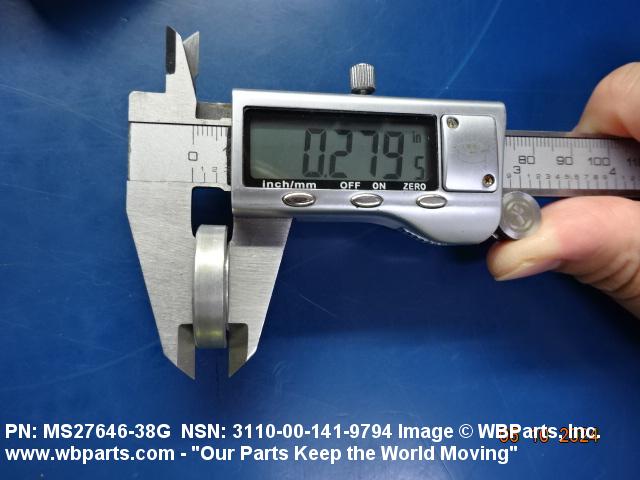

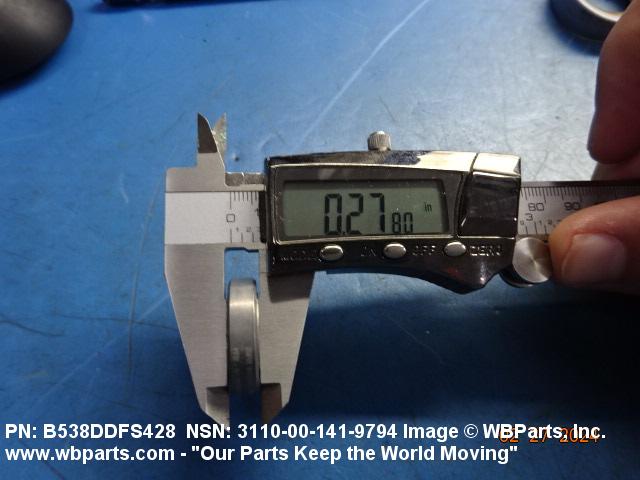

INNER RING WIDTH	0.2810 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
LOAD DIRECTION	RADIAL

Restrictions/Controls & Freight Information | NSN 3110-00-141-9794

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-141-9794

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
