NSN 3110-00-140-9586 MS276453AG, MS27645-3AG , AN200KS3L

Product Details | AIRFRAME BALL BEARING

3110-00-140-9586 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS276453AG, MS27645-3AG , AN200KS3L, AS27645, AS7949 , KSP3LFS160, 713646, KS3L, 3110-00-140-9586, 00-140-9586, 3110001409586, 001409586

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	10 SEP 1971	00-140-9586	00041 ( BEARING, BALL, AIRFRAME )

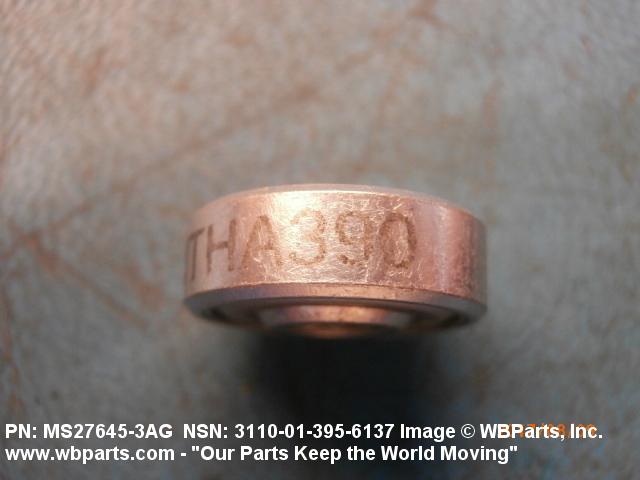

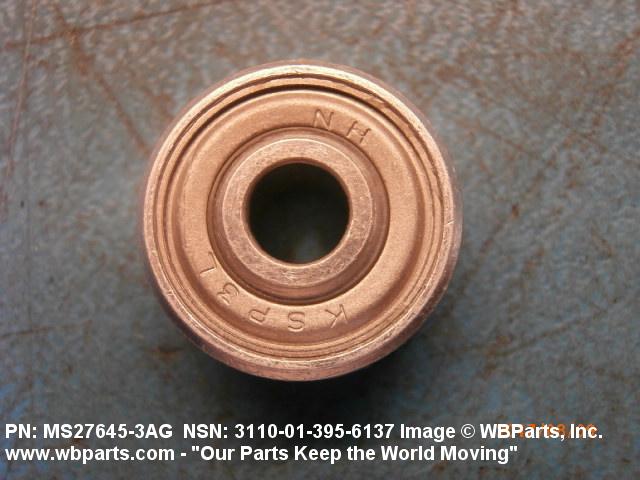

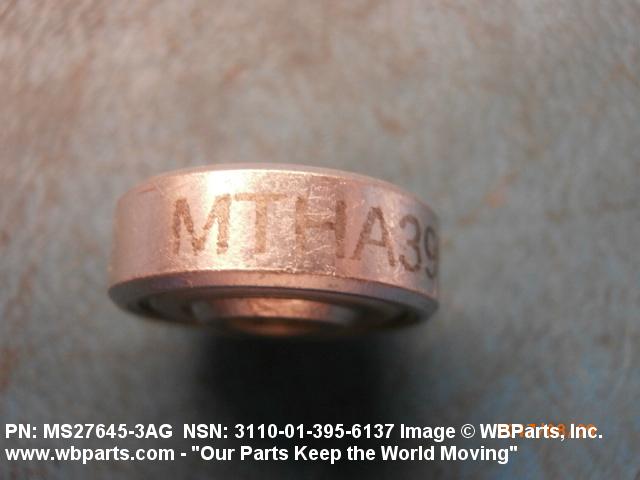

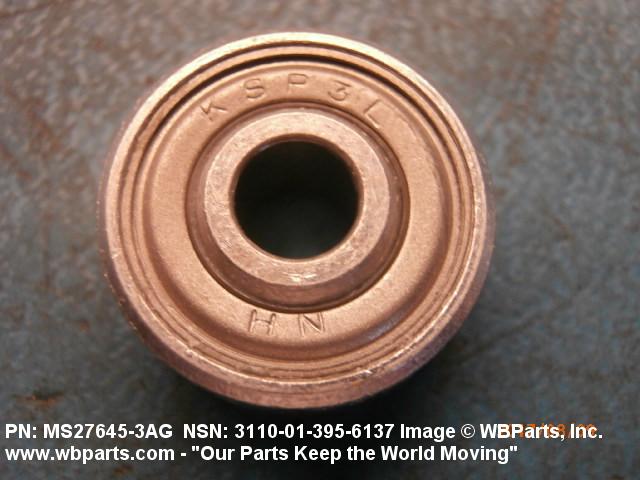

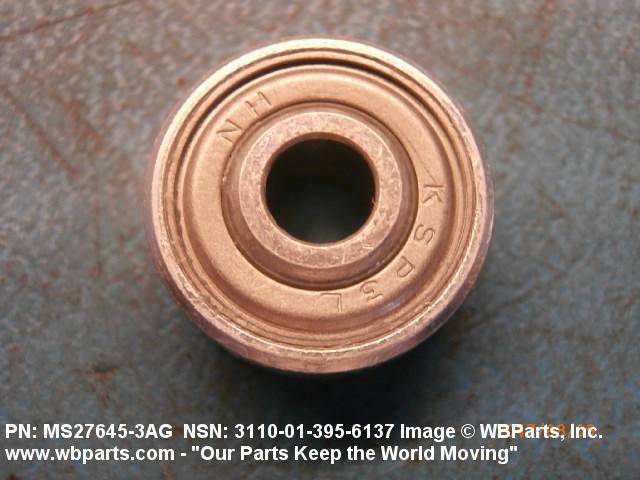

Drawings & Photos | NSN 3110-00-140-9586

Part Number	Request Date	QTY	Origin
AN200KS3L	2024-10-296	20	us
AN200KS3L	2024-10-296	50	us
3110-00-140-9586	2024-06-168	20	DIBBS
3110-00-140-9586	2023-12-351	23	DIBBS
3110-00-140-9586	2023-04-116	16	DIBBS
3110-00-140-9586	2021-12-351	25	Belgium
AN200KS3L	2020-10-297	10	France
3110-00-140-9586	2020-01-19	10	IN
MS276453AG	2020-01-19	10	IN
3110-00-140-9586	2019-08-216	245	us
AN200KS3L	2019-07-185	30	IL
713646	2019-04-115	1	US
3110-00-140-9586	2019-03-65	3	US
3110-00-140-9586	2018-01-25	28	US
3110-00-140-9586	2017-03-65	73	DIBBS
3110-00-140-9586	2017-01-13	100	DIBBS
3110-00-140-9586	2017-01-06	54	DIBBS
3110-00-140-9586	2016-11-334	106	DIBBS
3110-00-140-9586	2016-08-220	38	DIBBS
3110-00-140-9586	2016-07-192	27	DIBBS
3110-00-140-9586	2016-03-67	44	US
3110-00-140-9586	2015-12-350	38	DIBBS
3110-00-140-9586	2015-10-299	5	US
3110-00-140-9586	2015-10-281	27	DIBBS
3110-00-140-9586	2015-06-175	139	DIBBS
AN200KS3L	2015-02-57	44	TR
3110-00-140-9586	2013-10-280	168	DIBBS
AN200KS3L	2013-03-72	28	United States
AN200KS3L	2012-09-269	6	CA
3110-00-140-9586	2012-01-09	50	US
3110-00-140-9586	2011-11-322	100	EC
3110-00-140-9586	2011-09-245	99	DIBBS
3110-00-140-9586	2011-08-240	14	US
3110-00-140-9586	2011-01-13	56	DIBBS
3110-00-140-9586	2010-11-319	28	DIBBS
3110-00-140-9586	2010-10-300	28	DIBBS
3110-00-140-9586	2010-09-266	28	DIBBS
3110-00-140-9586	2010-04-106	8	US
KS3L	2010-04-104	80	US
KS3L	2010-04-103	80	US
3110-00-140-9586	2009-11-308	5	US
3110-00-140-9586	2009-09-245	28	DIBBS
KS3L	2009-06-161	12	France
AN200KS3L	2009-02-35	10	US
KS3L	2009-01-22	10	United States
AN200KS3L	2008-11-309	1	US
MS276453AG	2008-06-164	100	United States
3110-00-140-9586	2008-04-102	1140	US
AN200KS3L	2007-11-324	2	United States

Cross Reference | NSN 3110-00-140-9586

Part Number	Cage Code	Manufacturer
713646	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
AN200KS3L	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS27645	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS7949	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
KS3L	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KS3L	F0210	AIRBUS HELICOPTERS (ETS DEMARIGNANE)
KSP3LFS160	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KSP3LFS160	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
MS27645-3AG	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-140-9586

Compare

Related Products | NSN 3110-00-140-9586

3110-00-141-2038, 3110-00-141-3750, 3110-00-141-3751, 3110-00-141-3818, 3110-00-141-9286

Technical Data | NSN 3110-00-140-9586

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL CORROSION RESISTING RETAINER
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE MATERIAL RESPONSE ALL EXTERNAL/EXPOSED METAL SURFACES
SURFACE TREATMENT	CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES
STYLE DESIGNATOR	198 SINGLE ROW SELF ALIGNING SINGLE ROW INNER RING EXTENDED BOTH SIDES

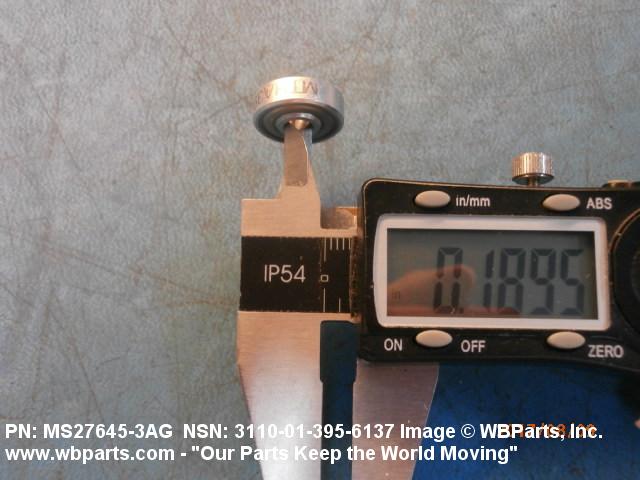

BORE DIAMETER	0.1895 INCHES MINIMUM AND 0.1900 INCHES MAXIMUM

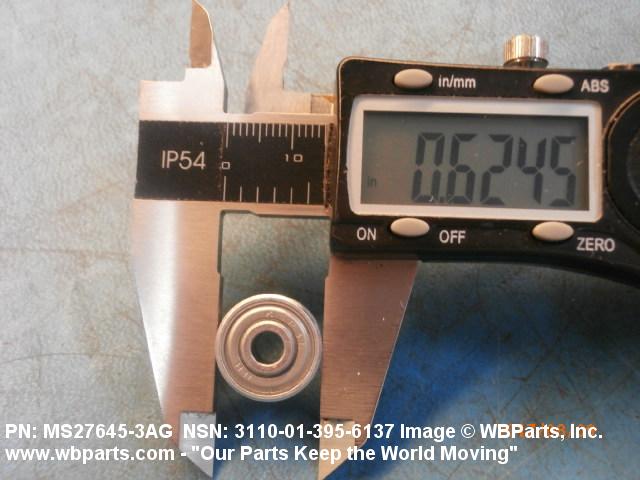

OVERALL OUTSIDE DIAMETER	0.6245 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM

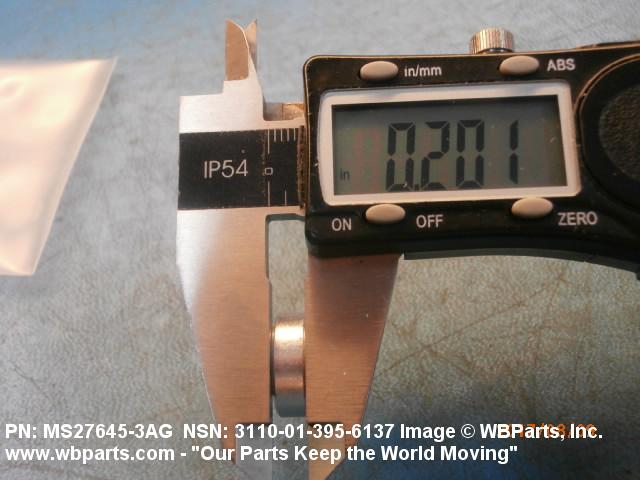

OUTER RING WIDTH	0.1980 INCHES MINIMUM AND 0.2030 INCHES MAXIMUM

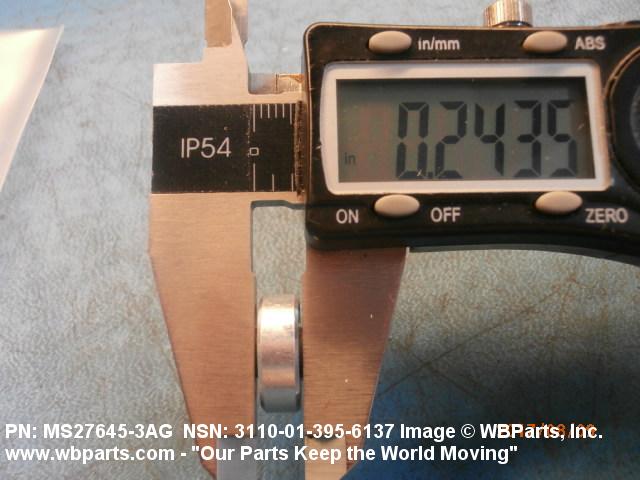

INNER RING WIDTH	0.2400 INCHES MINIMUM AND 0.2450 INCHES MAXIMUM
