NSN 3110-00-106-8826 MS2764641, MS27646-41, MB541DD

Product Details | AIRFRAME BALL BEARING

3110-00-106-8826 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS2764641, MS27646-41, MB541DD, AS27646, AS7949 , B541DD, B541DDFS464, BM33151255, BM3315-12-55, 3110-00-106-8826, 00-106-8826, 3110001068826, 001068826

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	17 MAY 1973	00-106-8826	00041 ( BEARING, BALL, AIRFRAME )

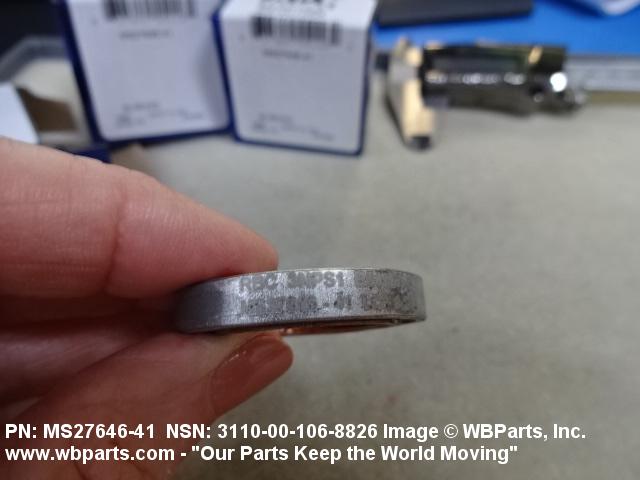

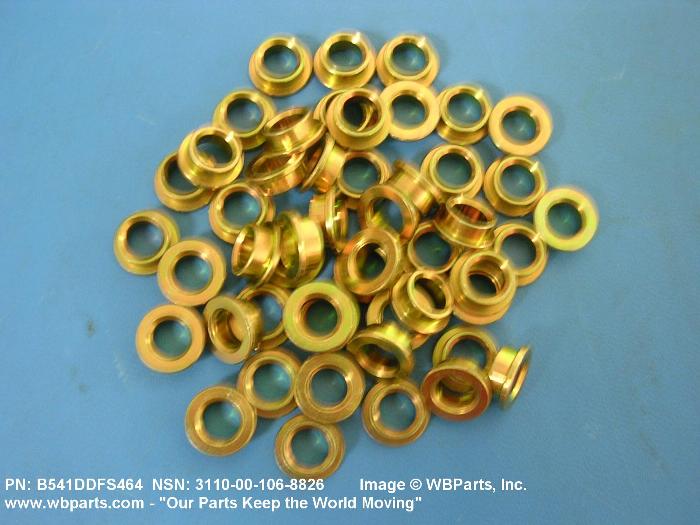

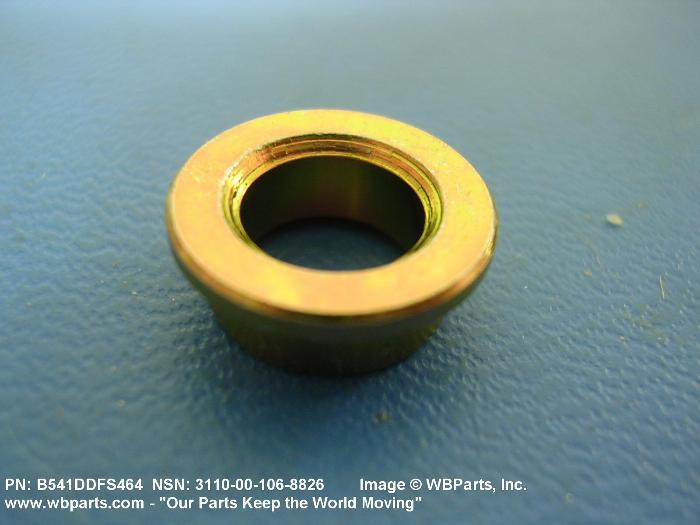

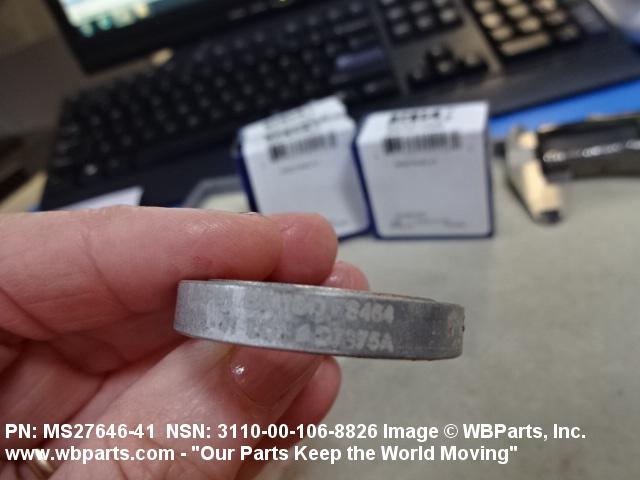

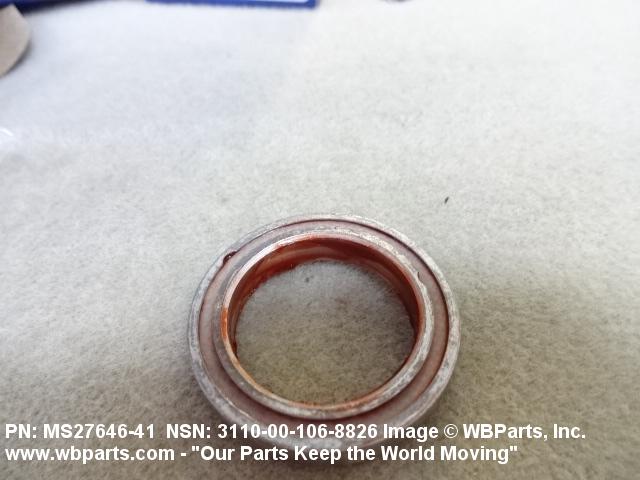

Drawings & Photos | NSN 3110-00-106-8826

Part Number	Request Date	QTY	Origin
3110-00-106-8826	2024-04-109	6	Croatia
MS2764641	2022-03-83	2	United States
3110-00-106-8826	2020-04-96	457	DIBBS
3110-00-106-8826	2020-03-64	310	DIBBS
3110-00-106-8826	2020-02-50	220	DIBBS
3110-00-106-8826	2019-04-93	541	DIBBS
3110-00-106-8826	2019-01-24	114	DIBBS
3110-00-106-8826	2019-01-06	236	DIBBS
3110-00-106-8826	2018-02-37	10	MANUAL
MS27646-41	2018-02-37	10	Seychelles
MS2764641	2014-12-345	10	United States
MS2764641	2013-10-276	1	US
MS2764641	2012-08-227	140	US
B541DD	2012-05-123	100	United States
B541DD	2011-11-321	12	US
B541DDFS464	2011-11-321	12	US
B541DDFS464	2011-03-70	500	US
MS2764641	2011-03-70	500	US
3110-00-106-8826	2010-12-335	1423	DIBBS
3110-00-106-8826	2010-09-251	5	US
3110-00-106-8826	2010-05-121	1135	DIBBS
MB541DD	2009-07-208	400	US
3110-00-106-8826	2009-06-163	400	US
MS2764641	2009-02-55	20	US
MS2764641	2008-07-189	10	United States
B541DD	2008-05-123	4	France
MS2764641	2008-03-79	25	US
3110-00-106-8826	2007-07-204	1000	DIBBS
B541DD	2007-05-144	12	US

Cross Reference | NSN 3110-00-106-8826

Part Number	Cage Code	Manufacturer
AS27646	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS7949	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
B541DD	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
B541DDFS464	06144	INDUSTRIAL TECTONICS BEARINGS CORPORATION
B541DDFS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
BM3315-12-55	97928	HUCK INTL INC
MB541DD	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
MS27646-41	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27646-41	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-106-8826

Compare

Related Products | NSN 3110-00-106-8826

3110-00-106-8828, 3110-00-106-8843, 3110-00-106-8846, 3110-00-106-8848, 3110-00-106-8872

Technical Data | NSN 3110-00-106-8826

Characteristic	Specifications
MATERIAL	STEEL COMP E51100 OR STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE OR PLASTIC SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 3652 ASSN STD 1ST MATERIAL RESPONSE OR AMS 3666 ASSN STD 2ND MATERIAL RESPONSE SEAL
SURFACE TREATMENT	CADMIUM EXPOSED SURFACES AS MOUNTED
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE EXPOSED SURFACES AS MOUNTED
STYLE DESIGNATOR	196 SINGLE ROW INNER RING EXTENDED BOTH SIDES

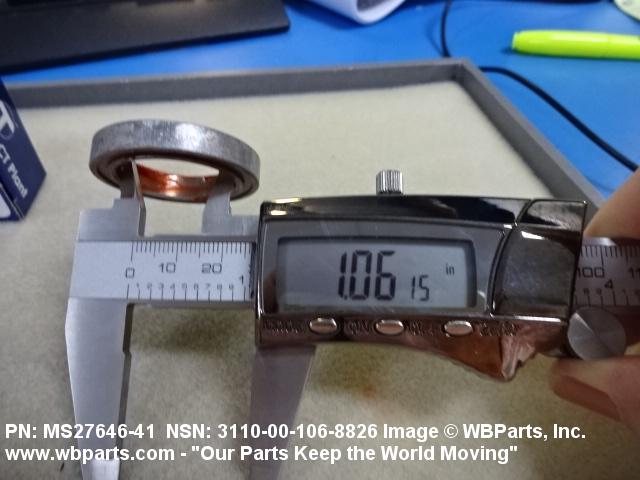

BORE DIAMETER	1.0618 INCHES MINIMUM AND 1.0632 INCHES MAXIMUM

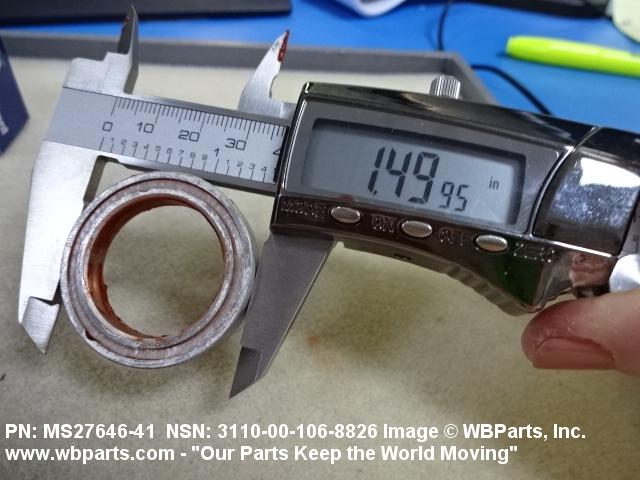

OVERALL OUTSIDE DIAMETER	1.4990 INCHES MINIMUM AND 1.5000 INCHES MAXIMUM

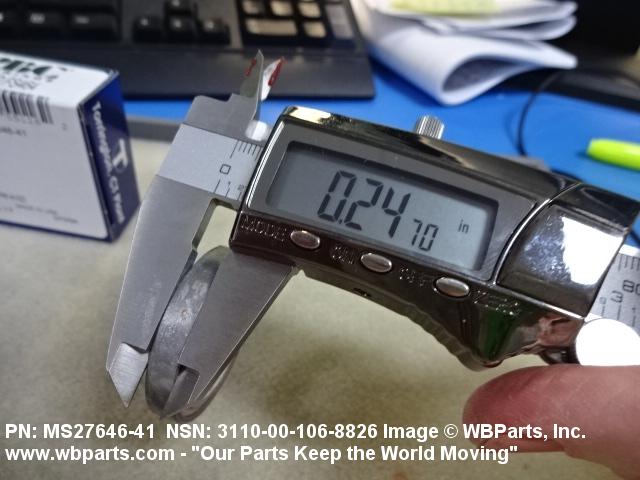

OUTER RING WIDTH	0.2450 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM

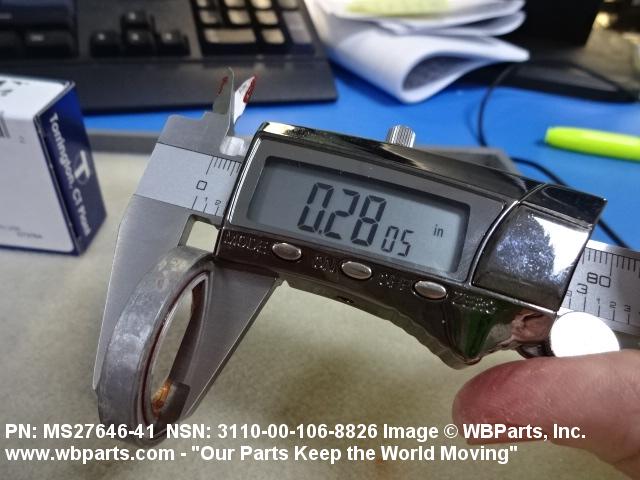

INNER RING WIDTH	0.2760 INCHES MINIMUM AND 0.2810 INCHES MAXIMUM
