NSN 3110-00-027-8142 MS20201KP16A, MS2764116, MS27641-16

Product Details | AIRFRAME BALL BEARING

3110-00-027-8142 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened BALL, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, BALL, ANNULAR.

Part Alternates: MS20201KP16A, MS2764116, MS27641-16, MS2764116G, MS27641-16G, AN201KP16A, AS27641, H1143HPC3, H-1143-HPC3, KP16A, KP16A FS464, KP16AFS464, 1370429108, 137-042-9108, 3110-00-027-8142, 00-027-8142, 3110000278142, 000278142

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	22 JAN 1972	00-027-8142	00041 ( BEARING, BALL, AIRFRAME )

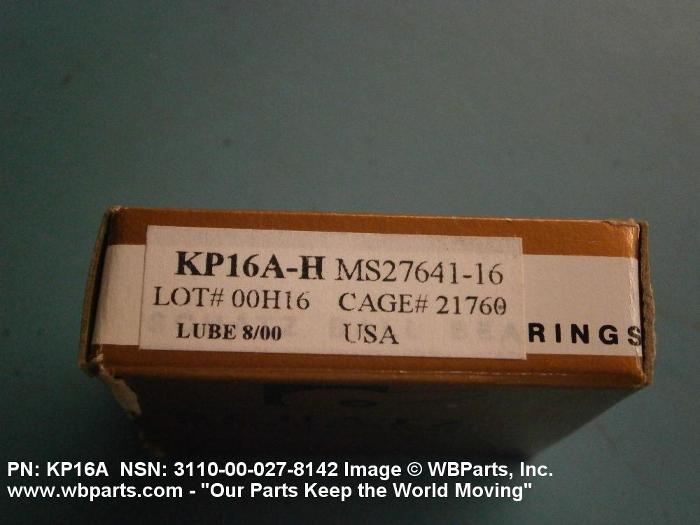

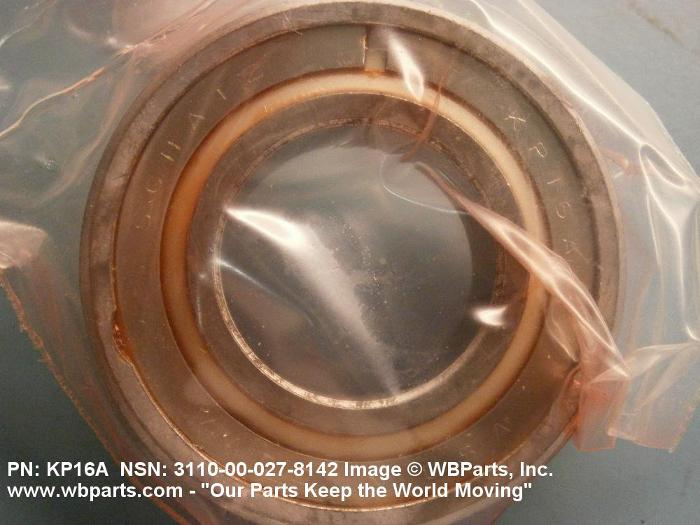

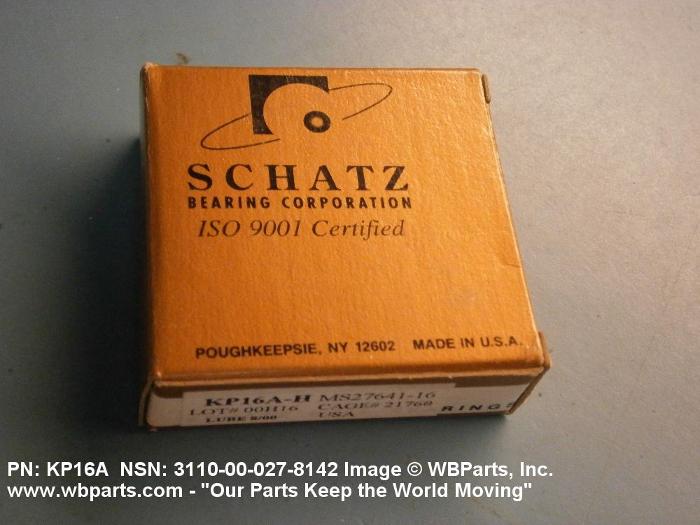

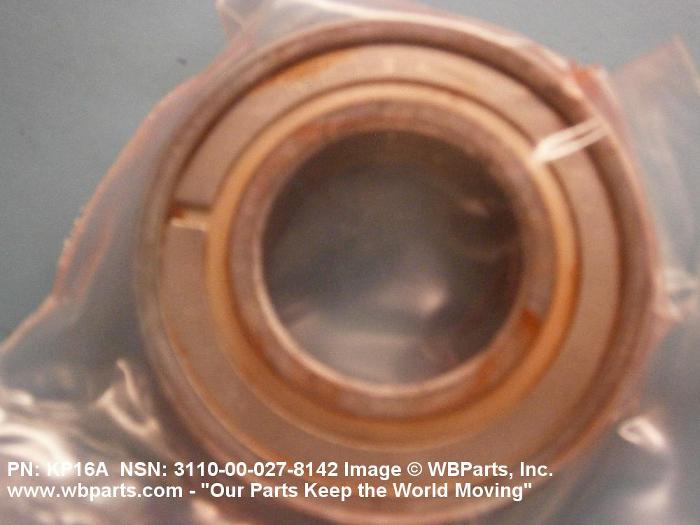

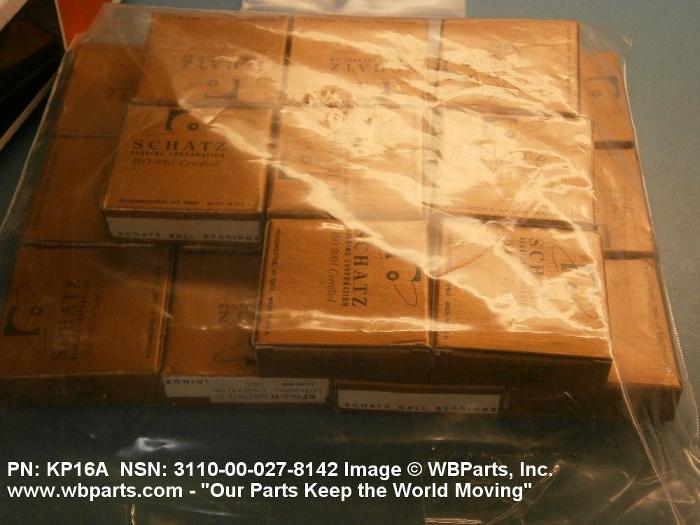

Drawings & Photos | NSN 3110-00-027-8142

Part Number	Request Date	QTY	Origin
KP16A	2024-03-74	100	US
3110-00-027-8142	2022-11-321	2	AU
MS20201KP16A	2018-01-02	5	United States
3110-00-027-8142	2017-07-208	10	MANUAL
3110-00-027-8142	2017-06-166	9	United States
3110-00-027-8142	2013-08-219	1	DIBBS-RFPs
KP16AFS464	2013-02-39	24	US
KP16A	2012-06-171	20	US
KP16A	2012-05-131	50	Canada
KP16A	2012-03-75	12	United States
KP16A	2011-10-276	2	US
KP16A	2011-09-273	2	US
AS27641	2011-04-105	10	US
KP16A	2010-06-177	1	US
AN201KP16A	2010-01-13	1	US
AN201KP16A	2010-01-06	1	US
3110-00-027-8142	2009-11-308	8	US
3110-00-027-8142	2009-05-125	611	DIBBS
MS2764116	2009-03-72	2	US
MS2764116	2009-01-20	10	US
MS2764116	2009-01-20	415	US
3110-00-027-8142	2008-09-269	4	us
3110-00-027-8142	2008-07-205	5	US
3110-00-027-8142	2007-05-134	253	DIBBS
3110-00-027-8142	2007-02-37	488	DIBBS

Cross Reference | NSN 3110-00-027-8142

Part Number	Cage Code	Manufacturer
137-042-9108	70210	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
AN201KP16A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS27641	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS7949	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
H-1143-HPC3	92772	WHITMOR COMPANY, INC., THE
KP16A	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
KP16A	21760	SCHATZ BEARING CORPORATION
KP16A FS464	06144	INDUSTRIAL TECTONICS BEARINGS CORPORATION
KP16A FS464	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
MS20201KP16A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27641-16	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS27641-16	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27641-16G	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-027-8142

Compare

Related Products | NSN 3110-00-027-8142

3110-00-027-8143, 3110-00-027-8452, 3110-00-027-8456, 3110-00-027-8573, 3110-00-027-8575

Technical Data | NSN 3110-00-027-8142

Characteristic	Specifications
MATERIAL	STEEL COMP E51100 OR STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL CORROSION RESISTING RETAINER PLASTIC POLYTETRAFLUOROETHYLENE SEAL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE OUTER RING AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL
SURFACE TREATMENT	CADMIUM EXPOSED SURFACES AS MOUNTED
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE EXPOSED SURFACES AS MOUNTED
STYLE DESIGNATOR	196 SINGLE ROW INNER RING EXTENDED BOTH SIDES
BORE DIAMETER	1.0000 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER	2.0000 INCHES NOMINAL
OUTER RING WIDTH	0.4380 INCHES NOMINAL
INNER RING WIDTH	0.5000 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	AFBMA STD TOLERANCE FOR AIRFRAME BALL BEARINGS
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
LOAD DIRECTION	RADIAL
SPECIAL FEATURES	80 PCT. FULL OF MIL-G-81322,INTERNAL RADIAL CLEARANCE 0.0004- 0.0010 IN.,HEAT TREAT RINGS AND BALLS TO ROCKWELL C 60 TO 66 AND STABILIZED FOR OPERATION AT 250 DEG. F,RADIAL AND LATERAL ECCENTRICITY INNER RING 0.0010 IN. OUTER RING 0.0016 IN.

Restrictions/Controls & Freight Information | NSN 3110-00-027-8142

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	062820	RADIO/TV TRANSMIT/RECEIVE SETS SUB1
Less than car load rating	G	125
Less than truck load rating	J	100.2
Water commodity Code	72D	unknown
Originating Activity Code	SX	Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-027-8142

Army

Category	Code	Description
Materiel Category and Inventory Manager	G	Communications and Electronics Equipment, Electronics Materiel
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	1	REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
Specific Group/Generic Code	T	Other Electronics Equipment
Weapons Systems/End Item or Homogeneous Group	TP	Other Cmds' Systems
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	FGZ	Ogden Air Logistics Center Hill AFB, UT 84056-5609
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	L	Disposal is not authorized below wholesale/specialized repair activity level.
Acquisition Advice Codes	Y	TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
