NSN 3040-01-469-1273 D-11917 X36 REV, D-11917.X36, D11917X36
Product Details | LINEAR ACTUATING CYLINDER ASSEMBLY
3040-01-469-1273 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.2041045000011900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: D-11917 X36 REV, D-11917.X36, D11917X36, D11917X36REV, 3040-01-469-1273, 01-469-1273, 3040014691273, 014691273
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 03 NOV 1999 | 01-469-1273 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |
Drawings & Photos | NSN 3040-01-469-1273
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-469-1273
Technical Data | NSN 3040-01-469-1273
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | SINGLE ACTING TANDEM CYLINDER |
| INTEGRAL VALVE OPERATION METHOD | HYDRAULIC |
| OVERALL WIDTH | 7.500 INCHES NOMINAL |
| OVERALL HEIGHT | 7.500 INCHES NOMINAL |
| EXTENDED LENGTH | 61.630 INCHES NOMINAL |
| COMPRESSED LENGTH | 47.130 INCHES NOMINAL |
| BODY MATERIAL | STEEL |
| BORE DIAMETER | 6.000 INCHES NOMINAL |
| FIRST PISTON ROD END STYLE | 7 EXTERNAL THREADED |
| FIRST END OUTSIDE DIAMETER | 1.875 INCHES NOMINAL |
| FIRST END EXTERNAL THREAD LENGTH | 3.000 INCHES NOMINAL |
| FIRST PISTON ROD END THREAD SERIES DESIGNATOR | UN |
| FIRST PISTON ROD END THREAD DIAMETER | 1.875 INCHES NOMINAL |
| FIRST PISTON ROD END THREAD QUANTITY PER INCH | 12 |
| FIRST PISTON ROD END THREAD CLASS | 2A |
| FIRST PISTON ROD END THREAD DIRECTION | RIGHT-HAND |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | FORK CYLINDER HEAD END |
| MOUNTING PROVISION | UNTHREADED MOUNTING HOLES |

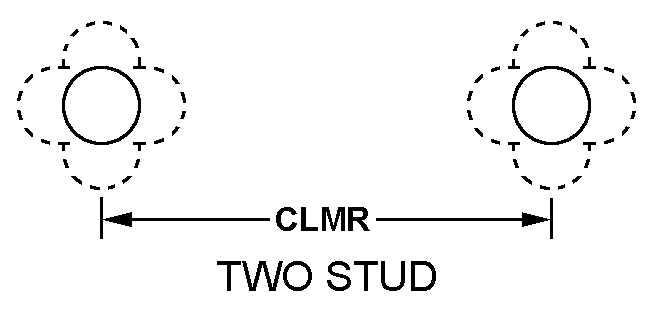

| MOUNTING PROVISION ARRANGEMENT STYLE | 2 TWO STUD |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING PROVISIONS | 2.630 INCHES NOMINAL |
| MOUNTING FACILITY DIAMETER | 2.003 INCHES NOMINAL |
| PORT LOCATION AND QUANTITY | 2 CENTER SECTION 2 PISTON ROD END |
| PORT STYLE | 5 GASKET SEAL |
| PORT THREAD SERIES DESIGNATOR | UN |
| PORT THREAD DIAMETER | 1.0625 INCHES NOMINAL |
| PORT THREAD QUANTITY PER INCH | 12 |
| PORT THREAD CLASS | 2B |
| PRESSURE RATING | 3000.0 POUNDS PER SQUARE INCH MAXIMUM |
| SPECIAL FEATURES | MAIN PISTON ROD DESCRIBED-NSN 3040-01-468-9633; 2ND PISTON ROD (TAIL) NSN 3040-01-468-9630; PORTS-SIDES 1 & 2; BREATHER VENT-SIDE 1 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CL3 6.00 X 14.50 H NN 2.50 1.88-12 CL3 6.00 X 14.50 E TANDEM |
Restrictions/Controls & Freight Information | NSN 3040-01-469-1273
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 119260 | CYLINDERS:HYDRAULIC/PNEUMATIC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-469-1273
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
