Product Details | LINEAR ACTUATING CYLINDER ASSEMBLY
3040-01-417-6191 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.2041045000011900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 12420793, 3040-01-417-6191, 01-417-6191, 3040014176191, 014176191
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 10 AUG 1995 | 01-417-6191 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |

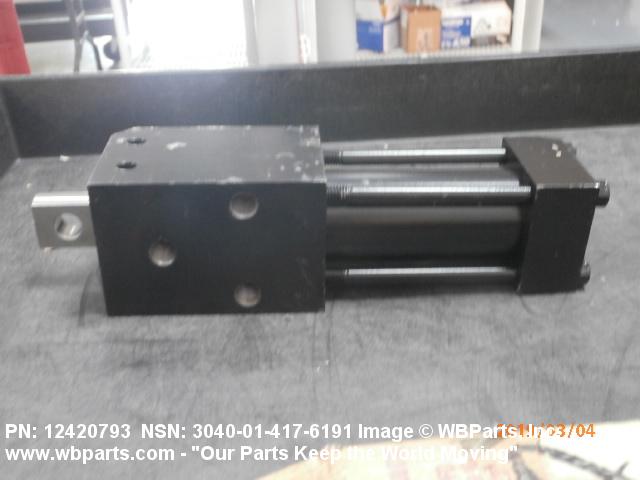

Drawings & Photos | NSN 3040-01-417-6191
