NSN 3040-01-359-0686 1-1/2HHC15CC, 112HHC15CC, 01-359-0686
Product Details | LINEAR ACTUATING CYLINDER ASSEMBLY
3040-01-359-0686 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.2041045000011900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 1-1/2HHC15CC, 112HHC15CC, 3040-01-359-0686, 01-359-0686, 3040013590686, 013590686
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 28 MAY 1992 | 01-359-0686 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |

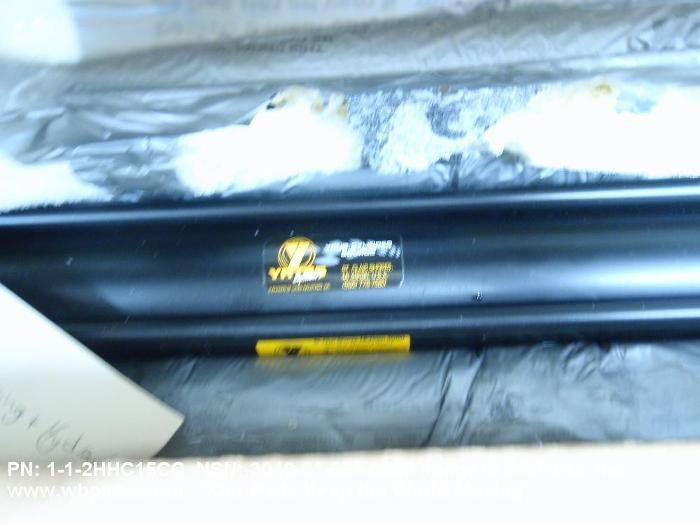

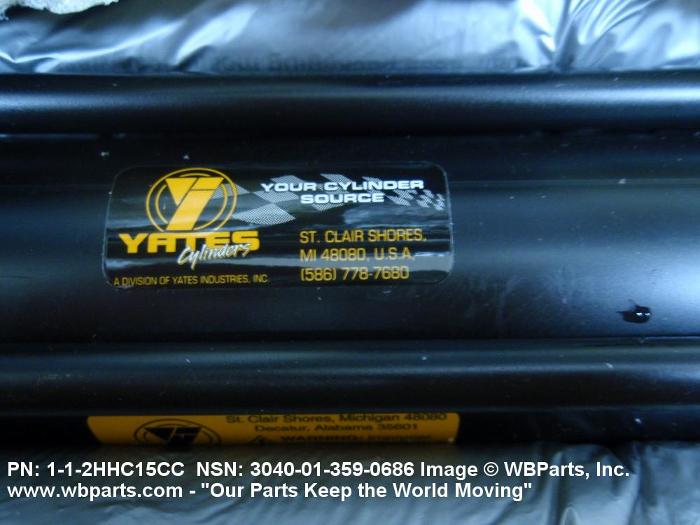

Drawings & Photos | NSN 3040-01-359-0686
Demand History | NSN 3040-01-359-0686
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-01-359-0686 | 2015-03-74 | 2 | DIBBS |
| 3040-01-359-0686 | 2008-11-311 | 1 | United States |
Cross Reference | NSN 3040-01-359-0686
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-1/2HHC15CC | 05283 | SHEFFER CORP |
