NSN 2530-00-248-0944 11675894, 00-248-0944, 002480944
Product Details | LINEAR ACTUATING CYLINDER ASSEMBLY
2530-00-248-0944 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.2041045000011900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 11675894, 2530-00-248-0944, 00-248-0944, 2530002480944, 002480944
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 15 JUN 1973 | 00-248-0944 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |

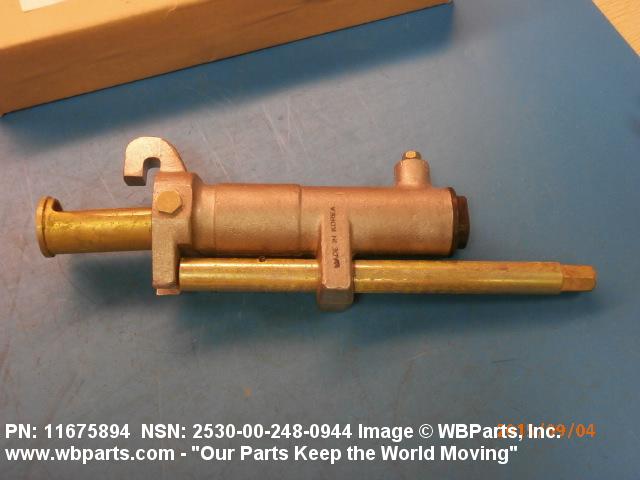

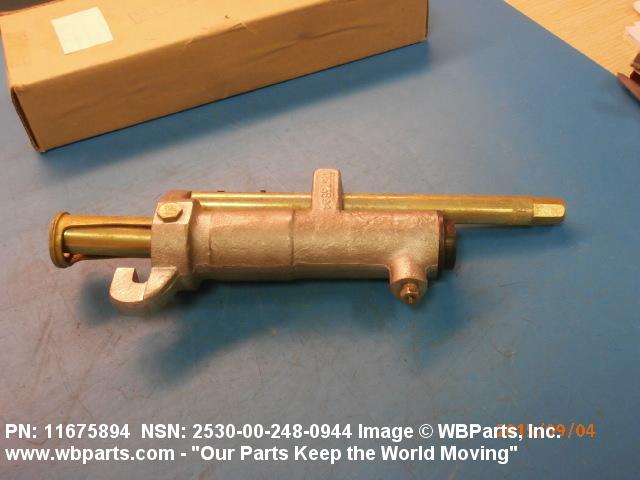

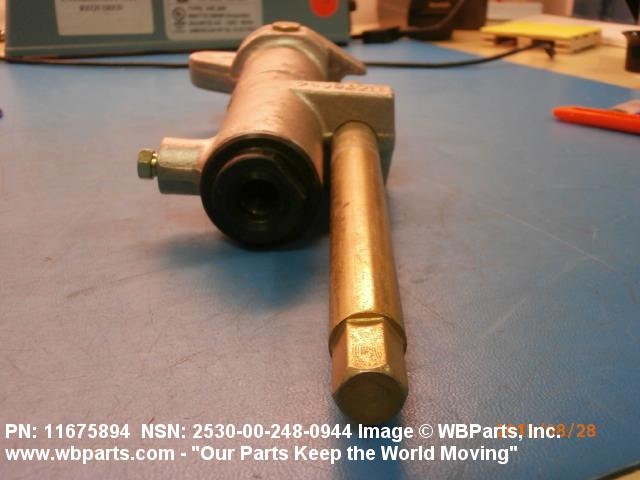

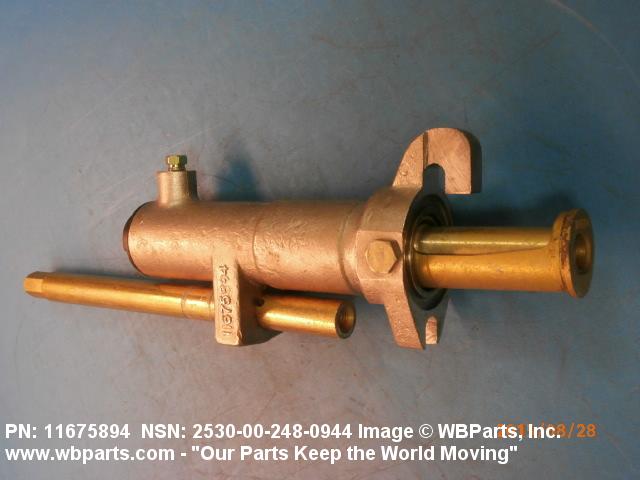

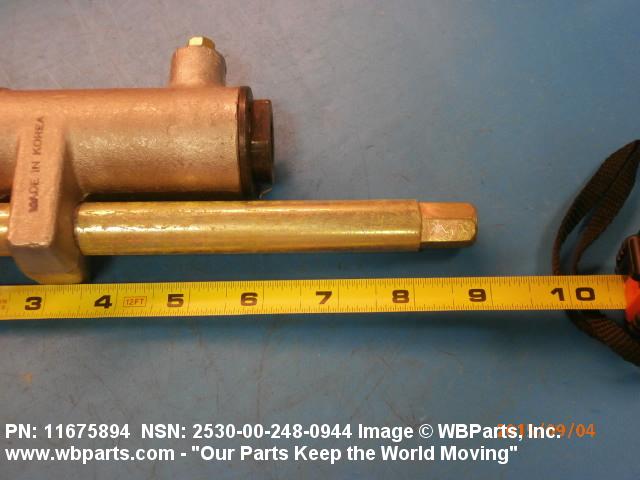

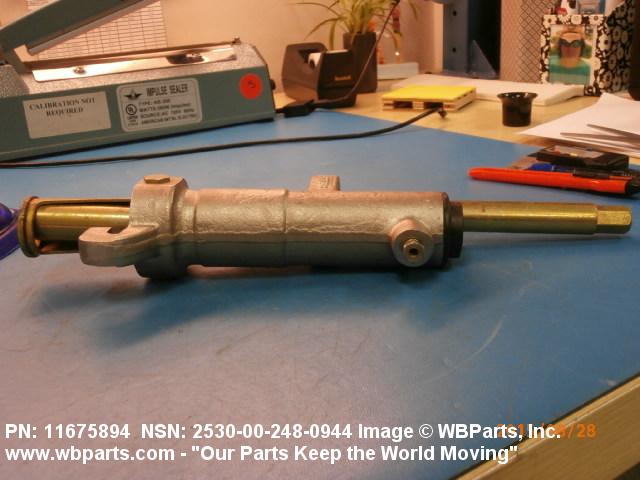

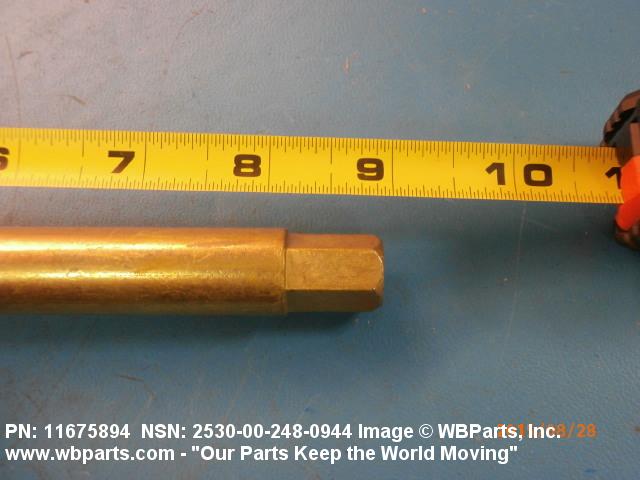

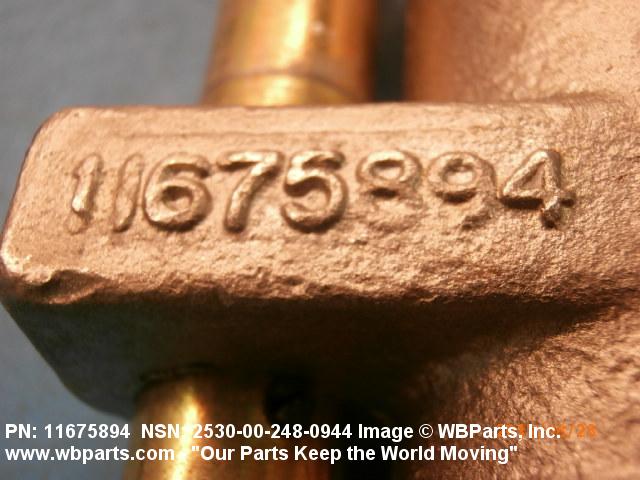

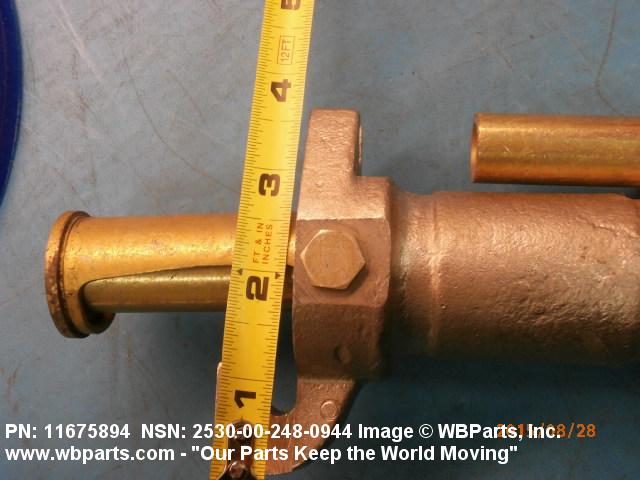

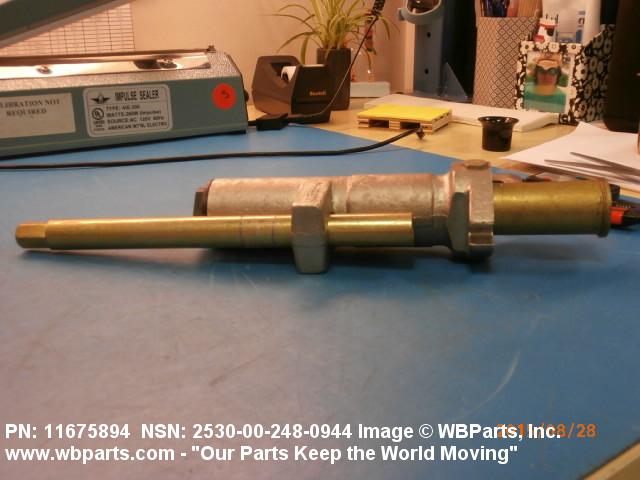

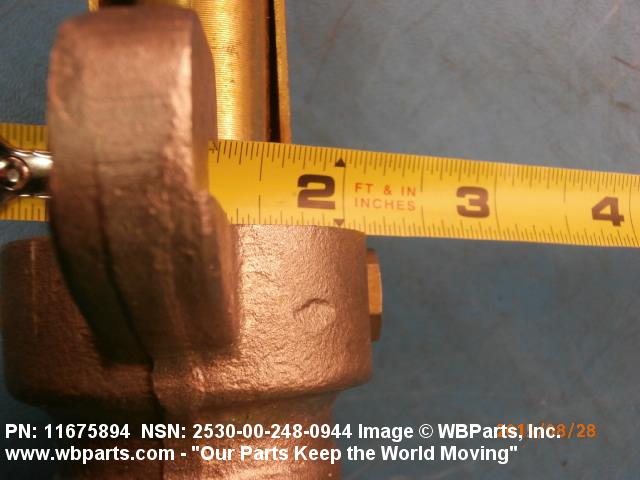

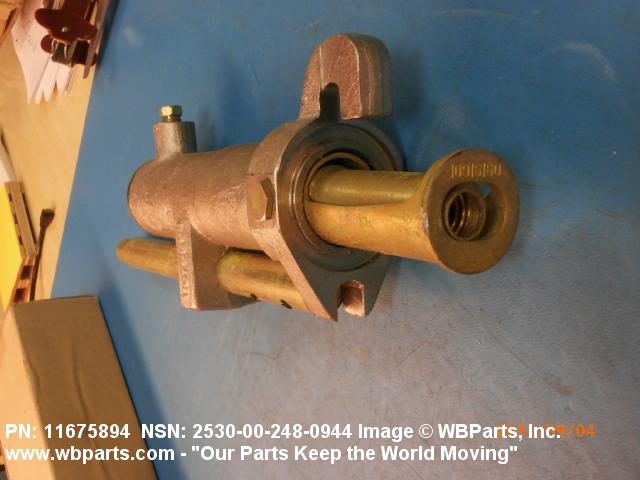

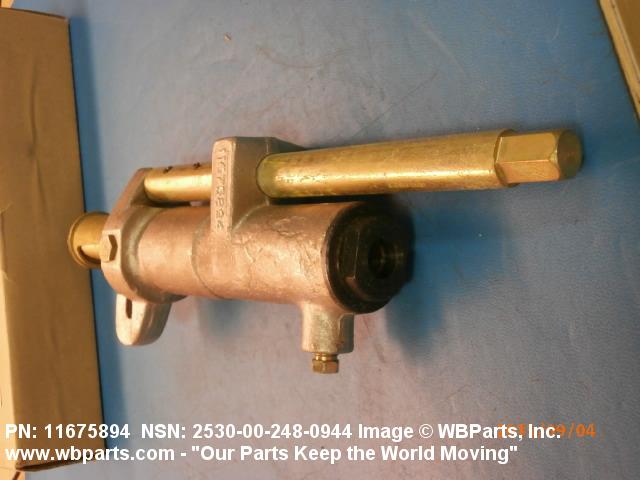

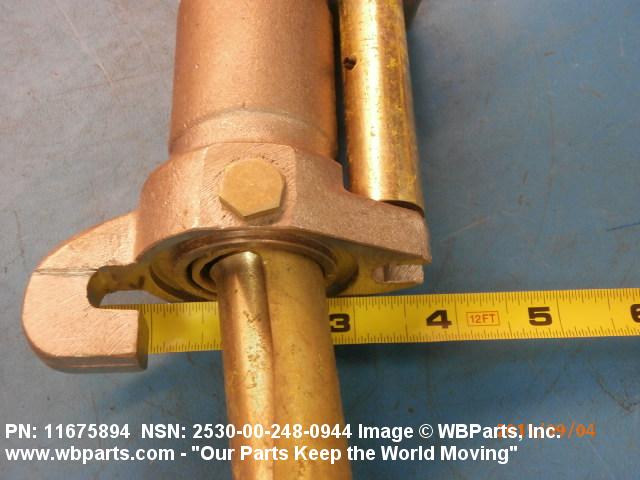

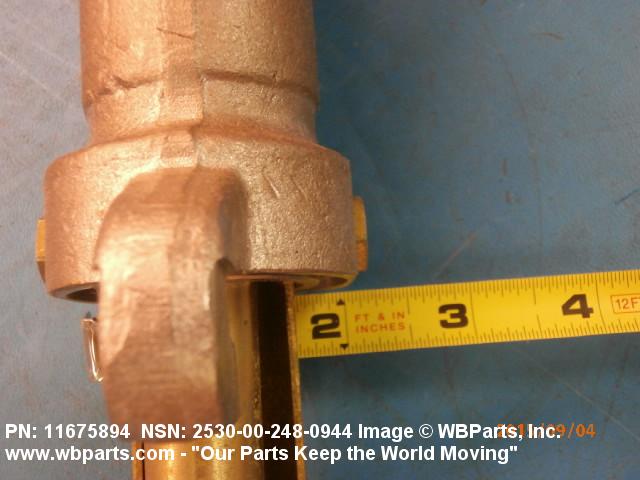

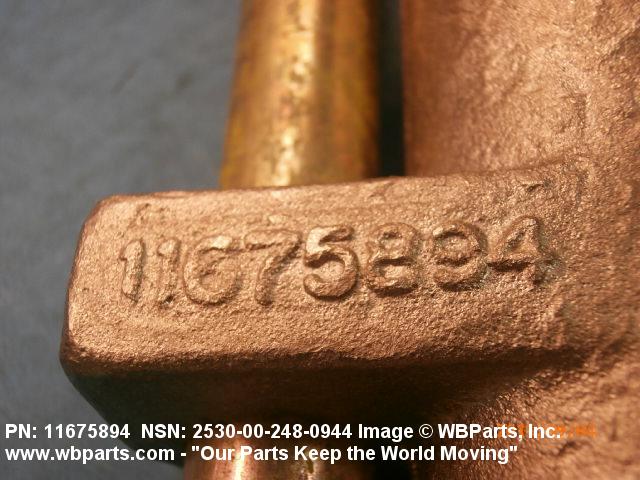

Drawings & Photos | NSN 2530-00-248-0944
Demand History | NSN 2530-00-248-0944
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2530-00-248-0944 | 2024-09-255 | 85 | Israel |
| 2530-00-248-0944 | 2022-08-235 | 20 | Taiwan |
| 2530-00-248-0944 | 2022-07-200 | 18 | Taiwan |
| 2530-00-248-0944 | 2020-05-129 | 1 | TH |
| 2530-00-248-0944 | 2019-11-311 | 1 | Brazil |
| 2530-00-248-0944 | 2019-11-308 | 1 | Brazil |
| 2530-00-248-0944 | 2019-10-303 | 10 | Brazil |
| 2530-00-248-0944 | 2018-05-128 | 520 | US |
| 2530-00-248-0944 | 2018-02-38 | 227 | US |
| 2530-00-248-0944 | 2018-02-33 | 27 | DE |
| 11675894 | 2018-01-31 | 27 | ES |
| 2530-00-248-0944 | 2018-01-11 | 27 | Germany |
| 2530-00-248-0944 | 2015-05-146 | 2 | United States |
| 2530-00-248-0944 | 2015-04-106 | 2 | United States |
| 2530-00-248-0944 | 2015-01-27 | 1 | US |
Cross Reference | NSN 2530-00-248-0944
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11675894 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2530-00-248-0944
Related Products | NSN 2530-00-248-0944
Technical Data | NSN 2530-00-248-0944
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | SINGLE ACTING SINGLE CYLINDER |
| INTEGRAL VALVE OPERATION METHOD | HYDRAULIC |
| OVERALL WIDTH | 2.125 INCHES NOMINAL |
| OVERALL HEIGHT | 3.781 INCHES NOMINAL |
| BODY MATERIAL | STEEL, FED STD 66, AISI/SAE 1015 |

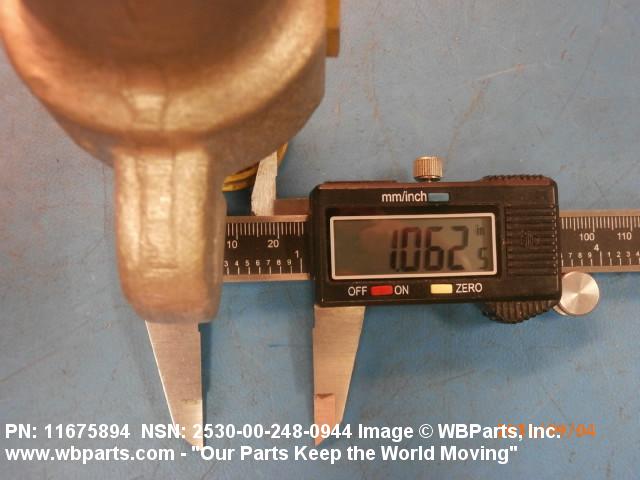

| BORE DIAMETER | 1.062 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | TONGUE CYLINDER HEAD END |
| MOUNTING PROVISION | PIN |

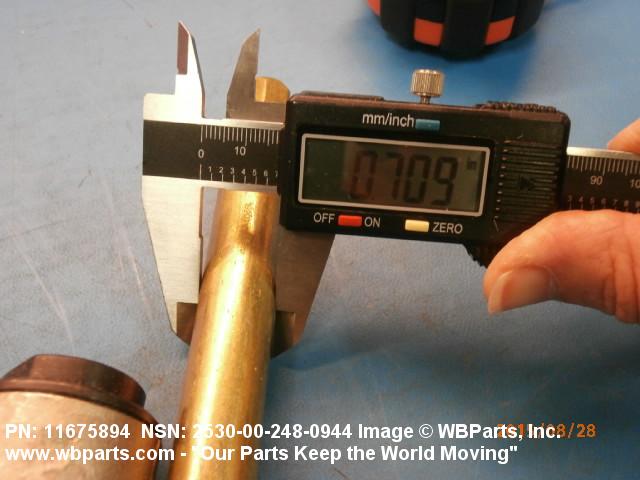

| MOUNTING FACILITY DIAMETER | 0.690 INCHES NOMINAL |
| MOUNTING FACILITY LENGTH | 8.880 INCHES NOMINAL |
| PORT STYLE | 7 INVERTED FLARE |
| PORT THREAD SERIES DESIGNATOR | UNF |
| PORT THREAD DIAMETER | 0.562 INCHES NOMINAL |
| PORT THREAD QUANTITY PER INCH | 18 |
| PORT THREAD CLASS | 2B |
| SEAT ANGLE IN DEG | 45.0 |
| PRESSURE RATING | 1500.0 POUNDS PER SQUARE INCH MAXIMUM |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 11675894 |
Restrictions/Controls & Freight Information | NSN 2530-00-248-0944
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 119260 | CYLINDERS:HYDRAULIC/PNEUMATIC |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2530-00-248-0944
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | W | Line of Communication/Base Support Systems |
| Weapons Systems/End Item or Homogeneous Group | WB | Bridge Armored Vehicle and Support Equipment |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | F | If condemned or uneconomically repairable, then dispose at Direct Support (DS) level. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | 2 | Support Vehicles and Equipment17, 23 except 2350, 25, 26, 28, 29, 4210, 4910, 6545 |
| Echelon Management Code | 6 | ICP/DSSCs Weapon system-oriented consumable items assigned to another Service/Agency for integrated materiel management which are managed by the ICP on a complex basis and which have not been decontrolled by the Integrated Materiel Manager. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | F | Reparable item. When uneconomically reparable, condemn and dispose at the third echelon level. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
