NSN 3040-01-240-3143 AF120612A, SERIAL NUMBER AF120612A, SERIALNUMBERAF120612A
Product Details | LINEAR ACTUATING CYLINDER ASSEMBLY
3040-01-240-3143 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.2041045000011900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: AF120612A, SERIAL NUMBER AF120612A, SERIALNUMBERAF120612A, 2500CBC2AU14A, 2-500CBC-2AU14A, 3040-01-240-3143, 01-240-3143, 3040012403143, 012403143
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 12 SEP 1986 | 01-240-3143 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |
Drawings & Photos | NSN 3040-01-240-3143
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-240-3143
Technical Data | NSN 3040-01-240-3143
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | SINGLE ACTING SINGLE CYLINDER |
| INTEGRAL VALVE OPERATION METHOD | PNEUMATIC |
| OVERALL WIDTH | 3.000 INCHES NOMINAL |
| OVERALL HEIGHT | 3.000 INCHES NOMINAL |
| EXTENDED LENGTH | 10.875 INCHES NOMINAL |
| COMPRESSED LENGTH | 6.875 INCHES NOMINAL |
| BODY MATERIAL | STEEL |
| BORE DIAMETER | 2.500 INCHES NOMINAL |
| FIRST PISTON ROD END STYLE | 7 EXTERNAL THREADED |
| FIRST END EXTERNAL THREAD LENGTH | 0.750 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | FLANGE BOTH ENDS |
| MOUNTING PROVISION | UNTHREADED MOUNTING HOLES |

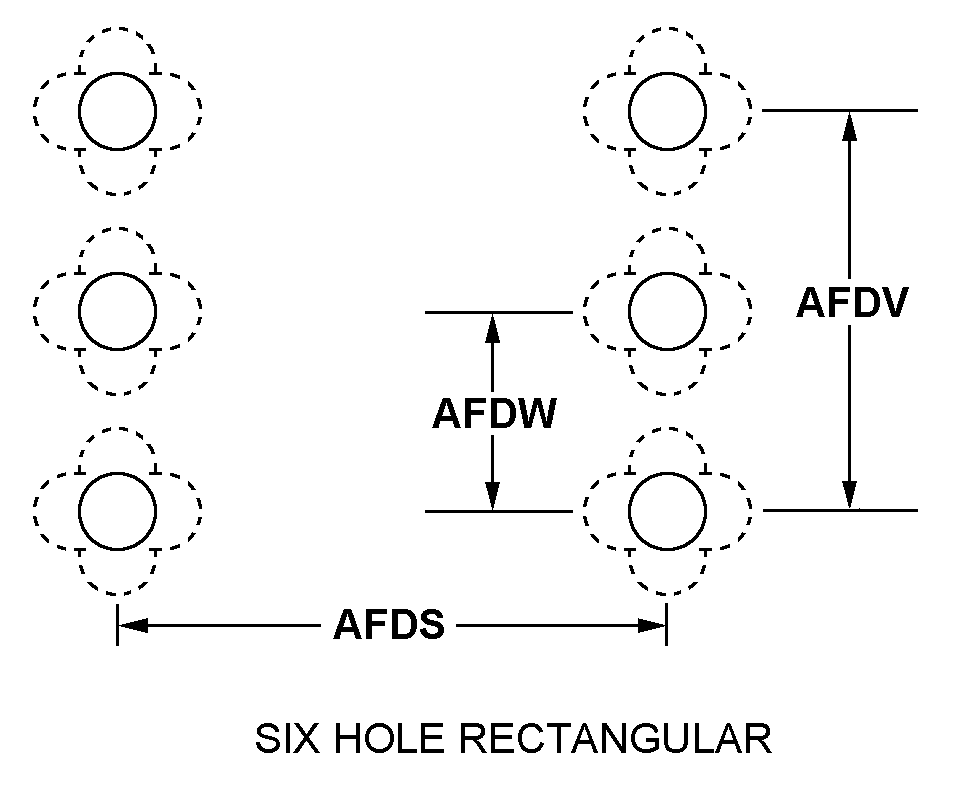

| MOUNTING PROVISION ARRANGEMENT STYLE | 22 SIX HOLE RECTANGULAR |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 5.375 INCHES NOMINAL |
| MOUNTING FACILITY DIAMETER | 0.438 INCHES NOMINAL |
| PORT LOCATION AND QUANTITY | 1 CYLINDER HEAD END 1 PISTON ROD END |
