NSN 3040-01-161-5898 B6459, B-6459, 7M7171

Product Details | LINEAR ACTUATING CYLINDER ASSEMBLY

3040-01-161-5898 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.2041045000011900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components30400042Miscellaneous Power Transmission Equipment

Part Alternates: B6459, B-6459, 7M7171, 7M717-1, 3040-01-161-5898, 01-161-5898, 3040011615898, 011615898

Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
30	07 SEP 1983	01-161-5898	31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR )

Drawings & Photos | NSN 3040-01-161-5898

Part Number	Request Date	QTY	Origin
3040-01-161-5898	2024-10-295	10	US
7M717-1	2024-10-295	10	DIBBS
B-6459	2024-10-295	10	DIBBS
7M717-1	2024-10-290	10	DIBBS
B-6459	2024-10-290	10	DIBBS
7M717-1	2024-10-275	10	DIBBS
B-6459	2024-10-275	10	DIBBS
7M717-1	2023-10-288	15	DIBBS
B-6459	2023-10-288	15	DIBBS
7M717-1	2023-09-271	15	DIBBS
B-6459	2023-09-271	15	DIBBS
7M717-1	2022-10-286	6	DIBBS
B-6459	2022-10-286	6	DIBBS
7M717-1	2022-10-285	19	DIBBS
B-6459	2022-10-285	19	DIBBS
7M717-1	2022-09-269	19	DIBBS
B-6459	2022-09-269	19	DIBBS
7M717-1	2022-09-258	13	DIBBS
B-6459	2022-09-258	13	DIBBS
7M717-1	2022-06-160	19	DIBBS
B-6459	2022-06-160	19	DIBBS
7M717-1	2021-06-173	9	DIBBS
B-6459	2021-06-173	9	DIBBS
3040-01-161-5898	2021-06-153	1	Indonesia
3040-01-161-5898	2020-11-328	6	Singapore
7M717-1	2020-06-182	16	DIBBS
B-6459	2020-06-182	16	DIBBS
7M7171	2020-06-177	24	United States
7M717-1	2020-01-12	36	DIBBS
B-6459	2020-01-12	36	DIBBS
7M717-1	2019-12-335	16	DIBBS
B-6459	2019-12-335	16	DIBBS
7M717-1	2019-11-325	3	DIBBS
B-6459	2019-11-325	3	DIBBS
7M717-1	2019-10-297	8	DIBBS
B-6459	2019-10-297	8	DIBBS
B6459	2017-11-324	2	Singapore
3040-01-161-5898	2016-12-357	1	DIBBS-RFPs
3040-01-161-5898	2016-11-312	13	DIBBS
3040-01-161-5898	2016-10-304	14	DIBBS
3040-01-161-5898	2016-10-286	11	DIBBS
3040-01-161-5898	2015-04-103	16	DIBBS
3040-01-161-5898	2015-03-60	15	DIBBS
3040-01-161-5898	2014-12-338	25	DIBBS
3040-01-161-5898	2014-09-257	16	DIBBS
3040-01-161-5898	2014-09-247	12	DIBBS
3040-01-161-5898	2014-08-236	12	DIBBS
3040-01-161-5898	2014-03-80	12	DIBBS
3040-01-161-5898	2014-03-65	12	DIBBS
7M7171	2014-01-15	2	Australia
3040-01-161-5898	2013-12-356	8	DIBBS
3040-01-161-5898	2013-11-317	16	Australia
3040-01-161-5898	2013-11-307	16	Australia
3040-01-161-5898	2013-08-220	32	AU
3040-01-161-5898	2013-05-141	0	DIBBS
3040-01-161-5898	2013-04-92	8	DIBBS
3040-01-161-5898	2013-03-66	10	DIBBS
3040-01-161-5898	2012-11-325	0	DIBBS
7M7171	2012-06-178	2	US
3040-01-161-5898	2011-08-218	0	DIBBS
3040-01-161-5898	2011-06-167	8	DIBBS
3040-01-161-5898	2011-04-100	11	DIBBS
3040-01-161-5898	2011-04-91	11	DIBBS
3040-01-161-5898	2011-02-40	8	DIBBS
3040-01-161-5898	2010-10-302	10	DIBBS
3040-01-161-5898	2007-05-129	7	DIBBS
3040-01-161-5898	2006-07-207	18	DIBBS
3040-01-161-5898	2006-03-69	15	DIBBS

Cross Reference | NSN 3040-01-161-5898

Part Number	Cage Code	Manufacturer
7M717-1	76301	BOEING COMPANY, THE DBA BOEING
B-6459	15515	ACTUANT CORPORATION DBA MILWAUKEE CYLINDER

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3040-01-161-5898

Compare

Related Products | NSN 3040-01-161-5898

3040-01-161-6395, 3040-01-161-6397, 3040-01-161-6398, 3040-01-161-6485, 3040-01-161-6486

Technical Data | NSN 3040-01-161-5898

Characteristic	Specifications
DESIGN CHARACTERISTICS	SINGLE ACTING SINGLE CYLINDER
OVERALL WIDTH	4.000 INCHES NOMINAL
OVERALL HEIGHT	3.000 INCHES NOMINAL
EXTENDED LENGTH	23.120 INCHES NOMINAL
COMPRESSED LENGTH	17.120 INCHES NOMINAL
BODY MATERIAL	STEEL
BORE DIAMETER	2.000 INCHES NOMINAL
FIRST PISTON ROD END STYLE	4 FORK TYPE
FIRST END HOLE DIAMETER	0.750 INCHES NOMINAL
FIRST END LARGEST INSIDE DIAMETER	0.750 INCHES NOMINAL
FIRST END FORK WIDTH	2.515 INCHES NOMINAL
FIRST END FORK DEPTH	1.250 INCHES NOMINAL
FIRST END FORK SPAN WIDTH	1.515 INCHES NOMINAL
(NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY	NOT INCLUDED
(NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY	NOT INCLUDED
MOUNTING TYPE AND LOCATION	FORK CYLINDER HEAD END
MOUNTING PROVISION	PIN
MOUNTING FACILITY DIAMETER	0.750 INCHES NOMINAL
MOUNTING FACILITY LENGTH	2.700 INCHES NOMINAL
PORT LOCATION AND QUANTITY	2 CYLINDER HEAD END 1 PISTON ROD END

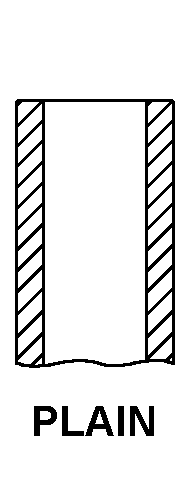

PORT STYLE	35 PLAIN
INSIDE DIAMETER	0.250 INCHES NOMINAL
TEMP RATING	-20.0 DEG FAHRENHEIT 250.0 DEG FAHRENHEIT
PRESSURE RATING	3000.0 POUNDS PER SQUARE INCH NOMINAL
III END ITEM IDENTIFICATION	F15A/B/C/D
