NSN 2590-00-244-0073 MDL091DX, MDL091-DX, 5100097
Product Details | LINEAR ACTUATING CYLINDER ASSEMBLY
2590-00-244-0073 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.2041045000011900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: MDL091DX, MDL091-DX, 5100097, 510-0097, 2590-00-244-0073, 00-244-0073, 2590002440073, 002440073
Vehicular Equipment Components | Miscellaneous Vehicular Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 28 DEC 1971 | 00-244-0073 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |
Drawings & Photos | NSN 2590-00-244-0073
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2590-00-244-0073
Technical Data | NSN 2590-00-244-0073
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | DOUBLE ACTING SINGLE CYLINDER |
| INTEGRAL VALVE OPERATION METHOD | HYDRAULIC |
| OVERALL WIDTH | 1.875 INCHES NOMINAL |
| OVERALL HEIGHT | 2.360 INCHES NOMINAL |
| EXTENDED LENGTH | 6.635 INCHES NOMINAL |
| COMPRESSED LENGTH | 5.635 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.125 INCHES NOMINAL |
| BODY MATERIAL | STEEL AND STEEL, CORROSION RESISTING |
| BORE DIAMETER | 1.000 INCHES NOMINAL |
| FIRST PISTON ROD END STYLE | 7 EXTERNAL THREADED |
| FIRST END OUTSIDE DIAMETER | 0.312 INCHES NOMINAL |
| FIRST END FORK DEPTH | 0.375 INCHES NOMINAL |
| FIRST END EXTERNAL THREAD LENGTH | 0.500 INCHES NOMINAL |
| FIRST PISTON ROD END THREAD SERIES DESIGNATOR | UNF |
| FIRST PISTON ROD END THREAD DIAMETER | 0.312 INCHES NOMINAL |
| FIRST PISTON ROD END THREAD QUANTITY PER INCH | 24 |
| FIRST PISTON ROD END THREAD CLASS | 2A |
| FIRST PISTON ROD END THREAD DIRECTION | RIGHT-HAND |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | FLANGE CENTER SECTION |
| MOUNTING PROVISION | SLOT |

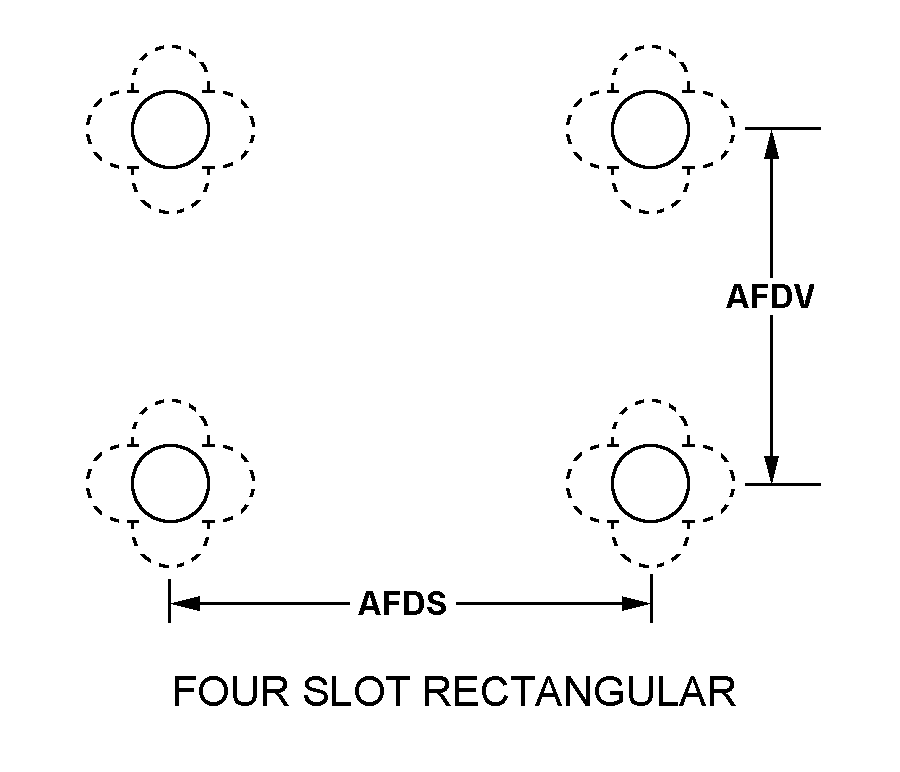

| MOUNTING PROVISION ARRANGEMENT STYLE | 21 FOUR SLOT RECTANGULAR |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 3.000 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 1.500 INCHES NOMINAL |
| SLOT WIDTH | 0.265 INCHES NOMINAL |
| SLOT LENGTH | 0.325 INCHES NOMINAL |
| PORT LOCATION AND QUANTITY | 2 CENTER SECTION |
| PORT STYLE | 15 FLARED |
| PORT THREAD SERIES DESIGNATOR | UNF |
| PORT THREAD DIAMETER | 0.438 INCHES NOMINAL |
| PORT THREAD QUANTITY PER INCH | 20 |
| PORT THREAD CLASS | 2A |
| SEAT ANGLE IN DEG | 37.0 |
| TEMP RATING | NOT RATED |
| PRESSURE RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 2590-00-244-0073
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 119260 | CYLINDERS:HYDRAULIC/PNEUMATIC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2590-00-244-0073
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
