Product Details | LINEAR ACTUATING CYLINDER ASSEMBLY
1730-01-094-9486 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.2041045000011900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 2030670, 1730-01-094-9486, 01-094-9486, 1730010949486, 010949486
2540 | Aircraft Ground Servicing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 20 MAY 1980 | 01-094-9486 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |
Drawings & Photos | NSN 1730-01-094-9486
Cross Reference | NSN 1730-01-094-9486
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2030670 | 04984 | CELTECH CORPORATION DBA SPACE DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1730-01-094-9486
Related Products | NSN 1730-01-094-9486
Technical Data | NSN 1730-01-094-9486
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | SINGLE ACTING SINGLE CYLINDER |
| INTEGRAL VALVE OPERATION METHOD | HYDRAULIC |
| EXTENDED LENGTH | 208.375 INCHES NOMINAL |
| COMPRESSED LENGTH | 116.375 INCHES NOMINAL |
| BORE DIAMETER | 3.000 INCHES NOMINAL |
| FIRST PISTON ROD END STYLE | 4 FORK TYPE |
| FIRST END HOLE DIAMETER | 1.000 INCHES NOMINAL |
| FIRST END LARGEST INSIDE DIAMETER | 1.000 INCHES NOMINAL |
| FIRST END FORK SPAN WIDTH | 1.125 INCHES NOMINAL |
| MOUNTING TYPE AND LOCATION | FORK BOTH ENDS |
| PORT LOCATION AND QUANTITY | 2 CENTER SECTION |

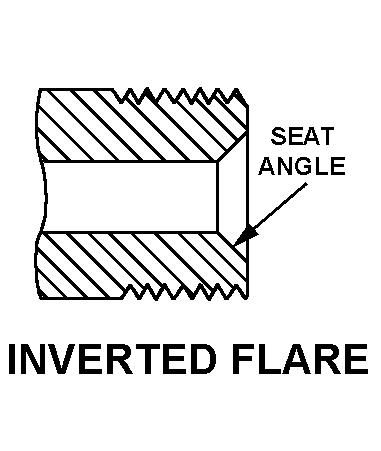

| PORT STYLE | 14 INVERTED FLARE |
| PORT THREAD SERIES DESIGNATOR | NPT |
| PORT NOMINAL PIPE THREAD SIZE | 0.500 INCHES |
| PRESSURE RATING | 3000.0 POUNDS PER SQUARE INCH NOMINAL |
| MANUFACTURERS CODE | 04984 |
| DESIGN CONTROL REFERENCE | 2030670 |
