NSN 1680-00-517-1554 M42412020, M4241-2020, 9907002006
Product Details | FLEXIBLE SHAFT ASSEMBLY

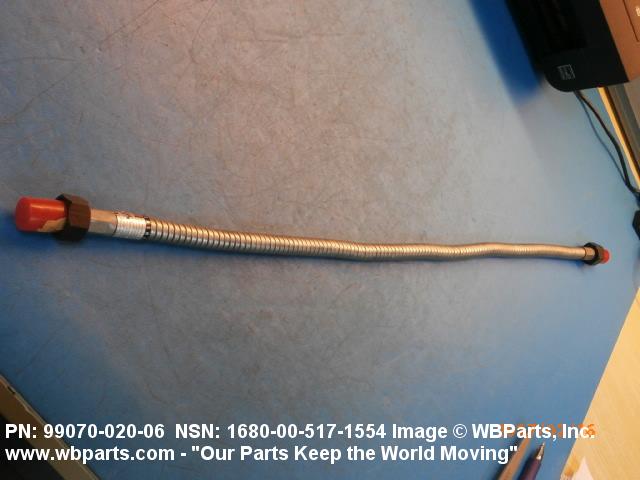

1680-00-517-1554 An item consisting of a casing with fittings and attachments on each end and a spirally wound wire core with formed end(s) and/or crimped on end fittings. It is designed to transmit rotary motion around bends from a motor or other power source to drive various types of equipment, such as tachometers, speedometers, remote controls, instruments, and the like, which are located at an angle and/or distance from the power source. See also CONTROL ASSEMBLY, PUSH-PULL.20316800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment66800078Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
Part Alternates: M42412020, M4241-2020, 9907002006, 99070-020-06, 1680-00-517-1554, 00-517-1554, 1680005171554, 005171554
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1961 | 00-517-1554 | 20315 ( SHAFT ASSEMBLY, FLEXIBLE ) |

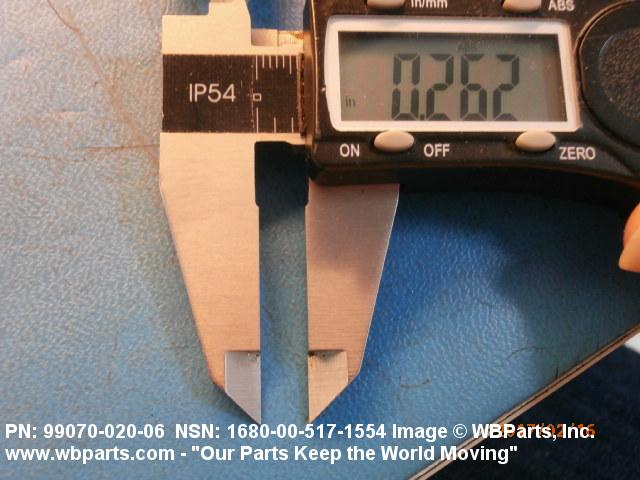

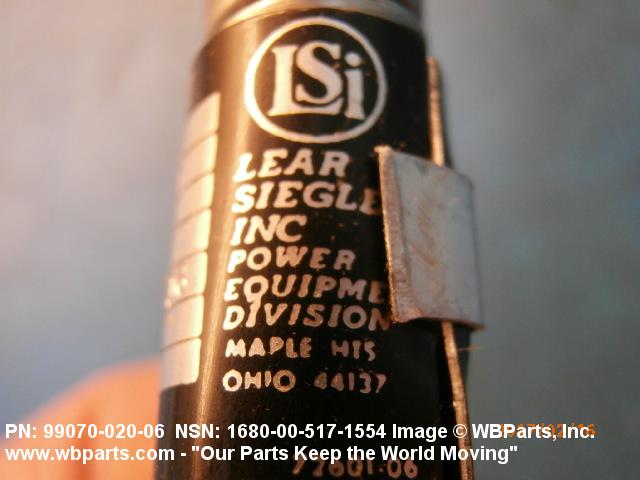

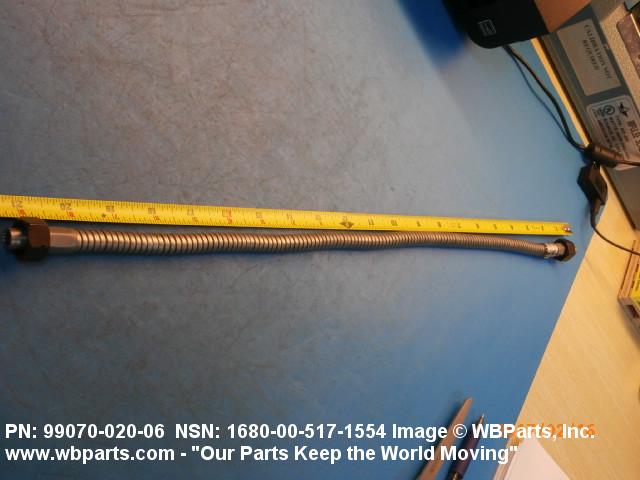

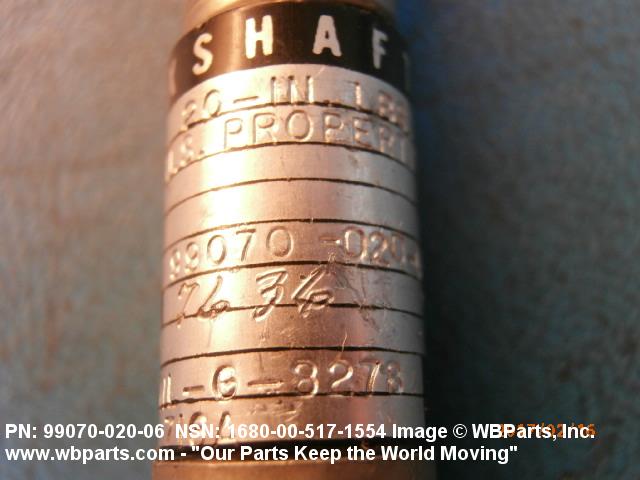

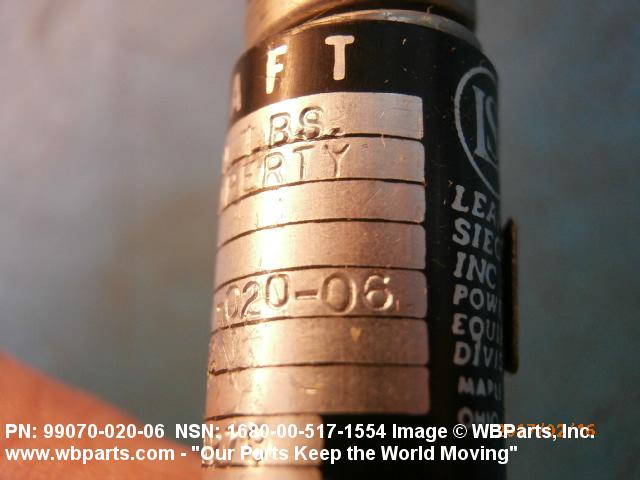

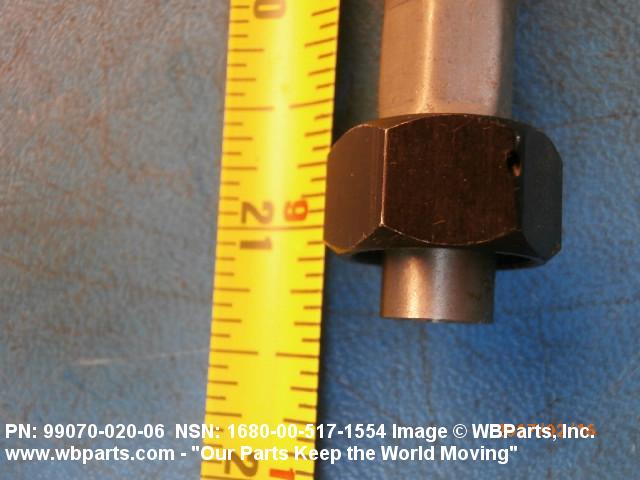

Drawings & Photos | NSN 1680-00-517-1554
Demand History | NSN 1680-00-517-1554
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1680-00-517-1554 | 2017-01-31 | 2 | Australia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1680-00-517-1554
Technical Data | NSN 1680-00-517-1554

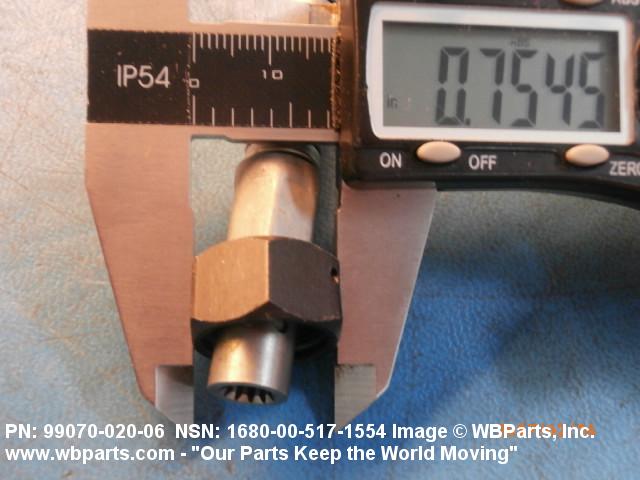

| Characteristic | Specifications |
|---|---|
| CASING MATERIAL | STEEL |
| CASING SURFACE TREATMENT | CADMIUM PLATED |
| CASING LENGTH BETWEEN FERRULES | 20.188 INCHES NOMINAL |
| CASING OUTSIDE DIAMETER | 0.445 INCHES NOMINAL |
| END CONNECTION TYPE | THREADED INTERNAL BOTH ENDS |
| THREAD LOCATION | INTERNAL BOTH ENDS |
| SCREW THREAD SERIES DESIGNATOR | UNS BOTH ENDS |
| THREAD DIRECTION | RIGHT-HAND BOTH ENDS |
| THREAD CLASS | ANY ACCEPTABLE BOTH ENDS |
| THREAD DEPTH | 0.438 INCHES NOMINAL BOTH ENDS |
| END OVERALL DIAMETER | 0.812 INCHES NOMINAL BOTH ENDS |
| SWIVEL END | PROVIDED BOTH ENDS |
| WRENCHING FACILITY TYPE | HEXAGON BOTH ENDS |
| WIDTH ACROSS FLATS | 0.812 INCHES NOMINAL BOTH ENDS |
| LUBRICATION FITTING | NOT PROVIDED BOTH ENDS |
| CORE MATERIAL | STEEL |
| CORE SURFACE TREATMENT | CADMIUM PLATED |
| CORE OVERALL LENGTH | 20.438 INCHES NOMINAL |
| CORE DIAMETER | 0.250 INCHES NOMINAL |
| CORE ROTATION DIRECTION | CLOCKWISE OR COUNTERCLOCKWISE |

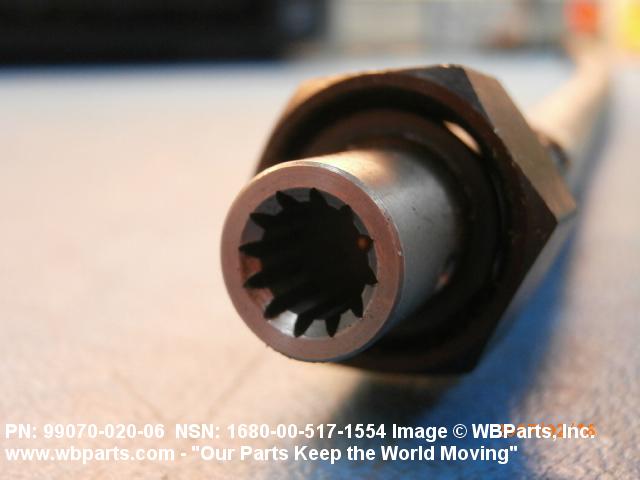

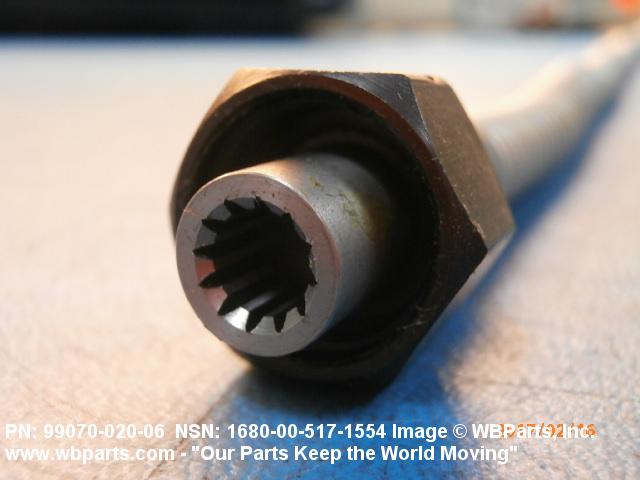

| END TYPE | ROUND, INTERNAL SPLINED BOTH ENDS |
| TIP LENGTH | 0.500 INCHES NOMINAL BOTH ENDS |
| CROSS SECTION SIZE AND LOCATION | 0.406 INCHES NOMINAL DIAMETER BOTH ENDS |
| SETSCREW | NOT INCLUDED BOTH ENDS |
| SPLINE TYPE | INVOLUTE BOTH ENDS |
| SPLINE QUANTITY | 12 BOTH ENDS |
| SPLINE MAJOR DIAMETER | ANY ACCEPTABLE BOTH ENDS |
| SPLINE MINOR DIAMETER | ANY ACCEPTABLE BOTH ENDS |
| SPLINE LENGTH | 0.250 INCHES NOMINAL BOTH ENDS |
| PITCH DIAMETER | 0.250 INCHES NOMINAL BOTH ENDS |
| SPLINE PRESSURE ANGLE IN DEG | 14.5 BOTH ENDS |
| CORE REMOVABILITY | NONREMOVABLE |
| OVERALL LENGTH | 21.438 INCHES NOMINAL |
| TORSIONAL DEFLECTION RATING | 4 DEG FT-LB IN. TORSIONAL DEFLECTION WINDING,4.5 DEG FT-LB IN. UNWINDING RATING |
| MINIMUM OPERATING RADIUS | 3.000 INCHES |
| III FSC APPLICATION DATA | CONTROL ASSY-AIRCRAFT |
| MANUFACTURERS CODE | 31435 |
| DESIGN CONTROL REFERENCE | 99070-020-06 |
