NSN 1680-01-432-9941 2317M191, 2317M-19-1, 01-432-9941
Product Details | FLEXIBLE SHAFT ASSEMBLY
1680-01-432-9941 An item consisting of a casing with fittings and attachments on each end and a spirally wound wire core with formed end(s) and/or crimped on end fittings. It is designed to transmit rotary motion around bends from a motor or other power source to drive various types of equipment, such as tachometers, speedometers, remote controls, instruments, and the like, which are located at an angle and/or distance from the power source. See also CONTROL ASSEMBLY, PUSH-PULL.20316800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment66800078Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
Part Alternates: 2317M191, 2317M-19-1, 1680-01-432-9941, 01-432-9941, 1680014329941, 014329941
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 19 JUN 1996 | 01-432-9941 | 20315 ( SHAFT ASSEMBLY, FLEXIBLE ) |

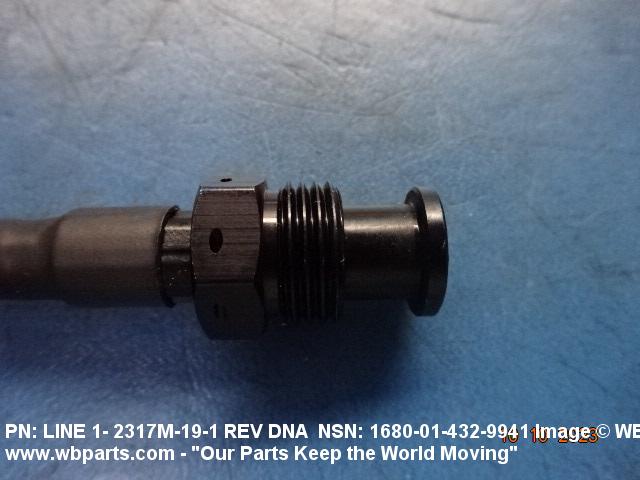

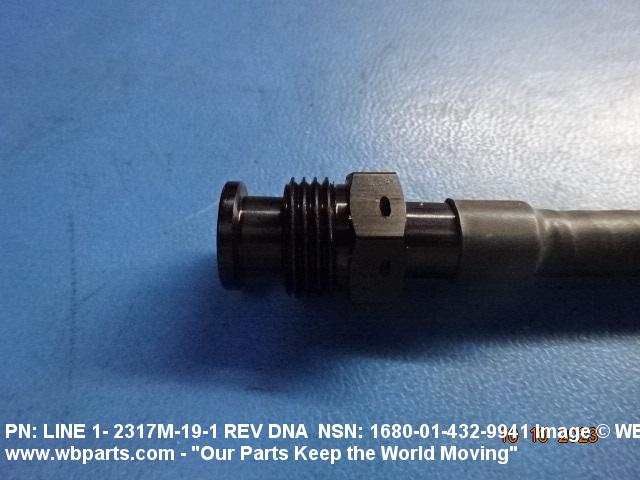

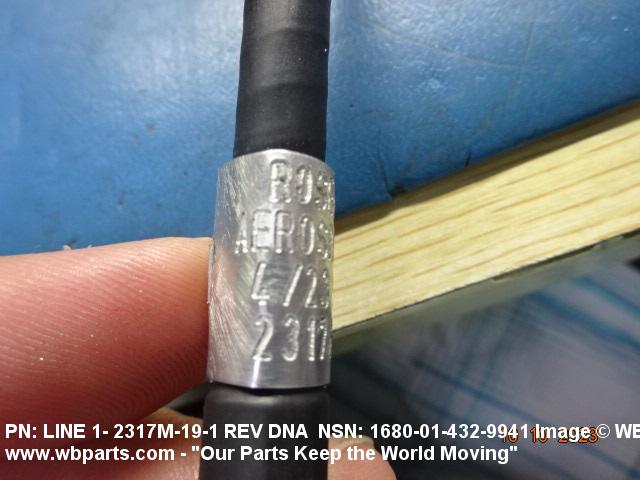

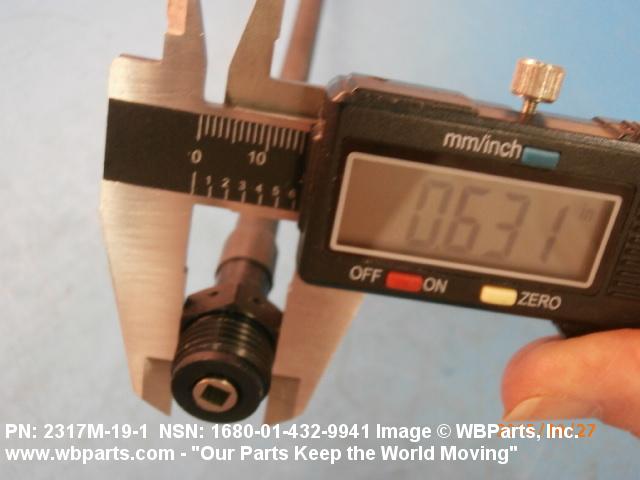

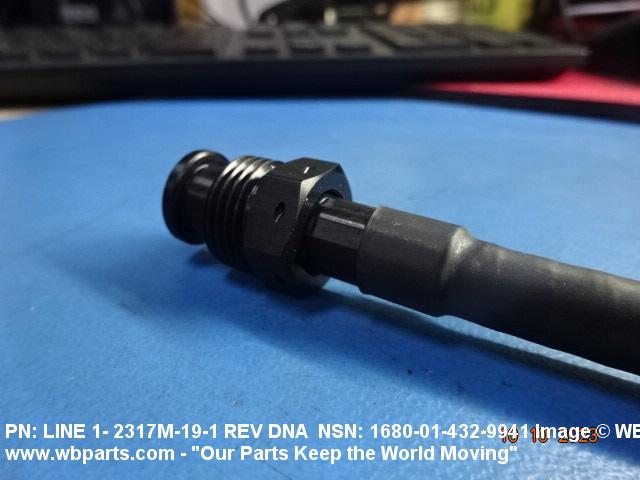

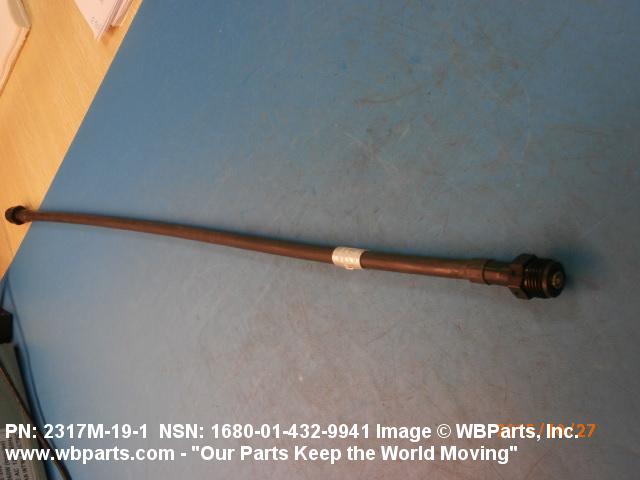

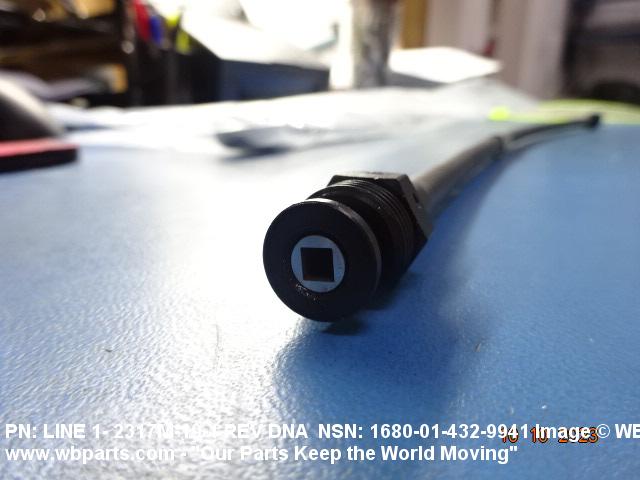

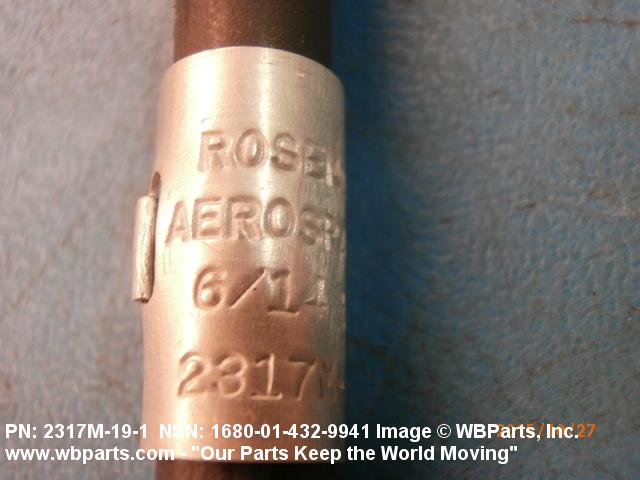

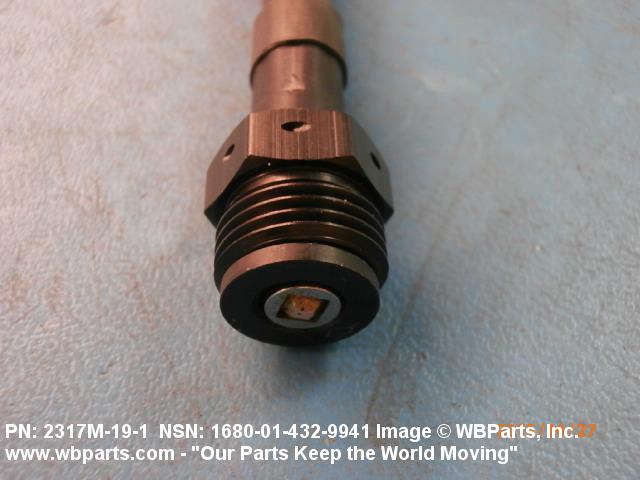

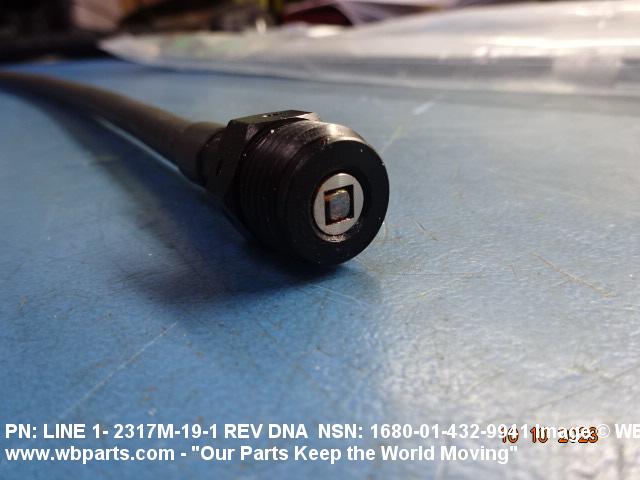

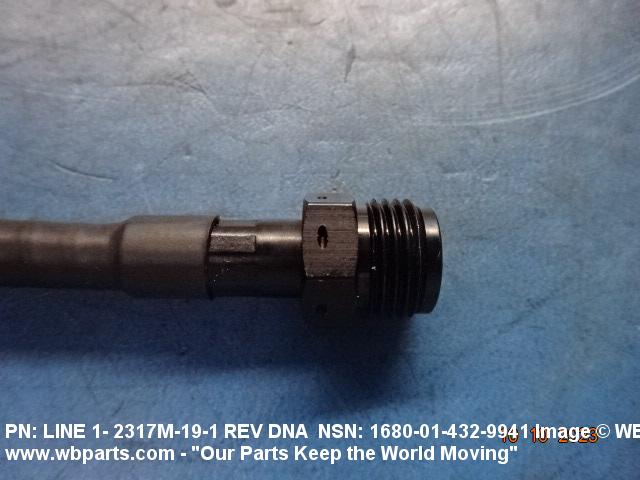

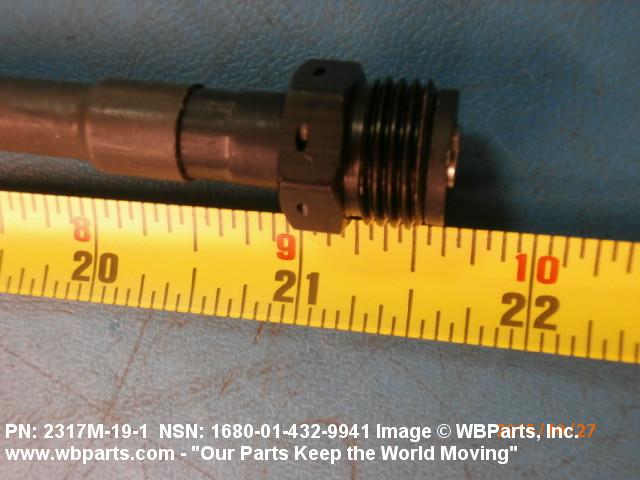

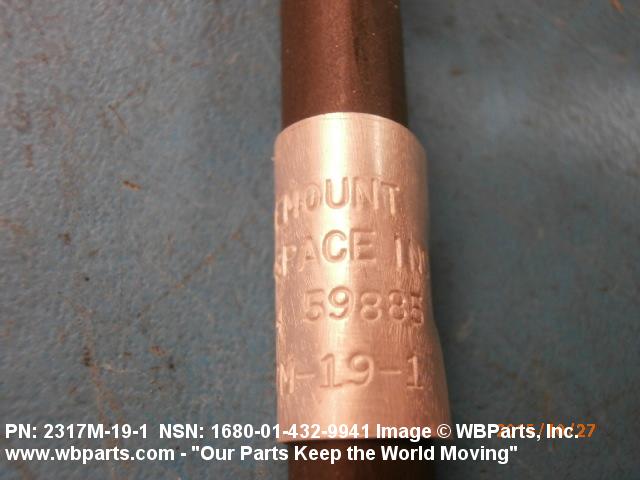

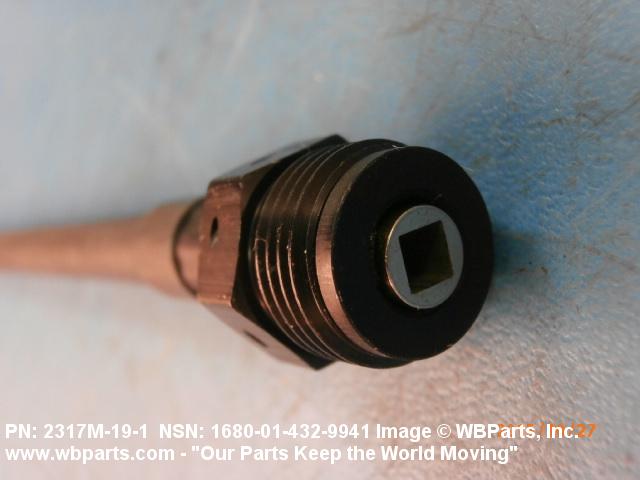

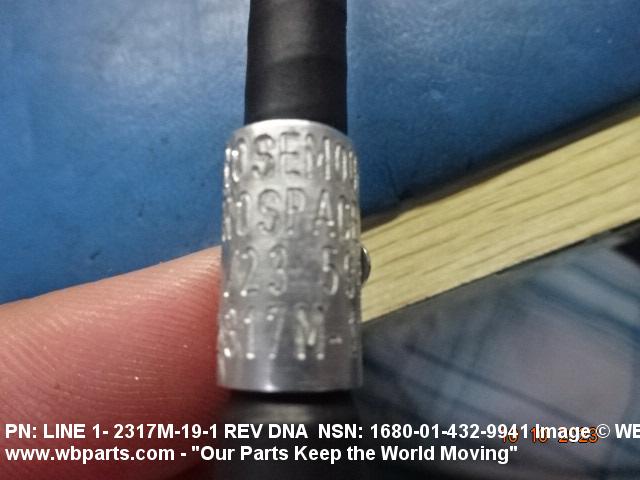

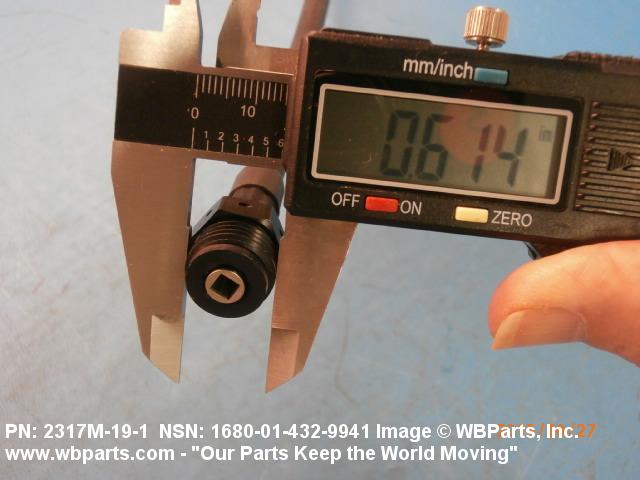

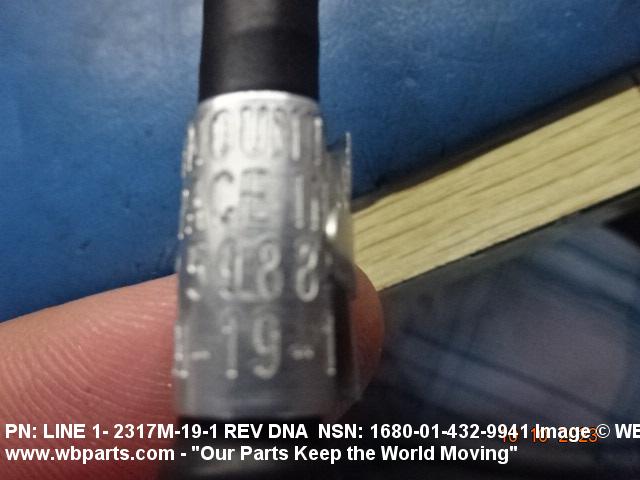

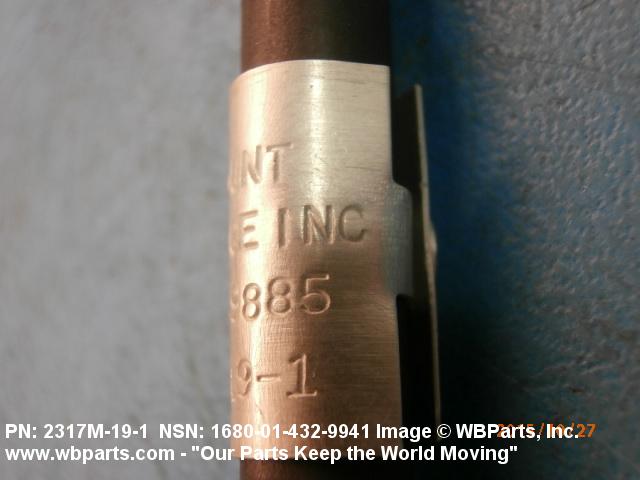

Drawings & Photos | NSN 1680-01-432-9941
Demand History | NSN 1680-01-432-9941
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2317M191 | 2024-08-242 | 142 | United States |
| 2317M191 | 2023-10-297 | 1 | US |
| 2317M191 | 2023-04-110 | 1 | United States |
| 1680-01-432-9941 | 2016-05-131 | 62 | DIBBS |
| 2317M191 | 2015-09-272 | 1 | United States |
| 1680-01-432-9941 | 2015-05-142 | 2 | US |
| 1680-01-432-9941 | 2014-12-339 | 2 | US |
| 1680-01-432-9941 | 2014-11-328 | 2 | United States |
| 1680-01-432-9941 | 2014-11-328 | 4 | United States |
| 1680-01-432-9941 | 2014-11-328 | 4 | United States |
| 2317M191 | 2014-01-30 | 4 | US |
| 1680-01-432-9941 | 2014-01-30 | 4 | US |
| 1680-01-432-9941 | 2013-09-254 | 2 | Philippines |
| 2317M191 | 2009-01-26 | 5 | US |
| 2317M191 | 2009-01-26 | 5 | US |
| 1680-01-432-9941 | 2007-09-248 | 43 | DIBBS |
| 1680-01-432-9941 | 2007-06-165 | 15 | DIBBS |
| 1680-01-432-9941 | 2007-04-113 | 39 | DIBBS |
| 1680-01-432-9941 | 2007-02-53 | 14 | DIBBS |
| 2317M191 | 2006-04-110 | 48 | US |
Cross Reference | NSN 1680-01-432-9941
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2317M-19-1 | 59885 | ROSEMOUNT AEROSPACE INC. DBA A UTC AEROSPACE SYSTEMS COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1680-01-432-9941
Technical Data | NSN 1680-01-432-9941
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | HELICOPTER, LAMPS MARK III, SH-60B. AIRFRAME DCNS / 59885. |
| MANUFACTURERS CODE | 59885 |
| DESIGN CONTROL REFERENCE | 2317M-19-1 |
Restrictions/Controls & Freight Information | NSN 1680-01-432-9941
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 129920 | SHAFTS/SHAFTING,FLEX NOI STL |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1680-01-432-9941
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
