NSN 1680-00-517-8974 D1010M1, 1010M1, 1010M-1
Product Details | LINEAR ELECTRO-MECHANICAL ACTUATOR

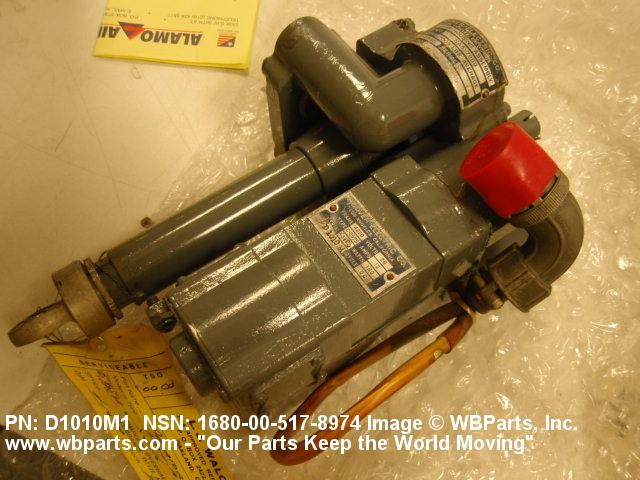

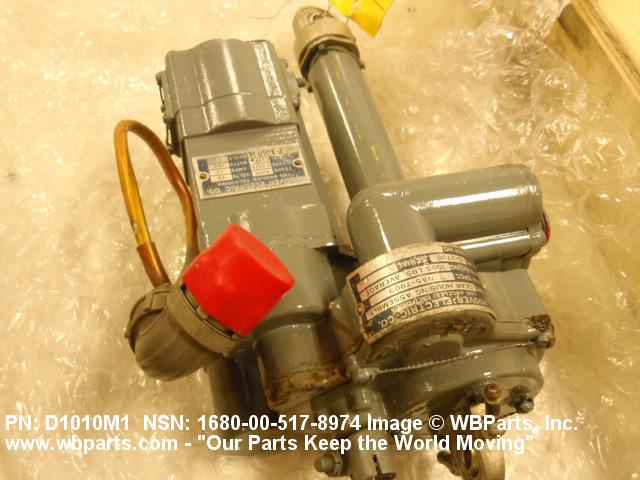

1680-00-517-8974 A self-contained power transmitting device designed to convert electrical energy into controlled mechanical force, in the form of linear (straight line) mechanical movement. Comprised of an electrical motor(s), gear box(es), screwjacks, limit switch(es), and such accessories as required for the specific moving and positioning of other components. Excludes hydraulic and pneumatic cylinders and screwjacks.21412700040Aircraft Gunnery Fire Control Components14200025Guided Missile Components14400025Launchers, Guided Missile167500001677000016800049Miscellaneous Aircraft Accessories and Components18200024Space Vehicle Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29200048Engine Electrical System Components, Nonaircraft29900045Miscellaneous Engine Accessories, Nonaircraft30100036Torque Converters and Speed Changers
Part Alternates: D1010M1, 1010M1, 1010M-1, 1680-00-517-8974, 00-517-8974, 1680005178974, 005178974
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-517-8974 | 10957 ( ACTUATOR, ELECTRO-MECHANICAL, LINEAR ) |

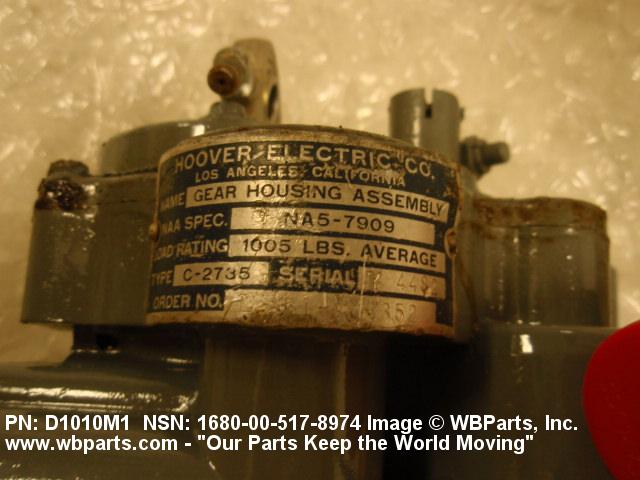

Drawings & Photos | NSN 1680-00-517-8974
Demand History | NSN 1680-00-517-8974
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1680-00-517-8974 | 2009-10-292 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1680-00-517-8974
Technical Data | NSN 1680-00-517-8974
| Characteristic | Specifications |
|---|---|

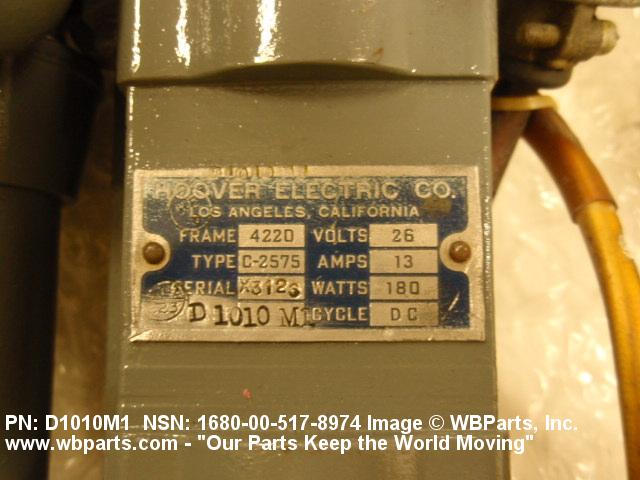

| CURRENT TYPE | DC |
| VOLTAGE IN VOLTS | 26.0 |
| CURRENT RATING IN AMPS | 13.0 |
| DUTY CYCLE | INTERMITTENT |
| TENSION LOAD RATING | 650.0 POUNDS NOMINAL OPERATING 3320.0 POUNDS NOMINAL STATIC |
| COMPRESSION LOAD RATING | 1290.0 POUNDS NOMINAL OPERATING 3370.0 POUNDS NOMINAL STATIC |
| STROKE LENGTH | 5.437 INCHES NOMINAL |
| RATED STROKE VELOCITY | 0.228 INCHES PER SECOND |
| LIMIT SWITCH CONTROL | INCLUDED |
| THERMAL PROTECTOR RESET METHOD | AUTOMATIC |
| MAXIMUM OPERATING ALTITUDE RATING | 50000.0 FEET |
| MANUAL OVERRIDE | NOT INCLUDED |
| TERMINAL TYPE | CONNECTOR |
| BODY LENGTH | 10.625 INCHES MINIMUM AND 16.062 INCHES MAXIMUM |
| BODY WIDTH | 5.000 INCHES NOMINAL |
| BODY HEIGHT | 6.625 INCHES NOMINAL |
| MANUFACTURERS CODE | 98889 |
| DESIGN CONTROL REFERENCE | D1010M1 |
