NSN 1680-00-412-4397 204060762001, 204-060-762-001 , 2040607621
Product Details | LINEAR ELECTRO-MECHANICAL ACTUATOR
1680-00-412-4397 A self-contained power transmitting device designed to convert electrical energy into controlled mechanical force, in the form of linear (straight line) mechanical movement. Comprised of an electrical motor(s), gear box(es), screwjacks, limit switch(es), and such accessories as required for the specific moving and positioning of other components. Excludes hydraulic and pneumatic cylinders and screwjacks.21412700040Aircraft Gunnery Fire Control Components14200025Guided Missile Components14400025Launchers, Guided Missile167500001677000016800049Miscellaneous Aircraft Accessories and Components18200024Space Vehicle Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29200048Engine Electrical System Components, Nonaircraft29900045Miscellaneous Engine Accessories, Nonaircraft30100036Torque Converters and Speed Changers
Part Alternates: 204060762001, 204-060-762-001 , 2040607621, 204-060-762-1 , 65A124, 1680-00-412-4397, 00-412-4397, 1680004124397, 004124397
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 02 FEB 1972 | 00-412-4397 | 10957 ( ACTUATOR, ELECTRO-MECHANICAL, LINEAR ) |

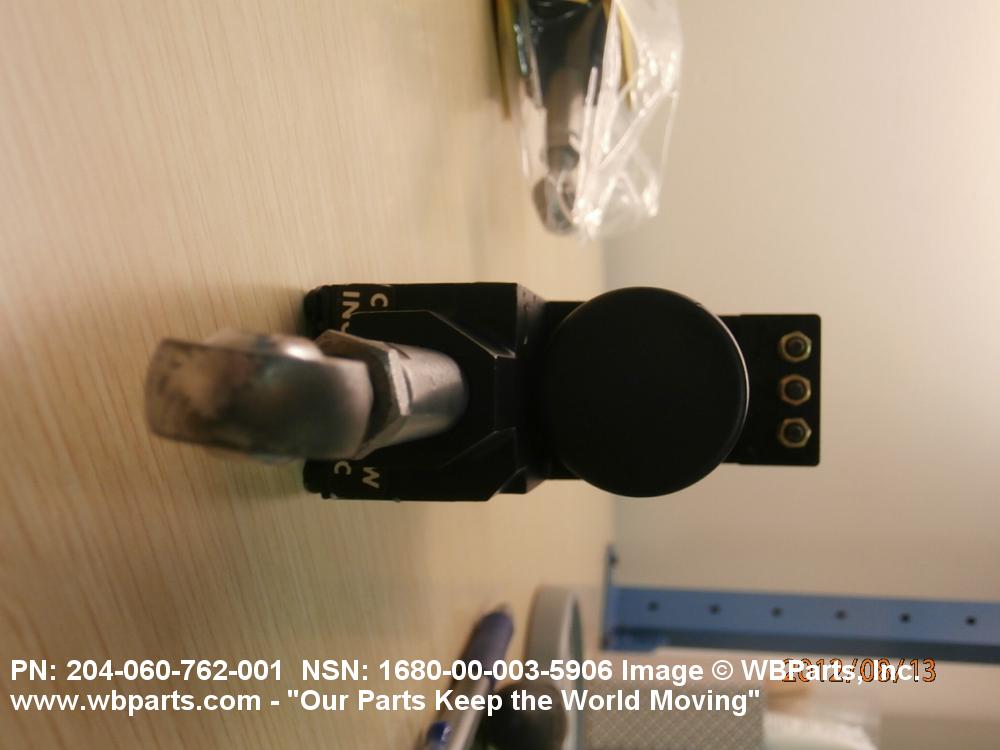

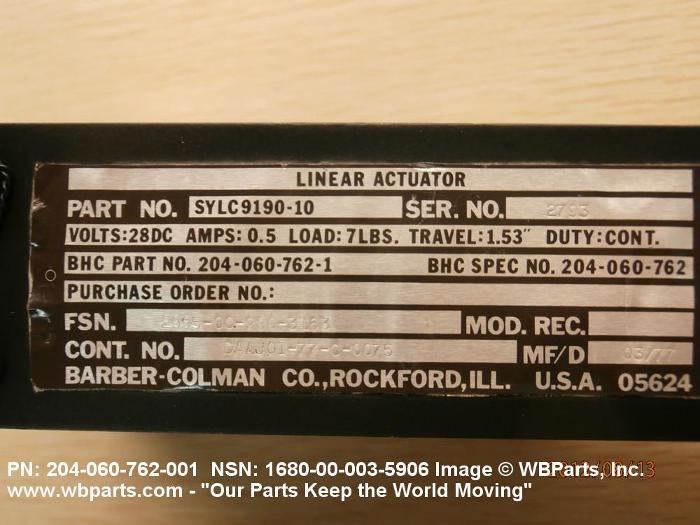

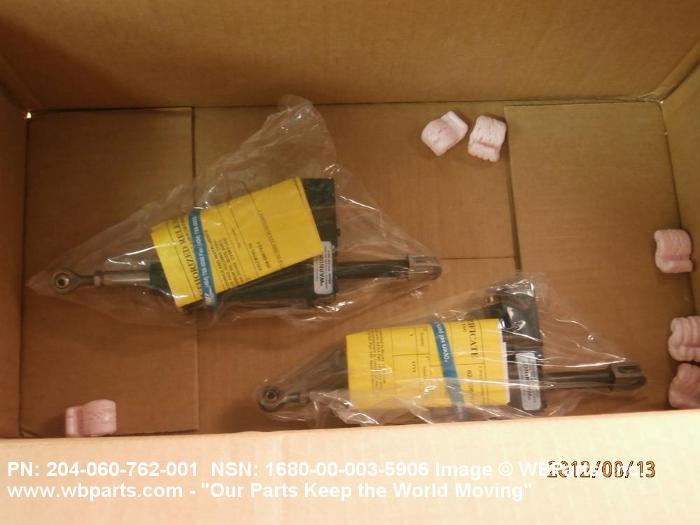

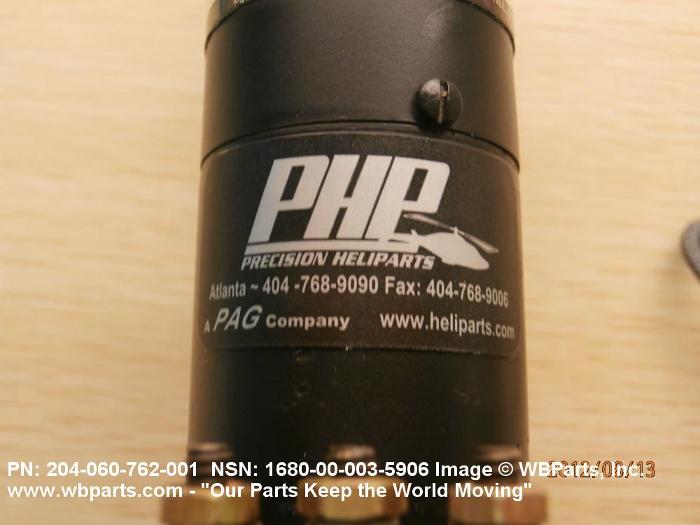

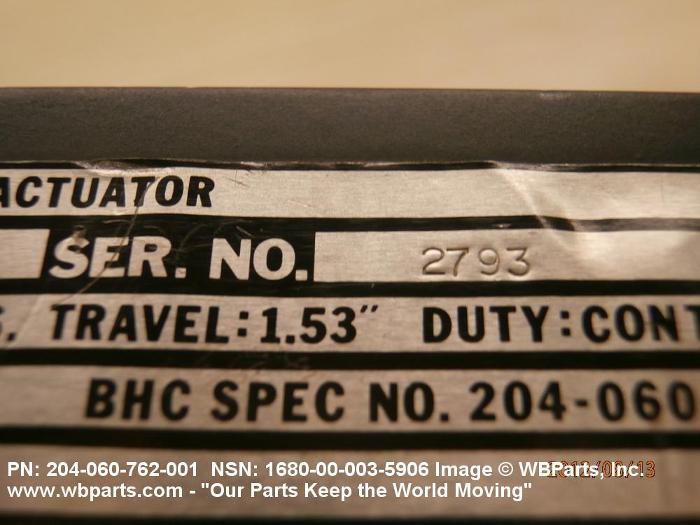

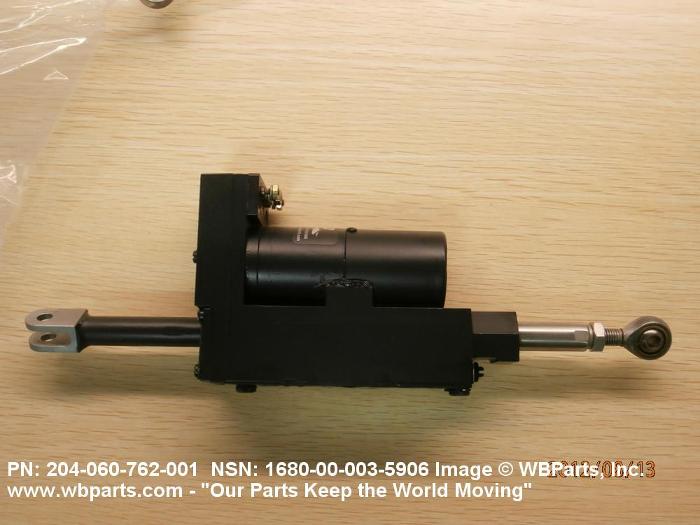

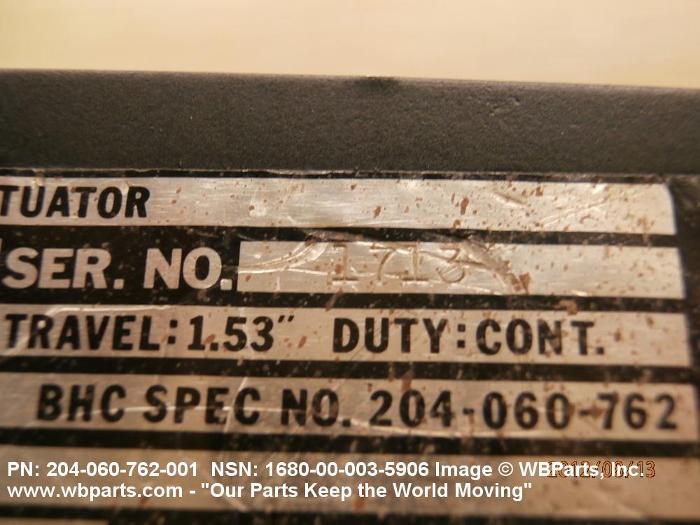

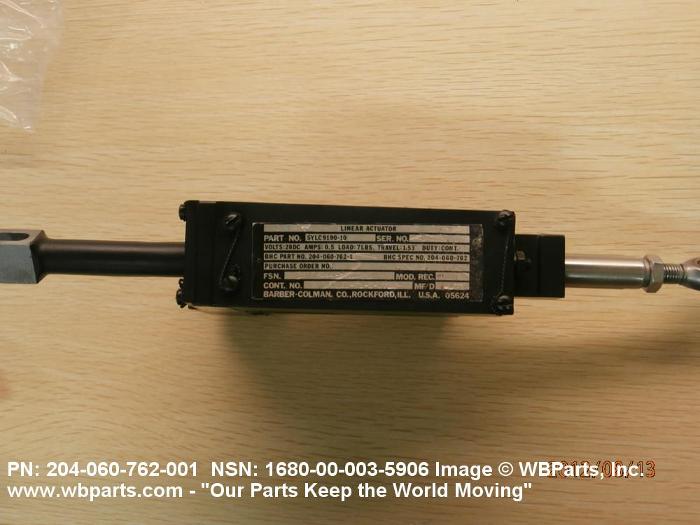

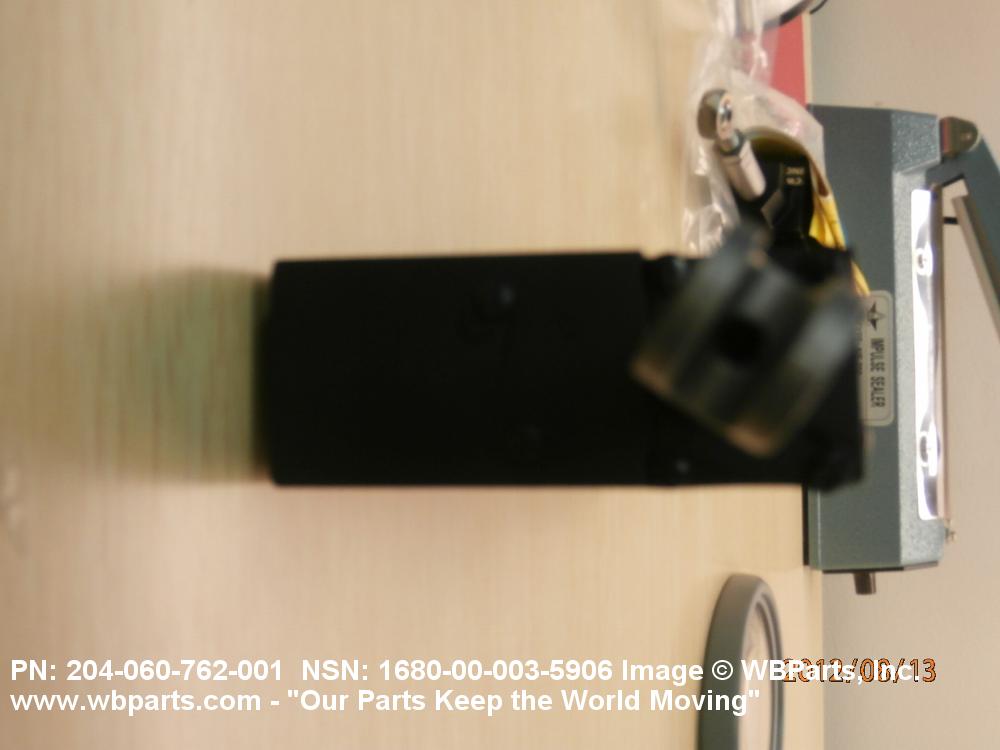

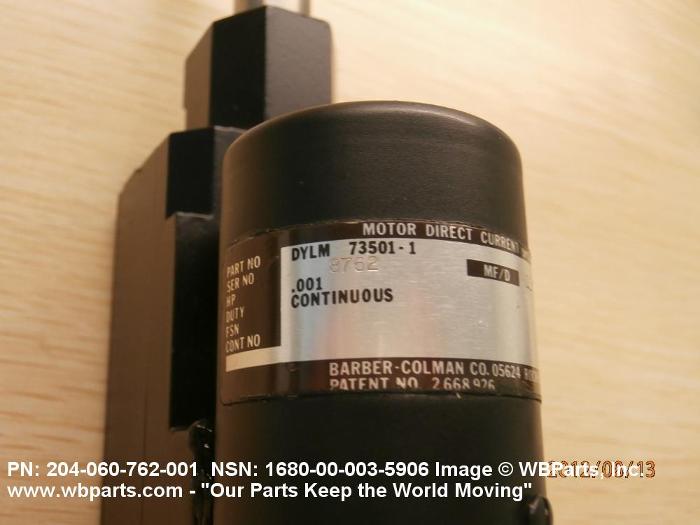

Drawings & Photos | NSN 1680-00-412-4397
Demand History | NSN 1680-00-412-4397
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 204060762001 | 2024-09-250 | 1 | Uganda |
| 2040607621 | 2024-06-157 | 1 | El Salvador |
| 204-060-762-001 | 2023-05-151 | 1 | Philippines |
| 204060762001 | 2021-11-322 | 1 | Kenya |
| 204060762001 | 2021-11-322 | 2 | Kenya |
| 2040607621 | 2021-06-152 | 1 | El Salvador |
| 2040607621 | 2021-05-148 | 1 | El Salvador |
| 2040607621 | 2021-05-126 | 3 | Philippines |
| 204060762001 | 2020-10-287 | 4 | KE |
| 1680-00-412-4397 | 2019-01-28 | 3 | United Kingdom |
| 1680-00-412-4397 | 2019-01-21 | 3 | South Korea |
| 65A124 | 2019-01-18 | 3 | KR |
| 2040607621 | 2016-06-181 | 1 | Philippines |
| 1680-00-412-4397 | 2016-03-90 | 10 | MANUAL |
| 65A124 | 2016-03-90 | 10 | KR |
| 204060762001 | 2013-02-57 | 1 | US |
| 204060762001 | 2012-01-04 | 1 | CA |
| 65A124 | 2011-11-321 | 3 | Netherlands |
| 65A124 | 2010-10-291 | 7 | US |
| 2040607621 | 2010-09-265 | 0 | United Kingdom |
| 65A124 | 2010-09-265 | 1 | United Kingdom |
| 2040607621 | 2009-07-211 | 1 | Brazil |
| 204060762001 | 2007-06-165 | 2 | Philippines |
| 204060762001 | 2006-06-152 | 4 | United States |
| 204060762001 | 2006-06-152 | 4 | United States |
| 204060762001 | 2006-05-150 | 3 | United States |
| 204060762001 | 2006-05-150 | 3 | US |
| 204060762001 | 2006-05-143 | 2 | United States |
| 204060762001 | 2006-05-130 | 5 | United States |
| 204060762001 | 2006-05-130 | 5 | United States |
| 204060762001 | 2006-05-130 | 5 | United States |
| 204060762001 | 2006-05-130 | 5 | United States |
| 204060762001 | 2006-04-116 | 1 | Philippines |
| 204060762001 | 2006-04-116 | 1 | Philippines |
| 204060762001 | 2006-04-105 | 4 | United States |
| 204060762001 | 2006-04-101 | 1 | United States |
| 204060762001 | 2006-04-101 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1680-00-412-4397
Related Products | NSN 1680-00-412-4397
Technical Data | NSN 1680-00-412-4397
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | DC |
| VOLTAGE IN VOLTS | 28.0 |
| CURRENT RATING IN AMPS | 2.0 |
| DUTY CYCLE | INTERMITTENT |
| INTERMITTENT OPERATION DUTY CYCLE | 1.0 MINUTES MAXIMUM ON AND 5.0 MINUTES MINIMUM OFF |
| TENSION LOAD RATING | 7.0 POUNDS NOMINAL OPERATING |
| COMPRESSION LOAD RATING | 7.0 POUNDS NOMINAL OPERATING |
| STROKE LENGTH | 1.530 INCHES NOMINAL |
| LIMIT SWITCH CONTROL | NOT INCLUDED |
| TEMP RATING | -65.0 DEG FAHRENHEIT AND 260.0 DEG FAHRENHEIT |
| MAXIMUM OPERATING ALTITUDE RATING | 25000.0 FEET |
| MANUAL OVERRIDE | INCLUDED |
| TERMINAL TYPE | CONNECTOR |
| MOUNTING FACILITY | ROD END |
| BODY LENGTH | 5.000 INCHES NOMINAL |
| BODY WIDTH | 4.750 INCHES NOMINAL |
| BODY HEIGHT | 1.440 INCHES NOMINAL |
| ENVIRONMENTAL PROTECTION | DUSTPROOF AND MOISTURE PROOF |
Restrictions/Controls & Freight Information | NSN 1680-00-412-4397
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1680-00-412-4397
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | H | Aircraft, Air Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BA | UH-1 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | GA | TG:H-1 IROQUOIS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1R | Aeronautical, photographic, and meteorological material (consumable or expense type material) Naval Inventory Control Point, Philadelphia |
| Special Material ID | AH | (Non-JSL Items)HELICOPTERS(H1) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
