Product Details | LINEAR ACTUATING CYLINDER ASSEMBLY
1650-01-322-4298 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.2041045000011900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 10106171 , 74A6952401003, 74A695240-1003, 1650-01-322-4298, 01-322-4298, 1650013224298, 013224298
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 05 JUL 1990 | 01-322-4298 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |
Drawings & Photos | NSN 1650-01-322-4298
Demand History | NSN 1650-01-322-4298
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 74A695240-1003 | 2021-08-230 | 31 | DIBBS |
| 74A695240-1003 | 2021-05-142 | 22 | DIBBS |
| 74A695240-1003 | 2019-01-03 | 16 | DIBBS |
| 1650-01-322-4298 | 2016-10-301 | 86 | DIBBS |
| 1650-01-322-4298 | 2011-07-187 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1650-01-322-4298
Technical Data | NSN 1650-01-322-4298
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | DOUBLE ACTING SINGLE CYLINDER |
| BORE DIAMETER | 0.485 INCHES NOMINAL |

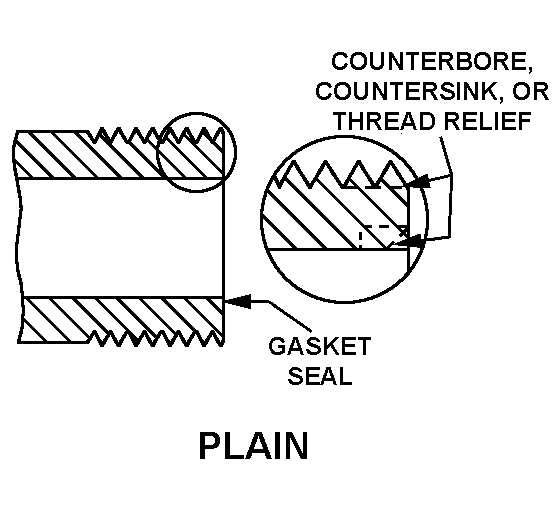

| PORT STYLE | 19 PLAIN |
