NSN 1650-01-146-8380 10106144 , 1B48175515, 1B48175-515
Product Details | LINEAR ACTUATING CYLINDER ASSEMBLY
1650-01-146-8380 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.2041045000011900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 10106144 , 1B48175515, 1B48175-515, 1650-01-146-8380, 01-146-8380, 1650011468380, 011468380
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 07 FEB 1983 | 01-146-8380 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |

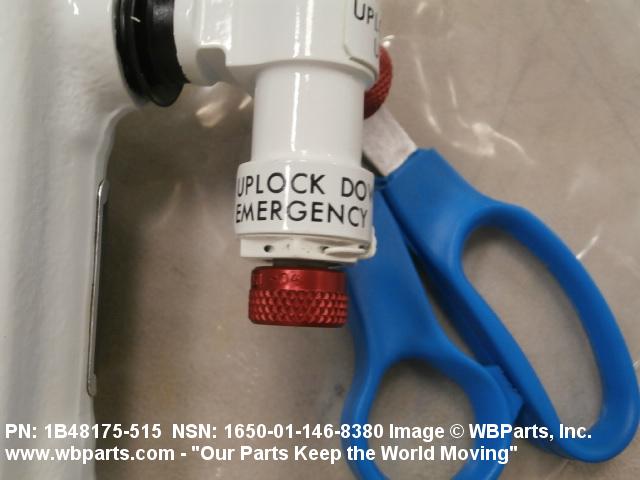

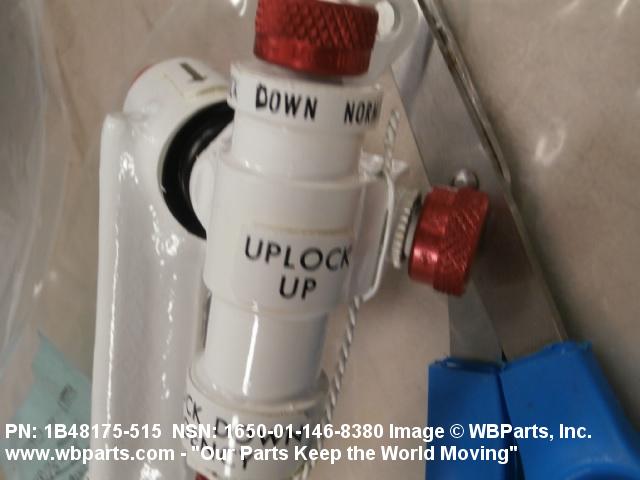

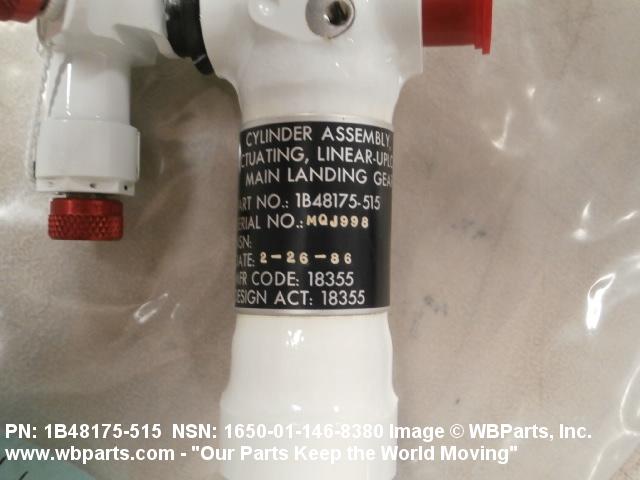

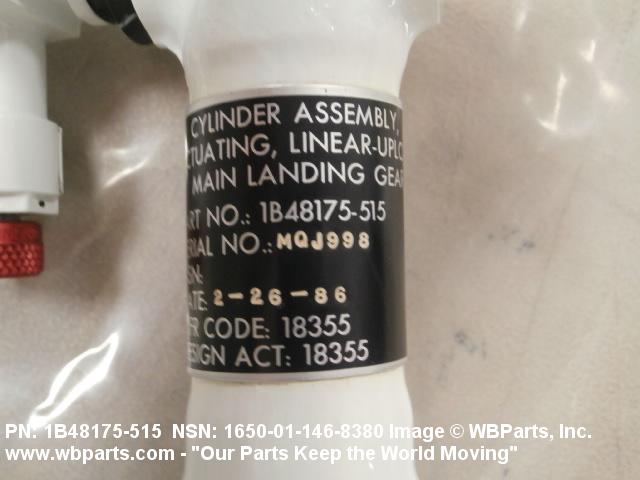

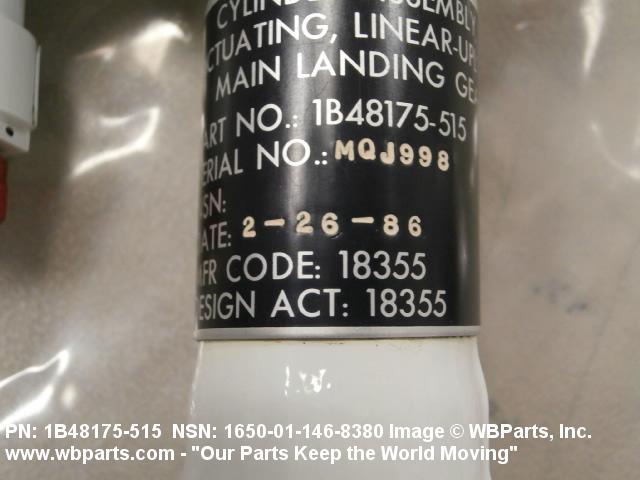

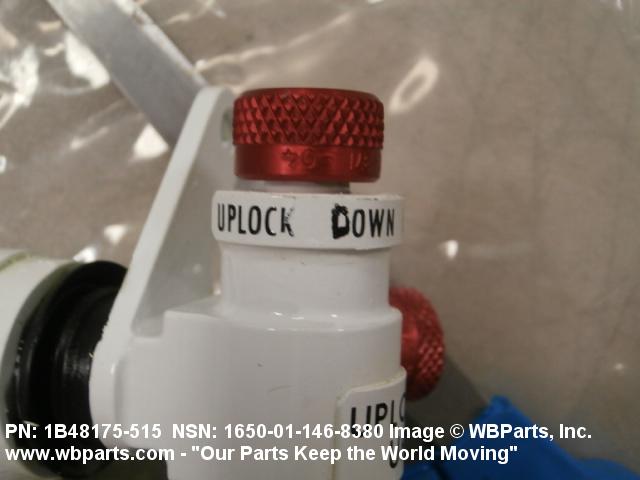

Drawings & Photos | NSN 1650-01-146-8380
Demand History | NSN 1650-01-146-8380
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1650-01-146-8380 | 2019-12-350 | 3 | United States |
| 1B48175515 | 2015-11-308 | 3 | US |
| 1650-01-146-8380 | 2013-12-347 | 3 | United States |
| 1650-01-146-8380 | 2012-11-312 | 3 | DIBBS |
| 1650-01-146-8380 | 2012-09-256 | 3 | DIBBS |
| 1650-01-146-8380 | 2012-08-229 | 3 | DIBBS |
| 1650-01-146-8380 | 2011-06-152 | 2 | DIBBS |
| 1650-01-146-8380 | 2011-03-61 | 1 | DIBBS |
| 1650-01-146-8380 | 2010-09-246 | 1 | DIBBS |
| 1650-01-146-8380 | 2010-04-116 | 1 | DIBBS |
| 1650-01-146-8380 | 2008-11-308 | 2 | DIBBS |
Cross Reference | NSN 1650-01-146-8380
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1B48175-515 | 18355 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1650-01-146-8380
Technical Data | NSN 1650-01-146-8380
| Characteristic | Specifications |
|---|---|
| EXTENDED LENGTH | 6.981 INCHES NOMINAL |
| COMPRESSED LENGTH | 5.130 INCHES NOMINAL |
| BORE DIAMETER | 1.053 INCHES MINIMUM AND 1.055 INCHES MAXIMUM |
| FIRST PISTON ROD END STYLE | 3 BEARING TYPE |
| MOUNTING TYPE AND LOCATION | TRUNNION CYLINDER HEAD END |
| PORT LOCATION AND QUANTITY | 3 CYLINDER HEAD END |
| PORT STYLE | 14 INVERTED FLARE |
| PORT THREAD SERIES DESIGNATOR | UNS |
| PORT THREAD DIAMETER | 0.437 INCHES NOMINAL |
| PORT THREAD QUANTITY PER INCH | 24 |
| PORT THREAD CLASS | 3A |
| SPECIAL FEATURES | WITH SHUTTLE VALVE |
| MANUFACTURERS CODE | 18355 |
| DESIGN CONTROL REFERENCE | 1B48175-515 |
Restrictions/Controls & Freight Information | NSN 1650-01-146-8380
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 119260 | CYLINDERS:HYDRAULIC/PNEUMATIC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1650-01-146-8380
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | GF | (Non-HSP) FIGHTER SUPPORTAIRCRAFT(F/A-18) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
