NSN 1650-00-513-4789 L2260501, L2260-501, 6631443
Product Details | LINEAR ACTUATING CYLINDER ASSEMBLY
1650-00-513-4789 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.2041045000011900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: L2260501, L2260-501, 6631443, 663144-3, 1650-00-513-4789, 00-513-4789, 1650005134789, 005134789
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-513-4789 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |

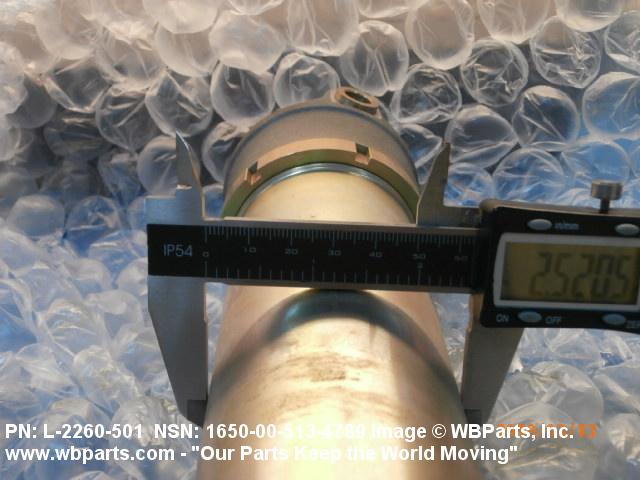

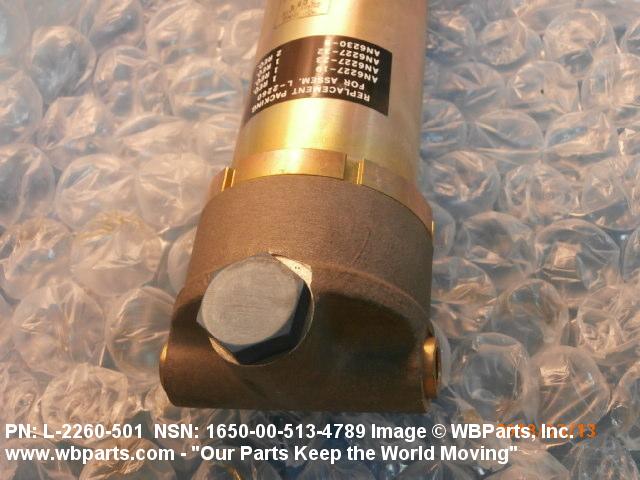

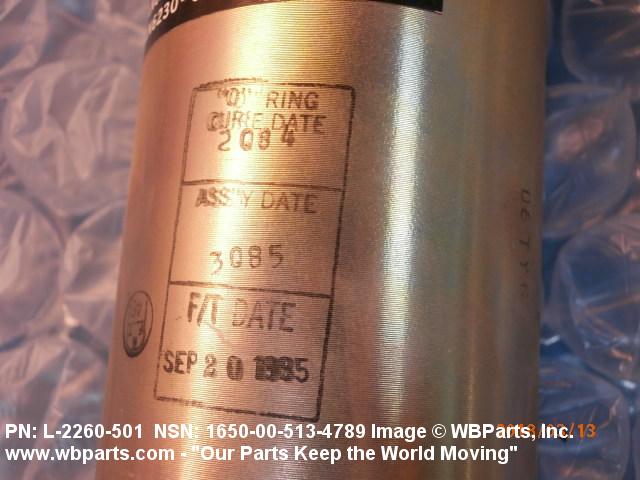

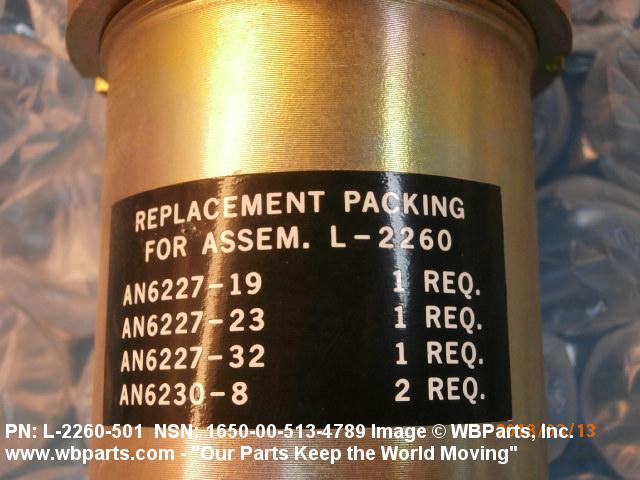

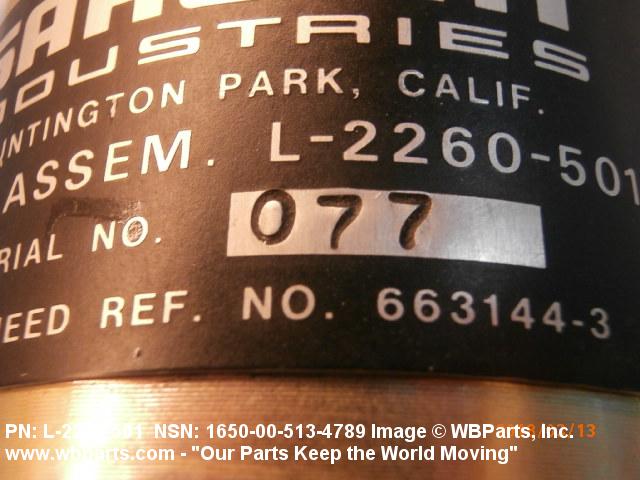

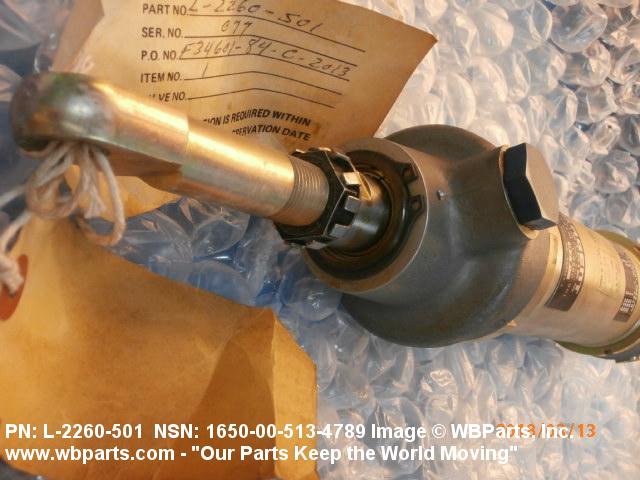

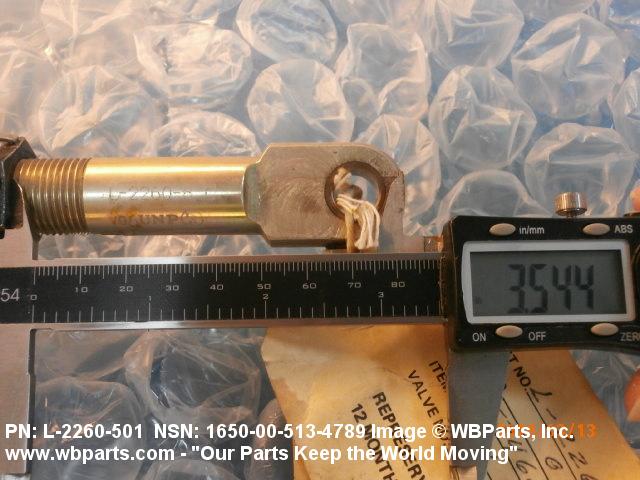

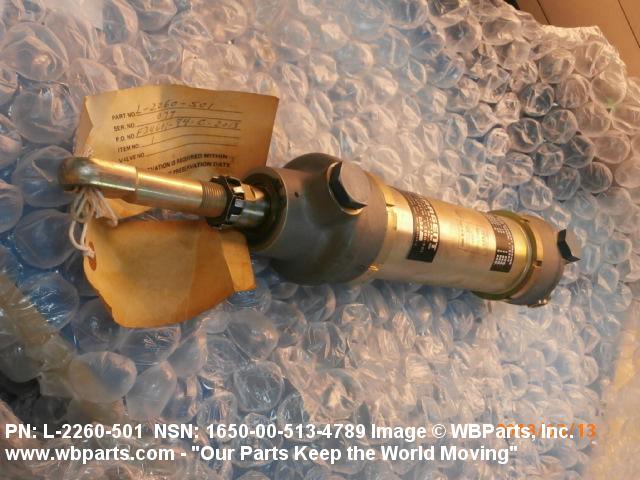

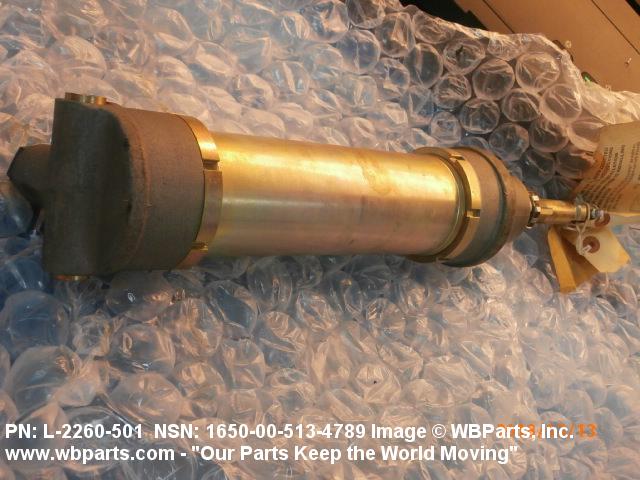

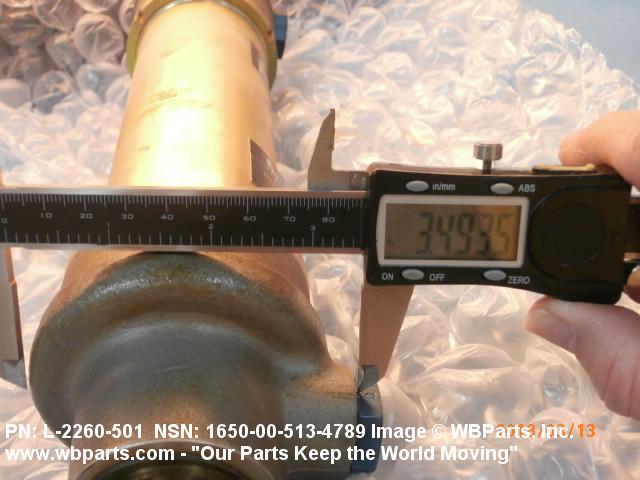

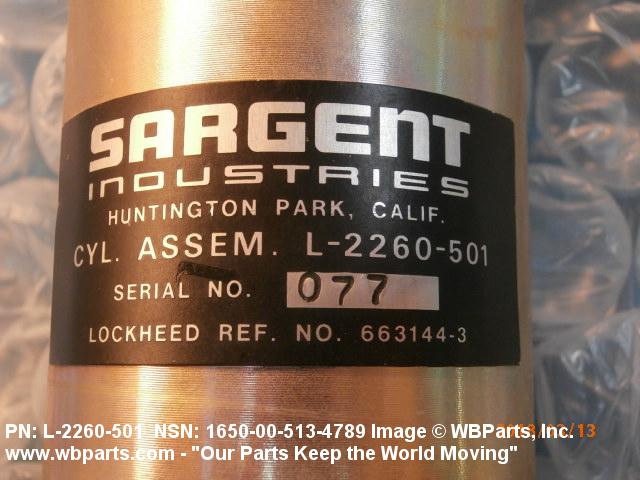

Drawings & Photos | NSN 1650-00-513-4789
Demand History | NSN 1650-00-513-4789
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1650-00-513-4789 | 2018-02-59 | 1 | United States |
| 6631443 | 2018-02-59 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1650-00-513-4789
Technical Data | NSN 1650-00-513-4789
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | DOUBLE ACTING SINGLE CYLINDER |
| INTEGRAL VALVE OPERATION METHOD | HYDRAULIC |
| OVERALL WIDTH | 3.325 INCHES NOMINAL |
| OVERALL HEIGHT | 3.410 INCHES NOMINAL |
| EXTENDED LENGTH | 25.724 INCHES NOMINAL |
| COMPRESSED LENGTH | 16.844 INCHES NOMINAL |
| BODY MATERIAL | STEEL |
| BORE DIAMETER | 2.375 INCHES NOMINAL |
| FIRST PISTON ROD END STYLE | 2 BUSHING TYPE |
| FIRST END HOLE DIAMETER | 0.453 INCHES NOMINAL |
| FIRST END LARGEST INSIDE DIAMETER | 0.578 INCHES NOMINAL |
| FIRST END OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| FIRST END THICKNESS AT MOUNTING HOLES | 0.500 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | INCLUDED |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | TRUNNION CYLINDER HEAD END |
| MOUNTING PROVISION | PIN |
| MOUNTING FACILITY DIAMETER | 0.437 INCHES NOMINAL |
| MOUNTING FACILITY LENGTH | 3.250 INCHES NOMINAL |
| PORT LOCATION AND QUANTITY | 1 CYLINDER HEAD END 1 PISTON ROD END |
| PORT STYLE | 5 GASKET SEAL |
| PORT THREAD SERIES DESIGNATOR | UNF |
| PORT THREAD DIAMETER | 0.750 INCHES NOMINAL |
| PORT THREAD QUANTITY PER INCH | 16 |
| PORT THREAD CLASS | 3B |
| SEAT ANGLE IN DEG | 60.0 |
| TEMP RATING | NOT RATED |
| PRESSURE RATING | 1500.0 POUNDS PER SQUARE INCH NOMINAL |
| MANUFACTURERS CODE | 78062 |
| DESIGN CONTROL REFERENCE | L2260-501 |
Restrictions/Controls & Freight Information | NSN 1650-00-513-4789
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1650-00-513-4789
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9J | Navy-owned stocks of material managed by the Air Force within the Oklahoma City Air Logistics Center Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
