NSN 1650-00-158-4632 CH002298, CH00229-8, 70968
Product Details | LINEAR ACTUATING CYLINDER ASSEMBLY
1650-00-158-4632 A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies.2041045000011900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: CH002298, CH00229-8, 70968, 7096-8, 1650-00-158-4632, 00-158-4632, 1650001584632, 001584632
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 26 JAN 1973 | 00-158-4632 | 31310 ( CYLINDER ASSEMBLY, ACTUATING, LINEAR ) |
Drawings & Photos | NSN 1650-00-158-4632
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1650-00-158-4632
Technical Data | NSN 1650-00-158-4632
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | SINGLE ACTING SINGLE CYLINDER |
| INTEGRAL VALVE OPERATION METHOD | HYDRAULIC |
| EXTENDED LENGTH | 7.070 INCHES NOMINAL |
| COMPRESSED LENGTH | 5.013 INCHES NOMINAL |
| BODY MATERIAL | ALUMINUM |
| FIRST PISTON ROD END STYLE | 3 BEARING TYPE |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| PISTON ROD END SIMILARITY | NOT IDENTICAL |
| SECOND PISTON ROD END STYLE | 3 BEARING TYPE |
| MOUNTING TYPE AND LOCATION | TONGUE PISTON ROD END |
| MOUNTING PROVISION ARRANGEMENT STYLE | 1 TWO HOLE |
| PORT LOCATION AND QUANTITY | 1 CYLINDER HEAD END 1 PISTON ROD END |

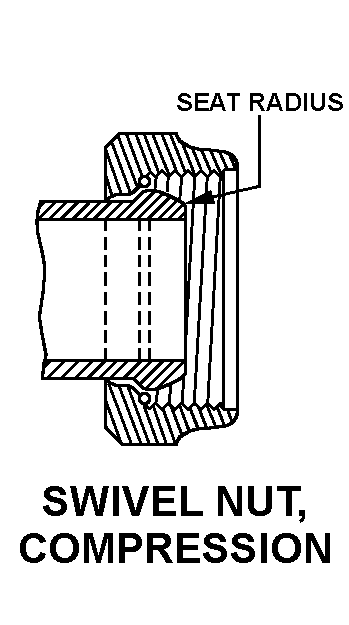

| PORT STYLE | 8 SWIVEL NUT, COMPRESSION |
| TEMP RATING | -65.0 DEG FAHRENHEIT 275.0 DEG FAHRENHEIT |
| PRESSURE RATING | 3000.0 POUNDS PER SQUARE INCH NOMINAL |
| III FSC APPLICATION DATA | AIRCRAFT HYDRAULIC SYSTEM |
| MANUFACTURERS CODE | 06177 |
| DESIGN CONTROL REFERENCE | 7096-8 |
Restrictions/Controls & Freight Information | NSN 1650-00-158-4632
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
