Product Details | GROOVE PULLEY

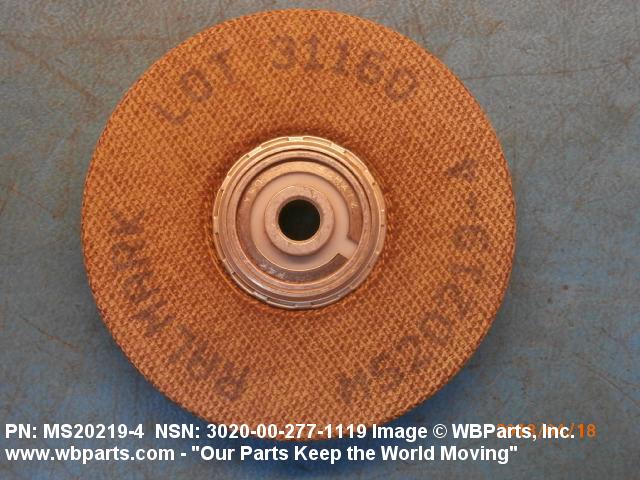

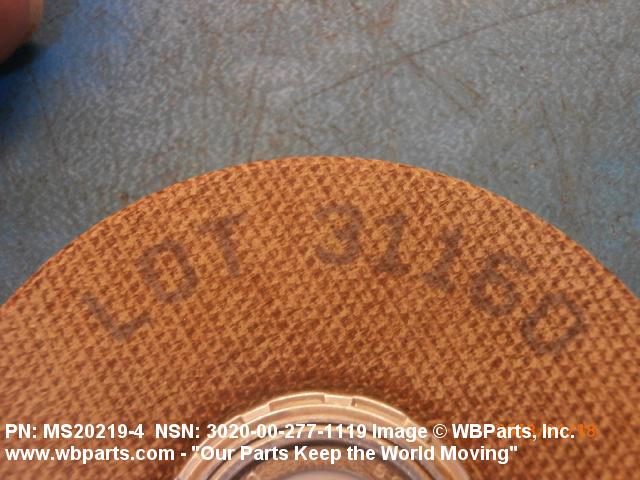

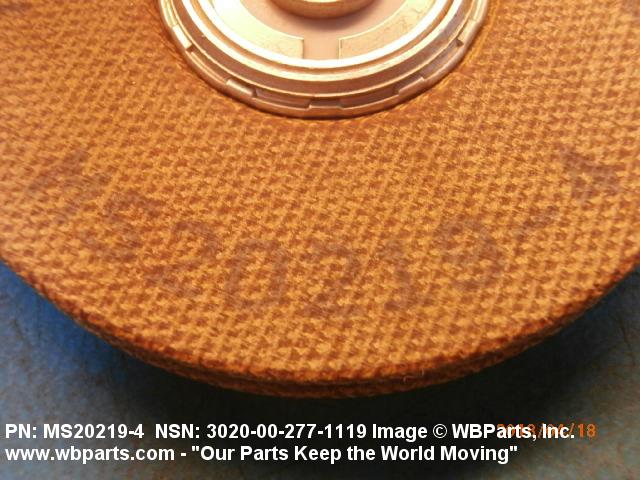

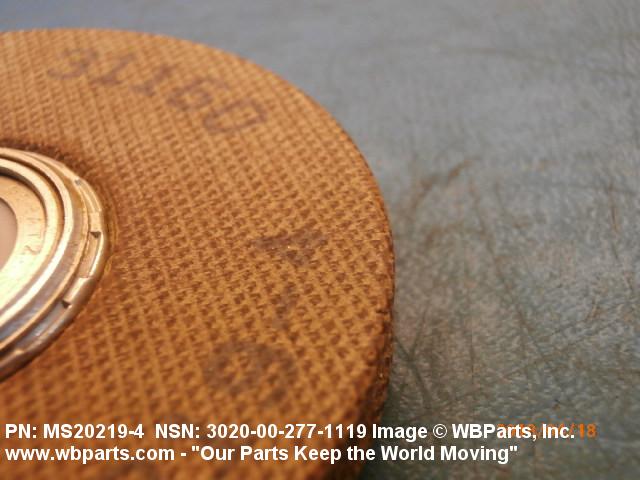

1640-00-277-1119 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.

Part Alternates: 002771119

Aircraft Components and Accessories | Aircraft Control Cable Products

Supply Group (FSG) NSN Assign. NIIN
16 00-277-1119

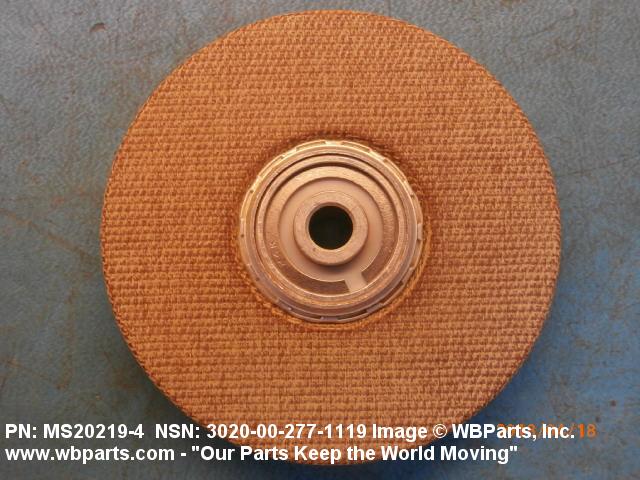

Drawings & Photos | NSN 1640-00-277-1119


Demand History | NSN 1640-00-277-1119

Part Number Request Date QTY Origin
1640-00-277-1119 2022-08-214 65 PL
MS202194 2021-09-273 22 Malaysia
MS202194 2015-02-40 30 US
AN2194 2011-02-32 1 PE
AN2194 2011-01-31 1 PE
MS202194 2010-06-169 1 US
1640-00-277-1119 2009-09-268 1413 DIBBS
1640-00-277-1119 2009-08-218 4980 DIBBS
1640-00-277-1119 2009-06-173 1225 DIBBS
MS202194 2009-05-147 10 Iceland
1640-00-277-1119 2008-05-127 2403 DIBBS
1640-00-277-1119 2007-12-354 2203 DIBBS
1640-00-277-1119 2007-02-32 5445 DIBBS
1640-00-277-1119 2007-01-10 10 CH
1640-00-277-1119 2006-05-143 660 DIBBS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1640-00-277-1119

Technical Data | NSN 1640-00-277-1119

Characteristic Specifications

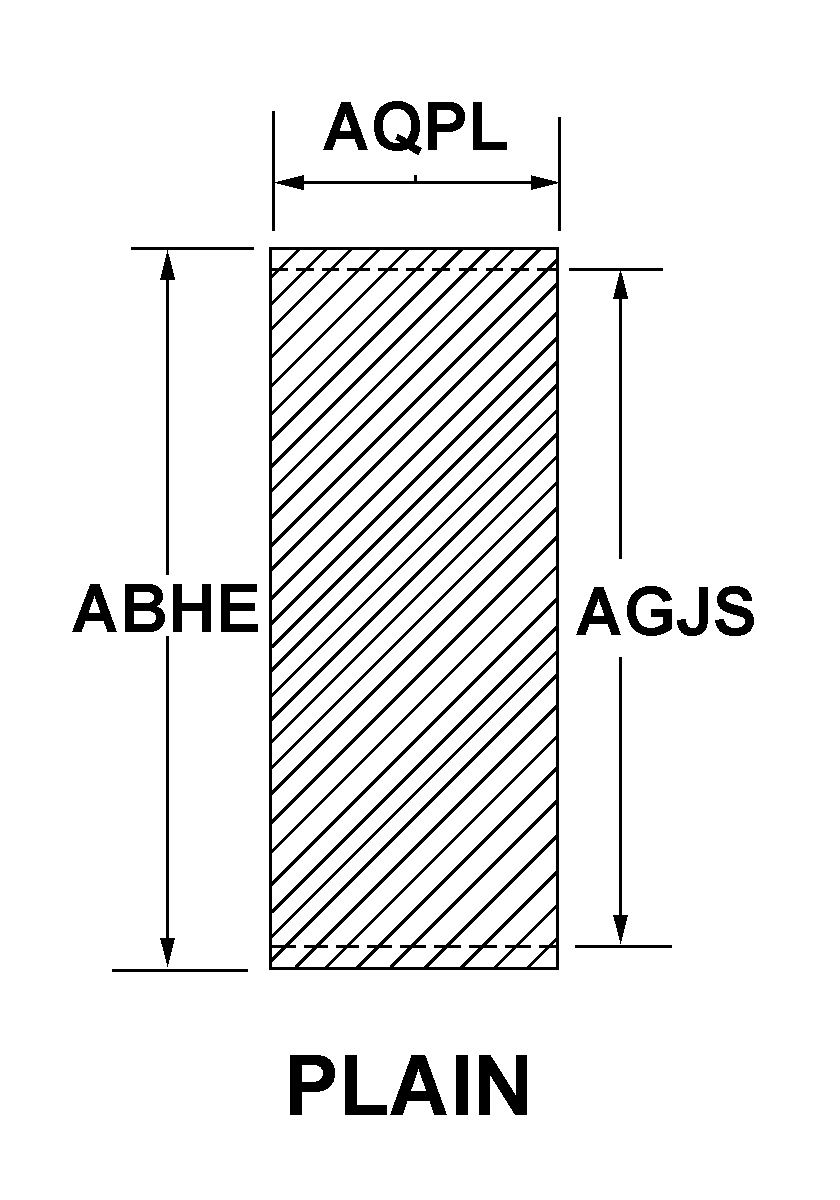

STYLE DESIGNATOR A1 PLAIN

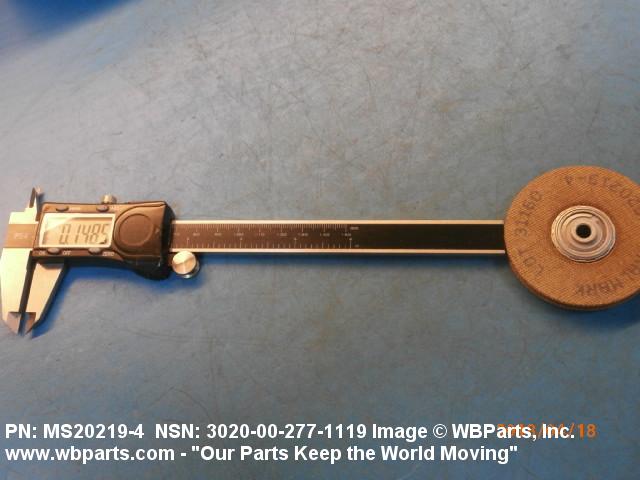

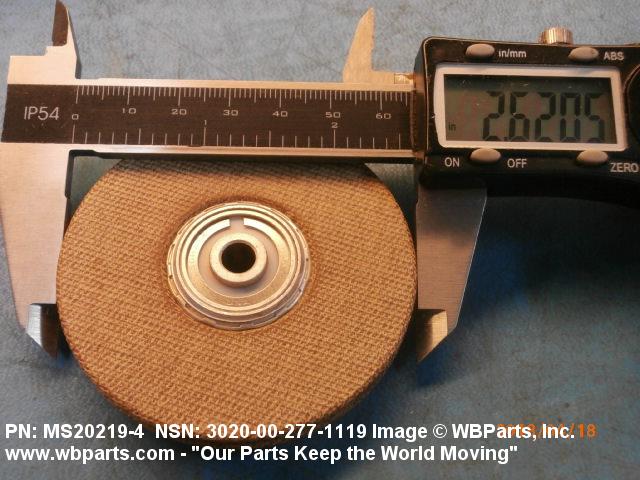

OUTSIDE DIAMETER 2.620 INCHES MINIMUM AND 2.630 INCHES MAXIMUM

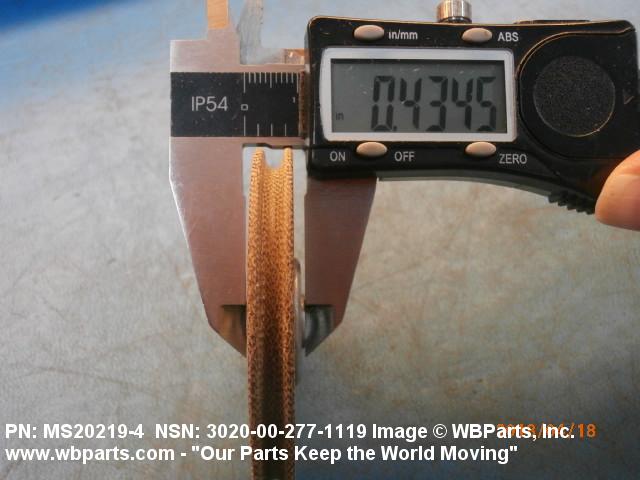

OVERALL LENGTH 0.436 INCHES MINIMUM AND 0.443 INCHES MAXIMUM

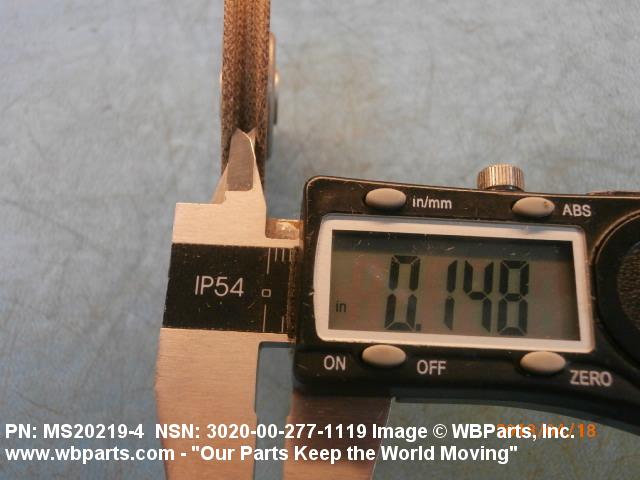

FACE WIDTH 0.310 INCHES NOMINAL
DESIGN FORM PLAIN
LIGHTENING HOLE NOT INCLUDED
INTEGRAL COOLING VANE NOT INCLUDED

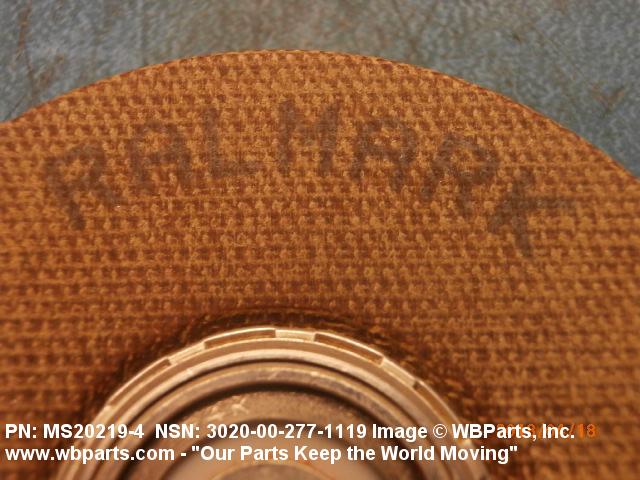

MATERIAL AND LOCATION PLASTIC, PHENOLIC OVERALL

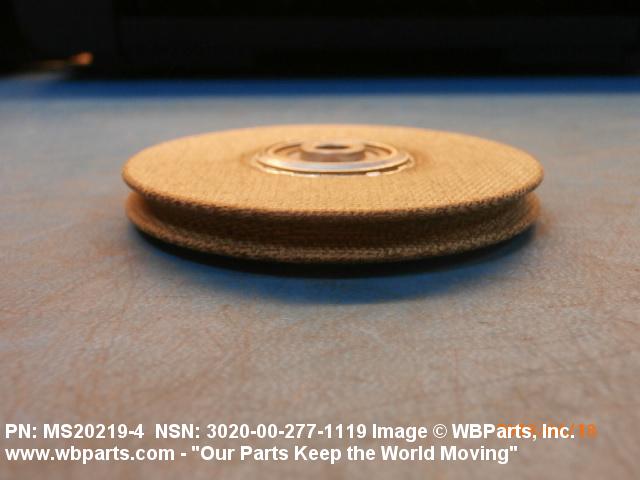

GROOVE SHAPE U
GROOVE QUANTITY 1
GROOVE DEPTH 0.156 INCHES NOMINAL
GROOVE WIDTH 0.150 INCHES NOMINAL
GROOVE RADIUS 0.047 INCHES MINIMUM AND 0.050 INCHES MAXIMUM
BORE FEATURE INCLUDED
BEARINGS INCLUDED
BEARING TYPE BALL
BEARING QUANTITY 1
BORE TYPE STRAIGHT

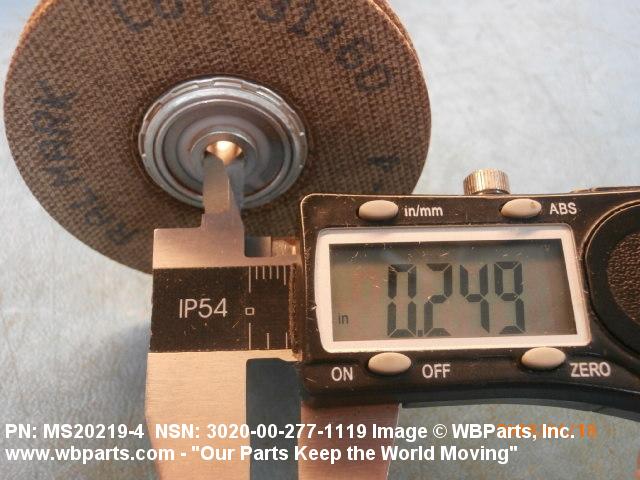

BORE DIAMETER 0.249 INCHES MINIMUM AND 0.250 INCHES MAXIMUM
BORE LENGTH 0.438 INCHES NOMINAL
COUNTERBORE FEATURE NOT INCLUDED
KEYING FACILITY NOT INCLUDED
SPLIT HUB FEATURE NOT INCLUDED
FURNISHED ITEMS AND QUANTITY N/A
SPECIAL FEATURES IF REQUISITION IS NOT FOR FMS, OVERSEAS SHIPMENTS, NAVAL VESSELS, PRIORITY CODES 1,2,OR 3, OR INDIVIDUAL REQUISITONS OVER 25000 DOLLARS, THEN DIRECT VENDOR DELIVERY NSN 3020-01-391-0798 IS AVAILABLE AT 15.7% DISCOUNT.
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-DTL-7034/1
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS20219-4

Restrictions/Controls & Freight Information | NSN 1640-00-277-1119

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Controlled Inventory Item Code:UUNCLASSIFIED
Category Code Description
No Freight Information
