Product Details | GROOVE PULLEY
1640-00-277-1126 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 002771126
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-277-1126 | 08109 ( PULLEY, GROOVE ) |

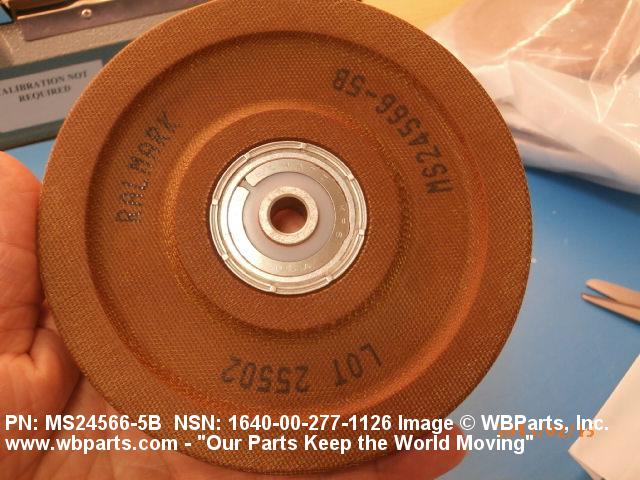

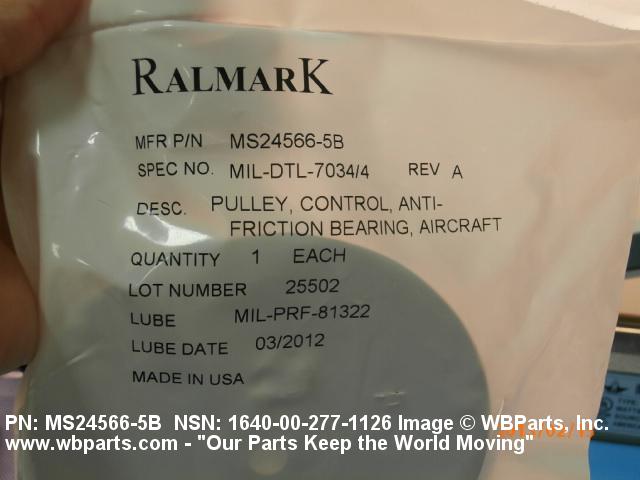

Drawings & Photos | NSN 1640-00-277-1126
Demand History | NSN 1640-00-277-1126
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1640-00-277-1126 | 2015-07-188 | 2 | Australia |
| MS245665B | 2013-01-15 | 6 | Switzerland |
| 1640-00-277-1126 | 2008-08-217 | 2 | United Kingdom |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1640-00-277-1126
Technical Data | NSN 1640-00-277-1126
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A3 PLAIN |

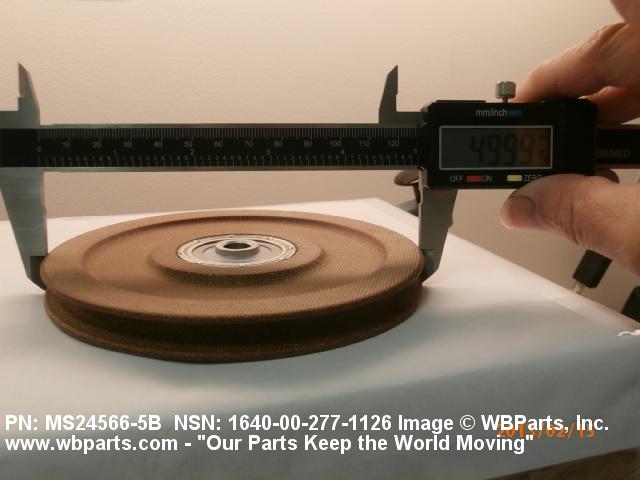

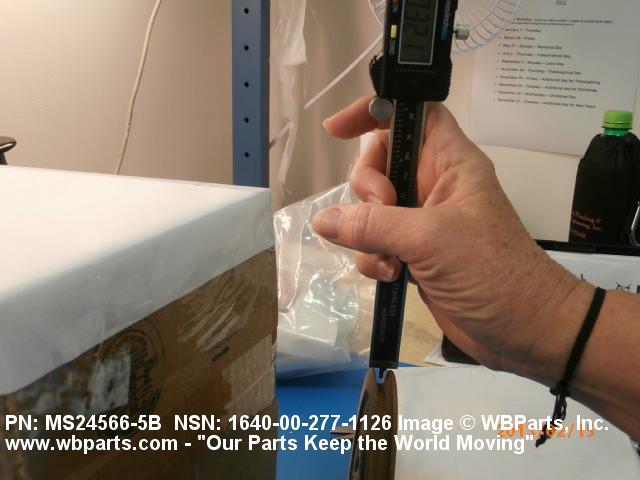

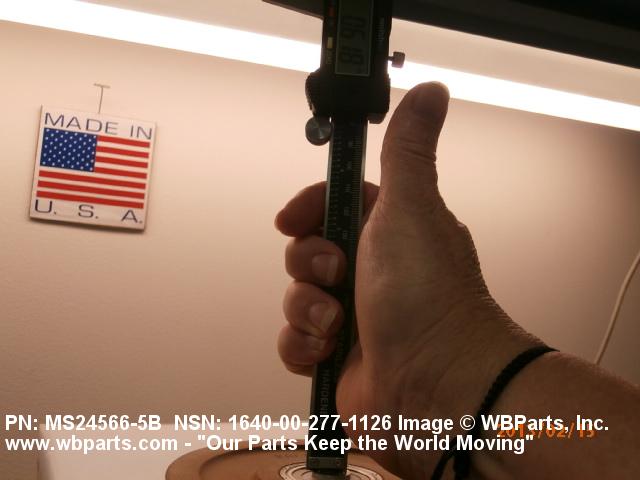

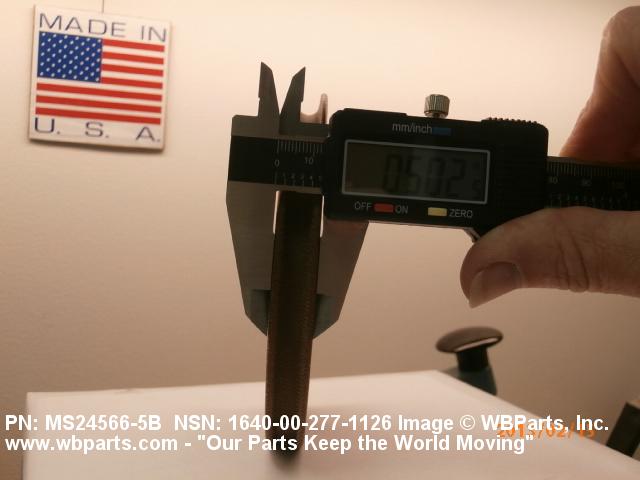

| OUTSIDE DIAMETER | 4.990 INCHES MINIMUM AND 5.010 INCHES MAXIMUM |
| OVERALL LENGTH | 0.615 INCHES MINIMUM AND 0.620 INCHES MAXIMUM |
| FACE WIDTH | 0.493 INCHES MINIMUM AND 0.507 INCHES MAXIMUM |

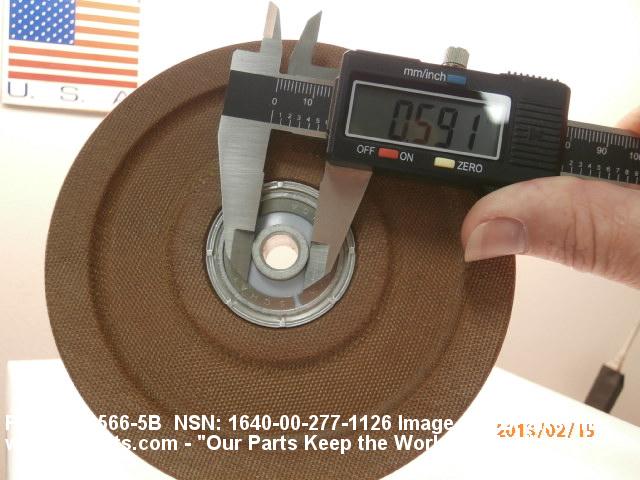

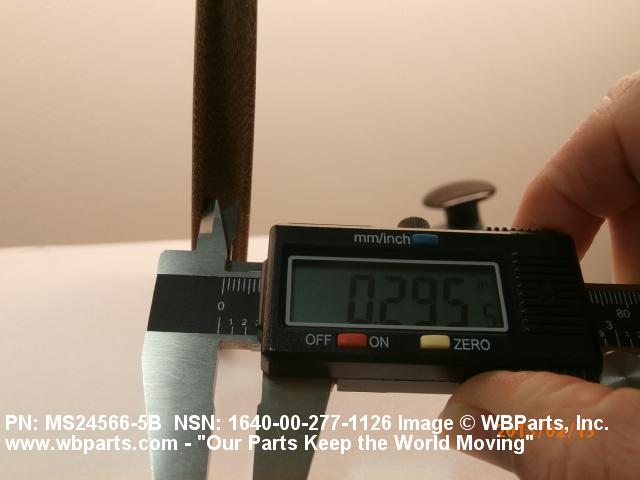

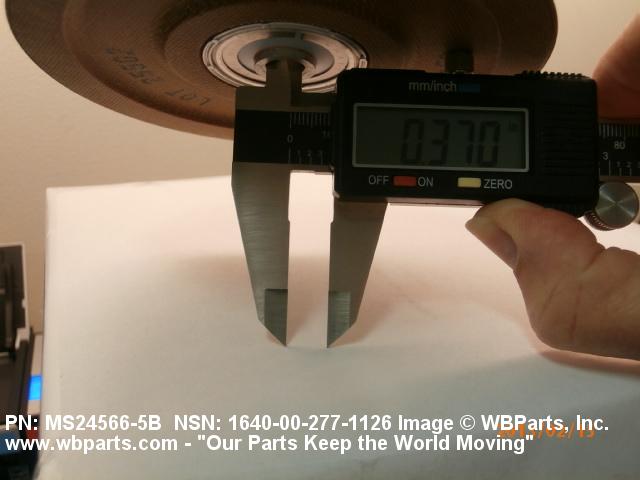

| HUB END OUTSIDE DIAMETER AND LOCATION | 0.591 INCHES NOMINAL BOTH ENDS |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 0.054 INCHES MINIMUM BOTH ENDS AND 0.064 INCHES MAXIMUM BOTH ENDS |
| DESIGN FORM | PLAIN |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| MATERIAL AND LOCATION | FABRIC OVERALL |
| GROOVE SHAPE | U |
| GROOVE QUANTITY | 1 |
| GROOVE DEPTH | 0.313 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| GROOVE WIDTH | 0.313 INCHES NOMINAL |
| GROOVE RADIUS | 0.140 INCHES MINIMUM AND 0.145 INCHES MAXIMUM |
| BORE FEATURE | INCLUDED |
| BEARINGS | INCLUDED |
| BEARING TYPE | BALL |
| BEARING QUANTITY | 1 |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 0.3745 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |
| BORE LENGTH | 0.615 INCHES MINIMUM AND 0.620 INCHES MAXIMUM |
| COUNTERBORE FEATURE | NOT INCLUDED |
| KEYING FACILITY | NOT INCLUDED |
| SPLIT HUB FEATURE | NOT INCLUDED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24566-5B |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | P7034 |
