Product Details | GROOVE PULLEY

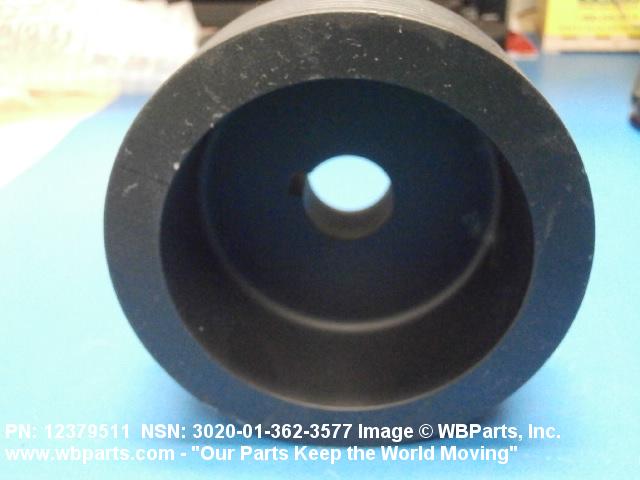

3020-01-362-3577 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 12379511, 3020-01-362-3577, 01-362-3577, 3020013623577, 013623577
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 05 AUG 1992 | 01-362-3577 | 08109 ( PULLEY, GROOVE ) |
Drawings & Photos | NSN 3020-01-362-3577
Demand History | NSN 3020-01-362-3577
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-362-3577 | 2015-05-138 | 3 | United States |
| 3020-01-362-3577 | 2012-06-165 | 16 | DIBBS |
| 3020-01-362-3577 | 2012-04-115 | 13 | DIBBS |
| 3020-01-362-3577 | 2012-02-58 | 3 | DIBBS |
| 3020-01-362-3577 | 2012-02-58 | 56 | DIBBS |
| 3020-01-362-3577 | 2007-01-31 | 66 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-362-3577
Related Products | NSN 3020-01-362-3577
Technical Data | NSN 3020-01-362-3577
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A10 WEBBED OR SPOKED |

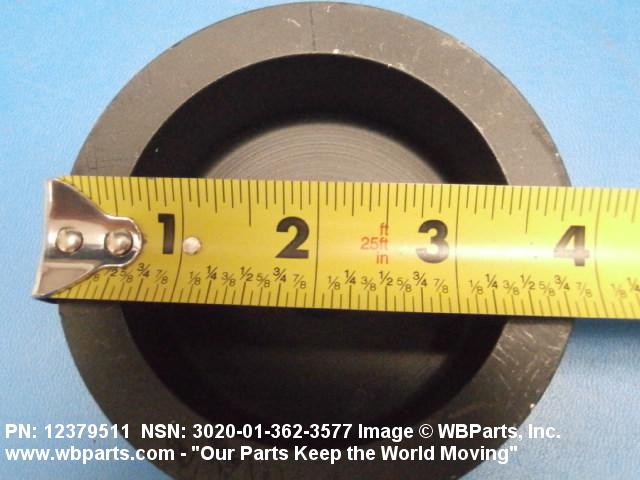

| OUTSIDE DIAMETER | 3.988 INCHES NOMINAL |
| OVERALL LENGTH | 2.060 INCHES NOMINAL |
| PITCH DIAMETER | ANY ACCEPTABLE |

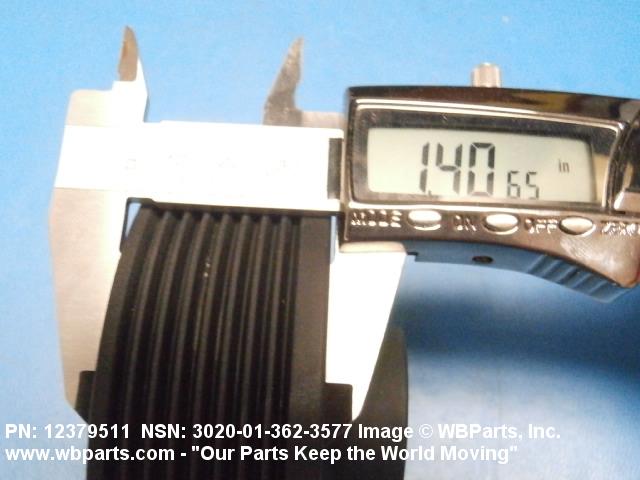

| FACE WIDTH | 1.300 INCHES NOMINAL |
| HUB END OUTSIDE DIAMETER AND LOCATION | 1.500 INCHES NOMINAL AA END |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 0.760 INCHES NOMINAL AA END |
| DESIGN FORM | WEBBED OR SPOKED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | ANY ACCEPTABLE |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| MATERIAL AND LOCATION | IRON, DUCTILE BODY |
| GROOVE SHAPE | V |
| GROOVE QUANTITY | 8 |
| GROOVE DEPTH | ANY ACCEPTABLE |
| GROOVE WIDTH | ANY ACCEPTABLE |
| V GROOVE ANGLE IN DEG | 40.0 |
| BORE FEATURE | INCLUDED |
| BEARINGS | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | ANY ACCEPTABLE |
| BORE LENGTH | ANY ACCEPTABLE |
| COUNTERBORE FEATURE | NOT INCLUDED |
| KEYING FACILITY | NOT INCLUDED |
| SPLIT HUB FEATURE | NOT INCLUDED |
| III END ITEM IDENTIFICATION | 2350-00-808-7100 |
