NSN 3020-01-249-0154 12349767, 01-249-0154, 012490154

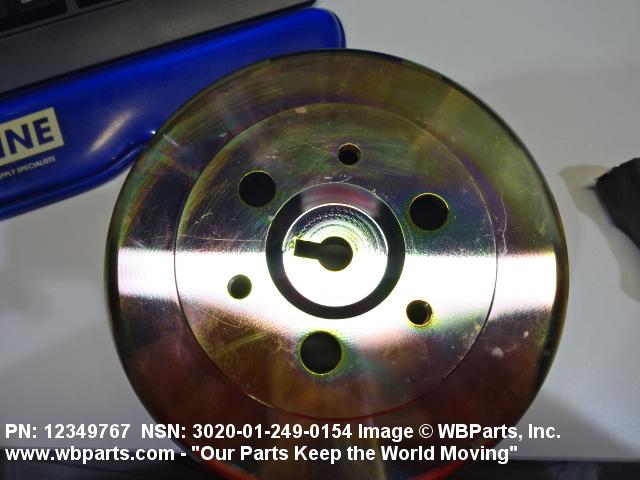

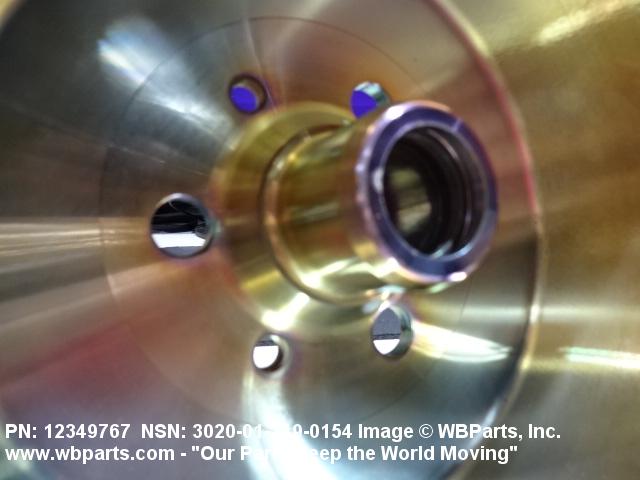

Product Details | GROOVE PULLEY
3020-01-249-0154 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 12349767, 3020-01-249-0154, 01-249-0154, 3020012490154, 012490154
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 04 FEB 1987 | 01-249-0154 | 08109 ( PULLEY, GROOVE ) |

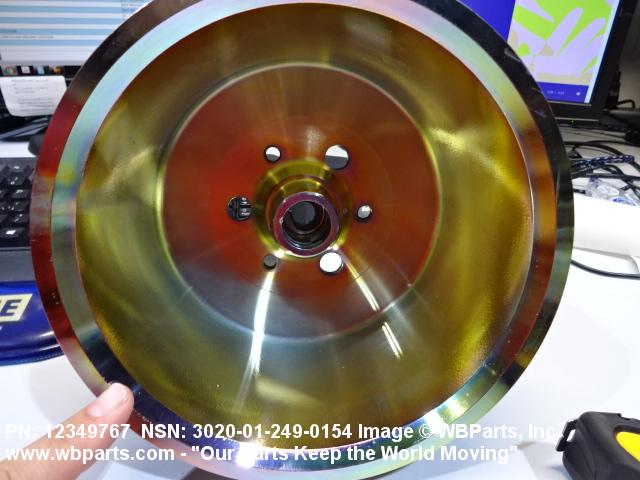

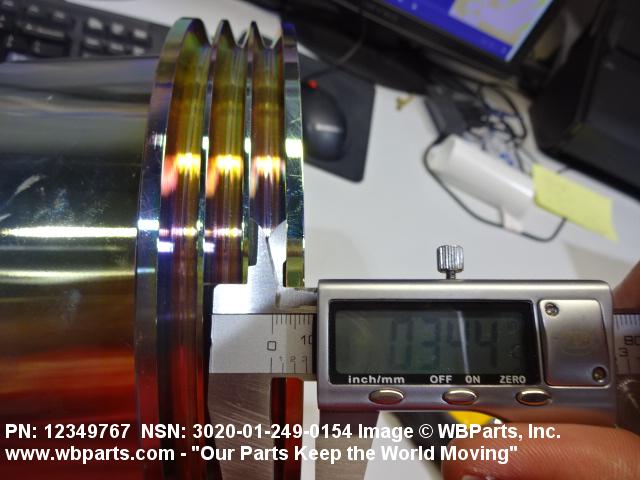

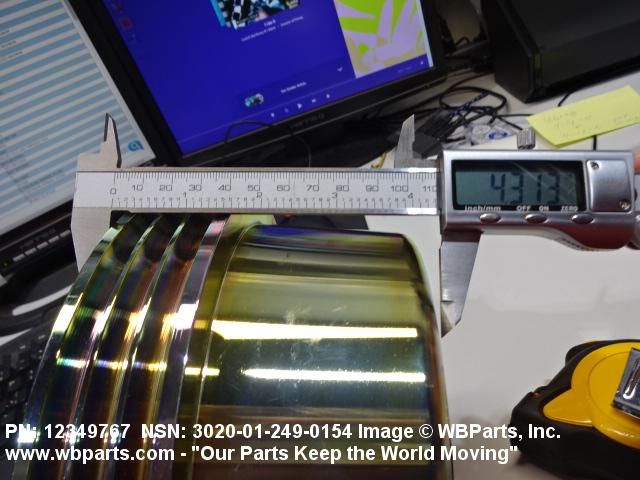

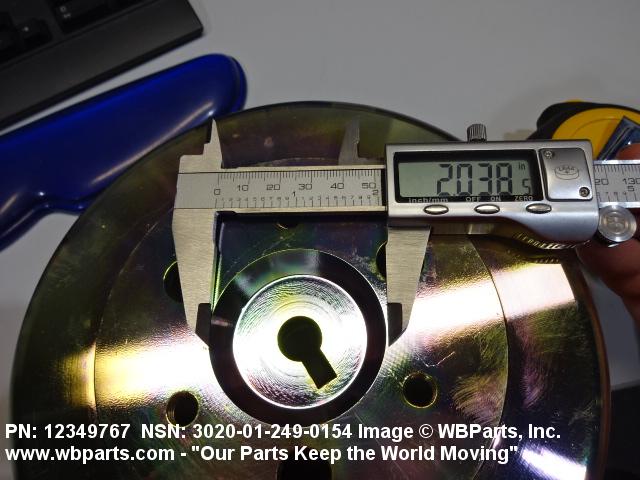

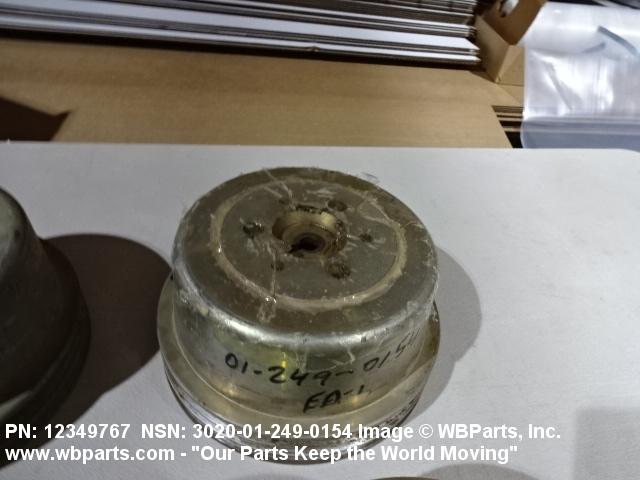

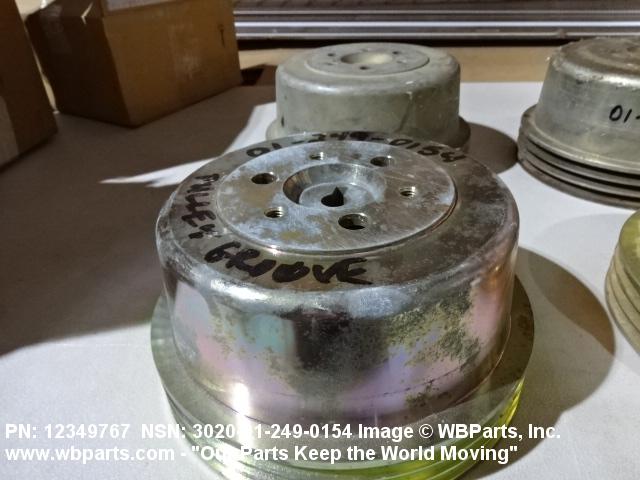

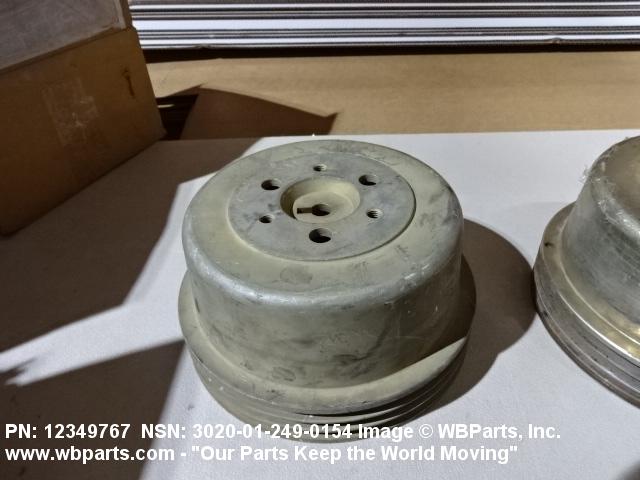

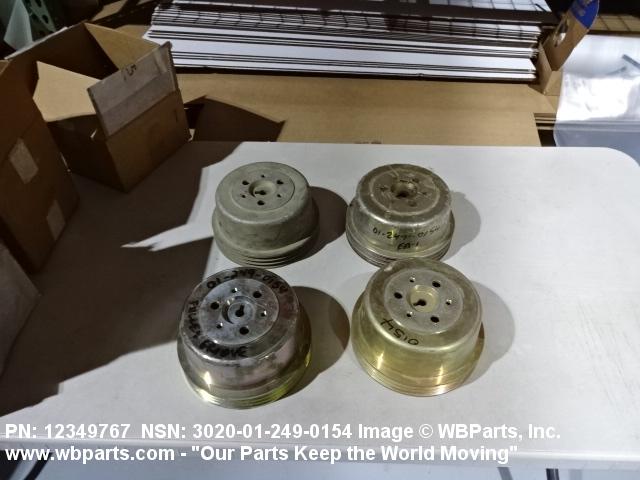

Drawings & Photos | NSN 3020-01-249-0154
Demand History | NSN 3020-01-249-0154
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-249-0154 | 2018-09-255 | 204 | DIBBS |
| 3020-01-249-0154 | 2018-06-157 | 81 | United States |
| 3020-01-249-0154 | 2018-02-43 | 95 | DIBBS |
| 3020-01-249-0154 | 2018-01-08 | 98 | DIBBS |
| 3020-01-249-0154 | 2017-12-361 | 7 | DIBBS |
| 3020-01-249-0154 | 2017-03-61 | 41 | DIBBS |
| 3020-01-249-0154 | 2016-12-364 | 21 | DIBBS |
| 3020-01-249-0154 | 2016-11-314 | 22 | DIBBS |
| 3020-01-249-0154 | 2016-07-189 | 13 | DIBBS |
| 3020-01-249-0154 | 2015-05-133 | 26 | DIBBS |
| 3020-01-249-0154 | 2014-12-351 | 27 | DIBBS |
| 3020-01-249-0154 | 2014-10-293 | 25 | DIBBS |
| 3020-01-249-0154 | 2014-10-281 | 25 | DIBBS |
| 12349767 | 2011-10-284 | 100 | US |
Cross Reference | NSN 3020-01-249-0154
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12349767 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-249-0154
Related Products | NSN 3020-01-249-0154
Technical Data | NSN 3020-01-249-0154
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A20 WEBBED OR SPOKED |

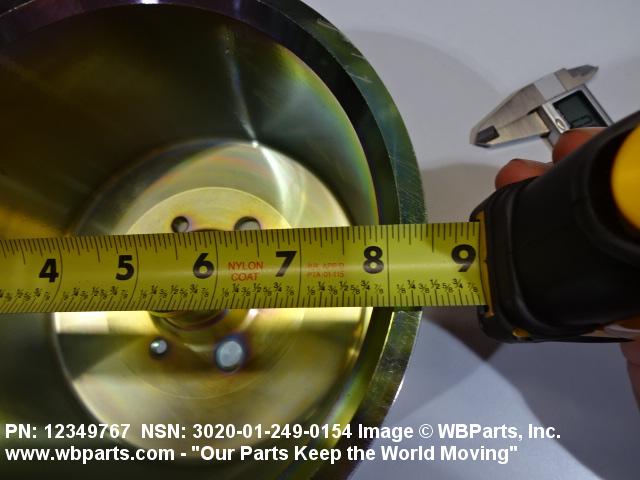

| OUTSIDE DIAMETER | 8.460 INCHES MINIMUM AND 8.500 INCHES MAXIMUM |
| OVERALL LENGTH | 4.300 INCHES NOMINAL |

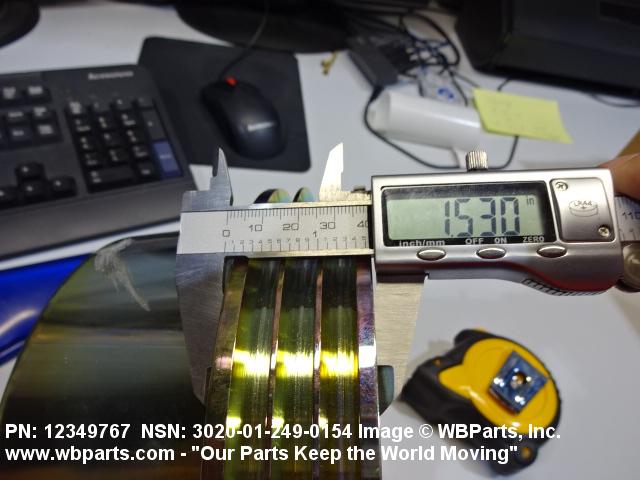

| FACE WIDTH | 1.530 INCHES NOMINAL |
| HUB END OUTSIDE DIAMETER AND LOCATION | 1.500 INCHES NOMINAL AA END |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 2.300 INCHES NOMINAL AA END |
| DESIGN FORM | PLAIN |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| MATERIAL AND LOCATION | STEEL, ASTM A148 OVERALL |
| GROOVE SHAPE | V |
| GROOVE QUANTITY | 3 |
| GROOVE DEPTH | 0.350 INCHES NOMINAL |
| GROOVE WIDTH | 0.344 INCHES NOMINAL |
| V GROOVE ANGLE IN DEG | 40.2 |
| BORE FEATURE | INCLUDED |
| BEARINGS | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 0.531 INCHES MINIMUM AND 0.563 INCHES MAXIMUM |
| BORE LENGTH | 2.000 INCHES NOMINAL |
| COUNTERBORE FEATURE | INCLUDED |
| COUNTERBORE LOCATION | BOTH ENDS |
| COUNTERBORE DIAMETER | 2.050 INCHES NOMINAL AND 1.000 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.360 INCHES NOMINAL AND 1.390 INCHES NOMINAL |
| KEYING FACILITY | INCLUDED |
| KEYING FACILITY TYPE | KEYWAY |
| QUANTITY | 1 |
| KEYWAY WIDTH | 0.251 INCHES MINIMUM AND 0.253 INCHES MAXIMUM |
| DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY | 1.120 INCHES NOMINAL |
| SPLIT HUB FEATURE | NOT INCLUDED |
| SECURING METHOD | DRILLED HOLE AND THREADED HOLE |
| SECURING LOCATION | AA END |
| SECURING HOLE QUANTITY | 3 AND 3 |
| THREAD SIZE | 3/8-16 |
| HOLE LOCATION | THROUGH 2ND END |
