NSN 9525-00-878-2958 MS922603, MS9226-03 , MS922603A
Product Details | NONELECTRICAL WIRE
9525-00-878-2958 A ferrous or nonferrous wire having a solid cross section that is square or rectangular with sharp or rounded corners or edges, or is round, half-round, hexagonal, or octagonal and whose diameter, width, or greatest distance between parallel faces is less than 3/8 inch or 10.0mm. The rectangular shape is limited to a thickness less than 3/32 inch or 2.5mm and a width of 1 1/4 inch or 30.0mm or less. For dimensions greater than above, see BAR, METAL. Excludes items having electrical resistivity or conductivity ratings.2051345000065200043Dental Instruments, Equipment, and Supplies95050019Wire, Nonelectrical95250042Wire, Nonelectrical, Nonferrous Base Metal95450051Plate, Sheet, Strip, Foil, and Wire: Precious Metal
Part Alternates: MS922603, MS9226-03 , MS922603A, MS9226-03A, 919.01.11.203, 9190111203, 9525-00-878-2958, 00-878-2958, 9525008782958, 008782958
Metal Bars, Sheets, and Shapes | Wire, Nonelectrical, Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 01 JAN 1962 | 00-878-2958 | 30889 ( WIRE, NONELECTRICAL ) |

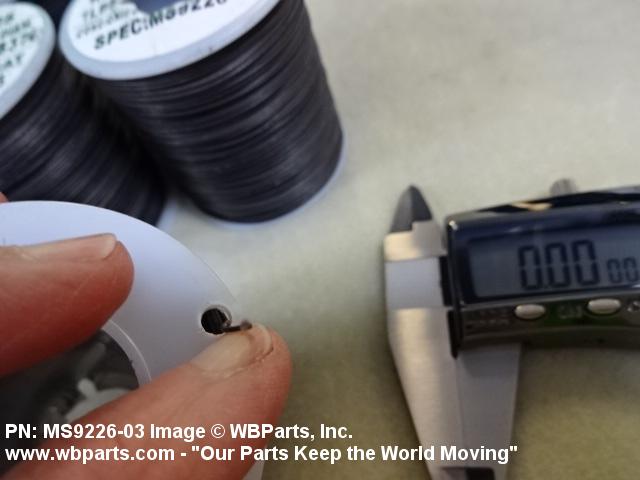

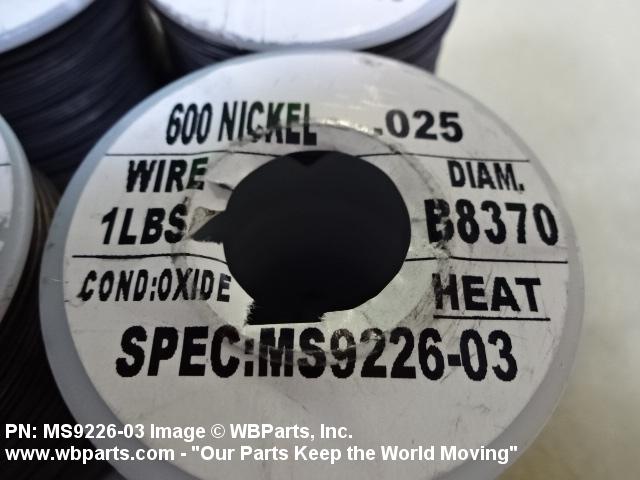

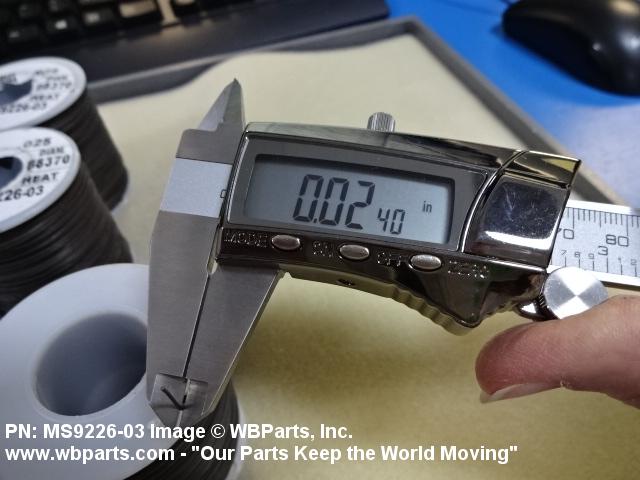

Drawings & Photos | NSN 9525-00-878-2958
Demand History | NSN 9525-00-878-2958
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9525-00-878-2958 | 2024-04-108 | 323 | DIBBS |
| 9525-00-878-2958 | 2023-09-264 | 238 | DIBBS |
| MS922603 | 2022-11-325 | 20 | United States |
| MS922603 | 2022-05-132 | 5 | US |
| 9525-00-878-2958 | 2021-12-340 | 15 | CA |
| MS922603 | 2020-02-35 | 1 | SG |
| MS9226-03 | 2019-05-136 | 4 | United States |
| 9525-00-878-2958 | 2019-03-80 | 4 | US |
| MS922603 | 2017-11-311 | 5 | United States |
| MS922603 | 2017-06-164 | 1 | China |
| MS922603 | 2017-03-65 | 20 | China |
| 9525-00-878-2958 | 2017-02-53 | 6 | MANUAL |
| 9525-00-878-2958 | 2014-10-275 | 563 | DIBBS |
| MS922603 | 2014-05-150 | 5000 | Canada |
| MS922603 | 2013-09-249 | 400 | Canada |
| MS9226-03 | 2013-05-134 | 454 | CZ |
| MS922603 | 2013-01-30 | 500 | Malaysia |
| MS9226-03 | 2012-05-145 | 5 | MM |
| MS9226-03 | 2012-05-145 | 5 | MM |
| MS922603 | 2012-05-135 | 5 | Serbia |
| 9525-00-878-2958 | 2012-02-58 | 1 | United States |
| 9190111203 | 2011-05-125 | 20 | China |
| 9525-00-878-2958 | 2009-05-133 | 306 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9525-00-878-2958
Related Products | NSN 9525-00-878-2958
Technical Data | NSN 9525-00-878-2958
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY, AMS 5687, UNS N06600 |
| HEAT TREATMENT | ANNEALED |
| MINIMUM TENSILE STRENGTH | NOT RATED |
| MINIMUM YIELD STRENGTH | NOT RATED |
| LENGTH | 558.000 FEET NOMINAL |
| BASIC SHAPE STYLE | D7 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.024 INCHES MINIMUM AND 0.026 INCHES MAXIMUM |
| WEIGHT PER UNIT MEASURE | ANY ACCEPTABLE |
| NONDEFINITIVE SPEC/STD DATA | UNS N06600 AND CONDITION ANNEALED |
| III UNPACKAGED UNIT WEIGHT | 1.000 POUNDS |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9226-03 |
Restrictions/Controls & Freight Information | NSN 9525-00-878-2958
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 107480 | WIRE/BARBED WIRE I/S ACID COPPERED |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9525-00-878-2958
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LB : Pounds |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LB : Pounds |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LB : Pounds |
