NSN 9525-00-603-4115 MS20995CY20, NASM20995CY20, AA59551
Product Details | NONELECTRICAL WIRE
9525-00-603-4115 A ferrous or nonferrous wire having a solid cross section that is square or rectangular with sharp or rounded corners or edges, or is round, half-round, hexagonal, or octagonal and whose diameter, width, or greatest distance between parallel faces is less than 3/8 inch or 10.0mm. The rectangular shape is limited to a thickness less than 3/32 inch or 2.5mm and a width of 1 1/4 inch or 30.0mm or less. For dimensions greater than above, see BAR, METAL. Excludes items having electrical resistivity or conductivity ratings.2051345000065200043Dental Instruments, Equipment, and Supplies95050019Wire, Nonelectrical95250042Wire, Nonelectrical, Nonferrous Base Metal95450051Plate, Sheet, Strip, Foil, and Wire: Precious Metal
Part Alternates: MS20995CY20, NASM20995CY20, AA59551, A-A-59551, AN995CU20M2, QQW343, QQ-W-343, 9525-00-603-4115, 00-603-4115, 9525006034115, 006034115
Metal Bars, Sheets, and Shapes | Wire, Nonelectrical, Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 01 JAN 1963 | 00-603-4115 | 30889 ( WIRE, NONELECTRICAL ) |

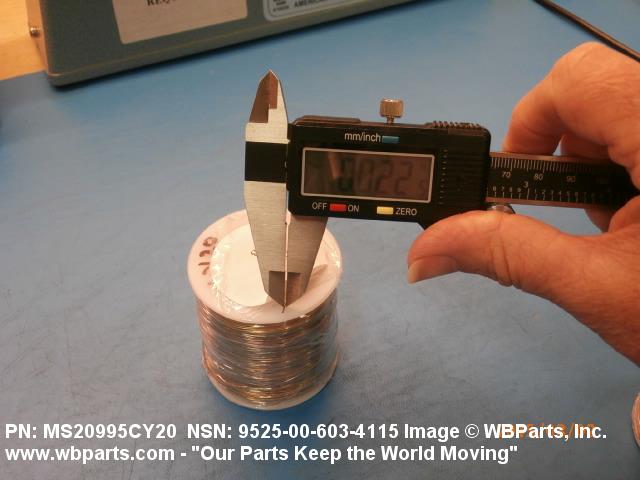

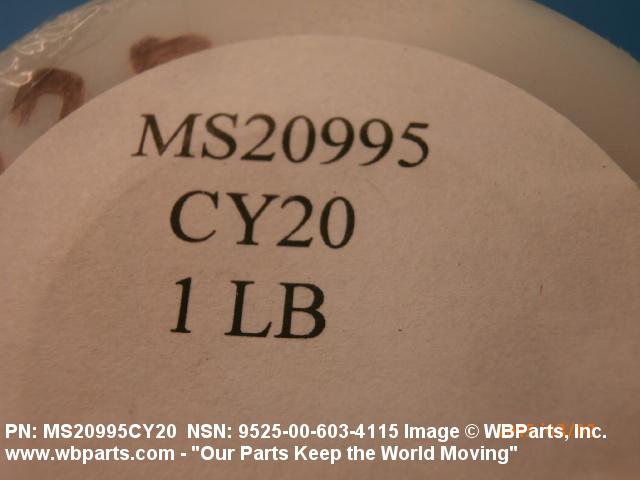

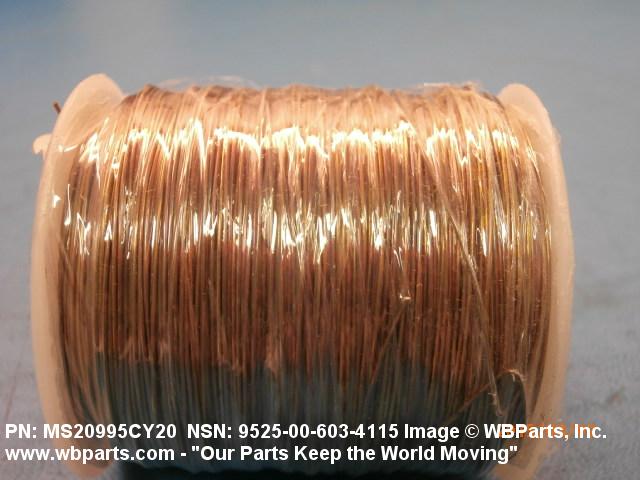

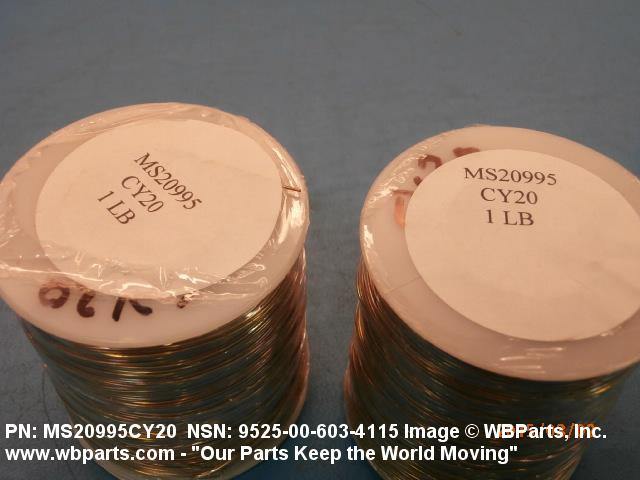

Drawings & Photos | NSN 9525-00-603-4115
Demand History | NSN 9525-00-603-4115
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9525-00-603-4115 | 2023-12-353 | 1 | US |
| 9525-00-603-4115 | 2023-12-353 | 5 | US |
| 9525-00-603-4115 | 2023-10-279 | 5 | US |
| MS20995CY20 | 2023-08-228 | 3 | LV |
| QQW343 | 2021-01-08 | 1 | United States |
| MS20995CY20 | 2020-11-315 | 1 | United States |
| 9525-00-603-4115 | 2020-06-173 | 194 | DIBBS |
| 9525-00-603-4115 | 2020-04-121 | 117 | DIBBS |
| 9525-00-603-4115 | 2020-04-103 | 117 | DIBBS |
| AA59551 | 2019-12-337 | 6 | US |
| 9525-00-603-4115 | 2018-07-193 | 32 | United States |
| 9525-00-603-4115 | 2018-07-192 | 32 | DIBBS |
| 9525-00-603-4115 | 2017-08-240 | 2 | United States |
| 9525-00-603-4115 | 2017-07-187 | 10 | MANUAL |
| MS20995CY20 | 2017-07-187 | 10 | KR |
| 9525-00-603-4115 | 2017-06-173 | 64 | DIBBS |
| 9525-00-603-4115 | 2015-03-64 | 42 | DIBBS |
| 9525-00-603-4115 | 2015-02-57 | 2 | Germany |
| MS20995CY20 | 2014-07-198 | 1 | GU |
| MS20995CY20 | 2014-06-153 | 1 | United States |
| 9525-00-603-4115 | 2014-05-132 | 52 | DIBBS |
| 9525-00-603-4115 | 2014-04-120 | 52 | DIBBS |
| 9525-00-603-4115 | 2013-07-210 | 1 | United States |
| QQ-W-343 | 2012-02-45 | 1 | United States |
| NASM20995CY20 | 2011-09-252 | 30 | Malaysia |
| MS20995CY20 | 2011-07-188 | 1 | United States |
| MS20995CY20 | 2011-01-19 | 200 | Canada |
| MS20995CY20 | 2010-11-333 | 17 | |
| 9525-00-603-4115 | 2010-02-53 | 218 | DIBBS |
| 9525-00-603-4115 | 2008-02-50 | 1 | US |
Cross Reference | NSN 9525-00-603-4115
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-A-59551 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| MS20995CY20 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20995CY20 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NASM20995CY20 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| QQ-W-343 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9525-00-603-4115
Related Products | NSN 9525-00-603-4115
Technical Data | NSN 9525-00-603-4115
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY, QQ-W-343, TYPE S |
| SURFACE TREATMENT | CADMIUM PLATING, QQ-P-416, TYPE 2, CLASS 2 |
| HEAT TREATMENT | ANNEALED |
| MINIMUM TENSILE STRENGTH | NOT RATED |
| MINIMUM YIELD STRENGTH | NOT RATED |
| LENGTH | 4065.000 FEET NOMINAL |
| BASIC SHAPE STYLE | D7 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.020 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | CONDITION ANNEALED |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59551 |
Restrictions/Controls & Freight Information | NSN 9525-00-603-4115
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9525-00-603-4115
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 SL : Spool |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 SL : Spool |
