Product Details | NONELECTRICAL WIRE

9505-01-470-8349 A ferrous or nonferrous wire having a solid cross section that is square or rectangular with sharp or rounded corners or edges, or is round, half-round, hexagonal, or octagonal and whose diameter, width, or greatest distance between parallel faces is less than 3/8 inch or 10.0mm. The rectangular shape is limited to a thickness less than 3/32 inch or 2.5mm and a width of 1 1/4 inch or 30.0mm or less. For dimensions greater than above, see BAR, METAL. Excludes items having electrical resistivity or conductivity ratings.2051345000065200043Dental Instruments, Equipment, and Supplies95050019Wire, Nonelectrical95250042Wire, Nonelectrical, Nonferrous Base Metal95450051Plate, Sheet, Strip, Foil, and Wire: Precious Metal

Part Alternates: ASTM A580 TYPE 302, ASTMA580TYPE302, 9927112-03, 9505-01-470-8349, 01-470-8349, 9505014708349, 992711203, 014708349

Metal Bars, Sheets, and Shapes | Wire, Nonelectrical

Supply Group (FSG) NSN Assign. NIIN
95 11 JAN 2000 01-470-8349

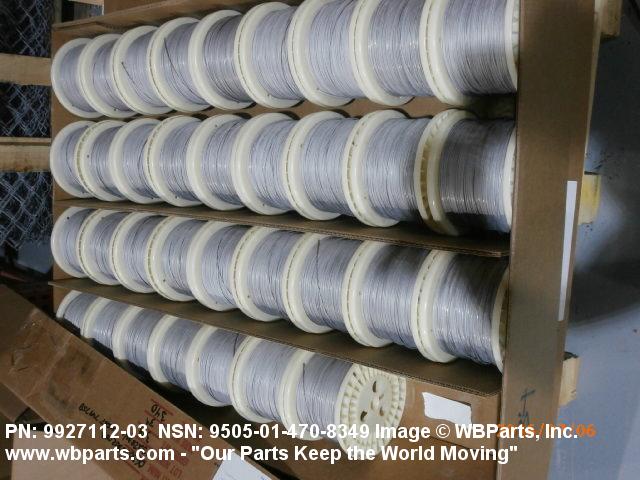

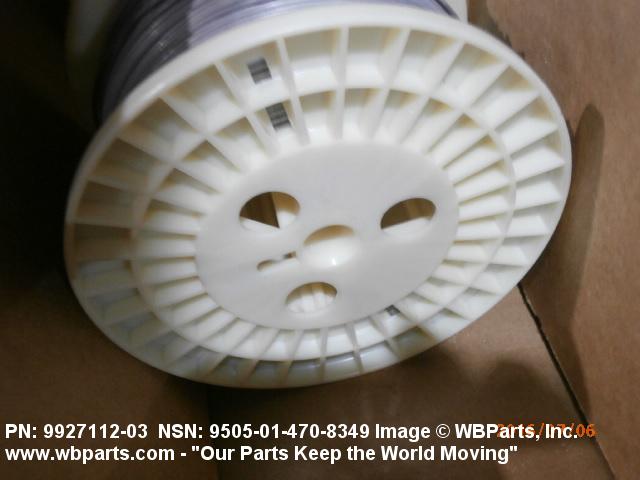

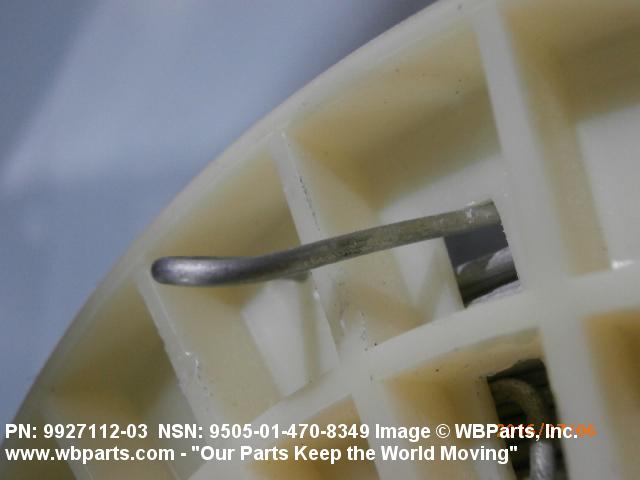

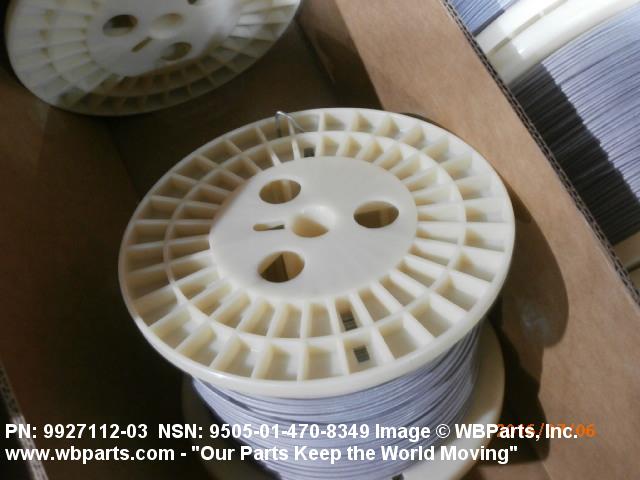

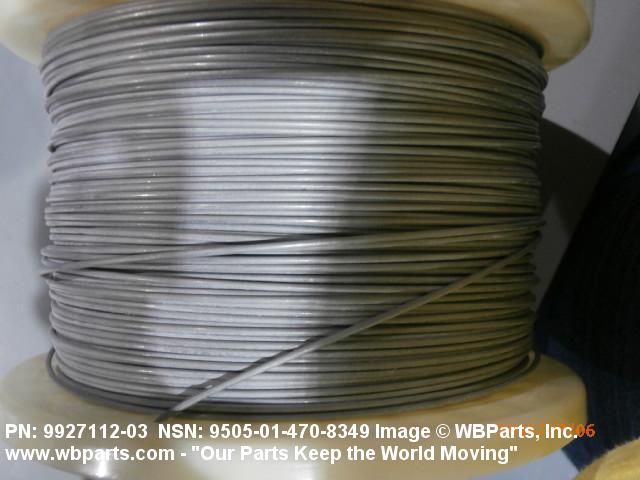

Drawings & Photos | NSN 9505-01-470-8349


Demand History | NSN 9505-01-470-8349

Part Number Request Date QTY Origin
9505-01-470-8349 2018-07-208 2 US
992711203 2016-11-309 5 United Kingdom
9505-01-470-8349 2016-02-42 100000 United States
9505-01-470-8349 2015-06-173 100000 United States
9505-01-470-8349 2015-06-154 110 Italy

Cross Reference | NSN 9505-01-470-8349

Part Number Cage Code Manufacturer
9927112-03 98747 OGDEN AIR LOGISTICS CENTER
ASTM A580 TYPE 302 81346 AMERICAN SOCIETY FOR TESTING AND MATERIALS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 9505-01-470-8349

Technical Data | NSN 9505-01-470-8349

Characteristic Specifications
MATERIAL STEEL,ASTM A580,TYPE 302
MINIMUM TENSILE STRENGTH 185000 POUNDS PER SQUARE INCH
LENGTH ANY ACCEPTABLE
BASIC SHAPE STYLE D7 ROUND

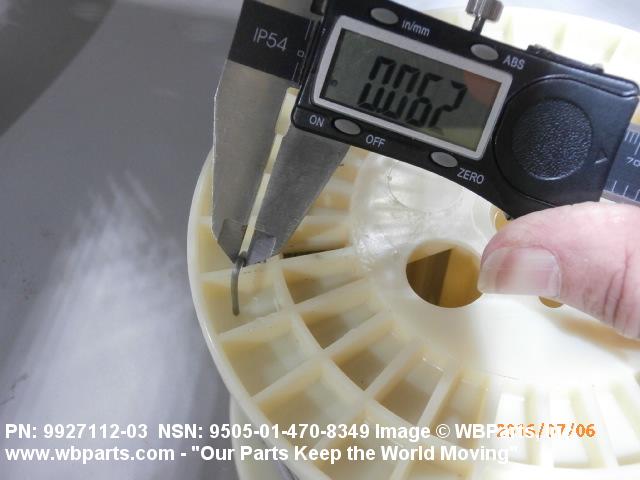

CROSS SECTION OUTSIDE DIAMETER 0.063 INCHES NOMINAL
SPECIAL FEATURES ARMING WIRE HALF HARD ON ALL GP BOMB BUILDS

Restrictions/Controls & Freight Information | NSN 9505-01-470-8349

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information

Management | NSN 9505-01-470-8349

Category Code Description
Price ValidationE The current standard price is an estimated price.
  • Estimated Price challenges are allowed, but follow procedures in para 60.b. (3) of section L of this manual.
  • This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
Budget CodeH 8157X3080:Munitions and Associated Equipment
Materiel Management Aggregation CodeMNSU:COMPLETE ROUND COMPONENTS (NON-PRIME)
Source of SupplyFG5Ogden Air Logistics Center
Hill AFB, UT 84056-5609
AgencyDFDepartment of the Air Force
Service OrganizationLLead Service - 22 (Repairable)
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesCSERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
FT : Foot
