NSN 6685-00-282-6623 13EJ32108, 00-282-6623, 002826623
Product Details | SELF-INDICATING THERMOMETER
6685-00-282-6623 An item that has confined liquid whose physical property(ies) changes with variation in temperature and indicates the temperature to a division or number on a graduated scale(s). May include flexible tubing (capillary) for indoor/outdoor applications. Excludes: THERMOMETER, CLINICAL, HUMAN.20365150057Medical and Surgical Instruments, Equipment, and Supplies66600040Meteorological Instruments and Apparatus66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: 13EJ32108, 6685-00-282-6623, 00-282-6623, 6685002826623, 002826623
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
66 | 31 AUG 1973 | 00-282-6623 | 42787 ( THERMOMETER, SELF-INDICATING ) |
Cross Reference | NSN 6685-00-282-6623
Part Number | Cage Code | Manufacturer |
---|---|---|
13EJ32108 | 59310 | ABB KENT-TAYLOR INC |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 6685-00-282-6623
Related Products | NSN 6685-00-282-6623
Technical Data | NSN 6685-00-282-6623
Characteristic | Specifications |
---|---|
SCALE TYPE | INCLOSED METAL |
SCALE MEASUREMENT RANGE | 30.000 TO 240.000 DEG FAHRENHEIT |
MATERIAL | ALUMINUM METER CASE |

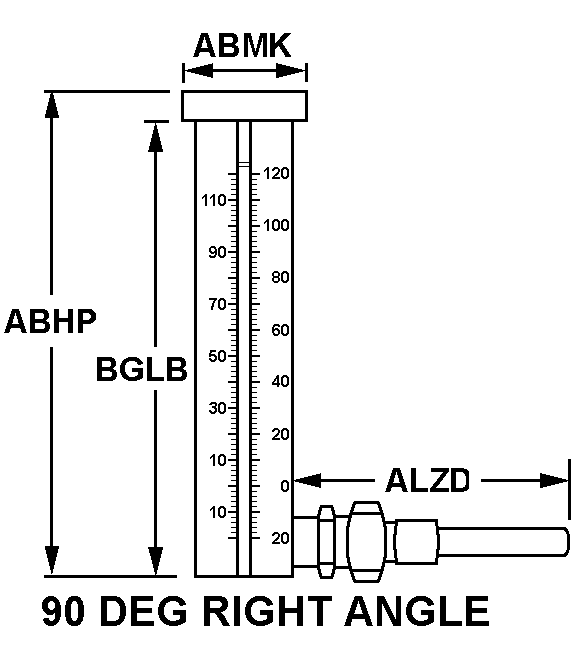

STYLE DESIGNATOR | A5 90 DEG RIGHT ANGLE |
OVERALL LENGTH | 10.094 INCHES NOMINAL |
OVERALL WIDTH | 2.500 INCHES NOMINAL |
SCALE LENGTH | 9.000 INCHES NOMINAL |
STEM LENGTH | 8.062 INCHES NOMINAL |

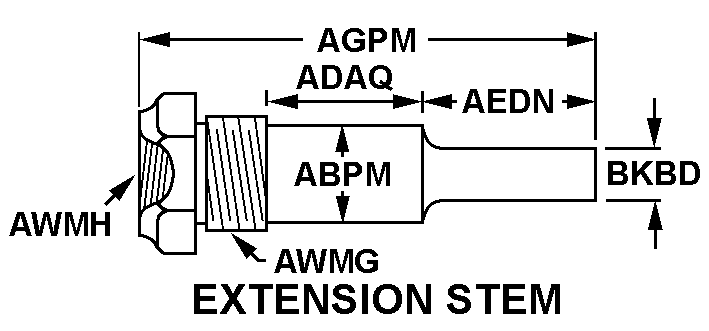

SEPARABLE SOCKET STYLE | J2 EXTENSION STEM |
BODY DIAMETER | 1.062 INCHES NOMINAL |
BODY LENGTH | 4.500 INCHES NOMINAL |
BULB TIP OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
SOCKET OVERALL LENGTH | 8.875 INCHES NOMINAL |
TIP LENGTH | 2.562 INCHES NOMINAL |
EXTERNAL THREAD SIZE | 1 IN. 11-1/2 NPT |
ACTUATING MEDIUM | MERCURY |
DESIGN TYPE | FLUCTUATING |
SPECIAL FEATURES | CARRYING CASE PROVIDED |
III SCALE INSCRIPTION/BACKGROUND COLOR | BLACK FIGURES ANDGRADUATIONS,WHITE BACKGROUND |
III SCALE SMALLEST INCREMENT | 1.0 DEG FAHRENHEIT |
Restrictions/Controls & Freight Information | NSN 6685-00-282-6623
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
No Freight Information |
