NSN 6685-00-282-6641 14EJ32108, 00-282-6641, 002826641
Product Details | SELF-INDICATING THERMOMETER
6685-00-282-6641 An item that has confined liquid whose physical property(ies) changes with variation in temperature and indicates the temperature to a division or number on a graduated scale(s). May include flexible tubing (capillary) for indoor/outdoor applications. Excludes: THERMOMETER, CLINICAL, HUMAN.20365150057Medical and Surgical Instruments, Equipment, and Supplies66600040Meteorological Instruments and Apparatus66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: 14EJ32108, 6685-00-282-6641, 00-282-6641, 6685002826641, 002826641
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 12 MAR 1974 | 00-282-6641 | 42787 ( THERMOMETER, SELF-INDICATING ) |
Drawings & Photos | NSN 6685-00-282-6641
Cross Reference | NSN 6685-00-282-6641
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14EJ32108 | 59310 | ABB KENT-TAYLOR INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-00-282-6641
Technical Data | NSN 6685-00-282-6641
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | INCLOSED METAL |
| SCALE MEASUREMENT RANGE | 30.000 TO 240.000 DEG FAHRENHEIT |
| MATERIAL | ALUMINUM METER CASE |

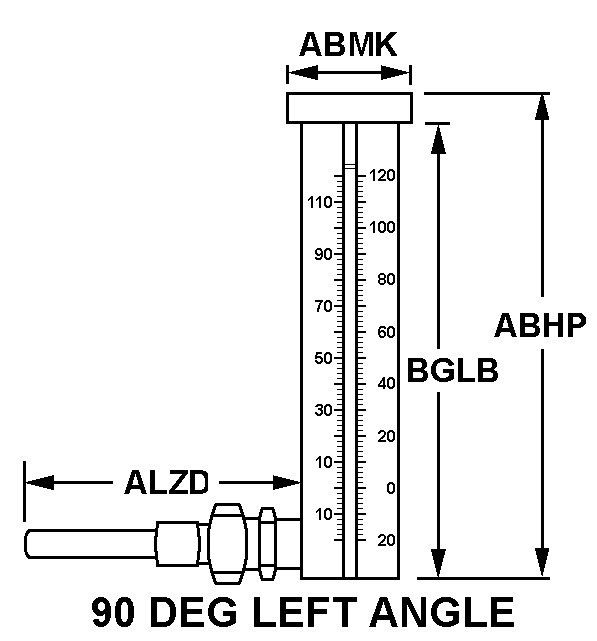

| STYLE DESIGNATOR | A3 90 DEG LEFT ANGLE |
| OVERALL LENGTH | 10.094 INCHES NOMINAL |
| OVERALL WIDTH | 2.500 INCHES NOMINAL |
| SCALE LENGTH | 9.000 INCHES NOMINAL |
| STEM LENGTH | 8.062 INCHES NOMINAL |
| SEPARABLE SOCKET STYLE | J2 EXTENSION STEM |
| BODY DIAMETER | 1.062 INCHES NOMINAL |
| BODY LENGTH | 4.500 INCHES NOMINAL |
| BULB TIP OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| SOCKET OVERALL LENGTH | 8.875 INCHES NOMINAL |
| TIP LENGTH | 2.562 INCHES NOMINAL |
| EXTERNAL THREAD SIZE | 1 IN. 11-1/2 NPT |
| ACTUATING MEDIUM | MERCURY |
| DESIGN TYPE | FLUCTUATING |
| SPECIAL FEATURES | CARRYING CASE PROVIDED |
| III SCALE INSCRIPTION/BACKGROUND COLOR | BLACK FIGURES AND GRADUATIONS,WHITE BACKGROUND |
| III SCALE SMALLEST INCREMENT | 1.0 DEG FAHRENHEIT |
Restrictions/Controls & Freight Information | NSN 6685-00-282-6641
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
