NSN 6680-01-491-4823 D11125025, D1-112-5025, 01-491-4823
Product Details | FIXED MOUNTING MECHANICAL TACHOMETER
6680-01-491-4823 A tachometer that is driven through the media of a mechanical connection and includes provisions for fixed mounting.
Part Alternates: D11125025, D1-112-5025, 6680-01-491-4823, 01-491-4823, 6680014914823, 014914823
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 23 OCT 2001 | 01-491-4823 | 07115 ( TACHOMETER, MECHANICAL, FIXED MOUNTING ) |

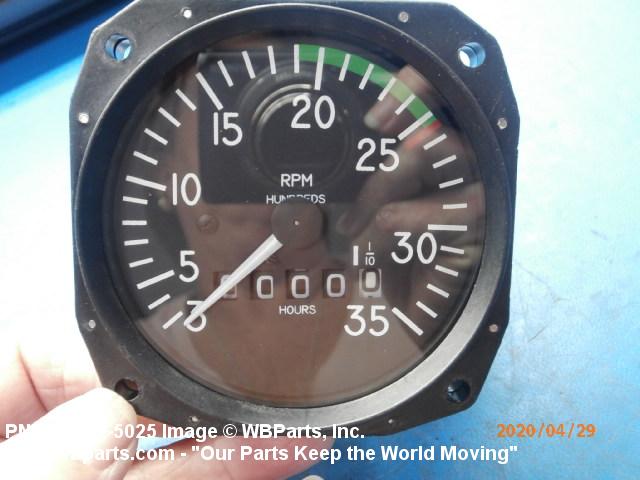

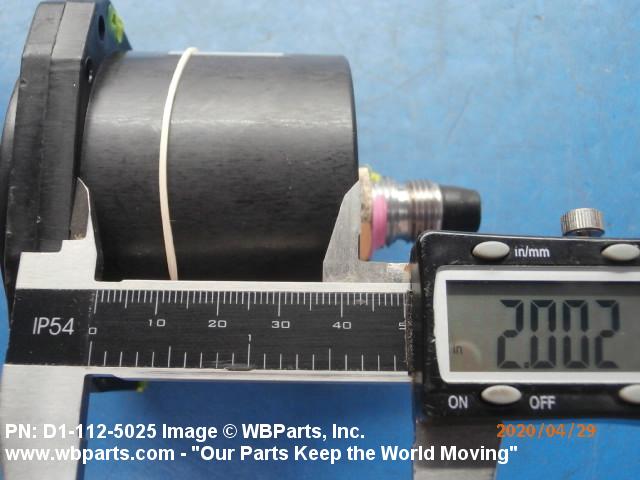

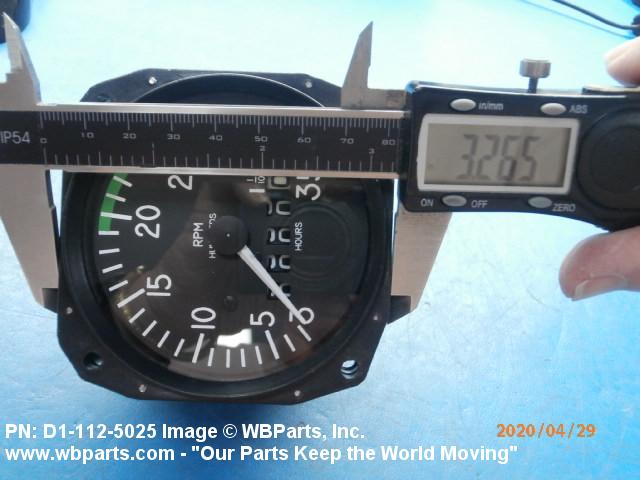

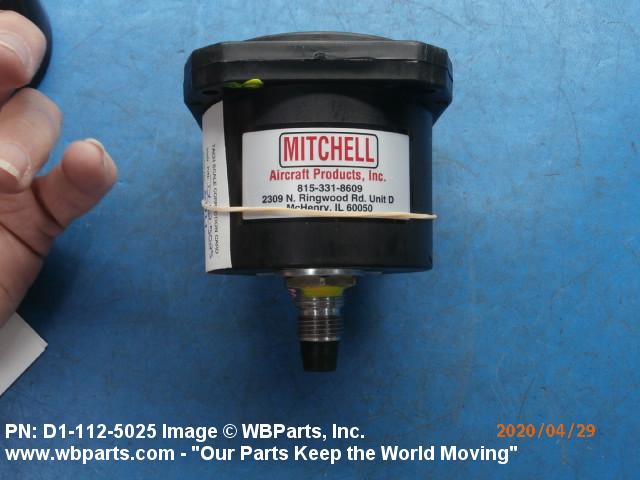

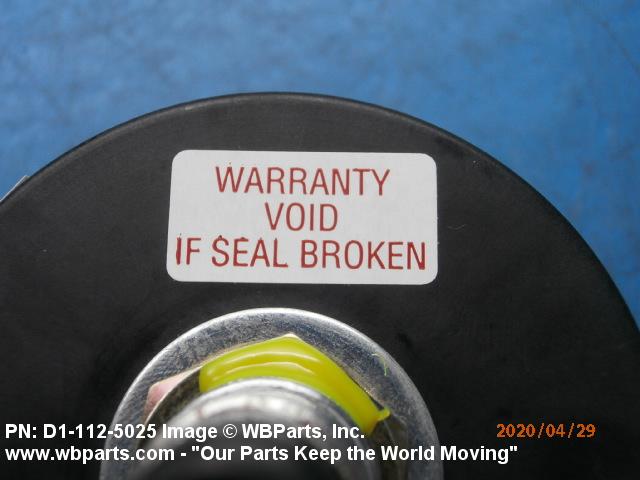

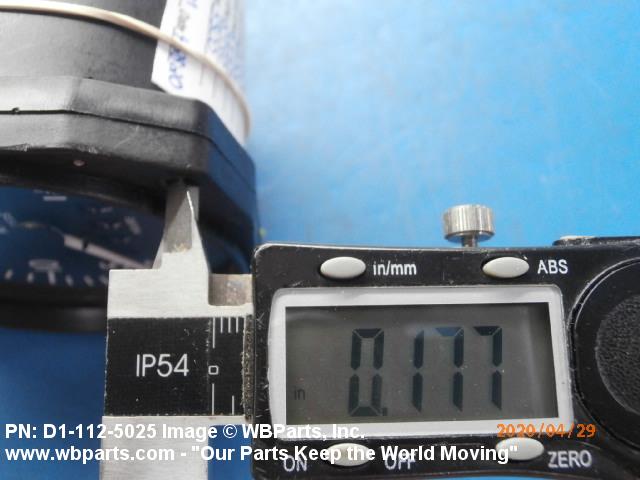

Drawings & Photos | NSN 6680-01-491-4823
Demand History | NSN 6680-01-491-4823
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| D11125025 | 2016-01-22 | 1 | Thailand |
| D11125025 | 2012-12-355 | 1 | CA |
| 6680-01-491-4823 | 2010-09-251 | 2 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-01-491-4823
Technical Data | NSN 6680-01-491-4823
| Characteristic | Specifications |
|---|---|
| MOUNTING TYPE | PANEL |
| MOUNTING FEATURE TYPE | SURFACE |
| SCALE QUANTITY | 1 |
| SCALE MEASUREMENT UNIT | REVOLUTIONS PER MINUTE |
| SCALE MEASUREMENT RANGE | 300.0 TO 3500.0 |
| POINTER QUANTITY | 1 |
| POINTER MOVEMENT DIRECTION | CLOCKWISE |
| DIAL QUANTITY | 1 |
| CASE SHAPE | SQUARE |
| OVERALL WIDTH | 3.250 INCHES NOMINAL |
| OVERALL HEIGHT | 3.250 INCHES NOMINAL |
| OVERALL DEPTH | 3.480 INCHES NOMINAL |
| DRIVE CONNECTION TYPE | THREADED |
Restrictions/Controls & Freight Information | NSN 6680-01-491-4823
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
