NSN 6680-00-410-2634 C7NN17360B, 00-410-2634, 004102634

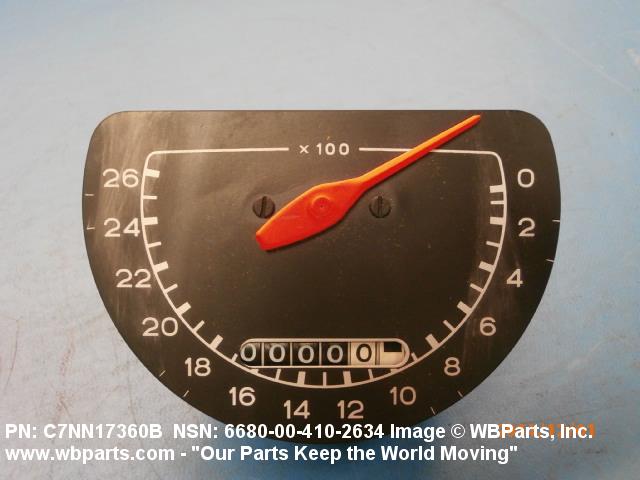

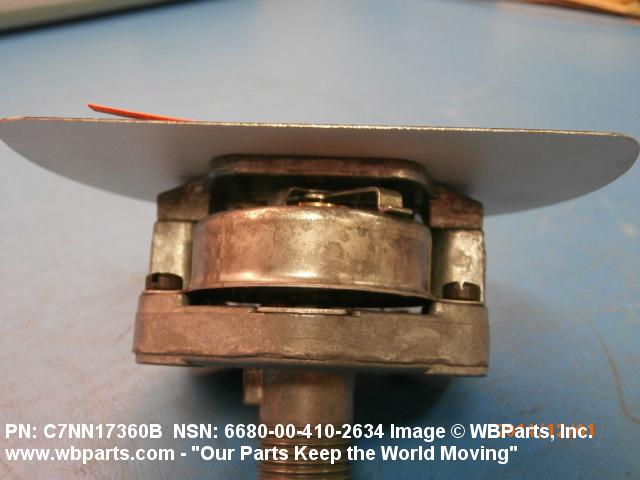

Product Details | FIXED MOUNTING MECHANICAL TACHOMETER
6680-00-410-2634 A tachometer that is driven through the media of a mechanical connection and includes provisions for fixed mounting.
Part Alternates: C7NN17360B, 6680-00-410-2634, 00-410-2634, 6680004102634, 004102634
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 08 AUG 1969 | 00-410-2634 | 07115 ( TACHOMETER, MECHANICAL, FIXED MOUNTING ) |
Drawings & Photos | NSN 6680-00-410-2634
Demand History | NSN 6680-00-410-2634
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6680-00-410-2634 | 2024-12-354 | 1 | FI |
| 6680-00-410-2634 | 2024-10-276 | 1 | FI |
| 6680-00-410-2634 | 2024-09-272 | 1 | FI |
| 6680-00-410-2634 | 2024-01-15 | 1 | FI |
| 6680-00-410-2634 | 2020-06-178 | 1 | US |
| 6680-00-410-2634 | 2020-02-45 | 1 | US |
| 6680-00-410-2634 | 2017-12-362 | 1 | US |
| C7NN17360B | 2017-01-09 | 1 | US |
| 6680-00-410-2634 | 2016-02-56 | 1 | US |
| C7NN17360B | 2015-02-49 | 2 | United States |
| 6680-00-410-2634 | 2014-11-312 | 1 | United States |
| 6680-00-410-2634 | 2013-12-337 | 1 | US |
| 6680-00-410-2634 | 2011-12-354 | 1 | UM |
| 6680-00-410-2634 | 2011-08-225 | 1 | Canada |
| 6680-00-410-2634 | 2011-02-36 | 1 | US |
Cross Reference | NSN 6680-00-410-2634
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C7NN17360B | 00501 | NEW HOLLAND N.V.NC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6680-00-410-2634
Related Products | NSN 6680-00-410-2634
Technical Data | NSN 6680-00-410-2634
| Characteristic | Specifications |
|---|---|
| MOUNTING TYPE | PANEL |
| OPERATING RANGE | 0.0 TO 2600.0 REVOLUTIONS PER MINUTE |
| SCALE QUANTITY | 1 |
| SCALE MEASUREMENT UNIT | REVOLUTIONS PER MINUTE |
| SCALE MEASUREMENT RANGE | 0.0 TO 2600.0 |
| SCALE SMALLEST INCREMENT | 100.0 REVOLUTIONS PER MINUTE |
| POINTER QUANTITY | 1 |
| POINTER MOVEMENT DIRECTION | CLOCKWISE |
| DIAL ILLUMINATION | PROVIDED |
| LAMP TYPE | INCANDESCENT |
| DRIVE CONNECTION TYPE | FLEXIBLE |
| TOTALIZING MECHANISM | PROVIDED |
| MANUFACTURERS CODE | 00501 |
| DESIGN CONTROL REFERENCE | C7NN17360B |
Restrictions/Controls & Freight Information | NSN 6680-00-410-2634
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058240 | RECORDING DEVICES GAUGES/METERS NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-410-2634
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
