NSN 6680-00-825-2076 MS359162, MS35916-2, M102151B
Product Details | FIXED MOUNTING MECHANICAL TACHOMETER
6680-00-825-2076 A tachometer that is driven through the media of a mechanical connection and includes provisions for fixed mounting.
Part Alternates: MS359162, MS35916-2, M102151B, M10215-1B, M102151BX02, M10215-1BX02, M102151BX2, M10215-1BX2, MILDTL10215K, MIL-DTL-10215K, MILS10215, MIL-S-10215, 1548168, 1549110, 501, 501D, 501-D, 501D1GP1, 501D1-GP1, 503D, 5T1506, 6680PL0898101, 8376376, 6680-00-825-2076, 00-825-2076, 6680008252076 , 008252076
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-825-2076 | 07115 ( TACHOMETER, MECHANICAL, FIXED MOUNTING ) |

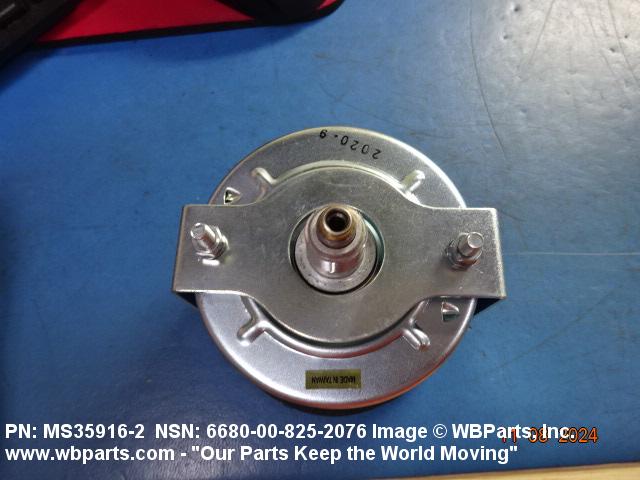

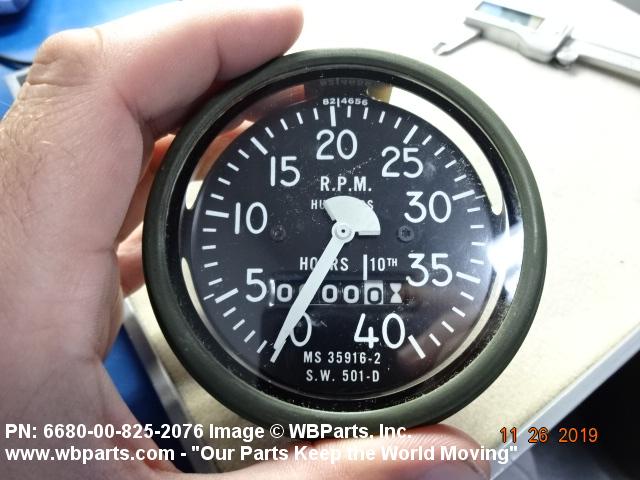

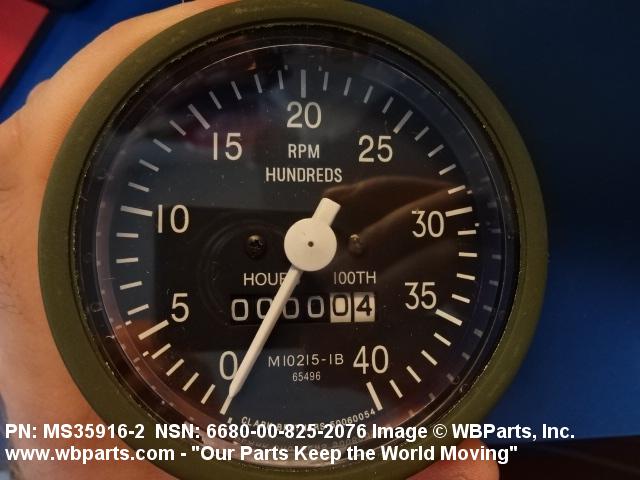

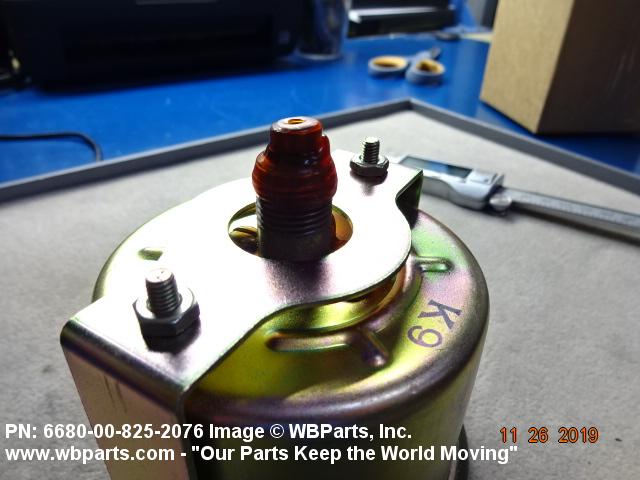

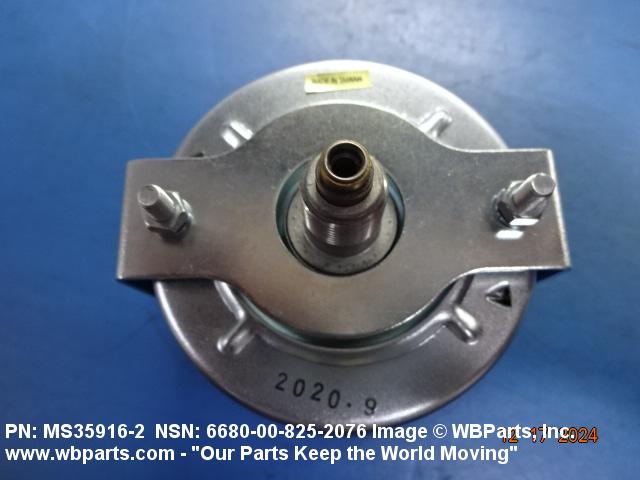

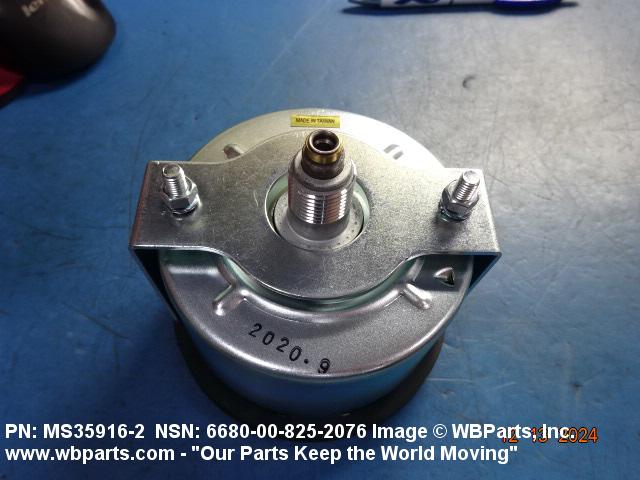

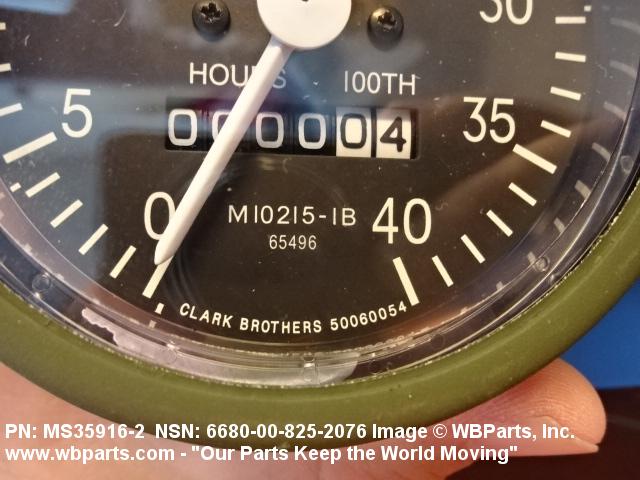

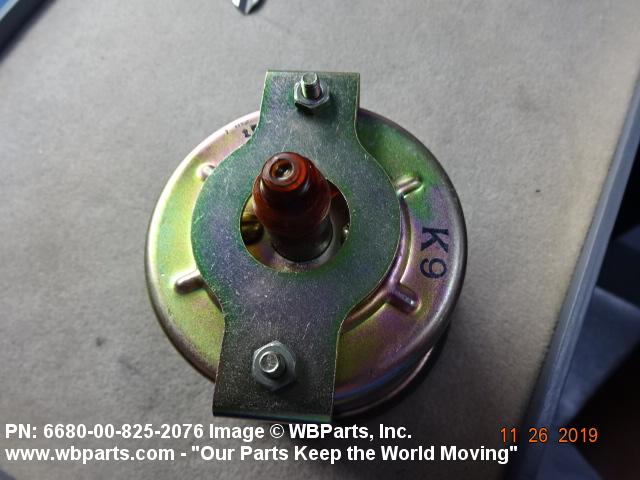

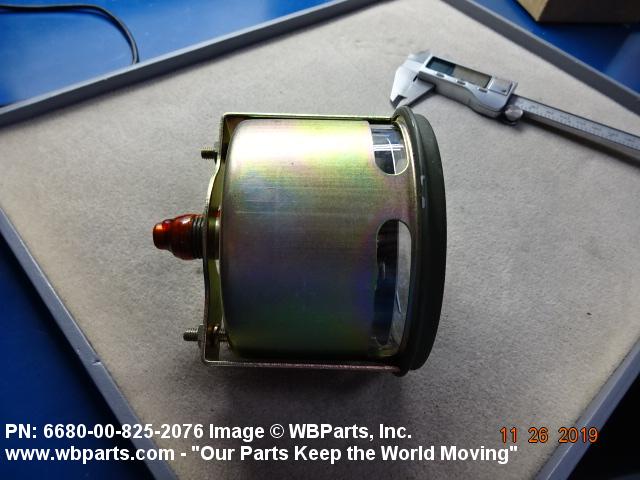

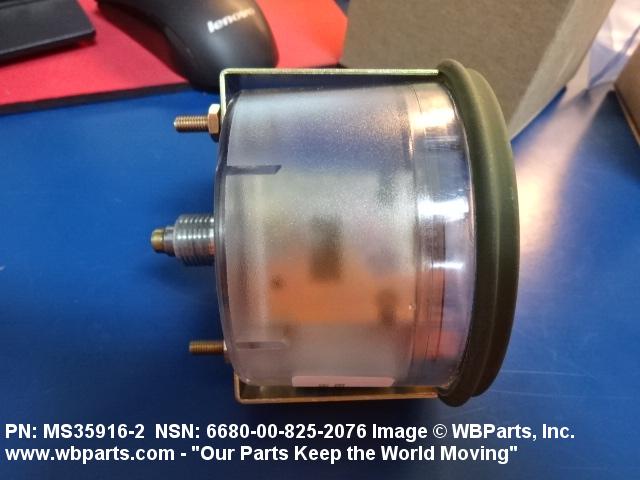

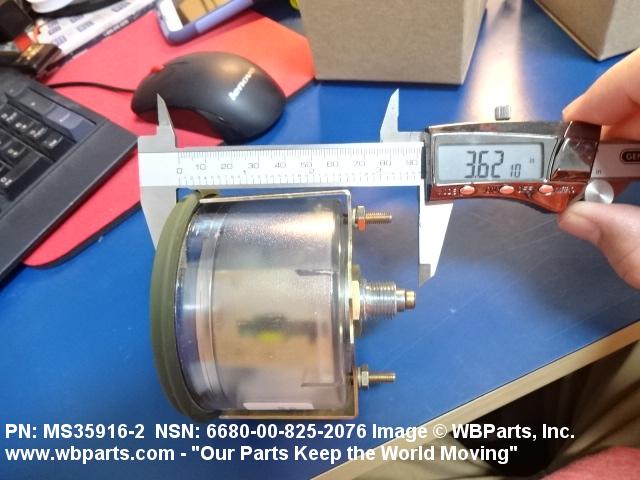

Drawings & Photos | NSN 6680-00-825-2076
Demand History | NSN 6680-00-825-2076
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6680-00-825-2076 | 2024-09-274 | 100 | Saudi Arabia |
| 6680-00-825-2076 | 2024-05-148 | 1 | BR |
| 6680-00-825-2076 | 2024-01-25 | 707 | United States |
| 6680-00-825-2076 | 2024-01-24 | 707 | Taiwan |
| 6680-00-825-2076 | 2024-01-22 | 44 | United Kingdom |
| MS359162 | 2023-04-118 | 3 | United States |
| 6680-00-825-2076 | 2021-06-158 | 30 | TR |
| 501D1GP1 | 2021-04-110 | 87 | US |
| 6680-00-825-2076 | 2021-01-14 | 1 | Brazil |
| 6680-00-825-2076 | 2020-11-314 | 2 | Brazil |
| 6680-00-825-2076 | 2020-06-170 | 60 | TR |
| 6680-00-825-2076 | 2020-05-147 | 7 | TH |
| 6680-00-825-2076 | 2020-05-147 | 7 | TH |
| 6680-00-825-2076 | 2019-10-301 | 10 | Thailand |
| MILDTL10215K | 2019-10-287 | 160 | United States |
| 6680-00-825-2076 | 2019-08-233 | 5 | United States |
| 6680-00-825-2076 | 2019-04-99 | 1 | Brazil |
| 6680-00-825-2076 | 2019-01-10 | 8 | MANUAL |
| MS35916-2 | 2019-01-10 | 8 | Thailand |
| M102151B | 2018-02-40 | 15 | United States |
| 6680-00-825-2076 | 2018-01-11 | 60 | Germany |
| 6680-00-825-2076 | 2017-12-362 | 2 | US |
| 6680-00-825-2076 | 2017-09-256 | 2 | Taiwan |
| 6680-00-825-2076 | 2017-09-248 | 1 | United States |
| MS35916-2 | 2017-02-32 | 9 | United States |
| 6680-00-825-2076 | 2016-04-98 | 1 | DIBBS-RFPs |
| 6680-00-825-2076 | 2015-10-285 | 37 | PK |
| 6680-00-825-2076 | 2015-09-259 | 50 | United States |
| 6680-00-825-2076 | 2015-07-205 | 5 | Pakistan |
| 6680-00-825-2076 | 2015-02-41 | 15 | MANUAL |
| 6680-00-825-2076 | 2014-09-259 | 10 | Germany |
| 6680-00-825-2076 | 2014-04-112 | 10 | Chile |
| 6680-00-825-2076 | 2012-10-290 | 331 | DIBBS |
| 008252076 | 2012-09-272 | 1 | US |
| 6680-00-825-2076 | 2012-08-214 | 427 | DIBBS |
| 6680-00-825-2076 | 2012-06-160 | 409 | DIBBS |
| 6680-00-825-2076 | 2012-04-104 | 5 | MANUAL |
| 6680-00-825-2076 | 2011-06-155 | 5 | MANUAL |
| 6680-00-825-2076 | 2011-06-155 | 5 | MANUAL |
| MS35916-2 | 2011-06-155 | 5 | PK |
| MS35916-2 | 2011-06-155 | 5 | PK |
| 6680-00-825-2076 | 2008-12-336 | 4 | United States |
| 6680-00-825-2076 | 2007-10-291 | 90 | US |
| 6680-00-825-2076 | 2007-07-211 | 60 | Turkey |
| MILS10215 | 2006-02-48 | 1000 | US |
Cross Reference | NSN 6680-00-825-2076
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1548168 | 24617 | GENERAL MOTORS CORP |
| 1548168 | 70040 | GENERAL MOTORS CORP AC ROCHESTER DIV |
| 1549110 | 24617 | GENERAL MOTORS CORP |
| 1549110 | 70040 | GENERAL MOTORS CORP AC ROCHESTER DIV |
| 501 | 57733 | STEWART-WARNER CORPORATION |
| 501-D | 57733 | STEWART-WARNER CORPORATION |
| 501D1-GP1 | 57733 | STEWART-WARNER CORPORATION |
| 503D | 57733 | STEWART-WARNER CORPORATION |
| 5T1506 | 99832 | SCOTT HUBER ESSICK A CO OF FIGGIE INTERNATIONAL INC |
| 6680008252076 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 6680PL0898101 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 8376376 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| M10215-1B | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M10215-1BX02 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M10215-1BX2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-10215K | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-10215 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS35916-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS359162 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6680-00-825-2076
Related Products | NSN 6680-00-825-2076
Technical Data | NSN 6680-00-825-2076
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | CENTRIFUGAL |
| MOUNTING TYPE | PANEL |
| MOUNTING FEATURE TYPE | FLUSH |
| OPERATING RANGE | 0.0 TO 4000.0 REVOLUTIONS PER MINUTE |
| SCALE QUANTITY | 1 |
| SCALE MEASUREMENT UNIT | RPM |
| SCALE MEASUREMENT RANGE | 0.0 TO 4000.0 |
| SCALE SMALLEST INCREMENT | 100.0 REVOLUTIONS PER MINUTE |
| MAJOR GRADUATION COLOR | WHITE |
| MINOR GRADUATION COLOR | WHITE |
| POINTER QUANTITY | 1 |
| POINTER COLOR | WHITE |
| POINTER MOVEMENT DIRECTION | CLOCKWISE |
| DIAL QUANTITY | 1 |
| DIAL BACKGROUND COLOR | BLACK |
| DIAL ILLUMINATION | NOT PROVIDED |
| DRIVEN SPEED TO INDICATED SPEED MINIMUM RATIO | 1 TO 2 |
| CASE MATERIAL | STEEL |
| CASE SHAPE | ROUND |

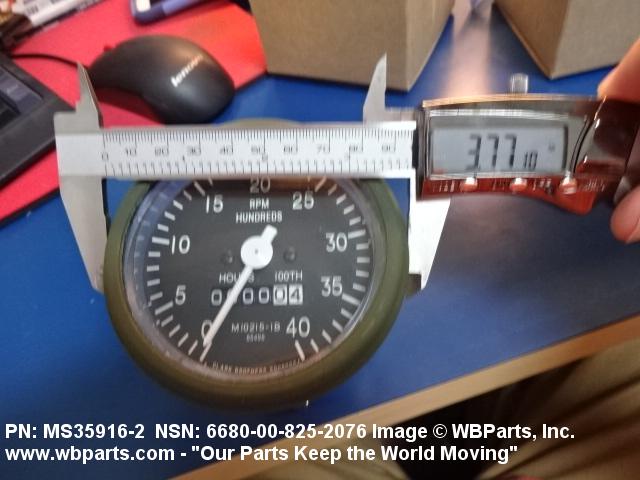

| OVERALL DIAMETER | 3.766 INCHES NOMINAL |

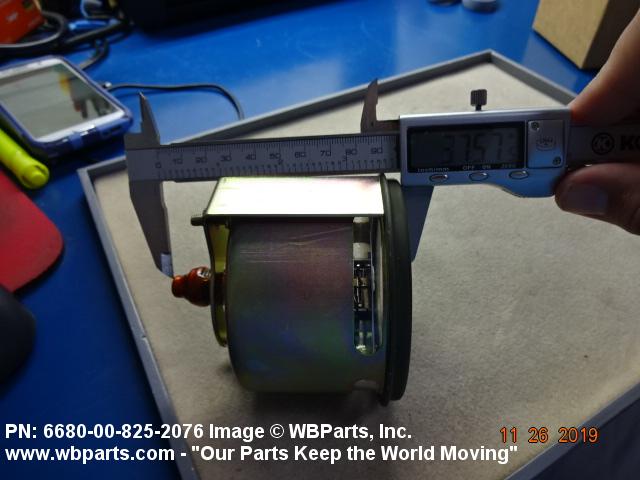

| OVERALL DEPTH | 3.922 INCHES NOMINAL |
| DRIVE CONNECTION TYPE | FLEXIBLE |
| SHAFT ROTATION DIRECTION | COUNTERCLOCKWISE |
| TOTALIZING MECHANISM | PROVIDED |
| TOTALIZING MECHANISM CALIBRATION | HOURS OPERATED |
| GRADUATION UNIT | 0.1 HOUR |
| AHEAD-ASTERN SEMAPHORE | NOT PROVIDED |
| NONDEFINITIVE SPEC/STD DATA | B GRADE AND I TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-10215K |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M10215-1B |
Restrictions/Controls & Freight Information | NSN 6680-00-825-2076
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058240 | RECORDING DEVICES GAUGES/METERS NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-825-2076
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | R | Radioactive Material |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
