NSN 6680-00-826-1809 3771006P1, 377-1006P1, 00-826-1809
Product Details | ROTATING COUNTER
6680-00-826-1809 An instrument actuated by means of a rotating shaft and designed to register and total numerically in units proportional to one complete revolution of its shaft. It may have a fixed type mounting or designed to be hand held. See also COUNTER, ELECTRICAL.
Part Alternates: 3771006P1, 377-1006P1, 6680-00-826-1809, 00-826-1809, 6680008261809, 008261809
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-826-1809 | 30762 ( COUNTER, ROTATING ) |
Drawings & Photos | NSN 6680-00-826-1809
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6680-00-826-1809
Related Products | NSN 6680-00-826-1809
Technical Data | NSN 6680-00-826-1809
| Characteristic | Specifications |
|---|---|

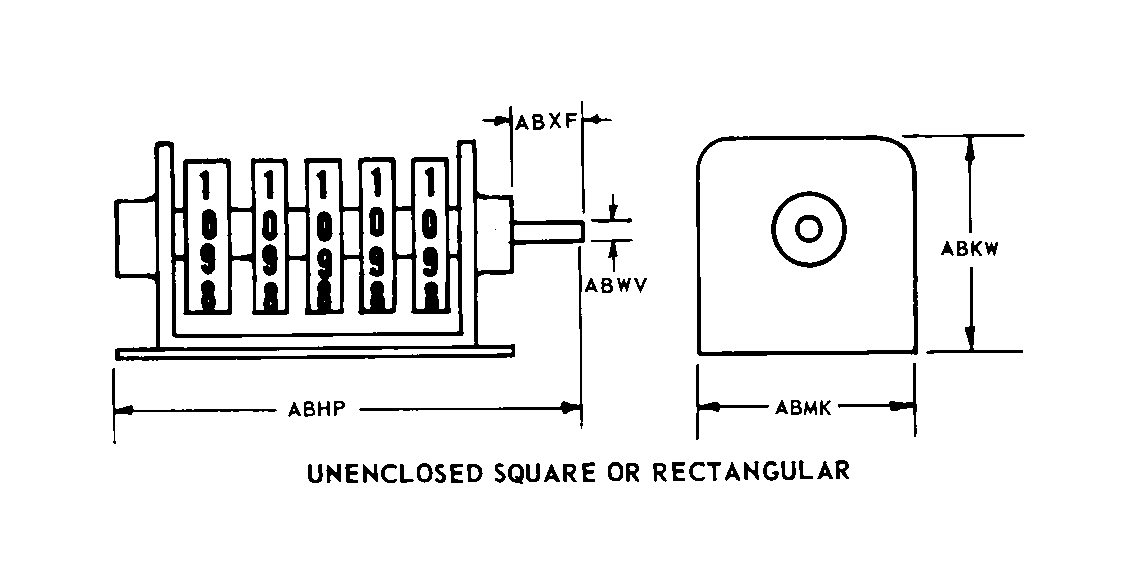

| STYLE DESIGNATOR | B2 UNENCLOSED SQUARE OR RECTANGULAR |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| OVERALL HEIGHT | 1.531 INCHES NOMINAL |
| OVERALL WIDTH | 1.125 INCHES NOMINAL |
| SHAFT DIAMETER | 0.124 INCHES NOMINAL |
| SHAFT LENGTH | 0.312 INCHES NOMINAL |
| REGISTER QUANTITY | 1 |
| REGISTER FUNCTION | ADD AND SUBTRACT SINGLE REGISTER SINGLE TIER |
| REGISTER RESET METHOD | TOTAL COUNTER MANUAL SINGLE REGISTER SINGLE TIER |
| FIGURE QUANTITY PER REGISTER | 3 SINGLE REGISTER SINGLE TIER |
| FIGURE HEIGHT | 0.250 INCHES NOMINAL SINGLE REGISTER SINGLE TIER |
| COLOR | WHITE SINGLE REGISTER SINGLE TIER FIGURE BLACK SINGLE REGISTER SINGLE TIER FIGURE BACKGROUND |
| ACTUATING DEVICE LOCATION | LEFT SIDE SINGLE REGISTER SINGLE TIER |
| NUMERAL DISPLAY METHOD | DRUM |
| NUMERAL READOUT | 000 MINIMUM AND 999 MAXIMUM SINGLE REGISTER SINGLE TIER |
| SHAFT ROTATION DIRECTION AND MAXIMUM SPEED IN RPM | 800.0 CLOCKWISE AND 800.0 COUNTERCLOCKWISE SINGLE REGISTER SINGLE TIER |
| SHAFT REVOLUTIONS PER COUNT | 1.00 SINGLE REGISTER SINGLE TIER |
| MAXIMUM COUNT RATE | 800.0 PER MINUTE SINGLE REGISTER SINGLE TIER |
| MOUNTING TYPE FOR WHICH DESIGNED | PANEL REAR SINGLE REGISTER SINGLE TIER |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |

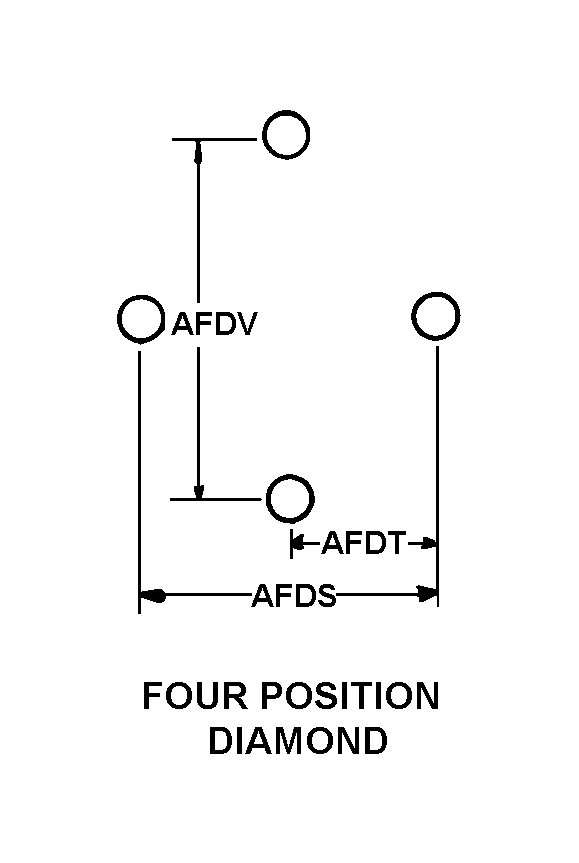

| MOUNTING ARRANGEMENT STYLE | A4 FOUR POSITION DIAMOND |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 0.812 INCHES NOMINAL |
| SHORTEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 0.406 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 0.562 INCHES NOMINAL |
| SPECIAL FEATURES | ALTERNATE ACTUATING DEVICE LOCATION,RIGHT SIDE |
| MANUFACTURERS CODE | 3B150 |
| DESIGN CONTROL REFERENCE | 377-1006P1 |
