NSN 6680-00-585-9967 L153942, L153942103, L153942-103

Product Details | ROTATING COUNTER

6680-00-585-9967 An instrument actuated by means of a rotating shaft and designed to register and total numerically in units proportional to one complete revolution of its shaft. It may have a fixed type mounting or designed to be hand held. See also COUNTER, ELECTRICAL.

Part Alternates: L153942, L153942103, L153942-103, X767025, X76702-5, 153942-103, 9073452, 9177273, 6680-00-585-9967, 00-585-9967, 6680005859967, 153942103, 005859967

Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	01 JAN 1963	00-585-9967	30762 ( COUNTER, ROTATING )

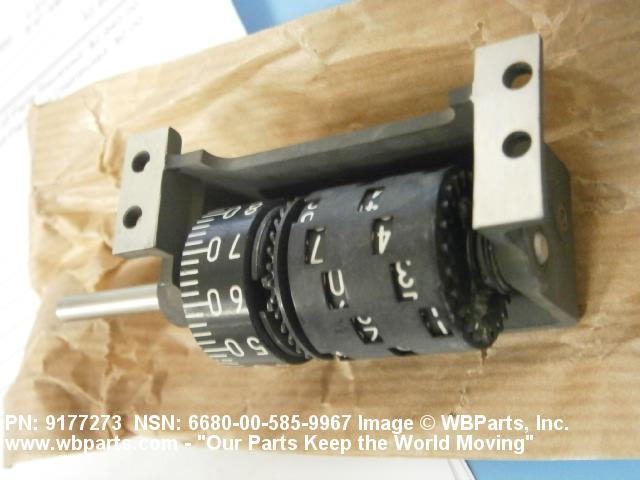

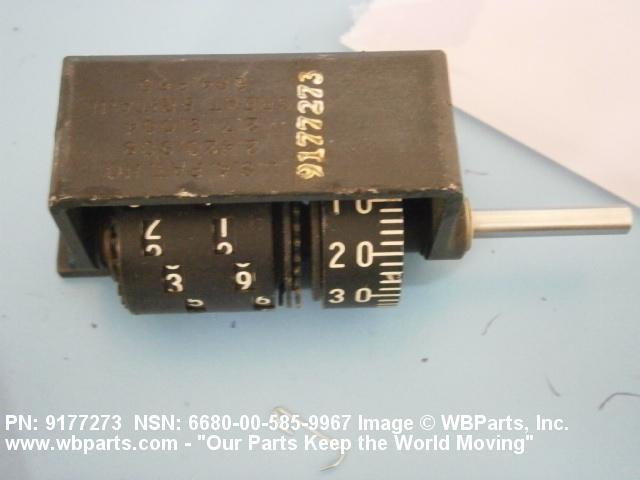

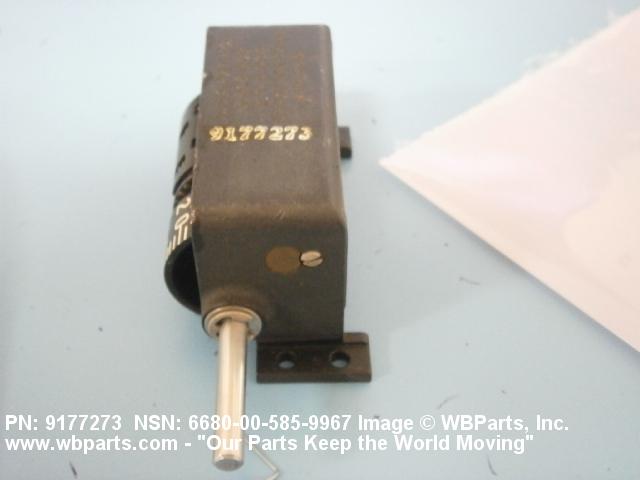

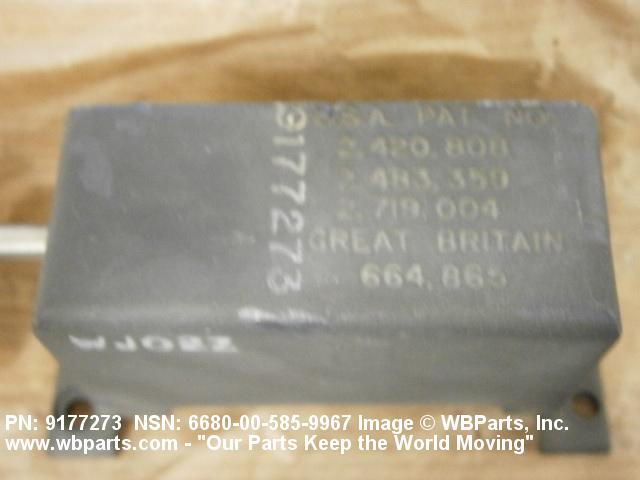

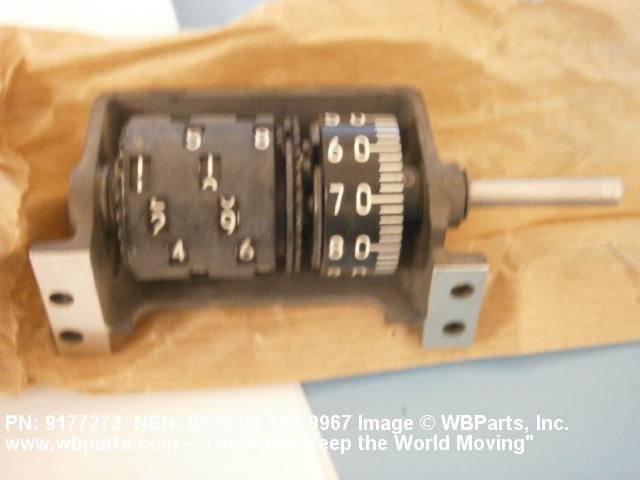

Drawings & Photos | NSN 6680-00-585-9967

Part Number	Request Date	QTY	Origin
6680-00-585-9967	2013-03-79	1	DIBBS
6680-00-585-9967	2012-09-249	1	DIBBS
6680-00-585-9967	2012-07-184	1	DIBBS
6680-00-585-9967	2012-01-23	2	United States
6680-00-585-9967	2011-11-319	2	DIBBS
6680-00-585-9967	2011-10-279	2	DIBBS
6680-00-585-9967	2011-02-46	10	DIBBS
6680-00-585-9967	2010-10-288	10	DIBBS
6680-00-585-9967	2010-10-278	2	DIBBS
6680-00-585-9967	2010-05-128	5	DIBBS

Cross Reference | NSN 6680-00-585-9967

Part Number	Cage Code	Manufacturer
153942-103	79142	DYNAPAR CORPORATION DBA DANAHER CONTROLS
9073452	18876	U S ARMY AVIATION AND MISSILE COMMAND
9177273	18876	U S ARMY AVIATION AND MISSILE COMMAND
L153942	79142	DYNAPAR CORPORATION DBA DANAHER CONTROLS
L153942-103	79142	DYNAPAR CORPORATION DBA DANAHER CONTROLS
X76702-5	79142	DYNAPAR CORPORATION DBA DANAHER CONTROLS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6680-00-585-9967

Compare

Related Products | NSN 6680-00-585-9967

6680-00-586-3705, 6680-00-586-3841, 6680-00-586-3881, 6680-00-586-5623, 6680-00-586-5859

Technical Data | NSN 6680-00-585-9967

Characteristic	Specifications
STYLE DESIGNATOR	B2 UNENCLOSED SQUARE OR RECTANGULAR
OVERALL LENGTH	2.718 INCHES NOMINAL
OVERALL HEIGHT	1.312 INCHES NOMINAL
OVERALL WIDTH	1.390 INCHES NOMINAL
SHAFT DIAMETER	0.187 INCHES NOMINAL
SHAFT LENGTH	1.062 INCHES NOMINAL
REGISTER QUANTITY	1
REGISTER FUNCTION	ADD SINGLE REGISTER SINGLE TIER
FIGURE QUANTITY PER REGISTER	4 SINGLE REGISTER SINGLE TIER
FIGURE HEIGHT	0.156 INCHES NOMINAL SINGLE REGISTER SINGLE TIER
COLOR	WHITE SINGLE REGISTER SINGLE TIER FIGURE BLACK SINGLE REGISTER SINGLE TIER FIGURE BACKGROUND
ACTUATING DEVICE LOCATION	RIGHT SIDE SINGLE REGISTER SINGLE TIER
NUMERAL DISPLAY METHOD	DRUM
NUMERAL READOUT	0000 MINIMUM AND 6390 MAXIMUM SINGLE REGISTER SINGLE TIER
SHAFT ROTATION DIRECTION AND MAXIMUM SPEED IN RPM	1200.0 CLOCKWISE SINGLE REGISTER SINGLE TIER
SHAFT REVOLUTIONS PER COUNT	0.10 SINGLE REGISTER SINGLE TIER
MAXIMUM COUNT RATE	12000.0 PER MINUTE SINGLE REGISTER SINGLE TIER
MOUNTING TYPE FOR WHICH DESIGNED	BASE SINGLE REGISTER SINGLE TIER
MOUNTING FACILITY TYPE AND QUANTITY	4 UNTHREADED HOLE
MOUNTING ARRANGEMENT STYLE	A2 FOUR POSITION SQUARE/RECTANGLE
LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS	2.468 INCHES NOMINAL
LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS	0.375 INCHES NOMINAL
SPECIAL FEATURES	NONRESETTABLE

Restrictions/Controls & Freight Information | NSN 6680-00-585-9967

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	177220	SPEED INDICATORS/HEADS/ODOMETERS
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	653	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6680-00-585-9967

Army
Air Force

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
