NSN 6680-01-263-4067 G4002231, G400223-1, 1305EJ1BCJ2BA
Product Details | FLOW RATE INDICATING METER
6680-01-263-4067 An instrument for measuring the rate of flow of a fluid through a pipeline. This measurement is indicated on a graduated scale either by means of a float confined in a tube, or pointer connected to a vane, or piston and spring or the like. Excludes METER, FLUID FLOW INDICATING, DIFFERENTIAL PRESSURE; METER, FLUID FLOW INDICATING, ELECTROMAGNETIC; and METER, FLUID FLOW INDICATING, ULTRASONIC.
Part Alternates: G4002231, G400223-1, 1305EJ1BCJ2BA, 1305FJ1BCJ2BA, 6680-01-263-4067, 01-263-4067, 6680012634067, 012634067
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 14 SEP 1987 | 01-263-4067 | 38346 ( METER, FLOW RATE INDICATING ) |

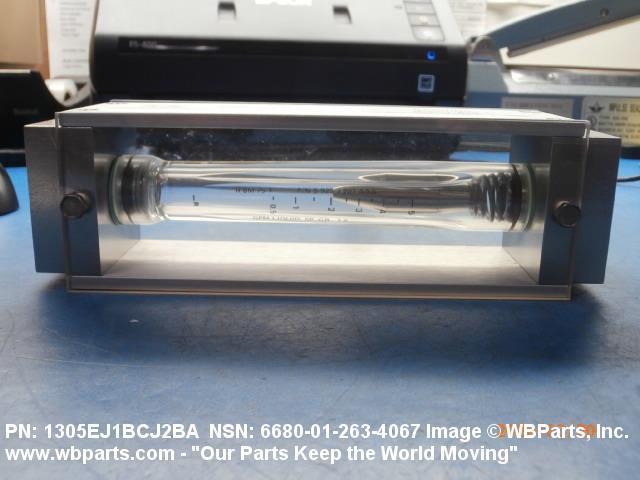

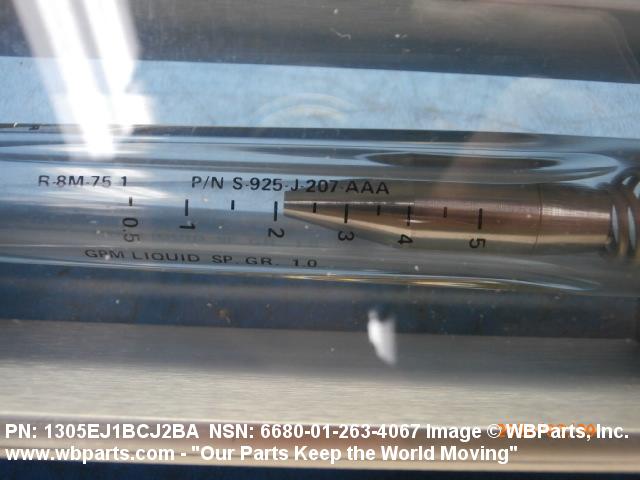

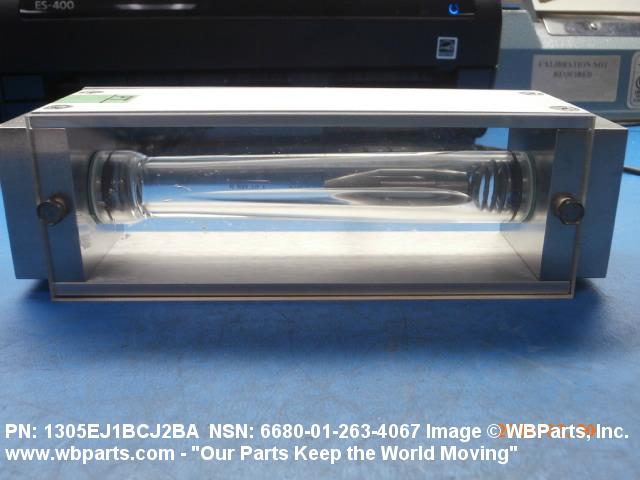

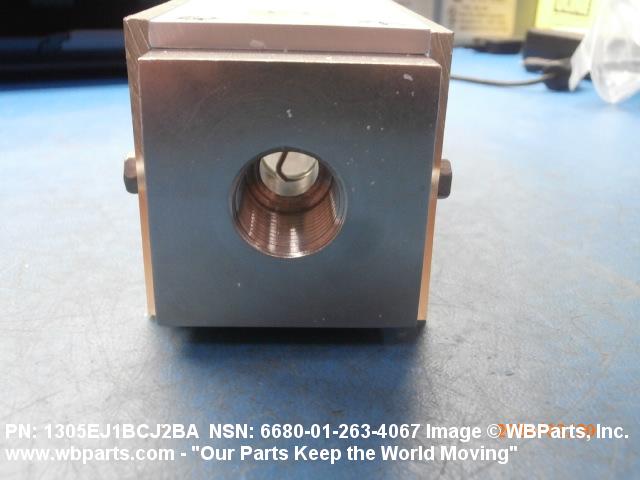

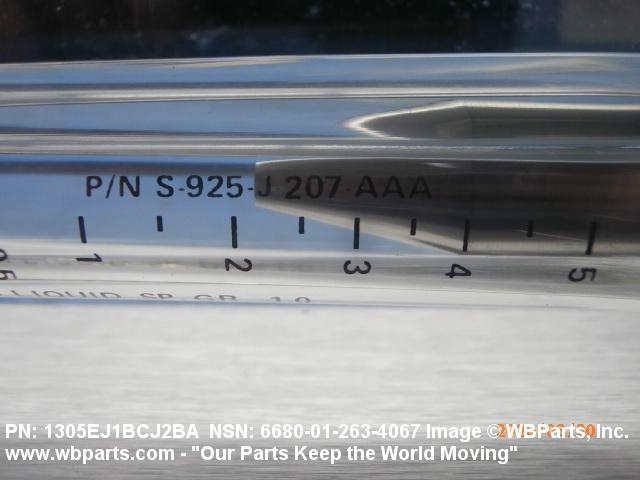

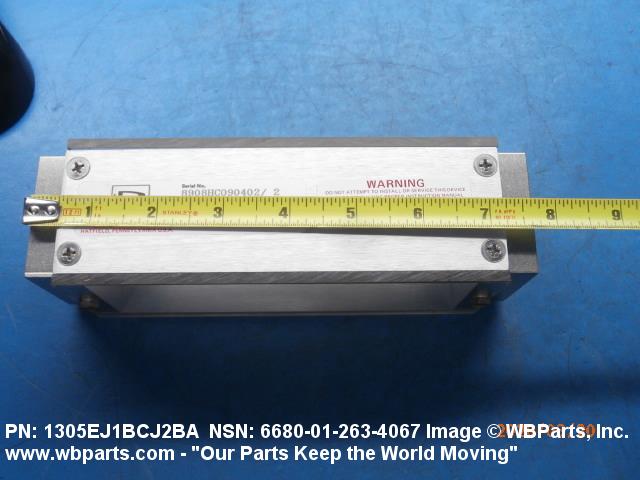

Drawings & Photos | NSN 6680-01-263-4067
Demand History | NSN 6680-01-263-4067
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1305EJ1BCJ2BA | 2020-03-76 | 1 | United States |
| 6680-01-263-4067 | 2019-04-116 | 1 | United States |
| 1305EJ1BCJ2BA | 2019-04-115 | 1 | United States |
| 6680-01-263-4067 | 2017-03-82 | 2 | DIBBS |
| 6680-01-263-4067 | 2013-11-325 | 2 | DIBBS |
Cross Reference | NSN 6680-01-263-4067
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-01-263-4067
Technical Data | NSN 6680-01-263-4067
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | CASE |
| CONSTRUCTION | SIDE PLATE |
| BASE | NOT INCLUDED |
| CARRYING HANDLE | NOT INCLUDED |
| METERING TUBE QUANTITY | 1 |
| TUBE MATERIAL | GLASS |
| SCALE QUANTITY | 1 |
| SCALE TYPE | DIRECT CAPACITY READING |
| MEDIA FOR WHICH DESIGNED | LIQUID |

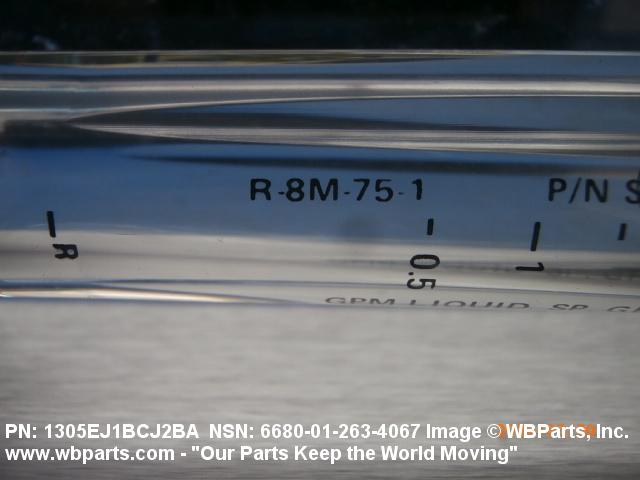

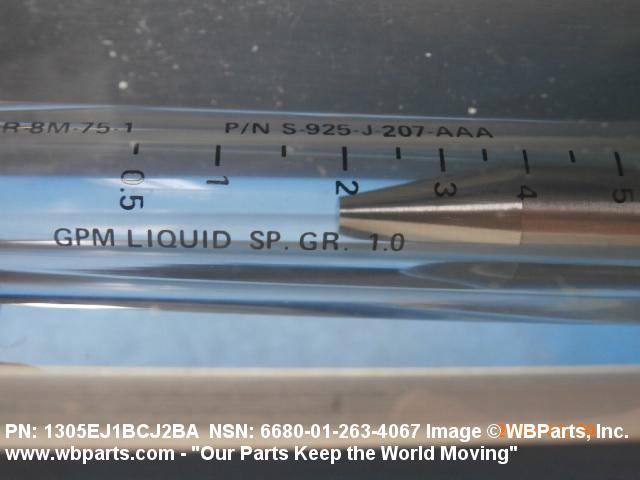

| SCALE MARKING | GPM |
| DIAL SCALE MARKING RANGE | 0.0 TO 0.5 |
| DIAL SCALE REFERENCE POINTER | NOT INCLUDED |

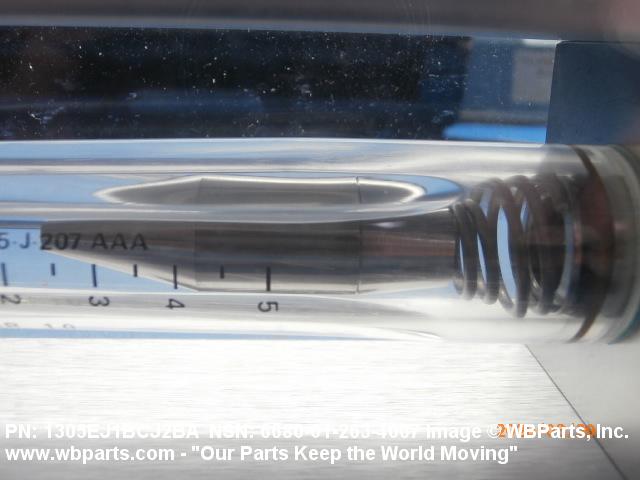

| METER TYPE | FLOAT |
| FLOAT QUANTITY | 1 |
| FLOAT MATERIAL | STEEL, STAINLESS |
| SPINNING FLOAT | NOT INCLUDED |
| FLOAT TYPE | FREE |
| OVERALL LENGTH | 7.750 INCHES NOMINAL |
| INTEGRAL PULSATION DAMPENER | NOT INCLUDED |
| UNIT TYPE | MOUNTED |
| MOUNTING METHOD | DIRECT LINE |

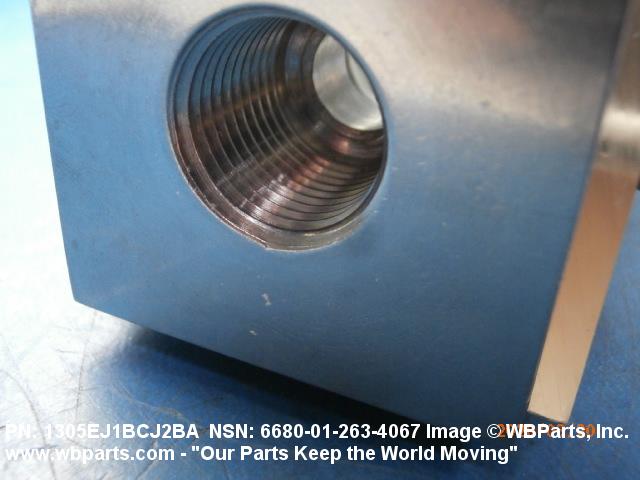

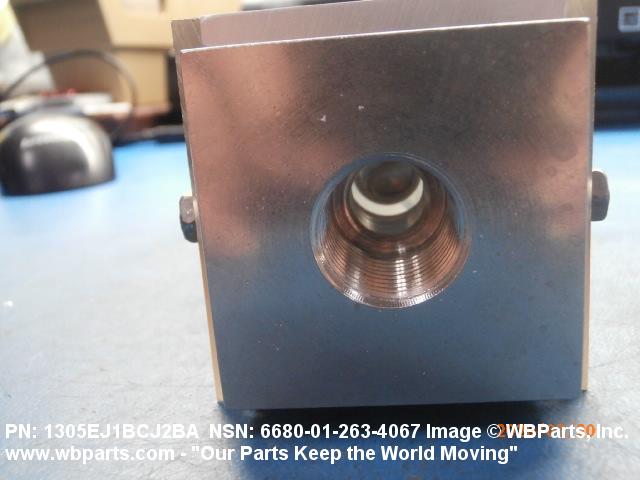

| INLET CONNECTION TYPE | THREADED |
| INLET CONNECTION SIZE | 0.500 IN. NPT |
| OUTLET CONNECTION TYPE | THREADED |
| OUTLET CONNECTION SIZE | 0.750 IN. NPT |
| MAXIMUM WORKING PRESSURE | 200.0 POUNDS PER SQUARE INCH |
| INTEGRAL RELIEF VALVE | NOT INCLUDED |
| INTEGRAL HEAT SOURCE | NOT INCLUDED |
| ALARM SIGNAL | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 6680-01-263-4067
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-01-263-4067
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
