NSN 6680-01-294-3489 LD01246069, LD01246-069, 77C5208A0031
Product Details | FLOW RATE INDICATING METER
6680-01-294-3489 An instrument for measuring the rate of flow of a fluid through a pipeline. This measurement is indicated on a graduated scale either by means of a float confined in a tube, or pointer connected to a vane, or piston and spring or the like. Excludes METER, FLUID FLOW INDICATING, DIFFERENTIAL PRESSURE; METER, FLUID FLOW INDICATING, ELECTROMAGNETIC; and METER, FLUID FLOW INDICATING, ULTRASONIC.
Part Alternates: LD01246069, LD01246-069, 77C5208A0031, 6680-01-294-3489, 01-294-3489, 6680012943489, 012943489
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 15 FEB 1989 | 01-294-3489 | 38346 ( METER, FLOW RATE INDICATING ) |

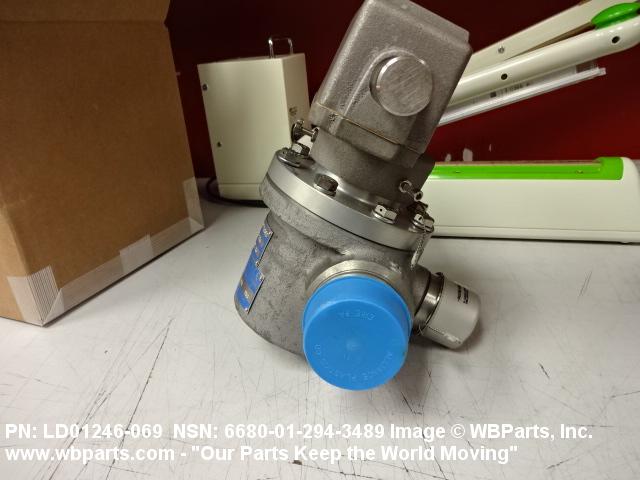

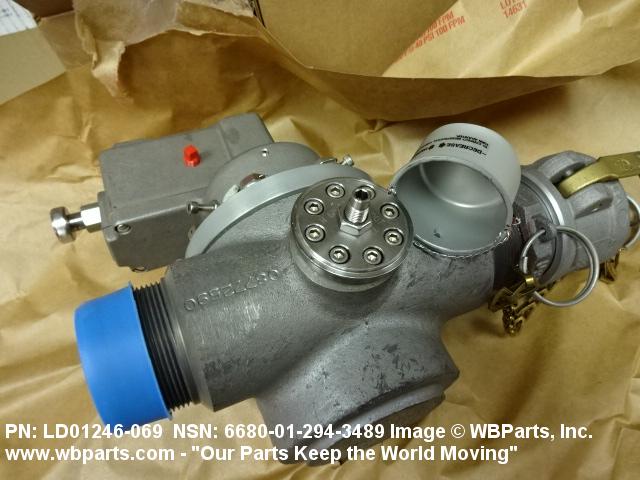

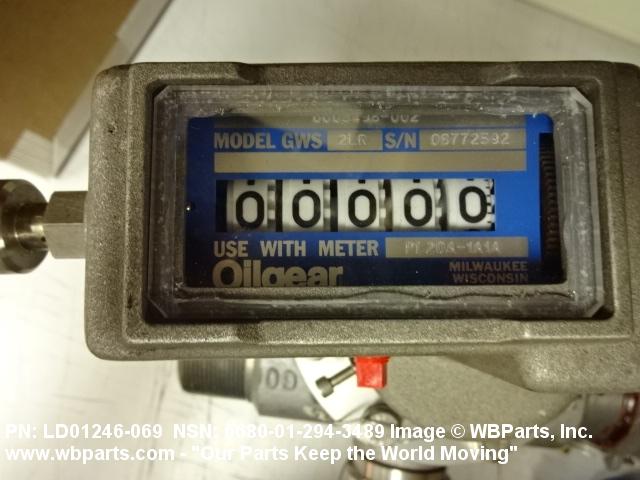

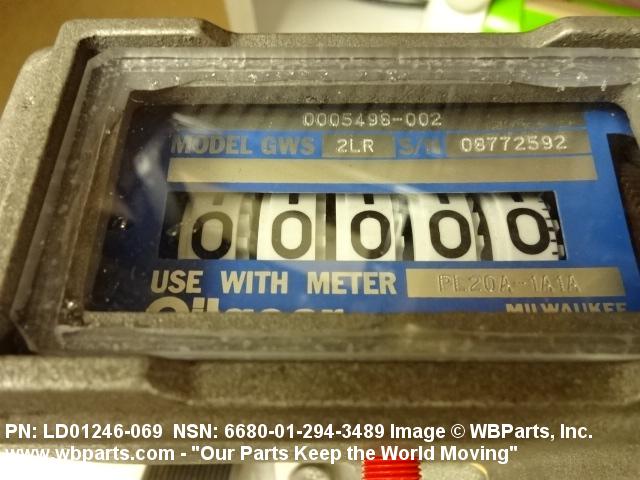

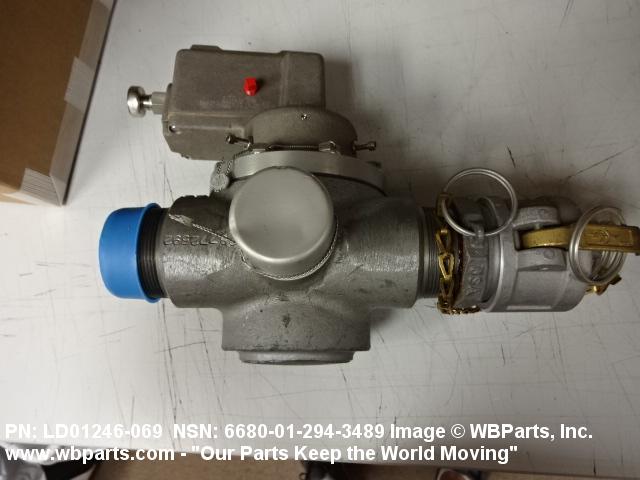

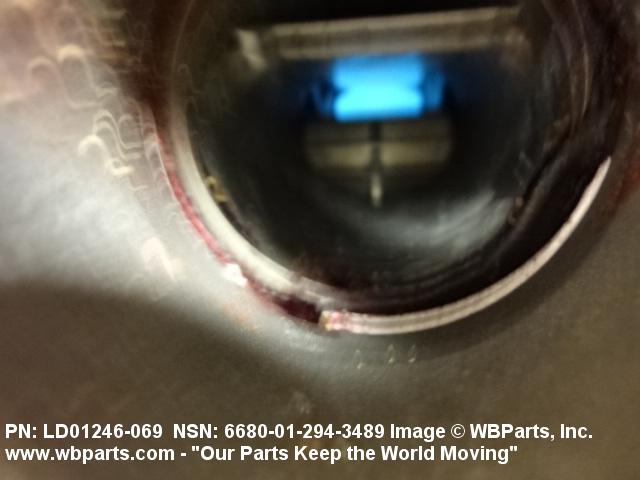

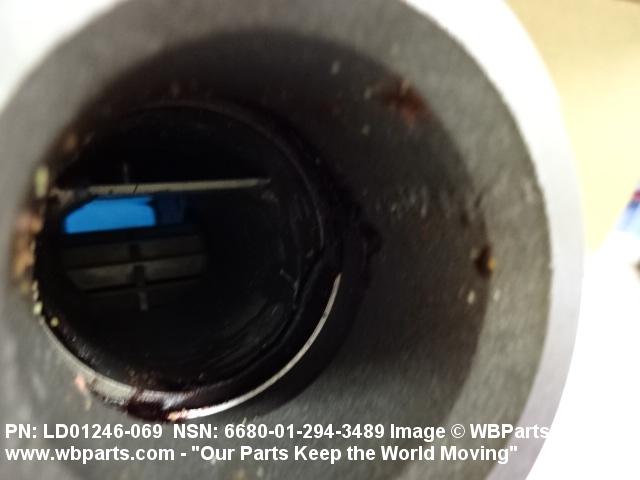

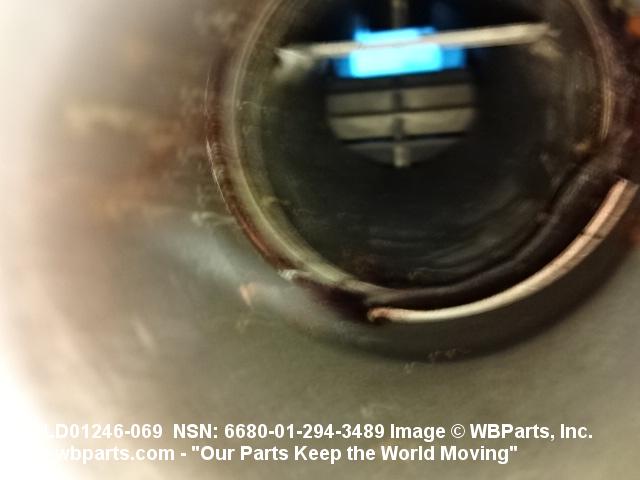

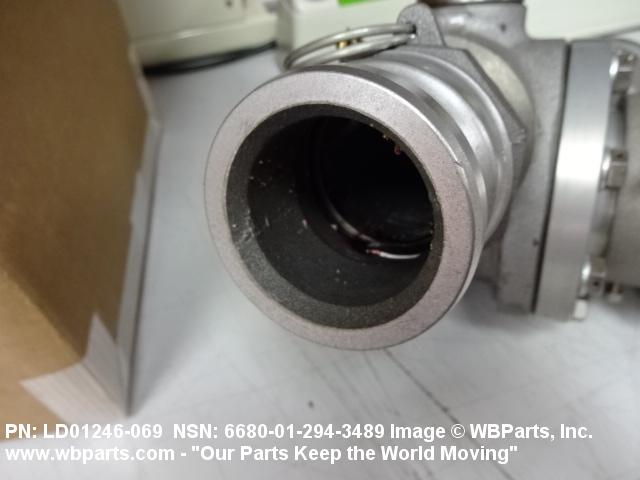

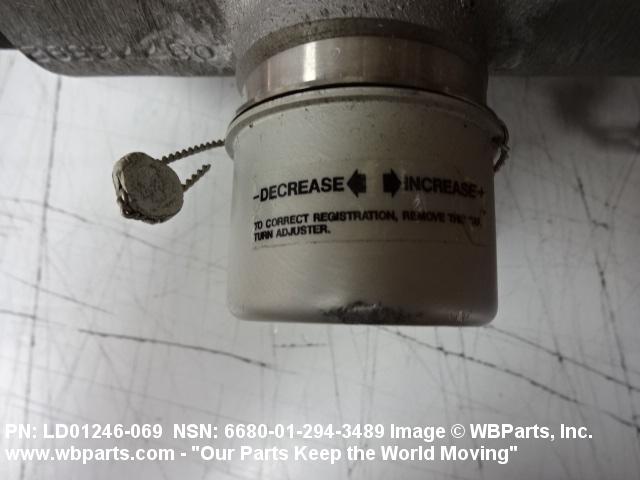

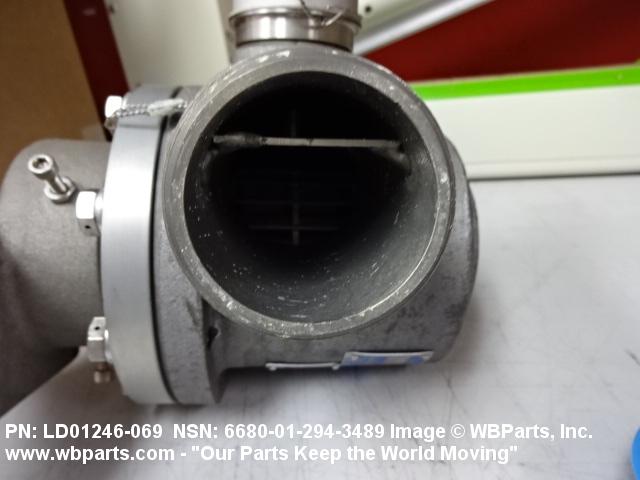

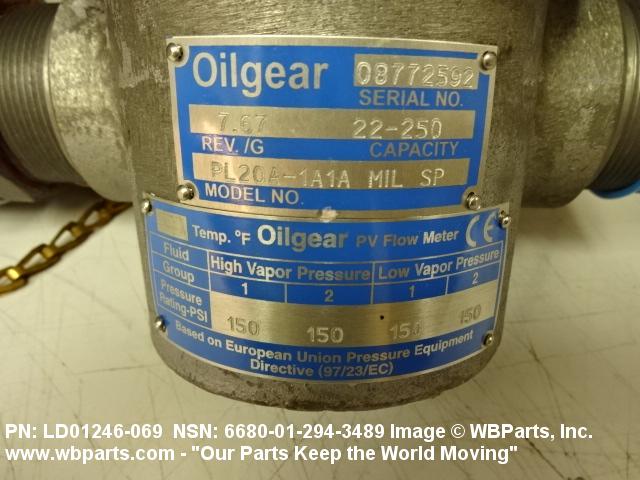

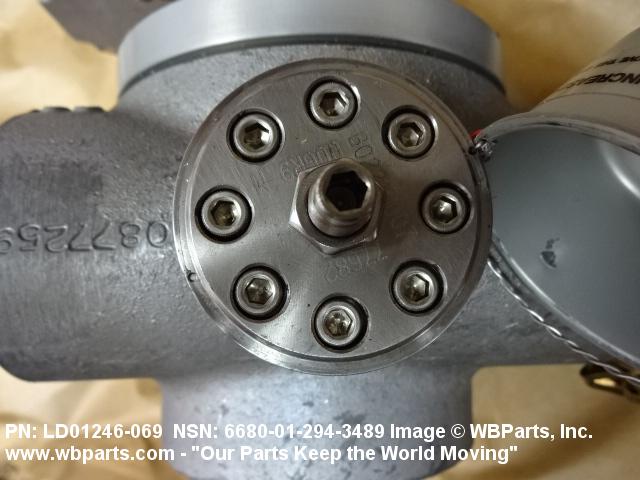

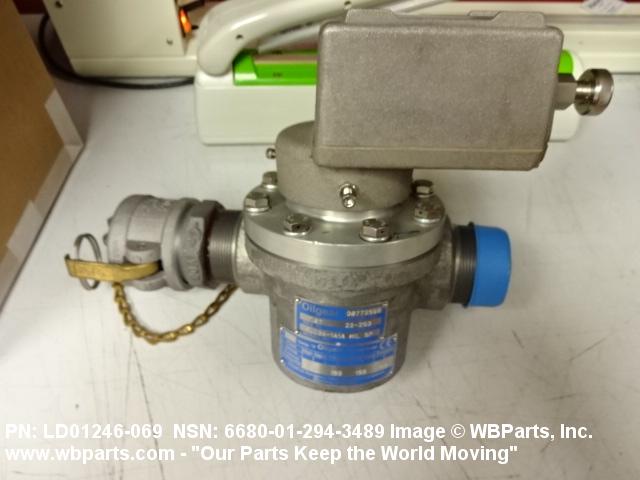

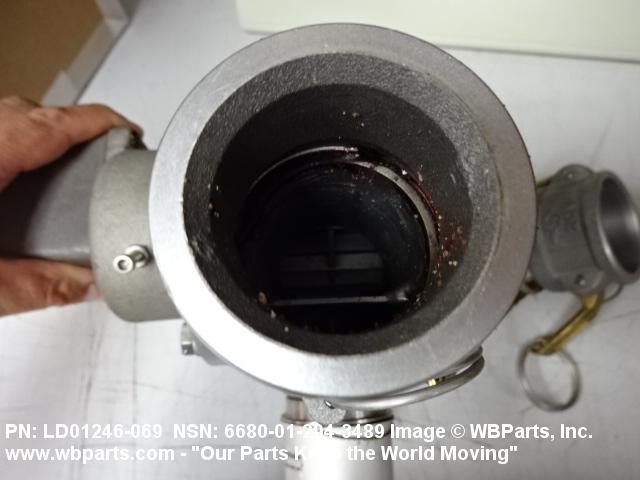

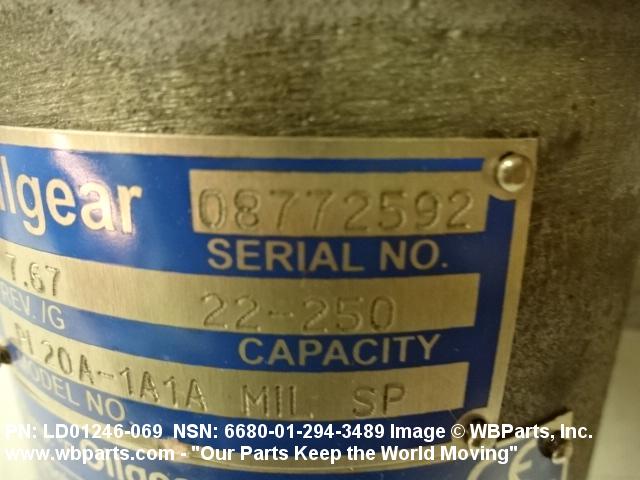

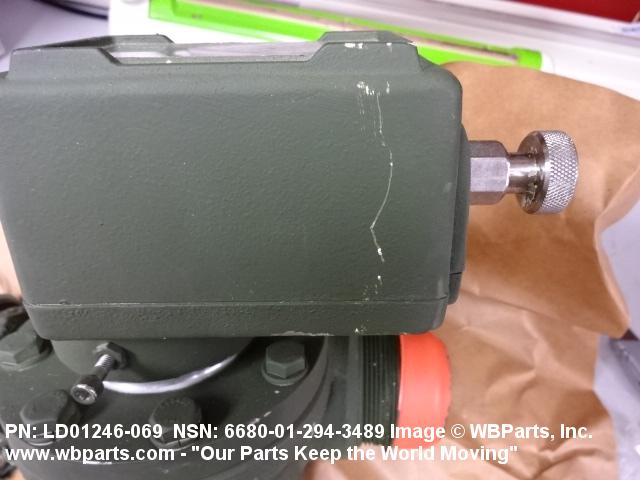

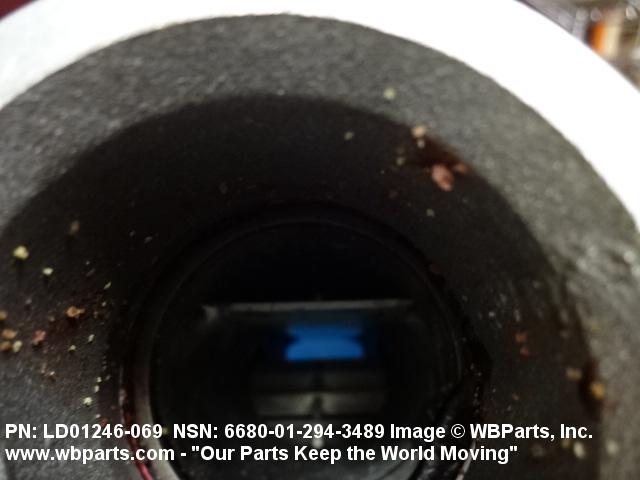

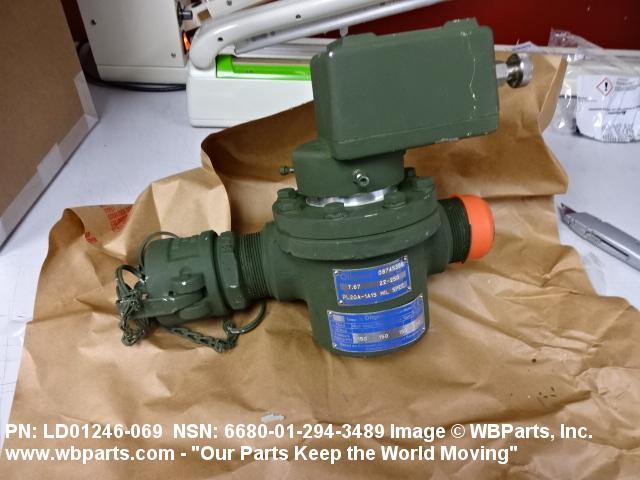

Drawings & Photos | NSN 6680-01-294-3489
Demand History | NSN 6680-01-294-3489
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6680-01-294-3489 | 2018-11-306 | 5 | DIBBS |
| 6680-01-294-3489 | 2018-10-294 | 5 | DIBBS |
| 6680-01-294-3489 | 2018-07-204 | 5 | United States |
| 6680-01-294-3489 | 2017-11-321 | 2 | DIBBS |
| 6680-01-294-3489 | 2017-11-318 | 5 | DIBBS |
| 6680-01-294-3489 | 2017-03-78 | 8 | DIBBS |
| 6680-01-294-3489 | 2016-05-132 | 5 | DIBBS |
| 6680-01-294-3489 | 2016-05-124 | 5 | DIBBS |
| 6680-01-294-3489 | 2016-01-27 | 3 | DIBBS |
| 6680-01-294-3489 | 2016-01-19 | 3 | DIBBS |
| 6680-01-294-3489 | 2015-12-358 | 4 | DIBBS |
| 6680-01-294-3489 | 2015-12-343 | 4 | DIBBS |
| 6680-01-294-3489 | 2014-01-23 | 2 | DIBBS |
| 6680-01-294-3489 | 2013-12-353 | 2 | DIBBS |
| 6680-01-294-3489 | 2013-12-349 | 2 | DIBBS |
| 6680-01-294-3489 | 2013-07-206 | 2 | DIBBS |
| 6680-01-294-3489 | 2013-04-108 | 2 | DIBBS |
| 6680-01-294-3489 | 2012-02-39 | 2 | DIBBS |
| 6680-01-294-3489 | 2008-12-340 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6680-01-294-3489
Related Products | NSN 6680-01-294-3489
Technical Data | NSN 6680-01-294-3489
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | CASE |
| CONSTRUCTION | INCLOSED W/SIGHT WINDOW |
| CARRYING HANDLE | NOT INCLUDED |
| SCALE QUANTITY | 1 |
| SCALE TYPE | DIRECT CAPACITY READING |
| DIAL SCALE MARKING RANGE | 50.0 TO 250.0 |
| UNIT TYPE | MOUNTED |
| MOUNTING METHOD | DIRECT LINE |
| INLET CONNECTION TYPE | THREADED |
| INLET CONNECTION SIZE | 2.000 IN. NPT |
| INLET CONNECTION POSITION FOR WHICH DESIGNED | HORIZONTAL |
| INLET CONNECTION DEVICE TYPE | STATIONARY |
| OUTLET CONNECTION TYPE | THREADED |
| OUTLET CONNECTION SIZE | 0.200 IN. NPT |
| OUTLET CONNECTION POSITION FOR WHICH DESIGNED | HORIZONTAL |
| OUTLET CONNECTION DEVICE TYPE | STATIONARY |
| SPECIAL FEATURES | 5 DIGIT RESETTABLE COUNTER; ALUMINUM ROTOR |
| MANUFACTURERS CODE | 80372 |
| MFR SOURCE CONTROLLING REFERENCE | 77C5208A0031 |
Restrictions/Controls & Freight Information | NSN 6680-01-294-3489
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136800 | FLOW, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-01-294-3489
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 0 | Non-combat Essential End Item. End items that do not fit the definition of Code 1 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
