NSN 6680-00-545-3186 A512A003101, A512A003-101, 10A3555S
Product Details | FLOW RATE INDICATING METER
6680-00-545-3186 An instrument for measuring the rate of flow of a fluid through a pipeline. This measurement is indicated on a graduated scale either by means of a float confined in a tube, or pointer connected to a vane, or piston and spring or the like. Excludes METER, FLUID FLOW INDICATING, DIFFERENTIAL PRESSURE; METER, FLUID FLOW INDICATING, ELECTROMAGNETIC; and METER, FLUID FLOW INDICATING, ULTRASONIC.
Part Alternates: A512A003101, A512A003-101, 10A3555S, 10A3565A, 10A6132AB3E1X00AEXB1CXXX, 6680-00-545-3186, 00-545-3186, 6680005453186, 005453186
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 09 OCT 1974 | 00-545-3186 | 38346 ( METER, FLOW RATE INDICATING ) |

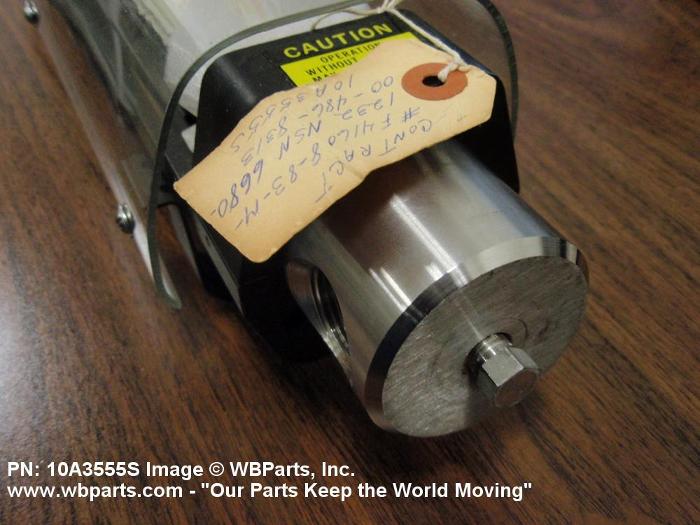

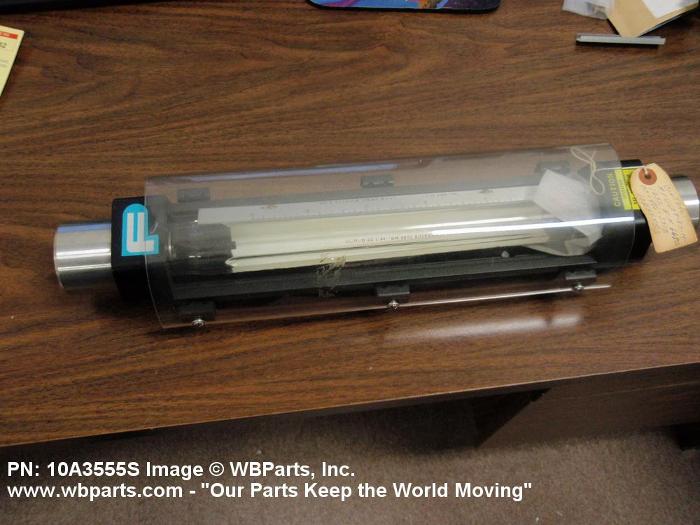

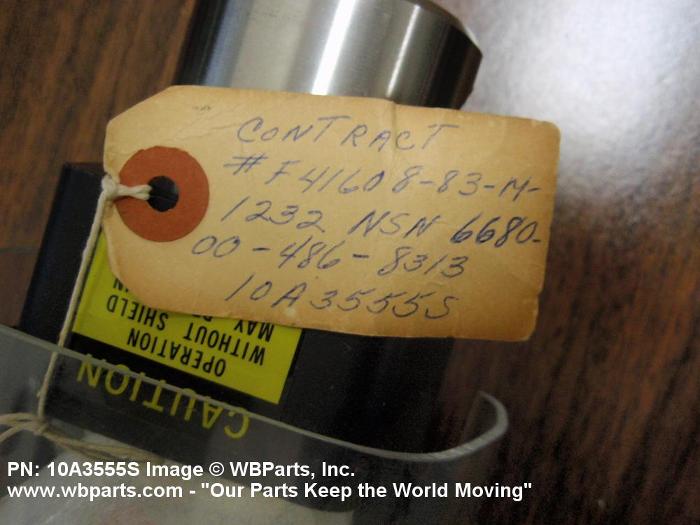

Drawings & Photos | NSN 6680-00-545-3186
Demand History | NSN 6680-00-545-3186
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6680-00-545-3186 | 2012-09-255 | 1 | US |
| 6680-00-545-3186 | 2010-05-150 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6680-00-545-3186
Related Products | NSN 6680-00-545-3186
Technical Data | NSN 6680-00-545-3186
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | CASE |
| CONSTRUCTION | INCLOSED W/SIGHT WINDOW |
| BASE | NOT INCLUDED |
| CARRYING HANDLE | NOT INCLUDED |
| METERING TUBE QUANTITY | 1 |
| TUBE MATERIAL | METAL |
| INDICATOR TYPE | BALL FLOAT |
| SCALE QUANTITY | 1 |
| SCALE TYPE | DIRECT CAPACITY READING |
| MEDIA FOR WHICH DESIGNED | AIR |
| SCALE MARKING | STANDARD CU FPM |
| DIAL SCALE MARKING RANGE | 0.0 TO 100.0 |
| DIAL SCALE REFERENCE POINTER | NOT INCLUDED |
| METER TYPE | FLOAT |
| FLOAT QUANTITY | 1 |
| FLOAT MATERIAL | SAPHIRE |
| SPINNING FLOAT | NOT INCLUDED |
| FLOAT TYPE | FREE |
| OVERALL LENGTH | 12.187 INCHES NOMINAL |
| INTEGRAL PULSATION DAMPENER | NOT INCLUDED |
| UNIT TYPE | MOUNTED |
| MOUNTING METHOD | DIRECT LINE |
| INLET CONNECTION TYPE | THREADED |
| INLET CONNECTION SIZE | 0.250 IN. NPT |
| INLET CONNECTION POSITION FOR WHICH DESIGNED | HORIZONTAL |
| INLET CONNECTION DEVICE TYPE | SWIVEL |
| OUTLET CONNECTION TYPE | THREADED |
| OUTLET CONNECTION SIZE | 0.250 IN. NPT |
| OUTLET CONNECTION POSITION FOR WHICH DESIGNED | HORIZONTAL |
| OUTLET CONNECTION DEVICE TYPE | SWIVEL |
| MAXIMUM WORKING PRESSURE | 450.0 POUNDS PER SQUARE INCH |
| INTEGRAL RELIEF VALVE | NOT INCLUDED |
| INTEGRAL HEAT SOURCE | NOT INCLUDED |
| ALARM SIGNAL | NOT INCLUDED |
| ACCESSORY COMPONENTS AND QUANTITY | PROTECTION SHIELD |
| SPECIAL FEATURES | PLASTIC SAFETY SHIELD |
Restrictions/Controls & Freight Information | NSN 6680-00-545-3186
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-545-3186
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | F | If condemned or uneconomically repairable, then dispose at Direct Support (DS) level. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
