NSN 6680-00-229-3792 10A3555S, 10A455S, 1201732
Product Details | FLOW RATE INDICATING METER
6680-00-229-3792 An instrument for measuring the rate of flow of a fluid through a pipeline. This measurement is indicated on a graduated scale either by means of a float confined in a tube, or pointer connected to a vane, or piston and spring or the like. Excludes METER, FLUID FLOW INDICATING, DIFFERENTIAL PRESSURE; METER, FLUID FLOW INDICATING, ELECTROMAGNETIC; and METER, FLUID FLOW INDICATING, ULTRASONIC.
Part Alternates: 10A3555S, 10A455S, 1201732, 120-1732, 460213, 6680-00-229-3792, 00-229-3792, 6680002293792, 002293792
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 10 FEB 1969 | 00-229-3792 | 38346 ( METER, FLOW RATE INDICATING ) |

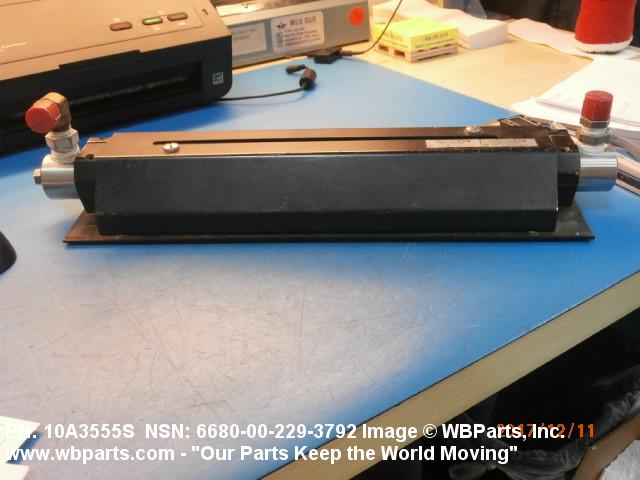

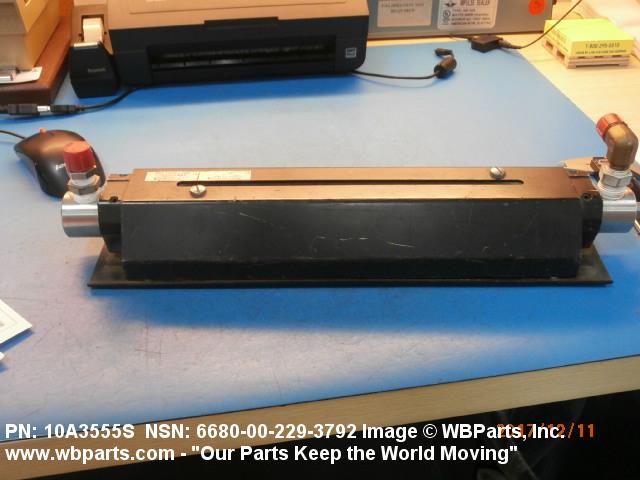

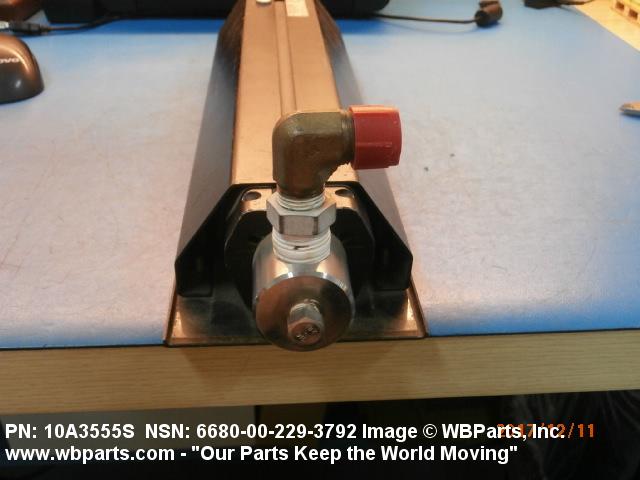

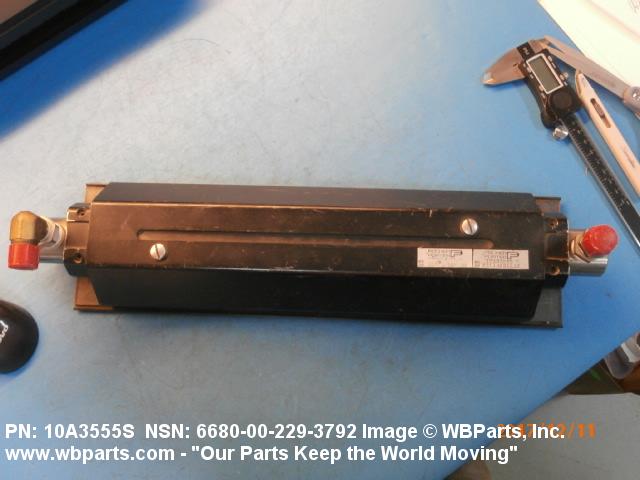

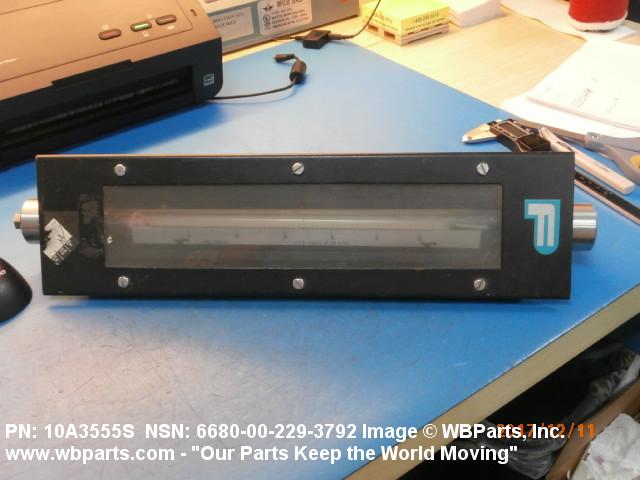

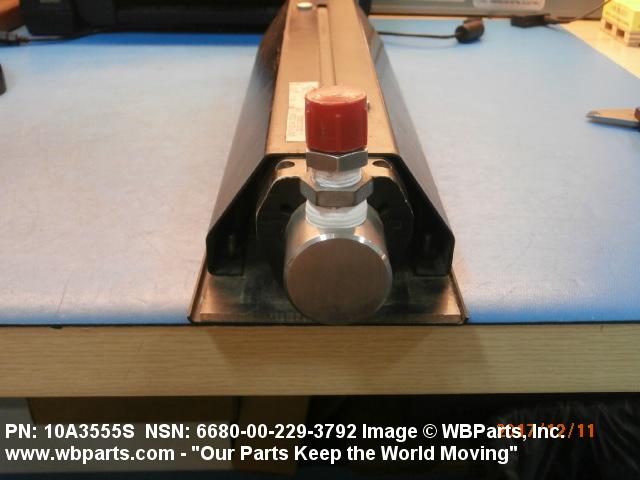

Drawings & Photos | NSN 6680-00-229-3792
Demand History | NSN 6680-00-229-3792
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6680-00-229-3792 | 2024-08-235 | 1 | BR |
| 6680-00-229-3792 | 2022-11-322 | 1 | US |
| 6680-00-229-3792 | 2022-01-15 | 1 | US |
| 6680-00-229-3792 | 2021-06-163 | 1 | BR |
| 6680-00-229-3792 | 2019-09-270 | 1 | US |
| 10A455S | 2019-02-57 | 1 | PT |
| 6680-00-229-3792 | 2017-11-319 | 1 | New Zealand |
| 6680-00-229-3792 | 2014-05-147 | 1 | Australia |
| 10A455S | 2013-02-59 | 1 | CH |
| 10A455S | 2013-02-56 | 1 | CH |
| 6680-00-229-3792 | 2012-12-355 | 1 | DIBBS |
| 6680-00-229-3792 | 2011-06-174 | 1 | Australia |
| 10A455S | 2010-11-311 | 1 | Australia |
| 6680-00-229-3792 | 2010-11-311 | 1 | Australia |
| 10A455S | 2007-08-233 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6680-00-229-3792
Related Products | NSN 6680-00-229-3792
Technical Data | NSN 6680-00-229-3792
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | CASE |
| CONSTRUCTION | INCLOSED W/SIGHT WINDOW |
| BASE | NOT INCLUDED |
| CARRYING HANDLE | NOT INCLUDED |
| METERING TUBE QUANTITY | 1 |
| TUBE MATERIAL | METAL |
| INDICATOR TYPE | BALL FLOAT |
| SCALE QUANTITY | 1 |
| SCALE TYPE | DIRECT CAPACITY READING |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| SCALE MARKING | GALLONS PER MINUTE |
| DIAL SCALE REFERENCE POINTER | NOT INCLUDED |
| METER TYPE | FLOAT |
| FLOAT QUANTITY | 1 |
| SPINNING FLOAT | NOT INCLUDED |

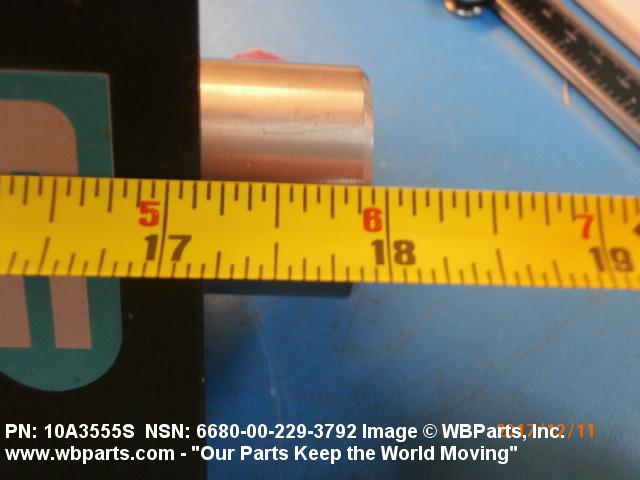

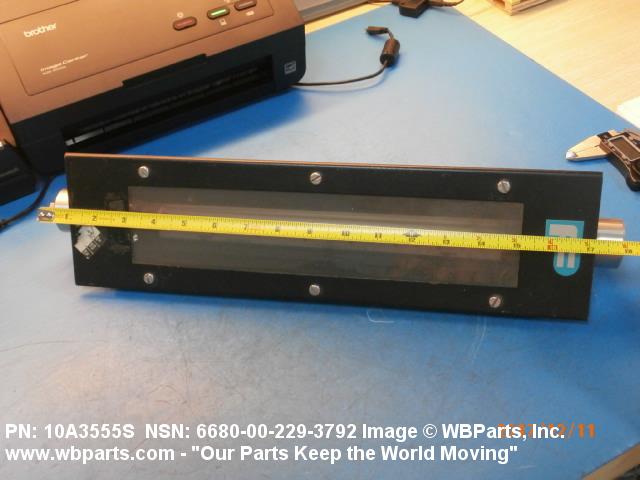

| OVERALL LENGTH | 18.250 INCHES NOMINAL |
| INTEGRAL PULSATION DAMPENER | NOT INCLUDED |
| UNIT TYPE | MOUNTED |
| MOUNTING METHOD | DIRECT LINE |
| INLET CONNECTION TYPE | THREADED |

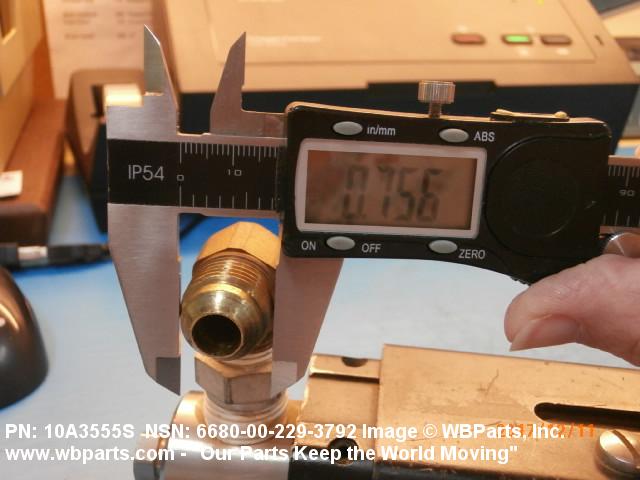

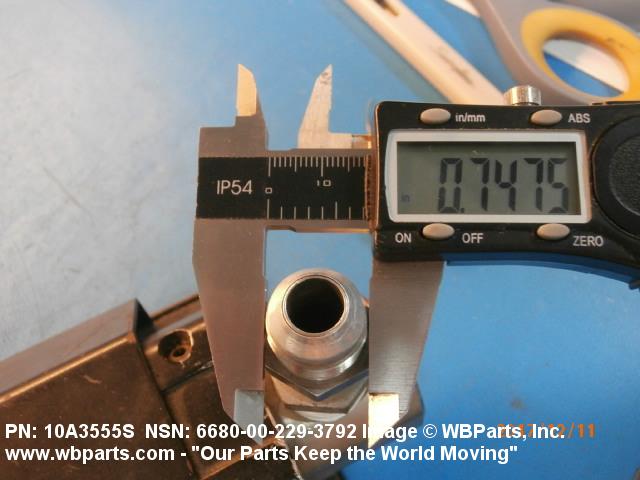

| INLET CONNECTION SIZE | 0.500 IN. NPT |
| INLET CONNECTION POSITION FOR WHICH DESIGNED | HORIZONTAL |
| INLET CONNECTION DEVICE TYPE | SWIVEL |
| OUTLET CONNECTION TYPE | THREADED |
| OUTLET CONNECTION SIZE | 0.500 IN. NPT |
| OUTLET CONNECTION POSITION FOR WHICH DESIGNED | HORIZONTAL |
| OUTLET CONNECTION DEVICE TYPE | SWIVEL |
| MAXIMUM WORKING PRESSURE | 300.0 POUNDS PER SQUARE INCH |
| INTEGRAL RELIEF VALVE | NOT INCLUDED |
| INTEGRAL HEAT SOURCE | NOT INCLUDED |
| ALARM SIGNAL | NOT INCLUDED |
| SPECIAL FEATURES | SER NO. 7103A4896A1-2 |
| III END ITEM IDENTIFICATION | 11CMW VERSAMAT WS-430 FILM; F-4 AIRCRAFT SUPPORT EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 6680-00-229-3792
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136800 | FLOW, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-229-3792
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
