NSN 6680-00-106-9660 KE4701P1, KE4701-P1, 00-106-9660
Product Details | ELECTRICAL COUNTER
6680-00-106-9660 An instrument which is actuated by electrical pulses and designed to register and total numerically in units proportional to its applied pulses. See also COUNTER, RECIPROCATING and COUNTER, ROTATING.
Part Alternates: KE4701P1, KE4701-P1, 6680-00-106-9660, 00-106-9660, 6680001069660, 001069660
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 19 AUG 1972 | 00-106-9660 | 16412 ( COUNTER, ELECTRICAL ) |
Drawings & Photos | NSN 6680-00-106-9660
Cross Reference | NSN 6680-00-106-9660
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| KE4701-P1 | 82227 | VDO CONTROL SYSTEMS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-00-106-9660
Technical Data | NSN 6680-00-106-9660
| Characteristic | Specifications |
|---|---|

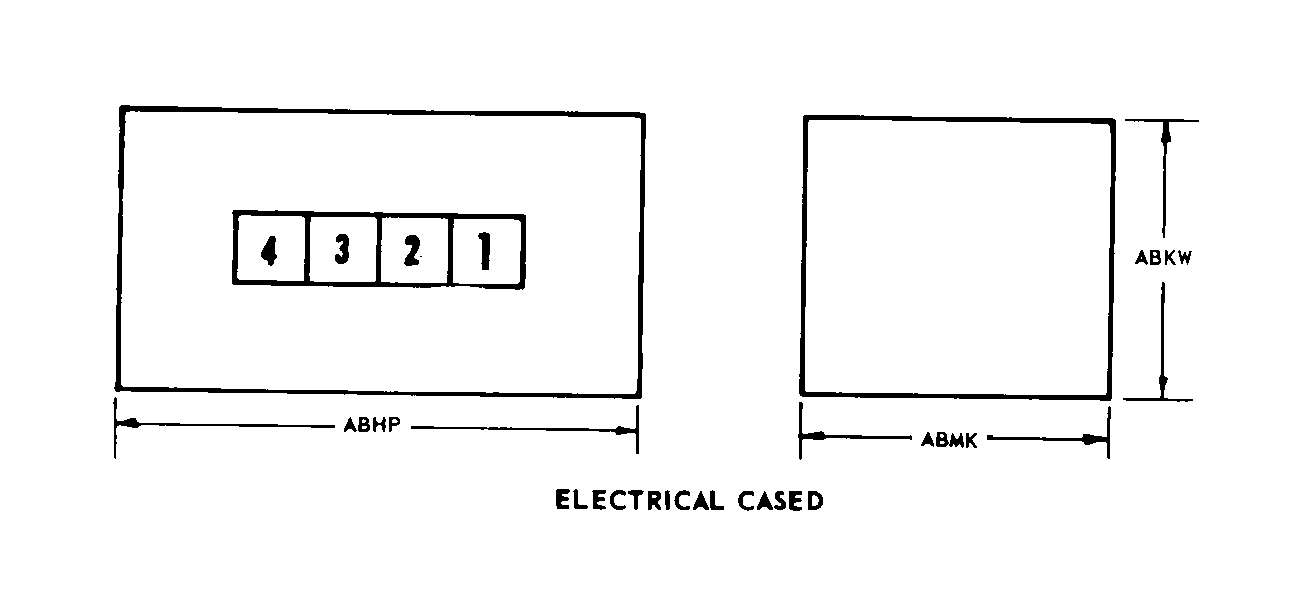

| STYLE DESIGNATOR | B4 ELECTRICAL CASED |
| OVERALL LENGTH | 3.469 INCHES NOMINAL |
| OVERALL HEIGHT | 0.990 INCHES NOMINAL |
| OVERALL WIDTH | 0.975 INCHES NOMINAL |
| SHAFT DIAMETER | 0.187 INCHES NOMINAL |
| SHAFT LENGTH | 0.750 INCHES NOMINAL |
| REGISTER QUANTITY | 1 |
| REGISTER FUNCTION | SUBTRACT SINGLE REGISTER SINGLE TIER |
| REGISTER RESET METHOD | INDIVIDUAL FIGURE MANUAL SINGLE REGISTER SINGLE TIER |
| FIGURE QUANTITY PER REGISTER | 3 SINGLE REGISTER SINGLE TIER |
| FIGURE HEIGHT | 0.156 INCHES NOMINAL SINGLE REGISTER SINGLE TIER |
| COLOR | WHITE SINGLE REGISTER SINGLE TIER FIGURE BLACK SINGLE REGISTER SINGLE TIER FIGURE BACKGROUND |
| NUMERAL DISPLAY METHOD | DRUM |
| NUMERAL READOUT | 000 MINIMUM AND 999 MAXIMUM SINGLE REGISTER SINGLE TIER |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 25.0 DC |
| TERMINAL TYPE AND QUANTITY | 2 SOLDER HOOK |
| MAXIMUM COUNT RATE | 1000.0 PER MINUTE SINGLE REGISTER SINGLE TIER |
| MOUNTING TYPE FOR WHICH DESIGNED | PANEL REAR SINGLE REGISTER SINGLE TIER |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED STUD |
| MANUFACTURERS CODE | 82227 |
| DESIGN CONTROL REFERENCE | KE4701-P1 |
Restrictions/Controls & Freight Information | NSN 6680-00-106-9660
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-106-9660
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
