NSN 6680-00-466-2137 C4246, C42461, C4246-1
Product Details | ELECTRICAL COUNTER
6680-00-466-2137 An instrument which is actuated by electrical pulses and designed to register and total numerically in units proportional to its applied pulses. See also COUNTER, RECIPROCATING and COUNTER, ROTATING.
Part Alternates: C4246, C42461, C4246-1, R7809, 6680-00-466-2137, 00-466-2137, 6680004662137, 004662137
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 28 JAN 1970 | 00-466-2137 | 16412 ( COUNTER, ELECTRICAL ) |
Drawings & Photos | NSN 6680-00-466-2137
Demand History | NSN 6680-00-466-2137
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6680-00-466-2137 | 2024-04-114 | 1 | US |
| R7809 | 2024-04-109 | 2 | US |
| C42461 | 2024-04-108 | 2 | United States |
| R7809 | 2024-04-108 | 5 | United States |
| 6680-00-466-2137 | 2024-04-108 | 2 | US |
| R7809 | 2023-10-283 | 4 | Thailand |
| R7809 | 2022-08-229 | 11 | DIBBS |
| R7809 | 2022-08-221 | 11 | DIBBS |
| 6680-00-466-2137 | 2022-04-101 | 1 | KR |
| 6680-00-466-2137 | 2021-09-252 | 2 | United States |
| R7809 | 2019-02-44 | 23 | DIBBS |
| R7809 | 2019-02-36 | 23 | DIBBS |
| 6680-00-466-2137 | 2017-01-09 | 16 | DIBBS |
| 6680-00-466-2137 | 2015-05-133 | 5 | Thailand |
| 6680-00-466-2137 | 2015-05-127 | 5 | Thailand |
| 6680-00-466-2137 | 2015-03-71 | 18 | DIBBS |
| 6680-00-466-2137 | 2015-02-35 | 18 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6680-00-466-2137
Related Products | NSN 6680-00-466-2137
Technical Data | NSN 6680-00-466-2137
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B4 ELECTRICAL CASED |

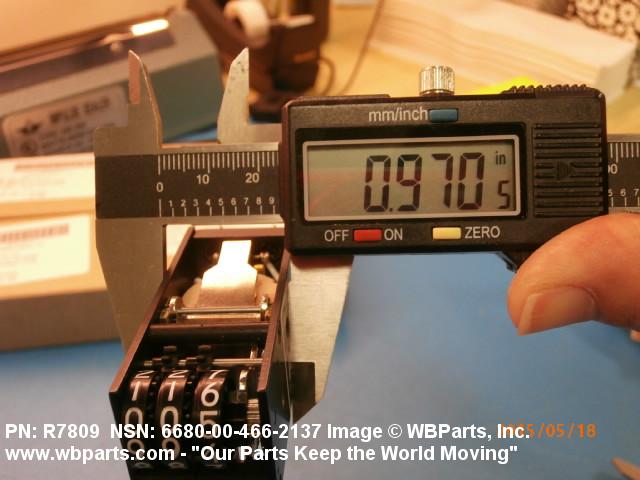

| OVERALL LENGTH | 0.975 INCHES NOMINAL |

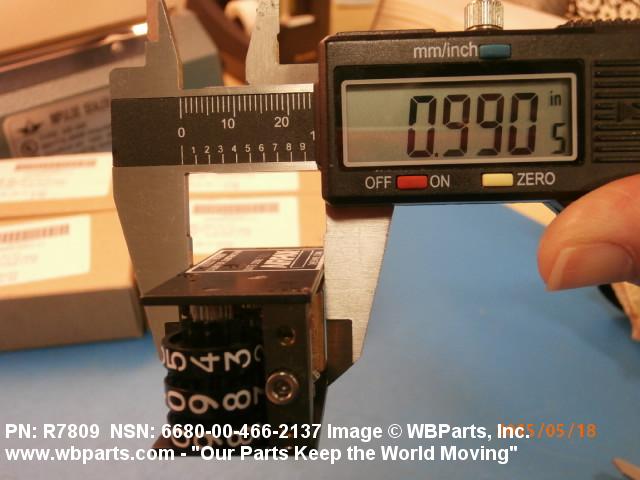

| OVERALL HEIGHT | 0.990 INCHES NOMINAL |

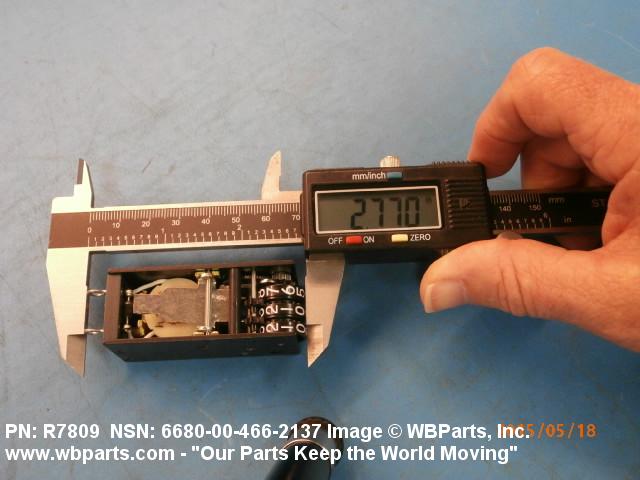

| OVERALL WIDTH | 2.786 INCHES NOMINAL |
| REGISTER QUANTITY | 1 |
| REGISTER FUNCTION | SUBTRACT SINGLE REGISTER SINGLE TIER |
| REGISTER RESET METHOD | TOTAL COUNTER MANUAL SINGLE REGISTER SINGLE TIER |
| FIGURE QUANTITY PER REGISTER | 3 SINGLE REGISTER SINGLE TIER |
| FIGURE HEIGHT | 0.094 INCHES NOMINAL SINGLE REGISTER SINGLE TIER |
| COLOR | WHITE SINGLE REGISTER SINGLE TIER FIGURE BLACK SINGLE REGISTER SINGLE TIER FIGURE BACKGROUND |

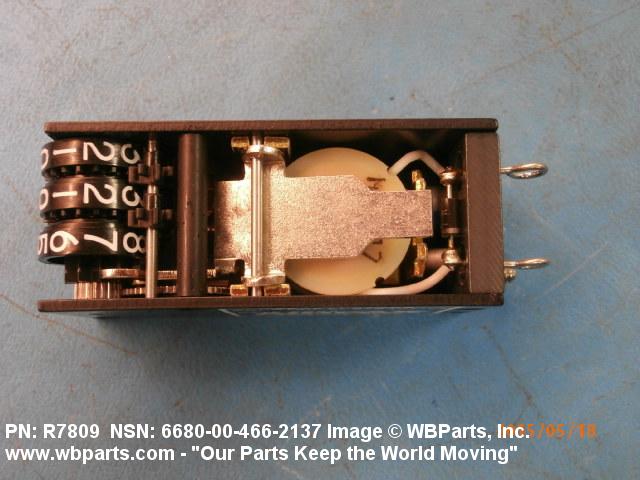

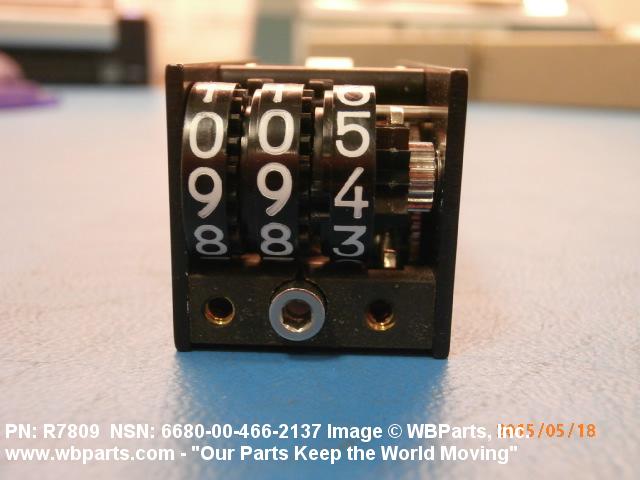

| NUMERAL DISPLAY METHOD | DRUM |
| NUMERAL READOUT | 000 MINIMUM AND 999 MAXIMUM SINGLE REGISTER SINGLE TIER |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 29.0 DC |

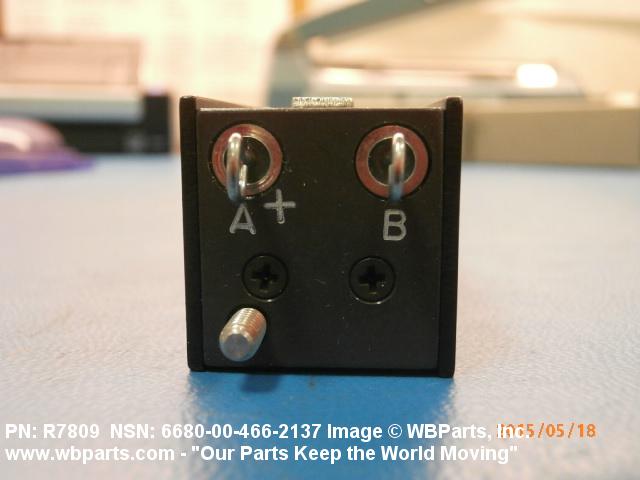

| TERMINAL TYPE AND QUANTITY | 2 SOLDER HOOK |
| MAXIMUM COUNT RATE | 720.0 PER MINUTE SINGLE REGISTER SINGLE TIER |
| MOUNTING TYPE FOR WHICH DESIGNED | PANEL SINGLE REGISTER SINGLE TIER |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE AND 1 THREADED STUD |

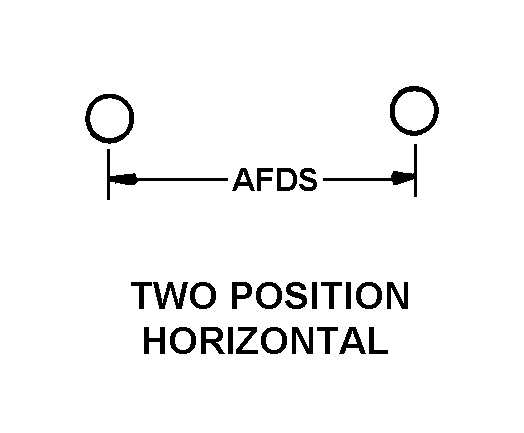

| MOUNTING ARRANGEMENT STYLE | A6 TWO POSITION HORIZONTAL |

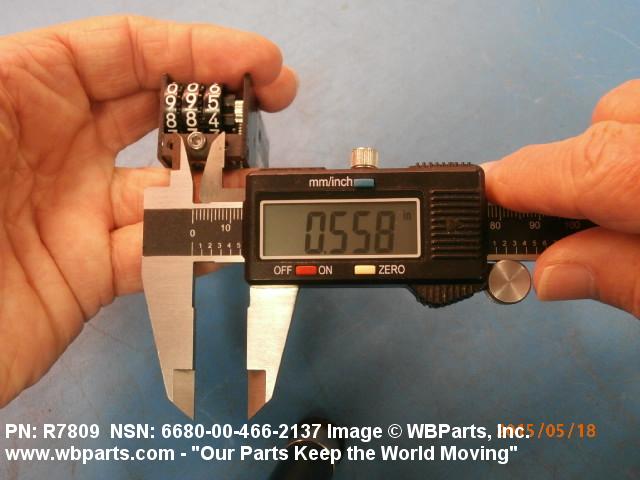

| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 0.562 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | RF-111 AVFT |
| MANUFACTURERS CODE | 1XP56 |

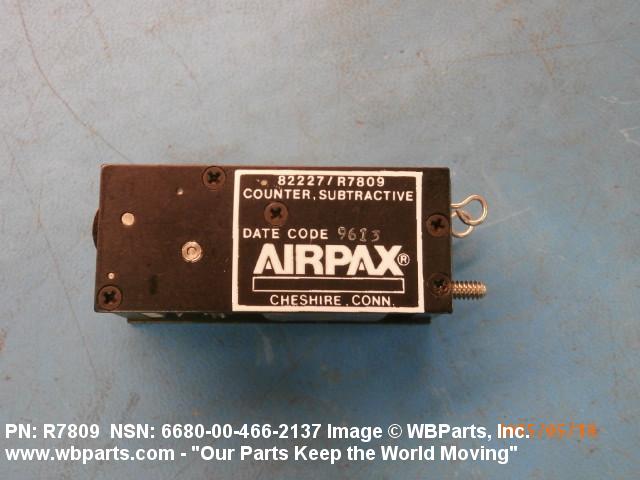

| DESIGN CONTROL REFERENCE | R7809 |
Restrictions/Controls & Freight Information | NSN 6680-00-466-2137
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177220 | SPEED INDICATORS/HEADS/ODOMETERS |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-466-2137
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
