NSN 6680-00-106-9904 MS1779811, MS17798-11, AA59462
Product Details | LIQUID SIGHT INDICATOR
6680-00-106-9904 An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW.
Part Alternates: MS1779811, MS17798-11, AA59462, A-A-59462, 6680-00-106-9904, 00-106-9904, 6680001069904, 001069904
Instruments and Laboratory Equipment | Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 29 JUL 1968 | 00-106-9904 | 03175 ( INDICATOR, SIGHT, LIQUID ) |
Drawings & Photos | NSN 6680-00-106-9904
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6680-00-106-9904
Technical Data | NSN 6680-00-106-9904
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |

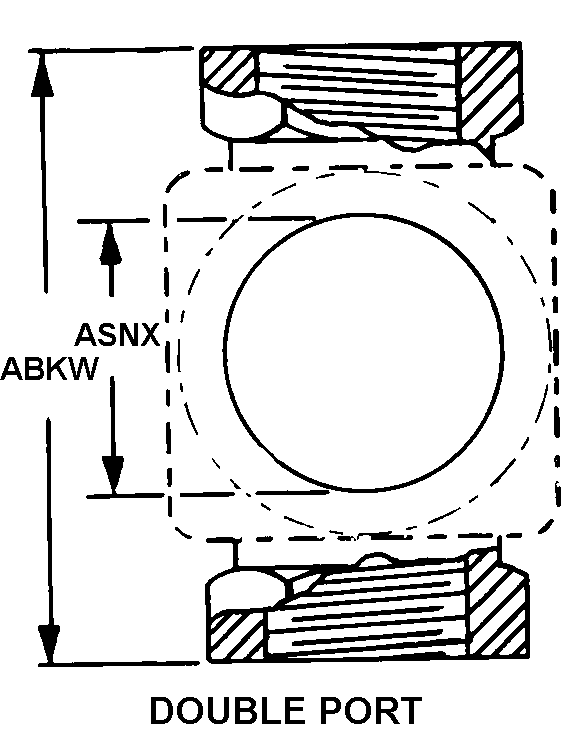

| STYLE DESIGNATOR | D19 DOUBLE PORT |
| OVERALL LENGTH | ANY ACCEPTABLE |
| OVERALL HEIGHT | 5.500 INCHES NOMINAL |
| WIDTH ACROSS FLATS | ANY ACCEPTABLE |
| SIGHT DIAMETER | ANY ACCEPTABLE |
| MEDIA FOR WHICH DESIGNED | REFRIGERANT, FLUOROCARBON |
| FURNISHED DATA | ACTIVE INGREDIENT PRESENCE |
| DATA FURNISHING METHOD | CLEAR WINDOW |
| MAXIMUM WORKING PRESSURE | NOT RATED |
| MAXIMUM TEMP RATING | NOT RATED |
| END CONNECTION TYPE | SOCKET BOTH ENDS |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.500 INCHES BOTH ENDS |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59462 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS17798-11 |
Restrictions/Controls & Freight Information | NSN 6680-00-106-9904
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121580 | GAGES WATER O/T PRESSURE IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | K | 92.5 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6680-00-106-9904
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
