Product Details | AUDIO LEVEL METER
6625-00-708-5186 An instrument which measures the ratio of electrical power with reference to a predetermined value and is calibrated in units of sound intensity, usually decibels. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. If other than audio frequency ranges, see METER, NOISE LEVEL.
Part Alternates: MEDS105, GR2, 6625-00-708-5186, 00-708-5186, 6625007085186, 007085186
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1961 | 00-708-5186 | 16456 ( METER, AUDIO LEVEL ) |
Drawings & Photos | NSN 6625-00-708-5186
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-708-5186
Related Products | NSN 6625-00-708-5186
Technical Data | NSN 6625-00-708-5186
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | NONMAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |
| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | -6.0 TO 10.0 DECIBELS SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -5.0 TO 5.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | NONLINEAR SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 SOLDER LUG AND 2 THREADED STUD |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |
| STYLE DESIGNATOR | C2 RECTANGULAR FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 2.212 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 0.986 INCHES NOMINAL |
| OVERALL HEIGHT | 2.638 INCHES NOMINAL |
| OVERALL LENGTH | 1.492 INCHES NOMINAL |
| OVERALL WIDTH | 2.953 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED STUD |
| MOUNTING STUD DIAMETER | 0.109 INCHES NOMINAL |
| MOUNTING STUD LENGTH | 0.500 INCHES NOMINAL |

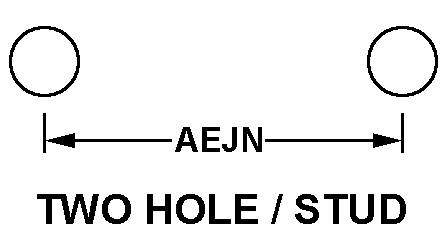

| MOUNTING ARRANGEMENT STYLE | E1 TWO HOLE/STUD |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.625 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.566 INCHES NOMINAL |
| MATERIAL | PLASTIC |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| ENVIRONMENTAL PROTECTION | SHOCK RESISTANT AND VIBRATION RESISTANT |
| FEATURES PROVIDED | ZERO ADJUSTER |
| SPECIAL FEATURES | RUGGEDIZED |
| III FSC APPLICATION DATA | TEST SET,ELECT. EQUIP. |
