NSN 6625-00-708-7235 510G, 00-708-7235, 007087235
Product Details | DECADE RESISTOR
6625-00-708-7235 An adjustable assembly of precision resistors in decimal steps, inclosed in a box and provided with means (e.g., rotary switch) of selecting any multiple of the least unit up through the aggregate of all units. Excludes RESISTANCE STANDARD; RESISTOR, ADJUSTABLE; RESISTOR, VARIABLE (as modified); and RESISTOR ASSEMBLY.
Part Alternates: 510G, 6625-00-708-7235, 00-708-7235, 6625007087235, 007087235
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-708-7235 | 00491 ( RESISTOR, DECADE ) |
Drawings & Photos | NSN 6625-00-708-7235
Demand History | NSN 6625-00-708-7235
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-00-708-7235 | 2018-02-57 | 1 | DIBBS |
| 6625-00-708-7235 | 2018-02-46 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-708-7235
Related Products | NSN 6625-00-708-7235
Technical Data | NSN 6625-00-708-7235
| Characteristic | Specifications |
|---|---|

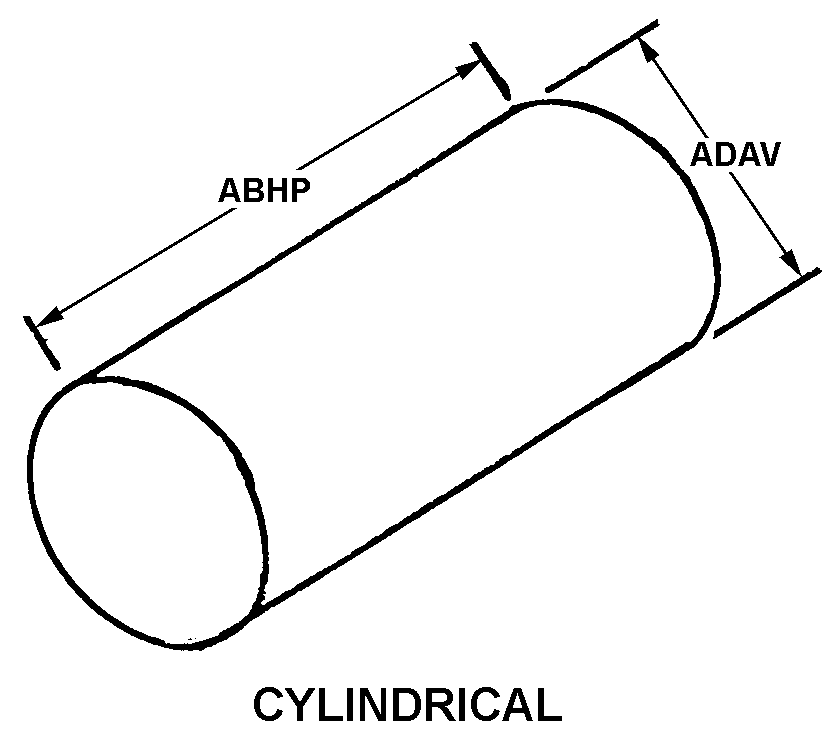

| BASIC SHAPE STYLE | 2 CYLINDRICAL |
| OVERALL LENGTH | 4.500 INCHES NOMINAL |
| OVERALL DIAMETER | 3.062 INCHES NOMINAL |
| OVERALL ELECTRICAL VALUE RANGE | 0.000 TO 1.000 MEGOHMS |
| ELECTRICAL INCREMENT VALUE PER SECTION | 100.000 KILOHMS |
| INDIVIDUAL SECTION QUANTITY | 1 |
| ACCURACY RANGE IN PERCENT | -0.05 TO 0.05 |
| TERMINAL TYPE AND QUANTITY | 2 SOLDER LUG |
| ADJUSTMENT METHOD | ROTARY SWITCH |
| CASE MATERIAL | METAL |
| CASE SURFACE TREATMENT | FINISH, NATURAL |
| PANEL MATERIAL | METAL |
| MANUFACTURERS CODE | 0PK96 |
| DESIGN CONTROL REFERENCE | 510G |
Restrictions/Controls & Freight Information | NSN 6625-00-708-7235
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-00-708-7235
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
