Product Details | AIRCRAFT LANDING LIGHT

6220-01-337-1052 A light specifically designed to be installed on aircraft to project a focused beam of bright light to facilitate landing operations during periods of darkness. See also LIGHT, TAXIING, AIRCRAFT.

Part Alternates: 8900161, 890016-1, 6220-01-337-1052, 01-337-1052, 6220013371052, 013371052

Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures

Supply Group (FSG) NSN Assign. NIIN
62 10 APR 1991 01-337-1052

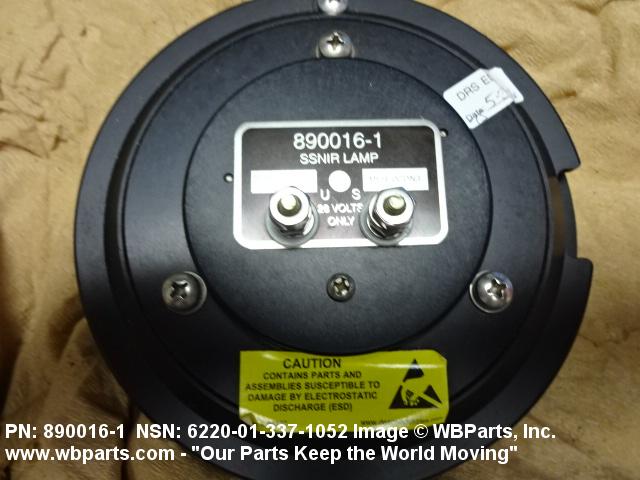

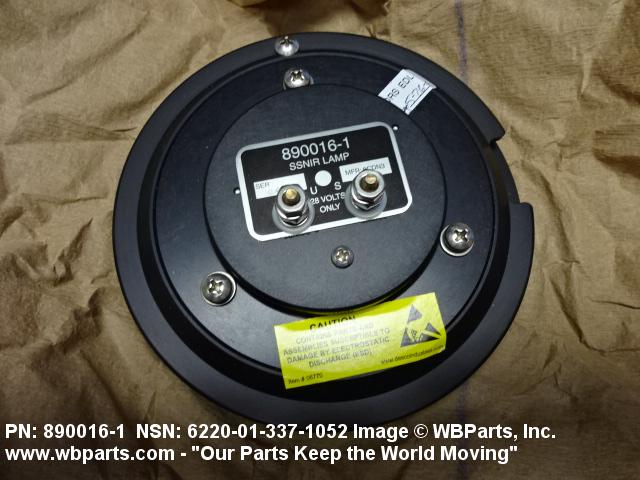

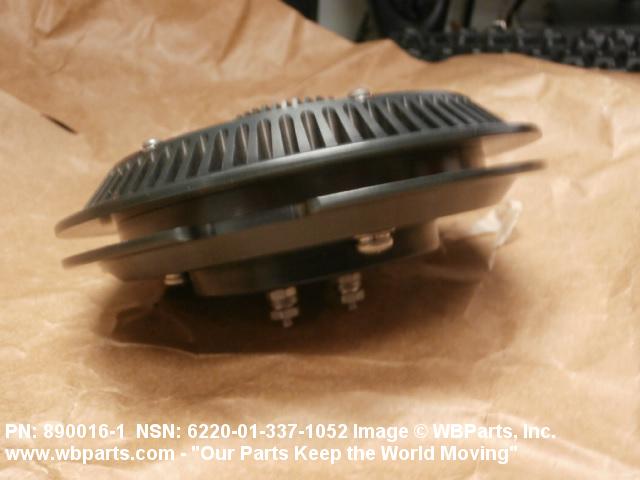

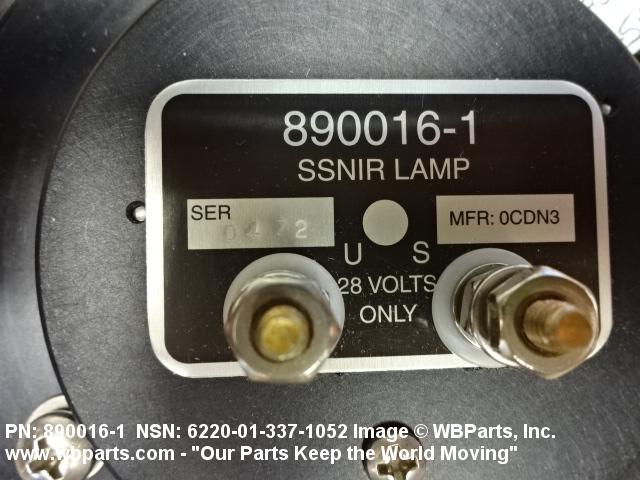

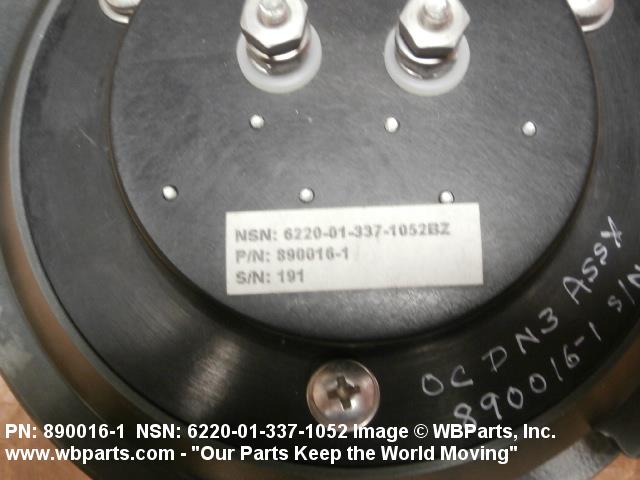

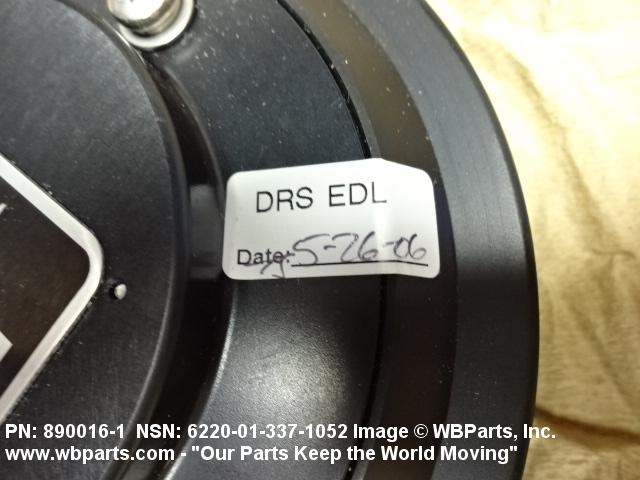

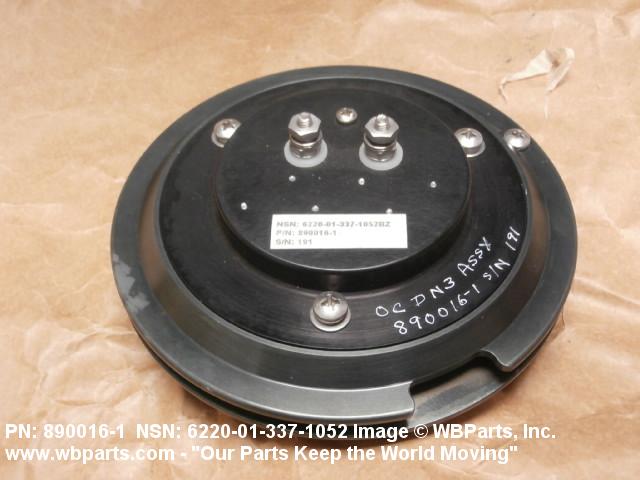

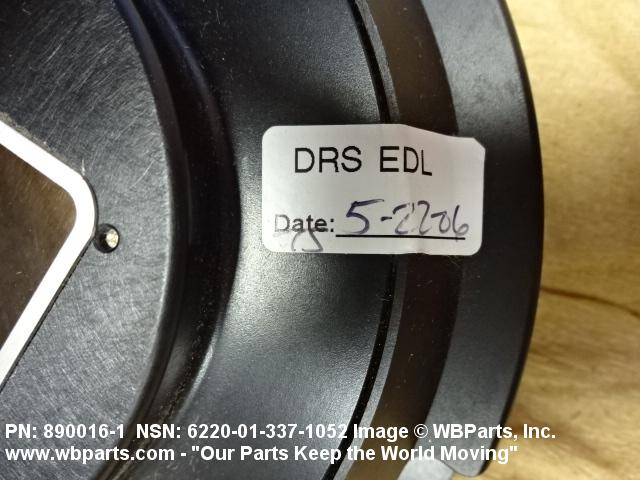

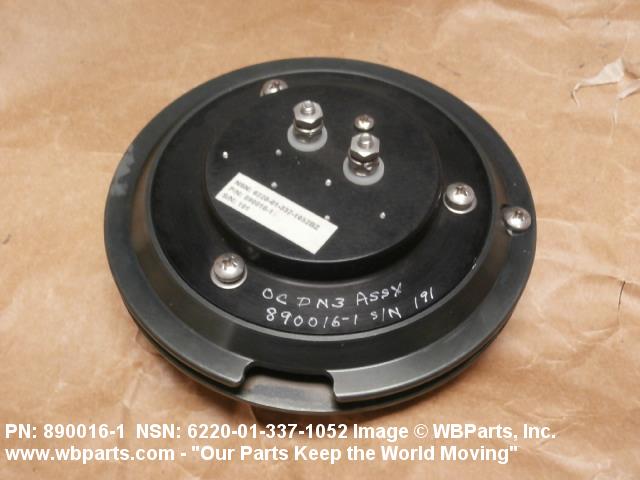

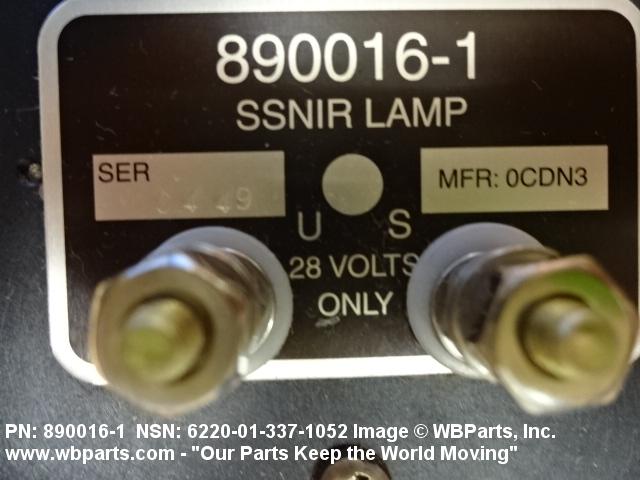

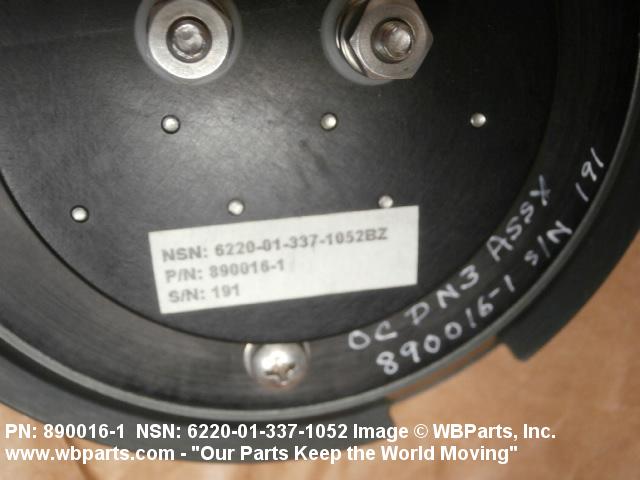

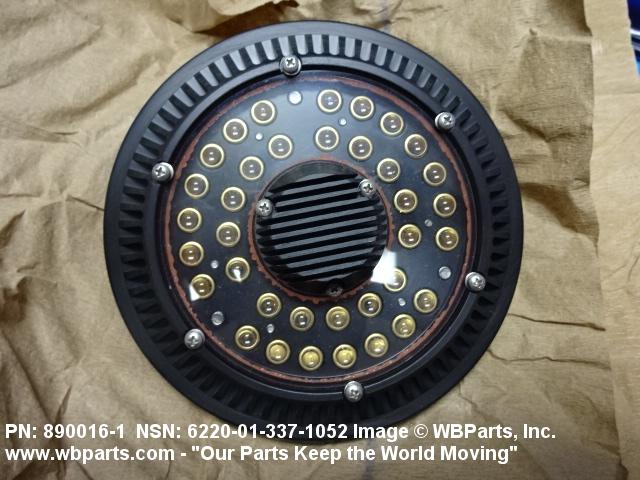

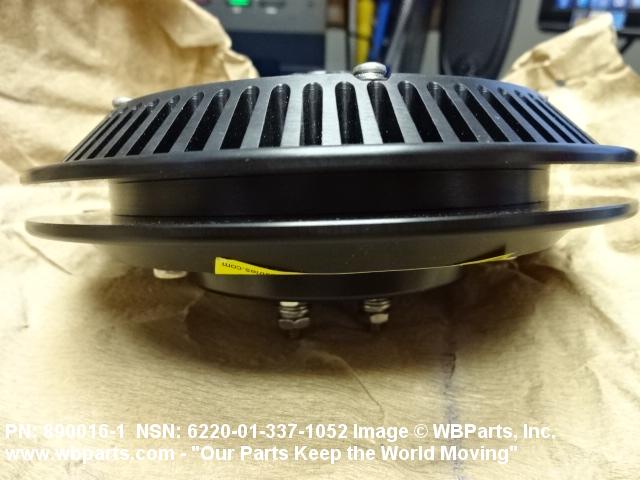

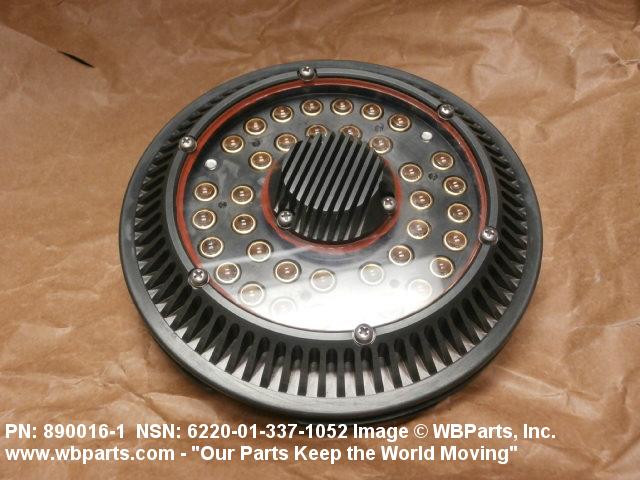

Drawings & Photos | NSN 6220-01-337-1052


Demand History | NSN 6220-01-337-1052

Part Number Request Date QTY Origin
890016-1 2019-08-238 14 DIBBS
890016-1 2019-08-227 14 DIBBS
6220-01-337-1052 2018-11-322 3 DIBBS
6220-01-337-1052 2018-08-241 7 DIBBS
6220-01-337-1052 2018-08-227 7 DIBBS
6220-01-337-1052 2018-06-170 2 United States
6220-01-337-1052 2018-02-57 2 DIBBS
6220-01-337-1052 2018-02-37 2 DIBBS
6220-01-337-1052 2016-07-200 3 DIBBS
6220-01-337-1052 2016-07-189 3 DIBBS
6220-01-337-1052 2016-03-69 7 DIBBS
6220-01-337-1052 2016-03-64 1 United States
6220-01-337-1052 2015-06-180 4 DIBBS

Cross Reference | NSN 6220-01-337-1052

Part Number Cage Code Manufacturer
890016-1 0CDN3 DRS ICAS, LLC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6220-01-337-1052

Technical Data | NSN 6220-01-337-1052

Characteristic Specifications
III END ITEM IDENTIFICATION NIGHT VISION IMAGE H54

Restrictions/Controls & Freight Information | NSN 6220-01-337-1052

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:QStrategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 011760 AIRCRAFT/AIRCRAFT PART VIZ:
Less than car load rating
Less than truck load rating D 200.0
Water commodity Code 671 unknown
Originating Activity Code TG Warner-Robins Air Logistics Center
Robins AFB, GA 31098-5609
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6220-01-337-1052

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation CodeBZTG:H-53 SEASTALLION
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityPStock Fund (except Munitions)
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
