Product Details | AIRCRAFT LANDING LIGHT

6220-00-708-8861 A light specifically designed to be installed on aircraft to project a focused beam of bright light to facilitate landing operations during periods of darkness. See also LIGHT, TAXIING, AIRCRAFT.

Part Alternates: 5000341, 50-0034-1, 6220-00-708-8861, 00-708-8861, 6220007088861, 007088861

Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures

Supply Group (FSG) NSN Assign. NIIN
62 14 FEB 1968 00-708-8861

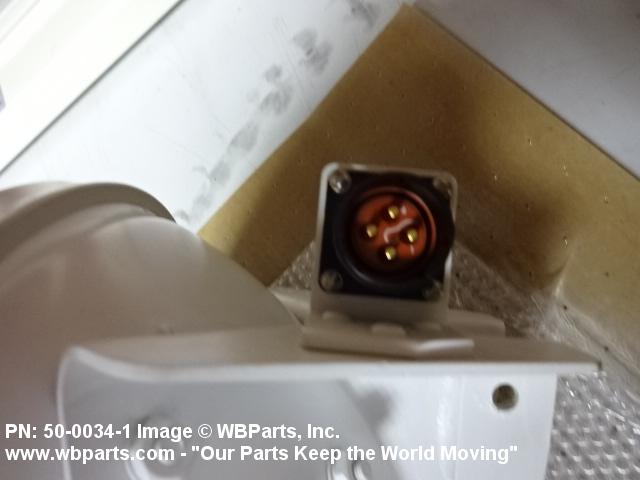

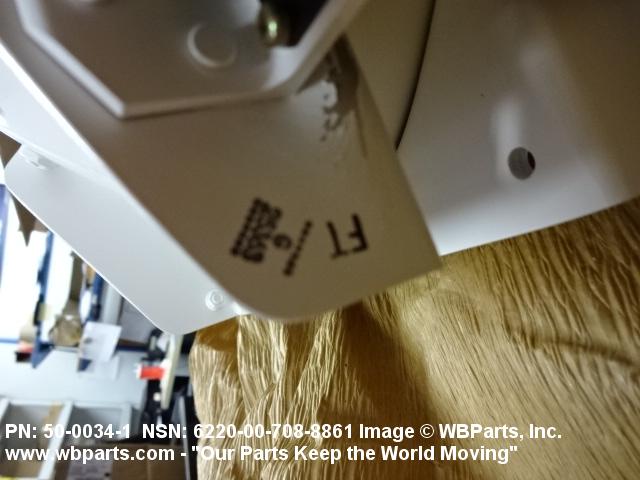

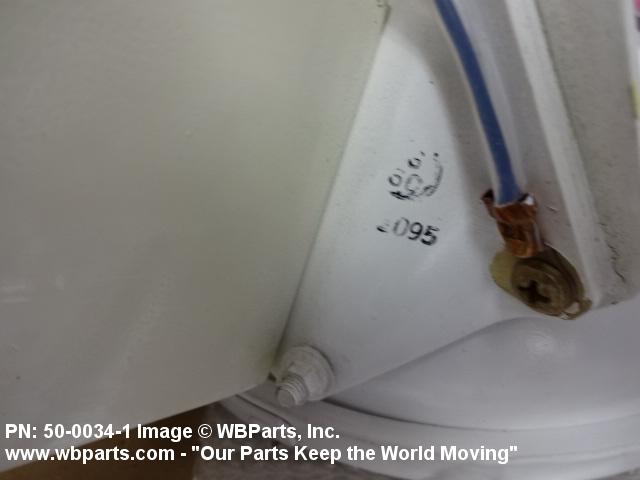

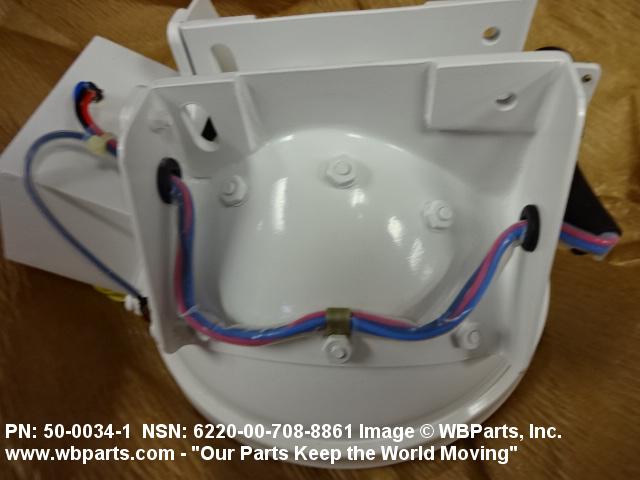

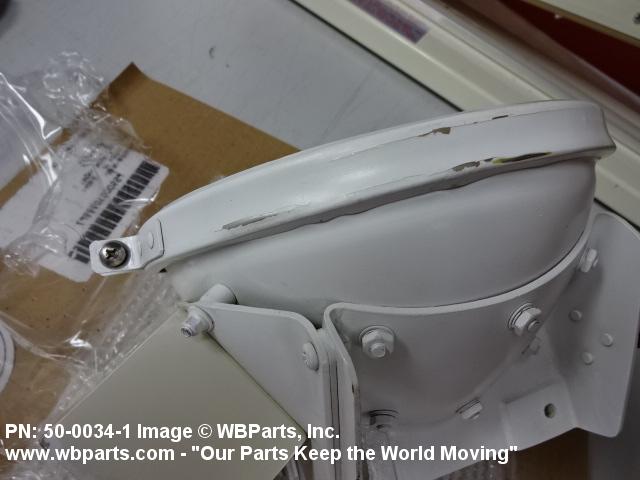

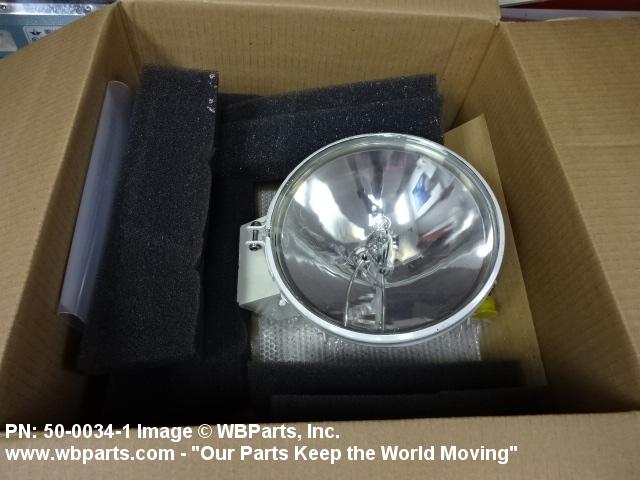

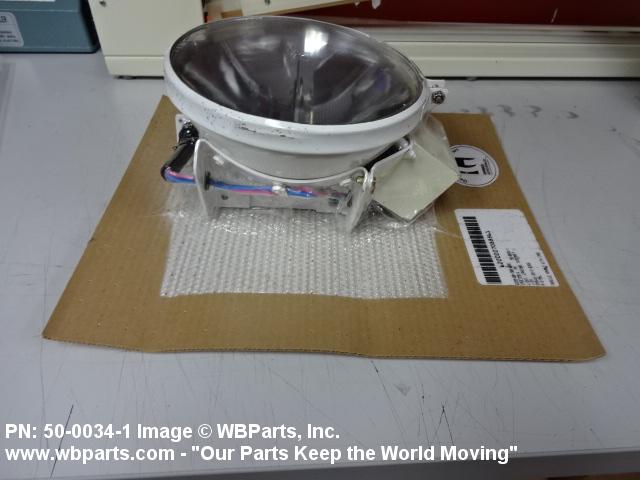

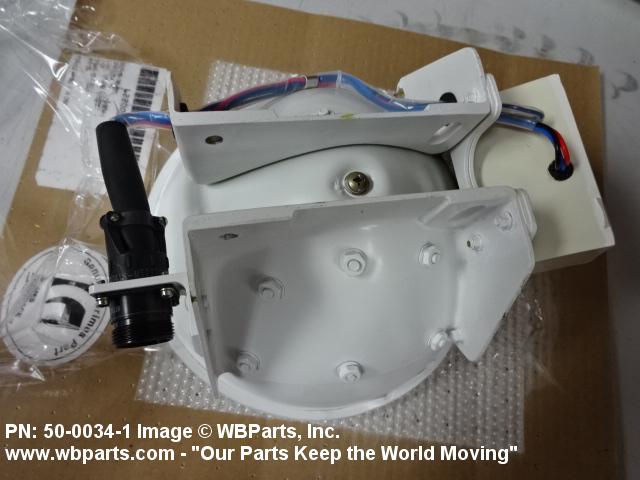

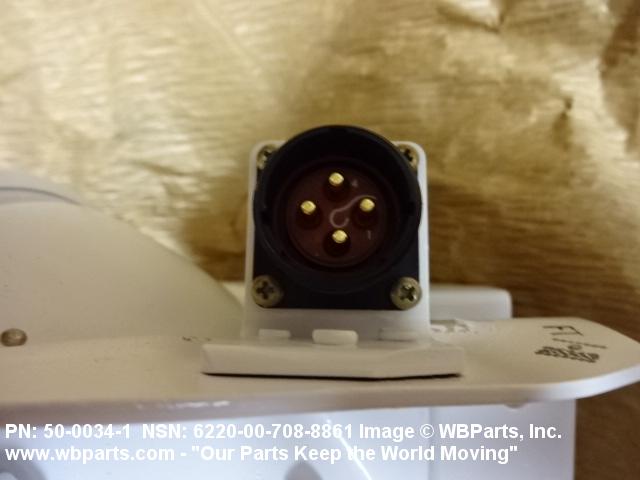

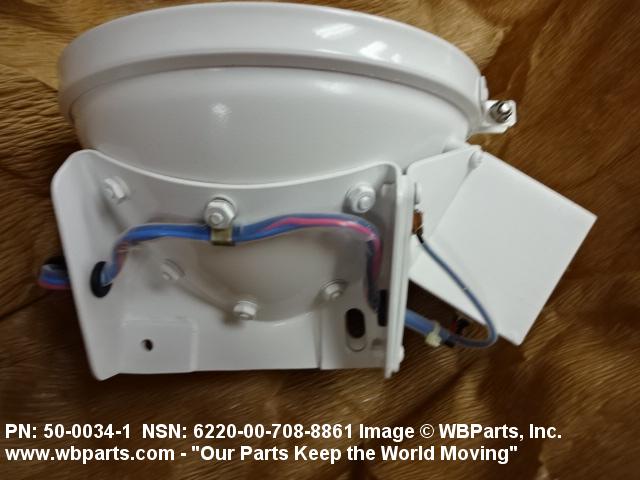

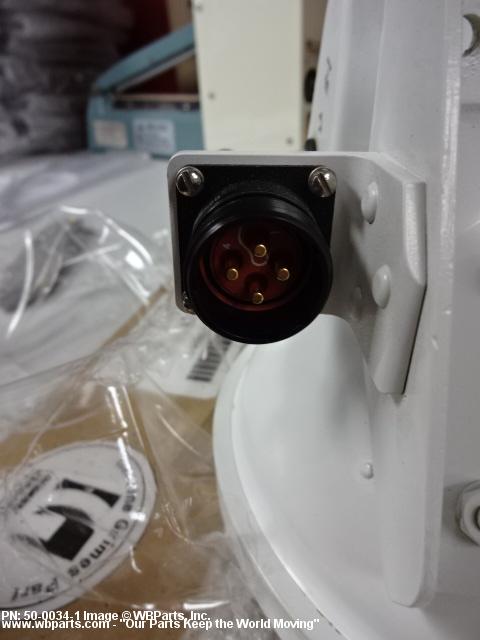

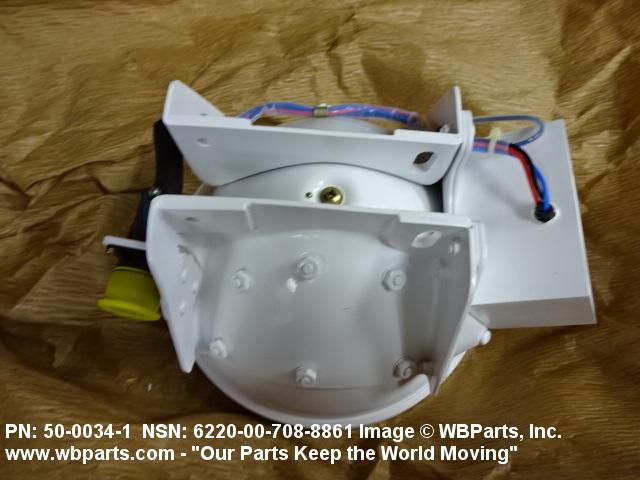

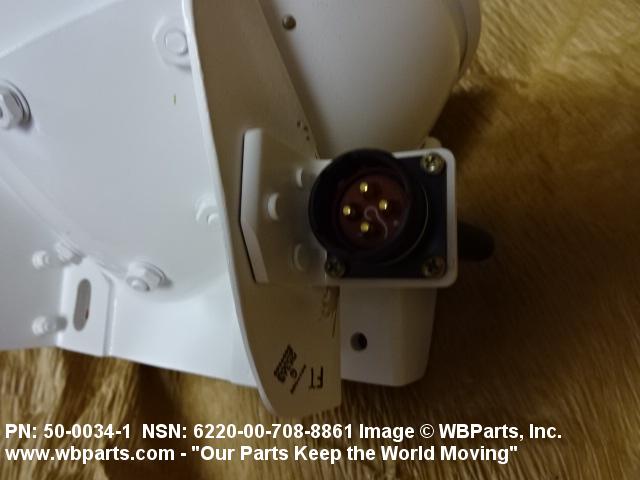

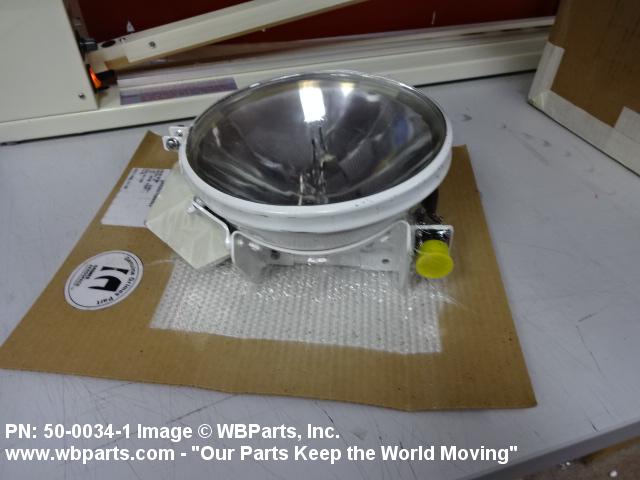

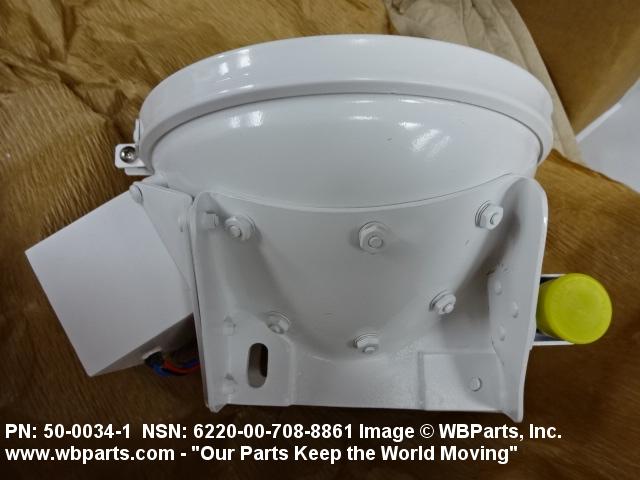

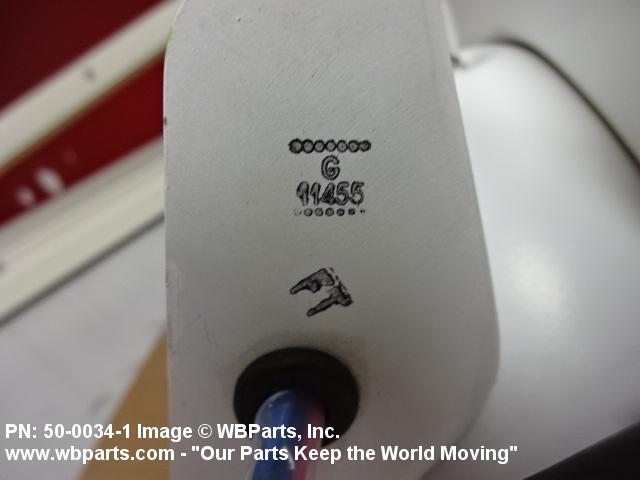

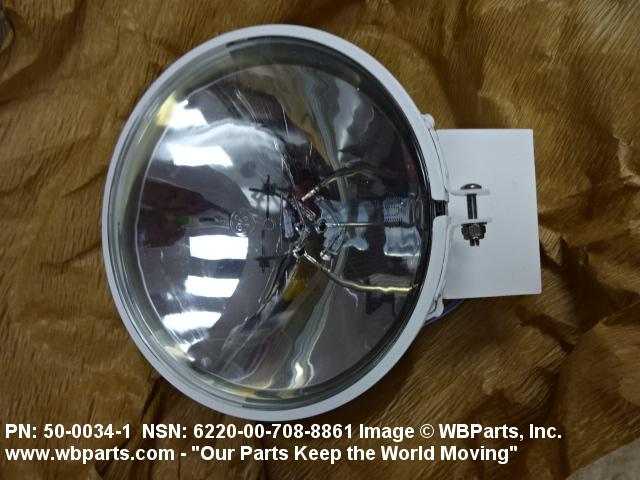

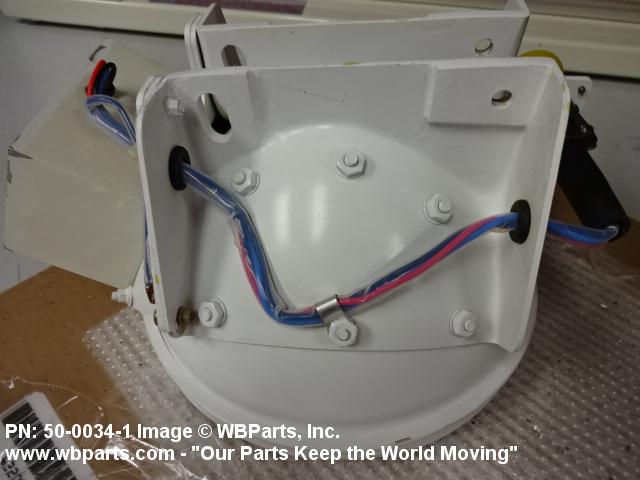

Drawings & Photos | NSN 6220-00-708-8861


Demand History | NSN 6220-00-708-8861

Part Number Request Date QTY Origin
50-0034-1 2024-11-319 1 DIBBS
50-0034-1 2024-08-220 2 DIBBS
50-0034-1 2024-07-212 2 DIBBS
50-0034-1 2024-06-176 2 DIBBS
50-0034-1 2024-06-168 2 DIBBS
50-0034-1 2024-04-100 5 DIBBS
50-0034-1 2024-02-56 5 DIBBS
50-0034-1 2024-02-46 5 DIBBS
50-0034-1 2023-01-16 5 DIBBS
50-0034-1 2019-02-36 6 DIBBS
6220-00-708-8861 2018-08-225 7 DIBBS
6220-00-708-8861 2018-07-185 7 DIBBS
6220-00-708-8861 2017-09-261 3 DIBBS
6220-00-708-8861 2017-09-249 3 DIBBS
6220-00-708-8861 2017-08-234 1 DIBBS
6220-00-708-8861 2017-08-233 1 DIBBS
6220-00-708-8861 2017-08-233 3 DIBBS
6220-00-708-8861 2017-08-221 1 DIBBS
6220-00-708-8861 2017-08-220 1 DIBBS
6220-00-708-8861 2017-07-186 2 DIBBS
6220-00-708-8861 2017-02-40 4 DIBBS
6220-00-708-8861 2017-01-20 2 United States
6220-00-708-8861 2016-12-342 8 DIBBS
6220-00-708-8861 2016-11-333 3 DIBBS
6220-00-708-8861 2016-10-287 5 DIBBS
6220-00-708-8861 2016-09-258 1 DIBBS
6220-00-708-8861 2016-09-251 2 DIBBS
6220-00-708-8861 2012-05-139 3 us
6220-00-708-8861 2010-10-300 2 DIBBS
6220-00-708-8861 2010-04-102 5 DIBBS
6220-00-708-8861 2010-02-32 20 DIBBS
6220-00-708-8861 2009-12-362 10 DIBBS
6220-00-708-8861 2009-10-278 11 DIBBS
6220-00-708-8861 2008-12-347 6 DIBBS
6220-00-708-8861 2008-09-255 8 DIBBS
6220-00-708-8861 2008-06-165 4 DIBBS
6220-00-708-8861 2007-08-232 7 DIBBS
6220-00-708-8861 2007-06-159 5 DIBBS

Cross Reference | NSN 6220-00-708-8861

Part Number Cage Code Manufacturer
50-0034-1 72914 GRIMES AEROSPACE COMPANY DBA HONEYWELL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6220-00-708-8861

Technical Data | NSN 6220-00-708-8861

Characteristic Specifications
SHAPE TAPERED
OVERALL DIAMETER 8.250 INCHES NOMINAL
OVERALL LENGTH 5.000 INCHES NOMINAL
VOLTAGE RATING IN VOLTS 115.0 AC NOMINAL OR 28.0 DC NOMINAL
MATERIAL ALUMINUM BODY
SURFACE TREATMENT ENAMEL BODY
LAMP TYPE ACCOMMODATED AND QUANTITY 1 INCANDESCENT
LAMP BASE TYPE ACCOMMODATED THREE SCREW TERMINALS
MOUNTING METHOD BRACKET
TERMINAL TYPE AND QUANTITY 3 WIRE LEAD
WIRING PROVISION METHOD INDIVIDUAL WIRE
WIRING PROVISION LENGTH ANY ACCEPTABLE ALL PROVISIONS
FURNISHED ITEMS AND QUANTITY 1 LAMP
MANUFACTURERS CODE 72914
DESIGN CONTROL REFERENCE 50-0034-1

Restrictions/Controls & Freight Information | NSN 6220-00-708-8861

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 011760 AIRCRAFT/AIRCRAFT PART VIZ:
Less than car load rating
Less than truck load rating D 200.0
Water commodity Code 671 unknown
Originating Activity Code SE San Antonio Air Logistics Center
Kelly AFB, TX 78241-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6220-00-708-8861

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityPStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
