Product Details | AIRCRAFT LANDING LIGHT
6220-01-174-1726 A light specifically designed to be installed on aircraft to project a focused beam of bright light to facilitate landing operations during periods of darkness. See also LIGHT, TAXIING, AIRCRAFT.
Part Alternates: 5001085, 50-0108-5, 6220-01-174-1726, 01-174-1726, 6220011741726, 011741726
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 15 MAR 1984 | 01-174-1726 | 13454 ( LIGHT, LANDING, AIRCRAFT ) |

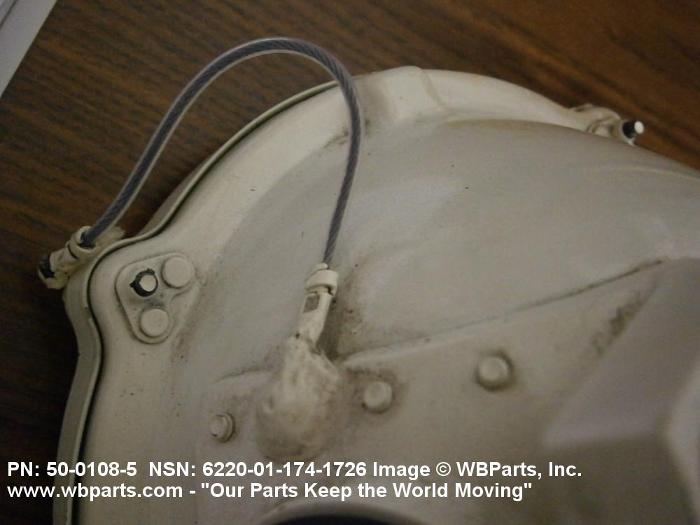

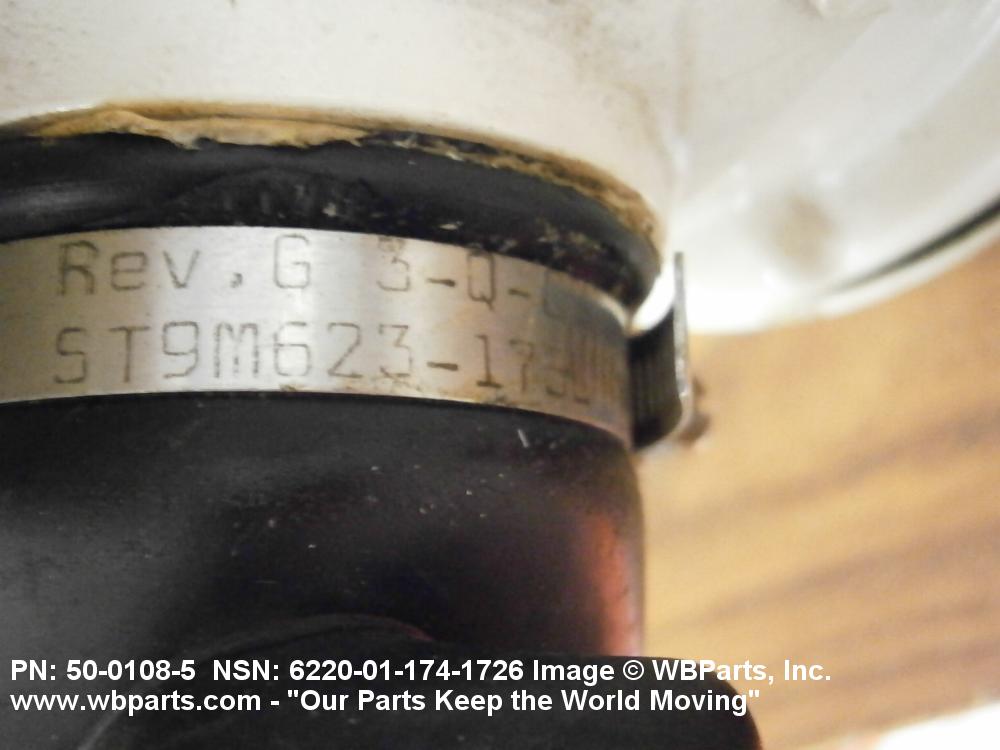

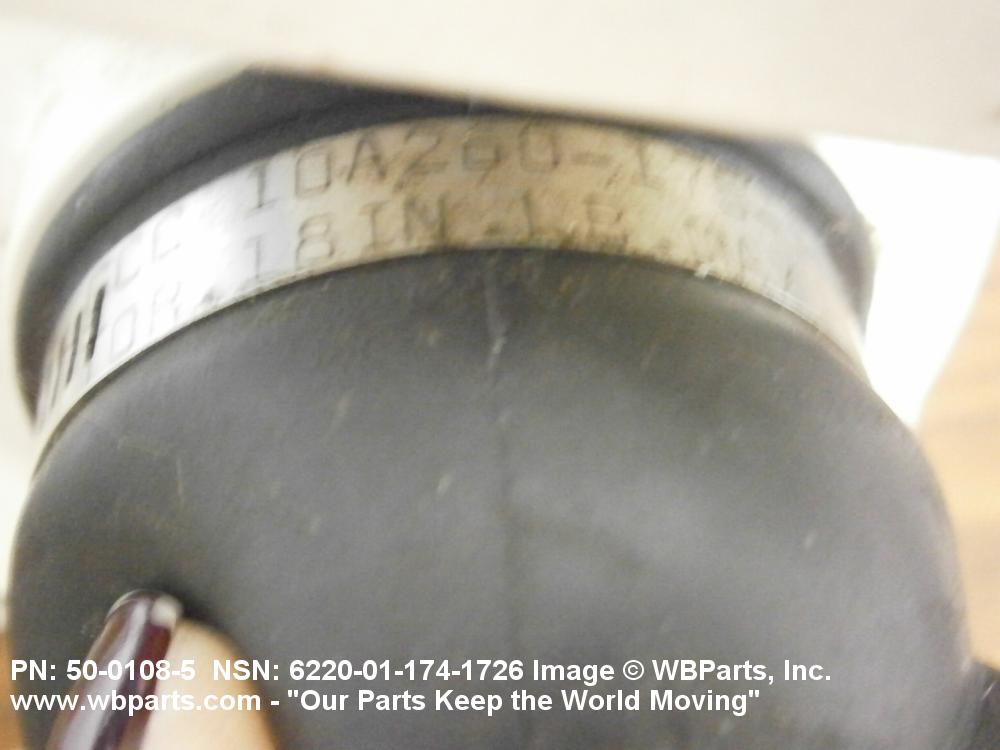

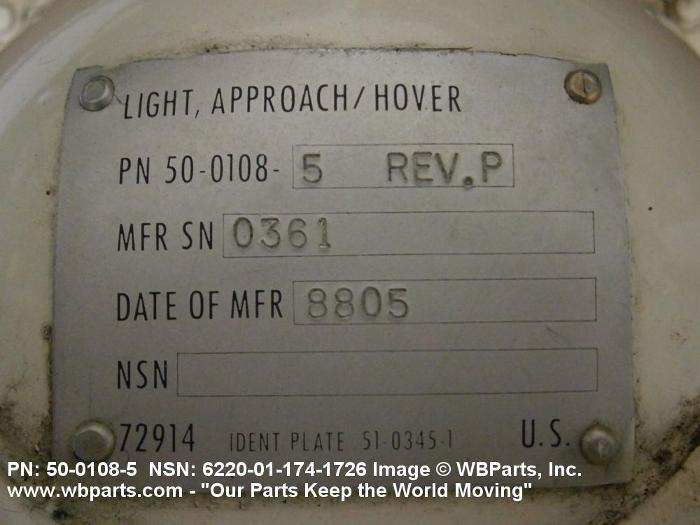

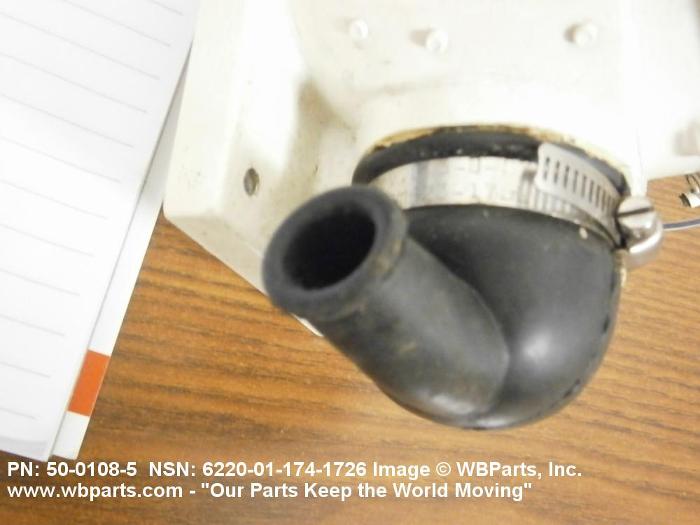

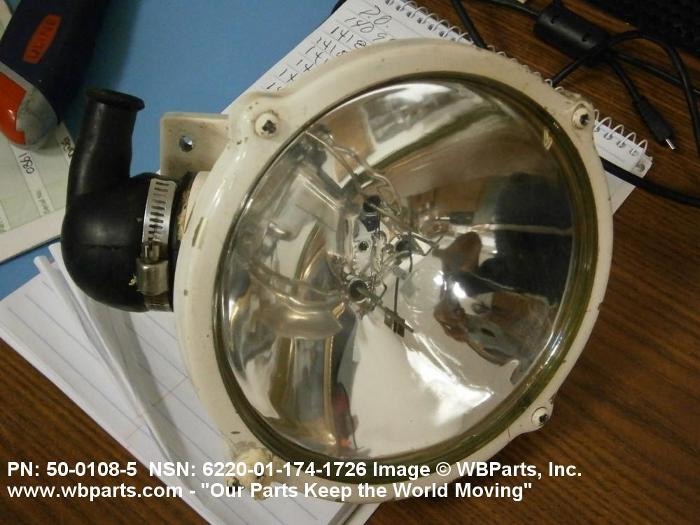

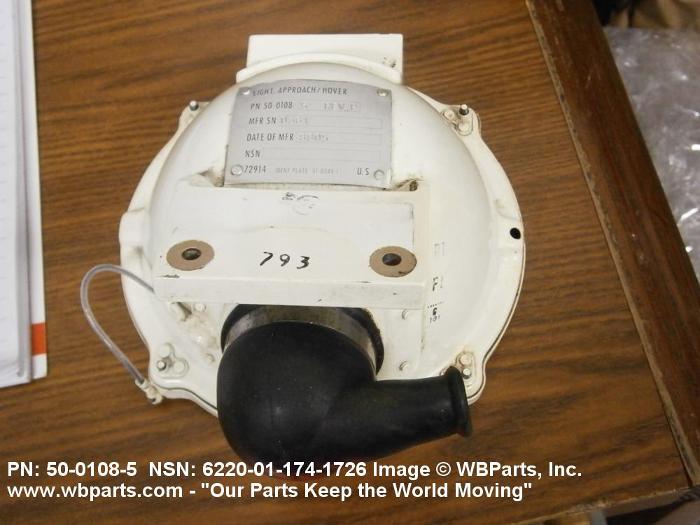

Drawings & Photos | NSN 6220-01-174-1726
Demand History | NSN 6220-01-174-1726
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6220-01-174-1726 | 2015-12-28 | 7 | DIBBS |
| 6220-01-174-1726 | 2015-12-17 | 7 | DIBBS |
| 6220-01-174-1726 | 2013-03-03 | 5 | DIBBS |
| 6220-01-174-1726 | 2012-02-16 | 2 | DIBBS |
| 6220-01-174-1726 | 2012-02-16 | 1 | DIBBS |
| 6220-01-174-1726 | 2012-01-26 | 1 | DIBBS |
| 6220-01-174-1726 | 2012-01-18 | 2 | DIBBS |
| 6220-01-174-1726 | 2011-10-21 | 1 | DIBBS |
| 6220-01-174-1726 | 2011-10-13 | 2 | United States |
| 6220-01-174-1726 | 2011-06-21 | 2 | DIBBS |
| 6220-01-174-1726 | 2010-08-27 | 3 | DIBBS |
| 6220-01-174-1726 | 2010-04-23 | 1 | DIBBS |
| 6220-01-174-1726 | 2010-03-01 | 1 | DIBBS |
| 6220-01-174-1726 | 2009-09-18 | 1 | DIBBS |
| 6220-01-174-1726 | 2008-07-21 | 1 | DIBBS |
| 6220-01-174-1726 | 2008-05-05 | 1 | DIBBS |
| 6220-01-174-1726 | 2007-09-01 | 1 | DIBBS |
| 6220-01-174-1726 | 2007-08-25 | 1 | DIBBS |
| 6220-01-174-1726 | 2007-05-08 | 1 | DIBBS |
| 6220-01-174-1726 | 2007-03-10 | 1 | DIBBS |
Cross Reference | NSN 6220-01-174-1726
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 50-0108-5 | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6220-01-174-1726
Related Products | NSN 6220-01-174-1726
6220-01-174-1858, 6220-01-174-1859, 6220-01-174-1860, 6220-01-174-1861, 6220-01-174-1899
Technical Data | NSN 6220-01-174-1726
| Characteristic | Specifications |
|---|---|
| SHAPE | TAPERED |
| OVERALL DEPTH | 3.500 INCHES NOMINAL |
| OVERALL DIAMETER | 5.870 INCHES NOMINAL |
| VOLTAGE RATING IN VOLTS | 28.0 DC NOMINAL |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| MOUNTING METHOD | THREADED HOLE |
| MANUFACTURERS CODE | 72914 |
| DESIGN CONTROL REFERENCE | 50-0108-5 |
Restrictions/Controls & Freight Information | NSN 6220-01-174-1726
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Hazardous Control Code: | A2 | Radioactive, License Exempt RADIOACTIVE, EXEMPT |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011760 | AIRCRAFT/AIRCRAFT PART VIZ: |
| Less than car load rating | ||
| Less than truck load rating | D | 200.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6220-01-174-1726
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | SR | ATTACKAIRCRAFT(AV8B) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
